Siemens SIMOTICS L-1FN3 Linear Motors (Continuous Load, Water-Cooled)

Siemens SIMOTICS L-1FN3 Linear Motors (Continuous Load, Water-Cooled)

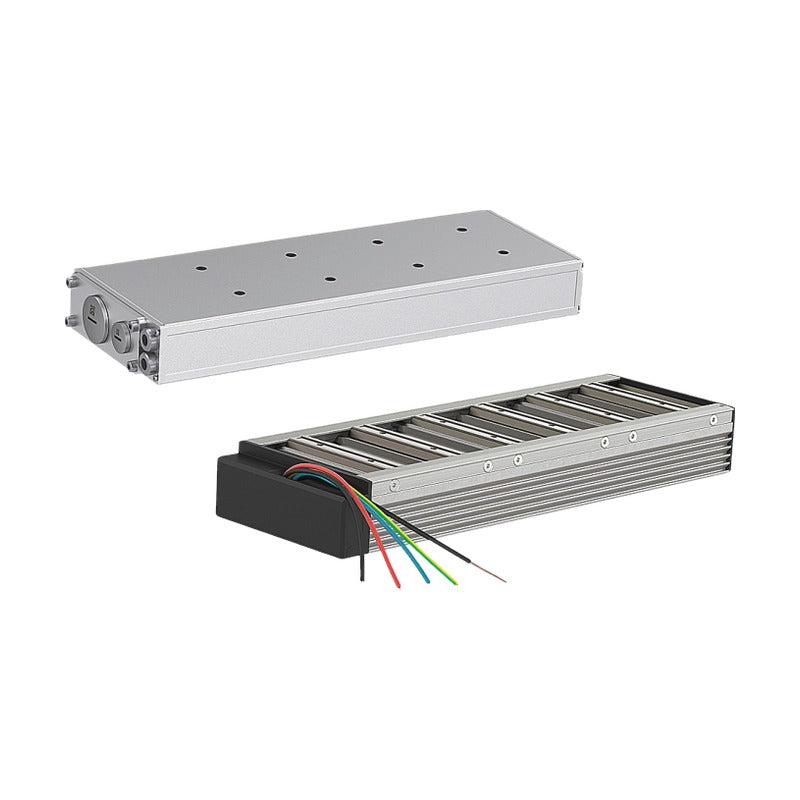

SIMOTICS L-1FN3 linear motor primary sections, continuous load, water-cooled version, for SINAMICS S120/S220 direct drives.

Key features

  • Permanent-magnet synchronous linear motor: primary section plus magnetic secondary sections
  • Direct drive without mechanical transmission elements for high dynamics and precision
  • Operation on SINAMICS S120/S220 with linear measuring system
  • Version for continuous load: high rated force with low heat loss
  • Several connection types: terminal box or permanently connected cables

Specifications

Motor type Synchronous linear motor, primary section
Version Continuous Load
Cooling Water cooling (main and precision cooler)
DC link voltage 600 V DC (velocity values)
Secondary section Order separately (1FN3...-4SA..)
Source Siemens Catalog D 21.4 · 2026, p. 924-927
1FN3050-1ND00-0EA3 Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-1ND00-0FA3 Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-1ND00-0HA3 Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-1ND00-0JA3 Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3050-2NB80-0EA3 Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-2NB80-0FA3 Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-2NB80-0HA3 Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-2NB80-0JA3 Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3050-2NE00-0EA3 Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-2NE00-0FA3 Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-2NE00-0HA3 Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-2NE00-0JA3 Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-1NC00-0BA3 Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Separate power/signal, terminal box
1FN3100-1NC00-0EA3 Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-1NC00-0FA3 Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-1NC00-0HA3 Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-1NC00-0JA3 Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2NC80-0BA3 Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Separate power/signal, terminal box
1FN3100-2NC80-0EA3 Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2NC80-0FA3 Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2NC80-0HA3 Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2NC80-0JA3 Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3NA80-0BA3 Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Separate power/signal, terminal box
1FN3100-3NA80-0EA3 Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3NA80-0FA3 Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3NA80-0HA3 Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3NA80-0JA3 Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3NC00-0BA3 Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Separate power/signal, terminal box
1FN3100-3NC00-0EA3 Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3NC00-0FA3 Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3NC00-0HA3 Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3NC00-0JA3 Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-4NC80-0BA3 Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Separate power/signal, terminal box
1FN3100-4NC80-0EA3 Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-4NC80-0FA3 Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-4NC80-0HA3 Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-4NC80-0JA3 Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-1NC20-0BA3 Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Separate power/signal, terminal box
1FN3150-1NC20-0EA3 Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-1NC20-0FA3 Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-1NC20-0HA3 Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-1NC20-0JA3 Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-2NB80-0BA3 Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Separate power/signal, terminal box
1FN3150-2NB80-0EA3 Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-2NB80-0FA3 Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-2NB80-0HA3 Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-2NB80-0JA3 Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-3NB80-0BA3 Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Separate power/signal, terminal box
1FN3150-3NB80-0EA3 Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-3NB80-0FA3 Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-3NB80-0HA3 Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-3NB80-0JA3 Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-3NC70-0BA3 Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Separate power/signal, terminal box
1FN3150-3NC70-0EA3 Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-3NC70-0FA3 Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-3NC70-0HA3 Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-3NC70-0JA3 Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-4NB80-0BA3 Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Separate power/signal, terminal box
1FN3150-4NB80-0EA3 Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-4NB80-0FA3 Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-4NB80-0HA3 Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-4NB80-0JA3 Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-1NC10-0BA3 Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Separate power/signal, terminal box
1FN3300-1NC10-0EA3 Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-1NC10-0FA3 Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-1NC10-0HA3 Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-1NC10-0JA3 Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2NC10-0BA3 Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Separate power/signal, terminal box
1FN3300-2NC10-0EA3 Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2NC10-0FA3 Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2NC10-0HA3 Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2NC10-0JA3 Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2NH00-0BA3 Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Separate power/signal, terminal box
1FN3300-2NH00-0EA3 Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2NH00-0FA3 Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2NH00-0HA3 Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2NH00-0JA3 Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3NB50-0BA3 Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Separate power/signal, terminal box
1FN3300-3NB50-0EA3 Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3NB50-0FA3 Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3NB50-0HA3 Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3NB50-0JA3 Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3NC40-0BA3 Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Separate power/signal, terminal box
1FN3300-3NC40-0EA3 Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3NC40-0FA3 Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3NC40-0HA3 Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3NC40-0JA3 Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-4NB80-0BA3 Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Separate power/signal, terminal box
1FN3300-4NB80-0EA3 Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-4NB80-0FA3 Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-4NB80-0HA3 Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-4NB80-0JA3 Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-1NB50-0BA3 Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Separate power/signal, terminal box
1FN3450-1NB50-0EA3 Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-1NB50-0FA3 Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-1NB50-0HA3 Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-1NB50-0JA3 Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2NB40-0BA3 Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Separate power/signal, terminal box
1FN3450-2NB40-0EA3 Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2NB40-0FA3 Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2NB40-0HA3 Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2NB40-0JA3 Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2NB80-0BA3 Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Separate power/signal, terminal box
1FN3450-2NB80-0EA3 Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2NB80-0FA3 Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2NB80-0HA3 Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2NB80-0JA3 Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2NC50-0BA3 Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Separate power/signal, terminal box
1FN3450-2NC50-0EA3 Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2NC50-0FA3 Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2NC50-0HA3 Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2NC50-0JA3 Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3NA50-0BA3 Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Separate power/signal, terminal box
1FN3450-3NA50-0EA3 Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3NA50-0FA3 Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3NA50-0HA3 Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3NA50-0JA3 Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3NB50-0BA3 Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Separate power/signal, terminal box
1FN3450-3NB50-0EA3 Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3NB50-0FA3 Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3NB50-0HA3 Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3NB50-0JA3 Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3NC50-0BA3 Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Separate power/signal, terminal box
1FN3450-3NC50-0EA3 Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3NC50-0FA3 Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3NC50-0HA3 Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3NC50-0JA3 Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4NB20-0BA3 Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Separate power/signal, terminal box
1FN3450-4NB20-0EA3 Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4NB20-0FA3 Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4NB20-0HA3 Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4NB20-0JA3 Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4NB80-0BA3 Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Separate power/signal, terminal box
1FN3450-4NB80-0EA3 Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4NB80-0FA3 Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4NB80-0HA3 Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4NB80-0JA3 Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2NB00-0BA3 Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Separate power/signal, terminal box
1FN3600-2NB00-0EA3 Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2NB00-0FA3 Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2NB00-0HA3 Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2NB00-0JA3 Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2NB80-0BA3 Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Separate power/signal, terminal box
1FN3600-2NB80-0EA3 Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2NB80-0FA3 Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2NB80-0HA3 Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2NB80-0JA3 Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2NE50-0BA3 Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Separate power/signal, terminal box
1FN3600-2NE50-0EA3 Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2NE50-0FA3 Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2NE50-0HA3 Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2NE50-0JA3 Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3NB00-0BA3 Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Separate power/signal, terminal box
1FN3600-3NB00-0EA3 Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3NB00-0FA3 Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3NB00-0HA3 Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3NB00-0JA3 Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3NB80-0BA3 Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Separate power/signal, terminal box
1FN3600-3NB80-0EA3 Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3NB80-0FA3 Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3NB80-0HA3 Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3NB80-0JA3 Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4NA70-0BA3 Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Separate power/signal, terminal box
1FN3600-4NA70-0EA3 Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4NA70-0FA3 Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4NA70-0HA3 Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4NA70-0JA3 Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4NB80-0BA3 Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Separate power/signal, terminal box
1FN3600-4NB80-0EA3 Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4NB80-0FA3 Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4NB80-0HA3 Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4NB80-0JA3 Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2NB20-0BA3 Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Separate power/signal, terminal box
1FN3900-2NB20-0EA3 Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2NB20-0FA3 Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2NB20-0HA3 Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2NB20-0JA3 Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2NC80-0BA3 Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Separate power/signal, terminal box
1FN3900-2NC80-0EA3 Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2NC80-0FA3 Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2NC80-0HA3 Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2NC80-0JA3 Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-3NB20-0BA3 Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Separate power/signal, terminal box
1FN3900-3NB20-0EA3 Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-3NB20-0FA3 Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-3NB20-0HA3 Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-3NB20-0JA3 Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4NA50-0BA3 Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Separate power/signal, terminal box
1FN3900-4NA50-0EA3 Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4NA50-0FA3 Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4NA50-0HA3 Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4NA50-0JA3 Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4NA80-0BA3 Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Separate power/signal, terminal box
1FN3900-4NA80-0EA3 Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4NA80-0FA3 Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4NA80-0HA3 Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4NA80-0JA3 Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4NB20-0BA3 Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Separate power/signal, terminal box
1FN3900-4NB20-0EA3 Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4NB20-0FA3 Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4NB20-0HA3 Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4NB20-0JA3 Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed 0.5 m, connector
Servo MotorsSiemens
202 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS L-1FN3 Linear Motors (Continuous Load, Water-Cooled)

Brand Siemens·Servo Motors

Available part numbers (202)

1FN3050-1ND00-0EA3, 1FN3050-1ND00-0FA3, 1FN3050-1ND00-0HA3, 1FN3050-1ND00-0JA3, 1FN3050-2NB80-0EA3, 1FN3050-2NB80-0FA3, 1FN3050-2NB80-0HA3, 1FN3050-2NB80-0JA3, 1FN3050-2NE00-0EA3, 1FN3050-2NE00-0FA3 + 192 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1FN3050-1ND00-0EA3Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-1ND00-0FA3Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-1ND00-0HA3Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-1ND00-0JA3Rated force FN: 151 N | Max. velocity at FN: 429 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3050-2NB80-0EA3Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-2NB80-0FA3Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-2NB80-0HA3Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-2NB80-0JA3Rated force FN: 302 N | Max. velocity at FN: 199 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3050-2NE00-0EA3Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-2NE00-0FA3Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-2NE00-0HA3Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-2NE00-0JA3Rated force FN: 302 N | Max. velocity at FN: 419 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-1NC00-0BA3Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Separate power/signal, terminal box
1FN3100-1NC00-0EA3Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-1NC00-0FA3Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-1NC00-0HA3Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-1NC00-0JA3Rated force FN: 302 N | Max. velocity at FN: 212 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2NC80-0BA3Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Separate power/signal, terminal box
1FN3100-2NC80-0EA3Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2NC80-0FA3Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2NC80-0HA3Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2NC80-0JA3Rated force FN: 604 N | Max. velocity at FN: 300 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3NA80-0BA3Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Separate power/signal, terminal box
1FN3100-3NA80-0EA3Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3NA80-0FA3Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3NA80-0HA3Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3NA80-0JA3Rated force FN: 905 N | Max. velocity at FN: 101 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3NC00-0BA3Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Separate power/signal, terminal box
1FN3100-3NC00-0EA3Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3NC00-0FA3Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3NC00-0HA3Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3NC00-0JA3Rated force FN: 905 N | Max. velocity at FN: 206 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-4NC80-0BA3Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Separate power/signal, terminal box
1FN3100-4NC80-0EA3Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-4NC80-0FA3Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-4NC80-0HA3Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-4NC80-0JA3Rated force FN: 1210 N | Max. velocity at FN: 296 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-1NC20-0BA3Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Separate power/signal, terminal box
1FN3150-1NC20-0EA3Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-1NC20-0FA3Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-1NC20-0HA3Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-1NC20-0JA3Rated force FN: 453 N | Max. velocity at FN: 230 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-2NB80-0BA3Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Separate power/signal, terminal box
1FN3150-2NB80-0EA3Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-2NB80-0FA3Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-2NB80-0HA3Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-2NB80-0JA3Rated force FN: 905 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-3NB80-0BA3Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Separate power/signal, terminal box
1FN3150-3NB80-0EA3Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-3NB80-0FA3Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-3NB80-0HA3Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-3NB80-0JA3Rated force FN: 1360 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-3NC70-0BA3Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Separate power/signal, terminal box
1FN3150-3NC70-0EA3Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-3NC70-0FA3Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-3NC70-0HA3Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-3NC70-0JA3Rated force FN: 1360 N | Max. velocity at FN: 284 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-4NB80-0BA3Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Separate power/signal, terminal box
1FN3150-4NB80-0EA3Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-4NB80-0FA3Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-4NB80-0HA3Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-4NB80-0JA3Rated force FN: 1810 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-1NC10-0BA3Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Separate power/signal, terminal box
1FN3300-1NC10-0EA3Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-1NC10-0FA3Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-1NC10-0HA3Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-1NC10-0JA3Rated force FN: 864 N | Max. velocity at FN: 228 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2NC10-0BA3Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Separate power/signal, terminal box
1FN3300-2NC10-0EA3Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2NC10-0FA3Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2NC10-0HA3Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2NC10-0JA3Rated force FN: 1730 N | Max. velocity at FN: 224 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2NH00-0BA3Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Separate power/signal, terminal box
1FN3300-2NH00-0EA3Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2NH00-0FA3Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2NH00-0HA3Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2NH00-0JA3Rated force FN: 1730 N | Max. velocity at FN: 715 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3NB50-0BA3Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Separate power/signal, terminal box
1FN3300-3NB50-0EA3Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3NB50-0FA3Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3NB50-0HA3Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3NB50-0JA3Rated force FN: 2595 N | Max. velocity at FN: 160 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3NC40-0BA3Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Separate power/signal, terminal box
1FN3300-3NC40-0EA3Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3NC40-0FA3Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3NC40-0HA3Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3NC40-0JA3Rated force FN: 2595 N | Max. velocity at FN: 257 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-4NB80-0BA3Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Separate power/signal, terminal box
1FN3300-4NB80-0EA3Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-4NB80-0FA3Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-4NB80-0HA3Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-4NB80-0JA3Rated force FN: 3460 N | Max. velocity at FN: 193 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-1NB50-0BA3Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Separate power/signal, terminal box
1FN3450-1NB50-0EA3Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-1NB50-0FA3Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-1NB50-0HA3Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-1NB50-0JA3Rated force FN: 1300 N | Max. velocity at FN: 169 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2NB40-0BA3Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Separate power/signal, terminal box
1FN3450-2NB40-0EA3Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2NB40-0FA3Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2NB40-0HA3Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2NB40-0JA3Rated force FN: 2590 N | Max. velocity at FN: 147 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2NB80-0BA3Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Separate power/signal, terminal box
1FN3450-2NB80-0EA3Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2NB80-0FA3Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2NB80-0HA3Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2NB80-0JA3Rated force FN: 2590 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2NC50-0BA3Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Separate power/signal, terminal box
1FN3450-2NC50-0EA3Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2NC50-0FA3Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2NC50-0HA3Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2NC50-0JA3Rated force FN: 2590 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3NA50-0BA3Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Separate power/signal, terminal box
1FN3450-3NA50-0EA3Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3NA50-0FA3Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3NA50-0HA3Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3NA50-0JA3Rated force FN: 3890 N | Max. velocity at FN: 69.9 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3NB50-0BA3Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Separate power/signal, terminal box
1FN3450-3NB50-0EA3Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3NB50-0FA3Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3NB50-0HA3Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3NB50-0JA3Rated force FN: 3890 N | Max. velocity at FN: 165 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3NC50-0BA3Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Separate power/signal, terminal box
1FN3450-3NC50-0EA3Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3NC50-0FA3Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3NC50-0HA3Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3NC50-0JA3Rated force FN: 3890 N | Max. velocity at FN: 264 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4NB20-0BA3Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Separate power/signal, terminal box
1FN3450-4NB20-0EA3Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4NB20-0FA3Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4NB20-0HA3Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4NB20-0JA3Rated force FN: 5190 N | Max. velocity at FN: 126 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4NB80-0BA3Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Separate power/signal, terminal box
1FN3450-4NB80-0EA3Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4NB80-0FA3Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4NB80-0HA3Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4NB80-0JA3Rated force FN: 5190 N | Max. velocity at FN: 186 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2NB00-0BA3Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Separate power/signal, terminal box
1FN3600-2NB00-0EA3Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2NB00-0FA3Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2NB00-0HA3Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2NB00-0JA3Rated force FN: 3460 N | Max. velocity at FN: 107 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2NB80-0BA3Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Separate power/signal, terminal box
1FN3600-2NB80-0EA3Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2NB80-0FA3Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2NB80-0HA3Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2NB80-0JA3Rated force FN: 3460 N | Max. velocity at FN: 197 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2NE50-0BA3Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Separate power/signal, terminal box
1FN3600-2NE50-0EA3Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2NE50-0FA3Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2NE50-0HA3Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2NE50-0JA3Rated force FN: 3460 N | Max. velocity at FN: 460 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3NB00-0BA3Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Separate power/signal, terminal box
1FN3600-3NB00-0EA3Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3NB00-0FA3Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3NB00-0HA3Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3NB00-0JA3Rated force FN: 5190 N | Max. velocity at FN: 137 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3NB80-0BA3Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Separate power/signal, terminal box
1FN3600-3NB80-0EA3Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3NB80-0FA3Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3NB80-0HA3Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3NB80-0JA3Rated force FN: 5190 N | Max. velocity at FN: 196 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4NA70-0BA3Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Separate power/signal, terminal box
1FN3600-4NA70-0EA3Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4NA70-0FA3Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4NA70-0HA3Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4NA70-0JA3Rated force FN: 6920 N | Max. velocity at FN: 86 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4NB80-0BA3Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Separate power/signal, terminal box
1FN3600-4NB80-0EA3Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4NB80-0FA3Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4NB80-0HA3Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4NB80-0JA3Rated force FN: 6920 N | Max. velocity at FN: 195 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2NB20-0BA3Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Separate power/signal, terminal box
1FN3900-2NB20-0EA3Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2NB20-0FA3Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2NB20-0HA3Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2NB20-0JA3Rated force FN: 5190 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2NC80-0BA3Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Separate power/signal, terminal box
1FN3900-2NC80-0EA3Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2NC80-0FA3Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2NC80-0HA3Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2NC80-0JA3Rated force FN: 5190 N | Max. velocity at FN: 307 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-3NB20-0BA3Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Separate power/signal, terminal box
1FN3900-3NB20-0EA3Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-3NB20-0FA3Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-3NB20-0HA3Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-3NB20-0JA3Rated force FN: 7780 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4NA50-0BA3Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Separate power/signal, terminal box
1FN3900-4NA50-0EA3Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4NA50-0FA3Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4NA50-0HA3Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4NA50-0JA3Rated force FN: 10400 N | Max. velocity at FN: 59 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4NA80-0BA3Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Separate power/signal, terminal box
1FN3900-4NA80-0EA3Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4NA80-0FA3Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4NA80-0HA3Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4NA80-0JA3Rated force FN: 10400 N | Max. velocity at FN: 87.9 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4NB20-0BA3Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Separate power/signal, terminal box
1FN3900-4NB20-0EA3Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4NB20-0FA3Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4NB20-0HA3Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4NB20-0JA3Rated force FN: 10400 N | Max. velocity at FN: 127 m/min | Connection: Combined, fixed 0.5 m, connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
