Siemens SIMOTICS L-1FN3 Linear Motors (Peak Load, Water-Cooled)

Siemens SIMOTICS L-1FN3 Linear Motors (Peak Load, Water-Cooled)

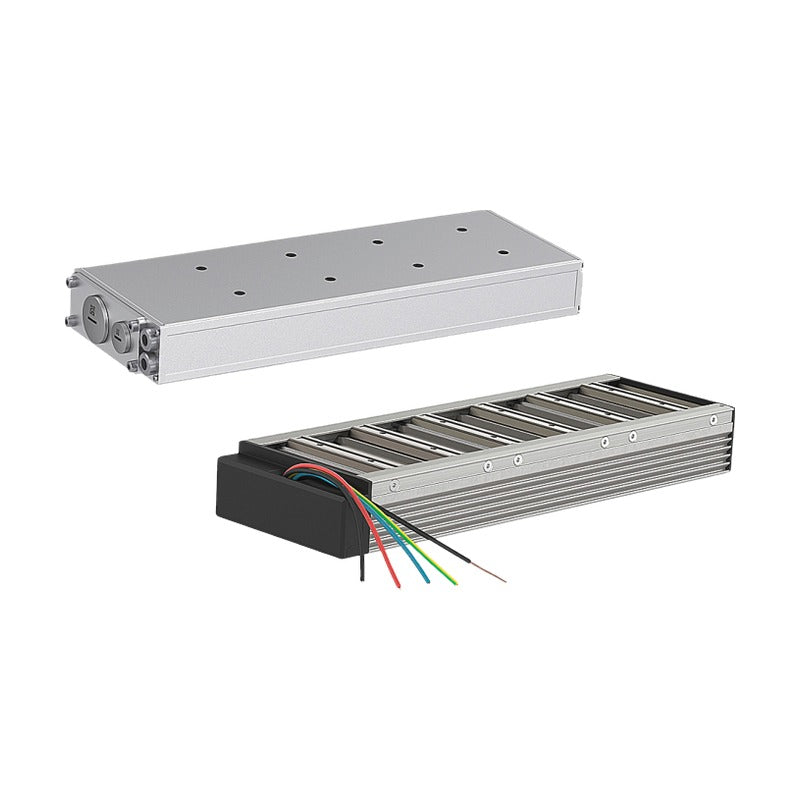

SIMOTICS L-1FN3 linear motor primary sections, peak load, water-cooled version, for SINAMICS S120/S220 direct drives.

Key features

  • Permanent-magnet synchronous linear motor: primary section plus magnetic secondary sections
  • Direct drive without mechanical transmission elements for high dynamics and precision
  • Operation on SINAMICS S120/S220 with linear measuring system
  • Version for peak load: high maximum force for dynamic positioning
  • Several connection types: terminal box or permanently connected cables

Specifications

Motor type Synchronous linear motor, primary section
Version Peak Load
Cooling Water cooling (main and precision cooler)
DC link voltage 600 V DC (velocity values)
Secondary section Order separately (1FN3...-4SA..)
Source Siemens Catalog D 21.4 · 2026, p. 920-923
1FN3050-2WC00-0EA3 Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-2WC00-0FA3 Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-2WC00-0HA3 Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-2WC00-0JA3 Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-1WC00-0AA3 Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-1WC00-0BA3 Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Separate power/signal, terminal box
1FN3100-1WC00-0EA3 Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-1WC00-0FA3 Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-1WC00-0HA3 Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-1WC00-0JA3 Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2WC00-0AA3 Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-2WC00-0BA3 Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Separate power/signal, terminal box
1FN3100-2WC00-0EA3 Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2WC00-0FA3 Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2WC00-0HA3 Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2WC00-0JA3 Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2WE00-0AA3 Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-2WE00-0BA3 Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Separate power/signal, terminal box
1FN3100-2WE00-0EA3 Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2WE00-0FA3 Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2WE00-0HA3 Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2WE00-0JA3 Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2WJ20-0AA3 Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-2WJ20-0BA3 Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Separate power/signal, terminal box
1FN3100-2WJ20-0EA3 Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2WJ20-0FA3 Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2WJ20-0HA3 Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2WJ20-0JA3 Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3WC00-0AA3 Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-3WC00-0BA3 Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Separate power/signal, terminal box
1FN3100-3WC00-0EA3 Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3WC00-0FA3 Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3WC00-0HA3 Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3WC00-0JA3 Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3WE00-0AA3 Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-3WE00-0BA3 Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Separate power/signal, terminal box
1FN3100-3WE00-0EA3 Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3WE00-0FA3 Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3WE00-0HA3 Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3WE00-0JA3 Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-4WC00-0AA3 Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-4WC00-0BA3 Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Separate power/signal, terminal box
1FN3100-4WC00-0EA3 Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-4WC00-0FA3 Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-4WC00-0HA3 Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-4WC00-0JA3 Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-4WE00-0AA3 Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-4WE00-0BA3 Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Separate power/signal, terminal box
1FN3100-4WE00-0EA3 Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-4WE00-0FA3 Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-4WE00-0HA3 Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-4WE00-0JA3 Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-5WC00-0AA3 Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-5WC00-0BA3 Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Separate power/signal, terminal box
1FN3100-5WC00-0EA3 Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-5WC00-0FA3 Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-5WC00-0HA3 Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-5WC00-0JA3 Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-1WC00-0AA3 Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-1WC00-0BA3 Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Separate power/signal, terminal box
1FN3150-1WC00-0EA3 Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-1WC00-0FA3 Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-1WC00-0HA3 Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-1WC00-0JA3 Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-1WE00-0AA3 Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-1WE00-0BA3 Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Separate power/signal, terminal box
1FN3150-1WE00-0EA3 Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-1WE00-0FA3 Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-1WE00-0HA3 Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-1WE00-0JA3 Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-2WC00-0AA3 Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-2WC00-0BA3 Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Separate power/signal, terminal box
1FN3150-2WC00-0EA3 Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-2WC00-0FA3 Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-2WC00-0HA3 Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-2WC00-0JA3 Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-3WC00-0AA3 Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-3WC00-0BA3 Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Separate power/signal, terminal box
1FN3150-3WC00-0EA3 Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-3WC00-0FA3 Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-3WC00-0HA3 Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-3WC00-0JA3 Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-4WC00-0AA3 Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-4WC00-0BA3 Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Separate power/signal, terminal box
1FN3150-4WC00-0EA3 Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-4WC00-0FA3 Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-4WC00-0HA3 Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-4WC00-0JA3 Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-5WC00-0AA3 Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-5WC00-0BA3 Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Separate power/signal, terminal box
1FN3150-5WC00-0EA3 Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-5WC00-0FA3 Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-5WC00-0HA3 Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-5WC00-0JA3 Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-1WC00-0AA3 Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-1WC00-0BA3 Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Separate power/signal, terminal box
1FN3300-1WC00-0EA3 Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-1WC00-0FA3 Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-1WC00-0HA3 Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-1WC00-0JA3 Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2WB00-0AA3 Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-2WB00-0BA3 Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Separate power/signal, terminal box
1FN3300-2WB00-0EA3 Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2WB00-0FA3 Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2WB00-0HA3 Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2WB00-0JA3 Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2WC00-0AA3 Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-2WC00-0BA3 Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Separate power/signal, terminal box
1FN3300-2WC00-0EA3 Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2WC00-0FA3 Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2WC00-0HA3 Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2WC00-0JA3 Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2WG00-0AA3 Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-2WG00-0BA3 Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Separate power/signal, terminal box
1FN3300-2WG00-0EA3 Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2WG00-0FA3 Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2WG00-0HA3 Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2WG00-0JA3 Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3WC00-0AA3 Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-3WC00-0BA3 Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Separate power/signal, terminal box
1FN3300-3WC00-0EA3 Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3WC00-0FA3 Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3WC00-0HA3 Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3WC00-0JA3 Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3WG00-0AA3 Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-3WG00-0BA3 Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Separate power/signal, terminal box
1FN3300-3WG00-0EA3 Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3WG00-0FA3 Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3WG00-0HA3 Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3WG00-0JA3 Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-4WB00-0AA3 Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-4WB00-0BA3 Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Separate power/signal, terminal box
1FN3300-4WB00-0EA3 Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-4WB00-0FA3 Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-4WB00-0HA3 Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-4WB00-0JA3 Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-4WC00-0AA3 Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-4WC00-0BA3 Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Separate power/signal, terminal box
1FN3300-4WC00-0EA3 Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-4WC00-0FA3 Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-4WC00-0HA3 Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-4WC00-0JA3 Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WE00-0AA3 Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WE00-0BA3 Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WE00-0EA3 Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WE00-0FA3 Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WE00-0HA3 Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WE00-0JA3 Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WA50-0AA3 Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WA50-0BA3 Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WA50-0EA3 Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WA50-0FA3 Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WA50-0HA3 Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WA50-0JA3 Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WB70-0AA3 Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WB70-0BA3 Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WB70-0EA3 Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WB70-0FA3 Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WB70-0HA3 Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WB70-0JA3 Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WC00-0AA3 Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WC00-0BA3 Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WC00-0EA3 Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WC00-0FA3 Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WC00-0HA3 Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WC00-0JA3 Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WD00-0AA3 Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WD00-0BA3 Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WD00-0EA3 Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WD00-0FA3 Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WD00-0HA3 Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WD00-0JA3 Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WA50-0AA3 Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WA50-0BA3 Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WA50-0EA3 Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WA50-0FA3 Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WA50-0HA3 Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WA50-0JA3 Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WB00-0AA3 Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WB00-0BA3 Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WB00-0EA3 Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WB00-0FA3 Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WB00-0HA3 Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WB00-0JA3 Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WB50-0AA3 Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WB50-0BA3 Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WB50-0EA3 Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WB50-0FA3 Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WB50-0HA3 Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WB50-0JA3 Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WC00-0AA3 Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WC00-0BA3 Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WC00-0EA3 Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WC00-0FA3 Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WC00-0HA3 Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WC00-0JA3 Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WE00-0AA3 Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WE00-0BA3 Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WE00-0EA3 Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WE00-0FA3 Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WE00-0HA3 Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WE00-0JA3 Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WB00-0AA3 Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WB00-0BA3 Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WB00-0EA3 Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WB00-0FA3 Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WB00-0HA3 Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WB00-0JA3 Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WB50-0AA3 Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WB50-0BA3 Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WB50-0EA3 Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WB50-0FA3 Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WB50-0HA3 Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WB50-0JA3 Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WC00-0AA3 Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WC00-0BA3 Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WC00-0EA3 Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WC00-0FA3 Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WC00-0HA3 Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WC00-0JA3 Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WE00-0AA3 Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WE00-0BA3 Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WE00-0EA3 Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WE00-0FA3 Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WE00-0HA3 Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WE00-0JA3 Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WA50-0AA3 Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WA50-0BA3 Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WA50-0EA3 Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WA50-0FA3 Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WA50-0HA3 Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WA50-0JA3 Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WB00-0AA3 Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WB00-0BA3 Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WB00-0EA3 Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WB00-0FA3 Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WB00-0HA3 Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WB00-0JA3 Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WB50-0AA3 Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WB50-0BA3 Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WB50-0EA3 Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WB50-0FA3 Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WB50-0HA3 Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WB50-0JA3 Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WC00-0AA3 Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WC00-0BA3 Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WC00-0EA3 Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WC00-0FA3 Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WC00-0HA3 Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WC00-0JA3 Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3WB00-0AA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-3WB00-0BA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate power/signal, terminal box
1FN3600-3WB00-0EA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3WB00-0FA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3WB00-0HA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3WB00-0JA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3WB50-0AA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-3WB50-0BA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate power/signal, terminal box
1FN3600-3WB50-0EA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3WB50-0FA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3WB50-0HA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3WB50-0JA3 Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3WC00-0AA3 Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-3WC00-0BA3 Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Separate power/signal, terminal box
1FN3600-3WC00-0EA3 Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3WC00-0FA3 Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3WC00-0HA3 Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3WC00-0JA3 Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WA30-0AA3 Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WA30-0BA3 Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WA30-0EA3 Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WA30-0FA3 Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WA30-0HA3 Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WA30-0JA3 Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WB00-0AA3 Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WB00-0BA3 Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WB00-0EA3 Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WB00-0FA3 Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WB00-0HA3 Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WB00-0JA3 Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WB50-0AA3 Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WB50-0BA3 Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WB50-0EA3 Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WB50-0FA3 Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WB50-0HA3 Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WB50-0JA3 Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WC00-0AA3 Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WC00-0BA3 Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WC00-0EA3 Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WC00-0FA3 Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WC00-0HA3 Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WC00-0JA3 Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-5WB00-0AA3 Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-5WB00-0BA3 Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Separate power/signal, terminal box
1FN3600-5WB00-0EA3 Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-5WB00-0FA3 Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-5WB00-0HA3 Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-5WB00-0JA3 Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2WB00-0AA3 Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-2WB00-0BA3 Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Separate power/signal, terminal box
1FN3900-2WB00-0EA3 Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2WB00-0FA3 Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2WB00-0HA3 Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2WB00-0JA3 Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2WC00-0AA3 Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-2WC00-0BA3 Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Separate power/signal, terminal box
1FN3900-2WC00-0EA3 Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2WC00-0FA3 Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2WC00-0HA3 Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2WC00-0JA3 Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-3WB00-0AA3 Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-3WB00-0BA3 Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Separate power/signal, terminal box
1FN3900-3WB00-0EA3 Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-3WB00-0FA3 Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-3WB00-0HA3 Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-3WB00-0JA3 Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WA50-0AA3 Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WA50-0BA3 Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WA50-0EA3 Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WA50-0FA3 Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WA50-0HA3 Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WA50-0JA3 Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WB00-0AA3 Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WB00-0BA3 Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WB00-0EA3 Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WB00-0FA3 Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WB00-0HA3 Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WB00-0JA3 Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WB50-0AA3 Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WB50-0BA3 Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WB50-0EA3 Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WB50-0FA3 Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WB50-0HA3 Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WB50-0JA3 Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WC00-0AA3 Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WC00-0BA3 Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WC00-0EA3 Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WC00-0FA3 Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WC00-0HA3 Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WC00-0JA3 Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed 0.5 m, connector
Servo MotorsSiemens
340 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS L-1FN3 Linear Motors (Peak Load, Water-Cooled)

Brand Siemens·Servo Motors

Available part numbers (340)

1FN3050-2WC00-0EA3, 1FN3050-2WC00-0FA3, 1FN3050-2WC00-0HA3, 1FN3050-2WC00-0JA3, 1FN3100-1WC00-0AA3, 1FN3100-1WC00-0BA3, 1FN3100-1WC00-0EA3, 1FN3100-1WC00-0FA3, 1FN3100-1WC00-0HA3, 1FN3100-1WC00-0JA3 + 330 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1FN3050-2WC00-0EA3Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3050-2WC00-0FA3Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3050-2WC00-0HA3Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3050-2WC00-0JA3Rated force FN: 200 N | Max. velocity at FN: 408 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-1WC00-0AA3Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-1WC00-0BA3Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Separate power/signal, terminal box
1FN3100-1WC00-0EA3Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-1WC00-0FA3Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-1WC00-0HA3Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-1WC00-0JA3Rated force FN: 200 N | Max. velocity at FN: 335 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2WC00-0AA3Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-2WC00-0BA3Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Separate power/signal, terminal box
1FN3100-2WC00-0EA3Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2WC00-0FA3Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2WC00-0HA3Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2WC00-0JA3Rated force FN: 450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2WE00-0AA3Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-2WE00-0BA3Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Separate power/signal, terminal box
1FN3100-2WE00-0EA3Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2WE00-0FA3Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2WE00-0HA3Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2WE00-0JA3Rated force FN: 450 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-2WJ20-0AA3Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-2WJ20-0BA3Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Separate power/signal, terminal box
1FN3100-2WJ20-0EA3Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-2WJ20-0FA3Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-2WJ20-0HA3Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-2WJ20-0JA3Rated force FN: 450 N | Max. velocity at FN: 984 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3WC00-0AA3Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-3WC00-0BA3Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Separate power/signal, terminal box
1FN3100-3WC00-0EA3Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3WC00-0FA3Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3WC00-0HA3Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3WC00-0JA3Rated force FN: 675 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-3WE00-0AA3Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-3WE00-0BA3Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Separate power/signal, terminal box
1FN3100-3WE00-0EA3Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-3WE00-0FA3Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-3WE00-0HA3Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-3WE00-0JA3Rated force FN: 675 N | Max. velocity at FN: 534 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-4WC00-0AA3Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-4WC00-0BA3Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Separate power/signal, terminal box
1FN3100-4WC00-0EA3Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-4WC00-0FA3Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-4WC00-0HA3Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-4WC00-0JA3Rated force FN: 900 N | Max. velocity at FN: 324 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-4WE00-0AA3Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-4WE00-0BA3Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Separate power/signal, terminal box
1FN3100-4WE00-0EA3Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-4WE00-0FA3Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-4WE00-0HA3Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-4WE00-0JA3Rated force FN: 900 N | Max. velocity at FN: 535 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3100-5WC00-0AA3Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: One cable, terminal box (heavy gland)
1FN3100-5WC00-0BA3Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Separate power/signal, terminal box
1FN3100-5WC00-0EA3Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3100-5WC00-0FA3Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3100-5WC00-0HA3Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3100-5WC00-0JA3Rated force FN: 1120 N | Max. velocity at FN: 278 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-1WC00-0AA3Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-1WC00-0BA3Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Separate power/signal, terminal box
1FN3150-1WC00-0EA3Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-1WC00-0FA3Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-1WC00-0HA3Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-1WC00-0JA3Rated force FN: 340 N | Max. velocity at FN: 303 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-1WE00-0AA3Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-1WE00-0BA3Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Separate power/signal, terminal box
1FN3150-1WE00-0EA3Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-1WE00-0FA3Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-1WE00-0HA3Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-1WE00-0JA3Rated force FN: 340 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-2WC00-0AA3Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-2WC00-0BA3Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Separate power/signal, terminal box
1FN3150-2WC00-0EA3Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-2WC00-0FA3Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-2WC00-0HA3Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-2WC00-0JA3Rated force FN: 675 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-3WC00-0AA3Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-3WC00-0BA3Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Separate power/signal, terminal box
1FN3150-3WC00-0EA3Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-3WC00-0FA3Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-3WC00-0HA3Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-3WC00-0JA3Rated force FN: 1010 N | Max. velocity at FN: 302 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-4WC00-0AA3Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-4WC00-0BA3Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Separate power/signal, terminal box
1FN3150-4WC00-0EA3Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-4WC00-0FA3Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-4WC00-0HA3Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-4WC00-0JA3Rated force FN: 1350 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3150-5WC00-0AA3Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: One cable, terminal box (heavy gland)
1FN3150-5WC00-0BA3Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Separate power/signal, terminal box
1FN3150-5WC00-0EA3Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3150-5WC00-0FA3Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3150-5WC00-0HA3Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3150-5WC00-0JA3Rated force FN: 1690 N | Max. velocity at FN: 306 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-1WC00-0AA3Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-1WC00-0BA3Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Separate power/signal, terminal box
1FN3300-1WC00-0EA3Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-1WC00-0FA3Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-1WC00-0HA3Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-1WC00-0JA3Rated force FN: 610 N | Max. velocity at FN: 325 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2WB00-0AA3Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-2WB00-0BA3Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Separate power/signal, terminal box
1FN3300-2WB00-0EA3Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2WB00-0FA3Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2WB00-0HA3Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2WB00-0JA3Rated force FN: 1220 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2WC00-0AA3Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-2WC00-0BA3Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Separate power/signal, terminal box
1FN3300-2WC00-0EA3Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2WC00-0FA3Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2WC00-0HA3Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2WC00-0JA3Rated force FN: 1230 N | Max. velocity at FN: 322 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-2WG00-0AA3Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-2WG00-0BA3Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Separate power/signal, terminal box
1FN3300-2WG00-0EA3Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-2WG00-0FA3Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-2WG00-0HA3Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-2WG00-0JA3Rated force FN: 1230 N | Max. velocity at FN: 868 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3WC00-0AA3Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-3WC00-0BA3Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Separate power/signal, terminal box
1FN3300-3WC00-0EA3Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3WC00-0FA3Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3WC00-0HA3Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3WC00-0JA3Rated force FN: 1840 N | Max. velocity at FN: 327 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-3WG00-0AA3Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-3WG00-0BA3Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Separate power/signal, terminal box
1FN3300-3WG00-0EA3Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-3WG00-0FA3Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-3WG00-0HA3Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-3WG00-0JA3Rated force FN: 1840 N | Max. velocity at FN: 881 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-4WB00-0AA3Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-4WB00-0BA3Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Separate power/signal, terminal box
1FN3300-4WB00-0EA3Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-4WB00-0FA3Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-4WB00-0HA3Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-4WB00-0JA3Rated force FN: 2450 N | Max. velocity at FN: 194 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3300-4WC00-0AA3Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: One cable, terminal box (heavy gland)
1FN3300-4WC00-0BA3Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Separate power/signal, terminal box
1FN3300-4WC00-0EA3Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3300-4WC00-0FA3Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3300-4WC00-0HA3Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3300-4WC00-0JA3Rated force FN: 2450 N | Max. velocity at FN: 323 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WE00-0AA3Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WE00-0BA3Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WE00-0EA3Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WE00-0FA3Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WE00-0HA3Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WE00-0JA3Rated force FN: 1920 N | Max. velocity at FN: 569 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WA50-0AA3Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WA50-0BA3Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WA50-0EA3Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WA50-0FA3Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WA50-0HA3Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WA50-0JA3Rated force FN: 1930 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WB70-0AA3Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WB70-0BA3Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WB70-0EA3Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WB70-0FA3Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WB70-0HA3Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WB70-0JA3Rated force FN: 1930 N | Max. velocity at FN: 235 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WC00-0AA3Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WC00-0BA3Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WC00-0EA3Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WC00-0FA3Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WC00-0HA3Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WC00-0JA3Rated force FN: 1930 N | Max. velocity at FN: 275 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-2WD00-0AA3Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-2WD00-0BA3Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Separate power/signal, terminal box
1FN3450-2WD00-0EA3Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-2WD00-0FA3Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-2WD00-0HA3Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-2WD00-0JA3Rated force FN: 1930 N | Max. velocity at FN: 385 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WA50-0AA3Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WA50-0BA3Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WA50-0EA3Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WA50-0FA3Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WA50-0HA3Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WA50-0JA3Rated force FN: 2900 N | Max. velocity at FN: 121 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WB00-0AA3Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WB00-0BA3Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WB00-0EA3Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WB00-0FA3Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WB00-0HA3Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WB00-0JA3Rated force FN: 2900 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WB50-0AA3Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WB50-0BA3Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WB50-0EA3Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WB50-0FA3Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WB50-0HA3Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WB50-0JA3Rated force FN: 2900 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WC00-0AA3Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WC00-0BA3Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WC00-0EA3Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WC00-0FA3Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WC00-0HA3Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WC00-0JA3Rated force FN: 2900 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-3WE00-0AA3Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-3WE00-0BA3Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Separate power/signal, terminal box
1FN3450-3WE00-0EA3Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-3WE00-0FA3Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-3WE00-0HA3Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-3WE00-0JA3Rated force FN: 2900 N | Max. velocity at FN: 561 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WB00-0AA3Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WB00-0BA3Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WB00-0EA3Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WB00-0FA3Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WB00-0HA3Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WB00-0JA3Rated force FN: 3860 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WB50-0AA3Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WB50-0BA3Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WB50-0EA3Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WB50-0FA3Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WB50-0HA3Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WB50-0JA3Rated force FN: 3860 N | Max. velocity at FN: 236 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WC00-0AA3Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WC00-0BA3Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WC00-0EA3Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WC00-0FA3Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WC00-0HA3Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WC00-0JA3Rated force FN: 3860 N | Max. velocity at FN: 298 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3450-4WE00-0AA3Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: One cable, terminal box (heavy gland)
1FN3450-4WE00-0BA3Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Separate power/signal, terminal box
1FN3450-4WE00-0EA3Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3450-4WE00-0FA3Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3450-4WE00-0HA3Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3450-4WE00-0JA3Rated force FN: 3860 N | Max. velocity at FN: 560 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WA50-0AA3Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WA50-0BA3Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WA50-0EA3Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WA50-0FA3Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WA50-0HA3Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WA50-0JA3Rated force FN: 2610 N | Max. velocity at FN: 128 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WB00-0AA3Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WB00-0BA3Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WB00-0EA3Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WB00-0FA3Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WB00-0HA3Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WB00-0JA3Rated force FN: 2610 N | Max. velocity at FN: 172 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WB50-0AA3Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WB50-0BA3Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WB50-0EA3Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WB50-0FA3Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WB50-0HA3Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WB50-0JA3Rated force FN: 2610 N | Max. velocity at FN: 238 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-2WC00-0AA3Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-2WC00-0BA3Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Separate power/signal, terminal box
1FN3600-2WC00-0EA3Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-2WC00-0FA3Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-2WC00-0HA3Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-2WC00-0JA3Rated force FN: 2610 N | Max. velocity at FN: 283 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3WB00-0AA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-3WB00-0BA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate power/signal, terminal box
1FN3600-3WB00-0EA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3WB00-0FA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3WB00-0HA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3WB00-0JA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3WB50-0AA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-3WB50-0BA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate power/signal, terminal box
1FN3600-3WB50-0EA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3WB50-0FA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3WB50-0HA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3WB50-0JA3Rated force FN: 3920 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-3WC00-0AA3Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-3WC00-0BA3Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Separate power/signal, terminal box
1FN3600-3WC00-0EA3Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-3WC00-0FA3Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-3WC00-0HA3Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-3WC00-0JA3Rated force FN: 3920 N | Max. velocity at FN: 282 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WA30-0AA3Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WA30-0BA3Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WA30-0EA3Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WA30-0FA3Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WA30-0HA3Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WA30-0JA3Rated force FN: 5220 N | Max. velocity at FN: 112 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WB00-0AA3Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WB00-0BA3Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WB00-0EA3Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WB00-0FA3Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WB00-0HA3Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WB00-0JA3Rated force FN: 5220 N | Max. velocity at FN: 170 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WB50-0AA3Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WB50-0BA3Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WB50-0EA3Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WB50-0FA3Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WB50-0HA3Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WB50-0JA3Rated force FN: 5220 N | Max. velocity at FN: 234 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-4WC00-0AA3Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-4WC00-0BA3Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Separate power/signal, terminal box
1FN3600-4WC00-0EA3Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-4WC00-0FA3Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-4WC00-0HA3Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-4WC00-0JA3Rated force FN: 5220 N | Max. velocity at FN: 279 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3600-5WB00-0AA3Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: One cable, terminal box (heavy gland)
1FN3600-5WB00-0BA3Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Separate power/signal, terminal box
1FN3600-5WB00-0EA3Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3600-5WB00-0FA3Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3600-5WB00-0HA3Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3600-5WB00-0JA3Rated force FN: 6530 N | Max. velocity at FN: 171 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2WB00-0AA3Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-2WB00-0BA3Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Separate power/signal, terminal box
1FN3900-2WB00-0EA3Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2WB00-0FA3Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2WB00-0HA3Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2WB00-0JA3Rated force FN: 4050 N | Max. velocity at FN: 179 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-2WC00-0AA3Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-2WC00-0BA3Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Separate power/signal, terminal box
1FN3900-2WC00-0EA3Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-2WC00-0FA3Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-2WC00-0HA3Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-2WC00-0JA3Rated force FN: 4050 N | Max. velocity at FN: 269 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-3WB00-0AA3Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-3WB00-0BA3Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Separate power/signal, terminal box
1FN3900-3WB00-0EA3Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-3WB00-0FA3Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-3WB00-0HA3Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-3WB00-0JA3Rated force FN: 6080 N | Max. velocity at FN: 188 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WA50-0AA3Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WA50-0BA3Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WA50-0EA3Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WA50-0FA3Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WA50-0HA3Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WA50-0JA3Rated force FN: 8100 N | Max. velocity at FN: 98.9 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WB00-0AA3Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WB00-0BA3Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WB00-0EA3Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WB00-0FA3Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WB00-0HA3Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WB00-0JA3Rated force FN: 8100 N | Max. velocity at FN: 178 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WB50-0AA3Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WB50-0BA3Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WB50-0EA3Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WB50-0FA3Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WB50-0HA3Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WB50-0JA3Rated force FN: 8100 N | Max. velocity at FN: 222 m/min | Connection: Combined, fixed 0.5 m, connector
1FN3900-4WC00-0AA3Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: One cable, terminal box (heavy gland)
1FN3900-4WC00-0BA3Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Separate power/signal, terminal box
1FN3900-4WC00-0EA3Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed cables 2 m, bare ends
1FN3900-4WC00-0FA3Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Separate, fixed 0.5 m, connectors
1FN3900-4WC00-0HA3Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed cable 2 m, bare ends
1FN3900-4WC00-0JA3Rated force FN: 8100 N | Max. velocity at FN: 266 m/min | Connection: Combined, fixed 0.5 m, connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
