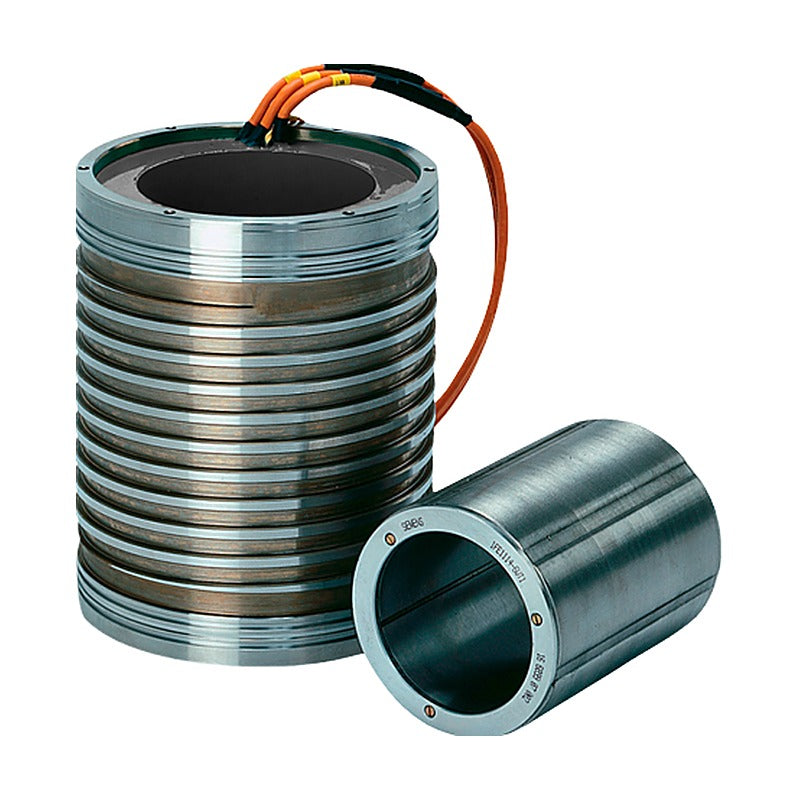

Siemens SIMOTICS M-1FE1 Built-in Motors (High Speed, 1FE109-1FE112)

SIMOTICS M-1FE1 synchronous built-in motors, High Speed series, water-cooled, for motor spindles driven by SINAMICS S120.

Key features

Built-in motor: stator and rotor installed directly into the machine spindle
Water-cooled stator with cooling jacket
Encapsulated winding with 2 Pt1000 sensors; full or universal protection optional
Operation with SINAMICS S120 Motor Modules, optionally with Voltage Protection Module (VPM)
High Speed series, temperature rise 105 K, 400 V 3 AC Active Line Module

Specifications

Motor type	Synchronous built-in motor (stator + rotor)
Series	High Speed
Cooling	Water cooling
Delivery	Stator + rotor (6), stator with cooling jacket (B)
Line voltage	400 V 3 AC, Active Line Module
Source	Siemens Catalog D 21.4 · 2026, p. 856-857

1FE1092-4WP11-6BR0		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1092-4WP11-6BR1		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1092-4WP11-6BR2		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1092-4WP11-6BR3		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1092-4WP31-6BR0		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1092-4WP31-6BR1		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1092-4WP31-6BR2		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1092-4WP31-6BR3		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1092-4WP51-6BR0		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1092-4WP51-6BR1		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1092-4WP51-6BR2		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1092-4WP51-6BR3		Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1092-4WV11-6BR0		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1092-4WV11-6BR1		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1092-4WV11-6BR2		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1092-4WV11-6BR3		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1092-4WV31-6BR0		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1092-4WV31-6BR1		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1092-4WV31-6BR2		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1092-4WV31-6BR3		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1092-4WV51-6BR0		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1092-4WV51-6BR1		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1092-4WV51-6BR2		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1092-4WV51-6BR3		Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WH11-6BA0		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WH11-6BA1		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WH11-6BA2		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WH11-6BA3		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WH11-6BR0		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WH11-6BR1		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WH11-6BR2		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WH11-6BR3		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WH31-6BA0		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WH31-6BA1		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WH31-6BA2		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WH31-6BA3		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WH31-6BR0		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WH31-6BR1		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WH31-6BR2		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WH31-6BR3		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WH51-6BA0		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WH51-6BA1		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WH51-6BA2		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WH51-6BA3		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WH51-6BR0		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WH51-6BR1		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WH51-6BR2		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WH51-6BR3		Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WM11-6BA0		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WM11-6BA1		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WM11-6BA2		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WM11-6BA3		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WM11-6BR0		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WM11-6BR1		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WM11-6BR2		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WM11-6BR3		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WM31-6BA0		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WM31-6BA1		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WM31-6BA2		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WM31-6BA3		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WM31-6BR0		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WM31-6BR1		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WM31-6BR2		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WM31-6BR3		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WM51-6BA0		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WM51-6BA1		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WM51-6BA2		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WM51-6BA3		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WM51-6BR0		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WM51-6BR1		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WM51-6BR2		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WM51-6BR3		Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WN11-6BA0		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WN11-6BA1		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WN11-6BA2		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WN11-6BA3		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WN11-6BR0		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WN11-6BR1		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WN11-6BR2		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WN11-6BR3		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WN31-6BA0		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WN31-6BA1		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WN31-6BA2		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WN31-6BA3		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WN31-6BR0		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WN31-6BR1		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WN31-6BR2		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WN31-6BR3		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WN51-6BA0		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WN51-6BA1		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WN51-6BA2		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WN51-6BA3		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1093-4WN51-6BR0		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1093-4WN51-6BR1		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1093-4WN51-6BR2		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1093-4WN51-6BR3		Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WK11-6BA0		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WK11-6BA1		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WK11-6BA2		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WK11-6BA3		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WK11-6BR0		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WK11-6BR1		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WK11-6BR2		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WK11-6BR3		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WK31-6BA0		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WK31-6BA1		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WK31-6BA2		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WK31-6BA3		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WK31-6BR0		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WK31-6BR1		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WK31-6BR2		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WK31-6BR3		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WK51-6BA0		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WK51-6BA1		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WK51-6BA2		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WK51-6BA3		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WK51-6BR0		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WK51-6BR1		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WK51-6BR2		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WK51-6BR3		Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WL11-6BA0		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WL11-6BA1		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WL11-6BA2		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WL11-6BA3		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WL11-6BR0		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WL11-6BR1		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WL11-6BR2		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WL11-6BR3		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WL31-6BA0		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WL31-6BA1		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WL31-6BA2		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WL31-6BA3		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WL31-6BR0		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WL31-6BR1		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WL31-6BR2		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WL31-6BR3		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WL51-6BA0		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WL51-6BA1		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WL51-6BA2		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WL51-6BA3		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WL51-6BR0		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WL51-6BR1		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WL51-6BR2		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WL51-6BR3		Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WS11-6BA0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WS11-6BA1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WS11-6BA2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WS11-6BA3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WS11-6BR0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WS11-6BR1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WS11-6BR2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WS11-6BR3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WS31-6BA0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WS31-6BA1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WS31-6BA2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WS31-6BA3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WS31-6BR0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WS31-6BR1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WS31-6BR2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WS31-6BR3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WS51-6BA0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WS51-6BA1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WS51-6BA2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WS51-6BA3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WS51-6BR0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WS51-6BR1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WS51-6BR2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WS51-6BR3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WU11-6BA0		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WU11-6BA1		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WU11-6BA2		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WU11-6BA3		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WU11-6BR0		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WU11-6BR1		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WU11-6BR2		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WU11-6BR3		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WU31-6BA0		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WU31-6BA1		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WU31-6BA2		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WU31-6BA3		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WU31-6BR0		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WU31-6BR1		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WU31-6BR2		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WU31-6BR3		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WU51-6BA0		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WU51-6BA1		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WU51-6BA2		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WU51-6BA3		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1094-4WU51-6BR0		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1094-4WU51-6BR1		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1094-4WU51-6BR2		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1094-4WU51-6BR3		Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1095-4WN11-6BA0		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1095-4WN11-6BA1		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1095-4WN11-6BA2		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1095-4WN11-6BA3		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1095-4WN11-6BR0		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1095-4WN11-6BR1		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1095-4WN11-6BR2		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1095-4WN11-6BR3		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1095-4WN31-6BA0		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1095-4WN31-6BA1		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1095-4WN31-6BA2		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1095-4WN31-6BA3		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1095-4WN31-6BR0		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1095-4WN31-6BR1		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1095-4WN31-6BR2		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1095-4WN31-6BR3		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1095-4WN51-6BA0		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1095-4WN51-6BA1		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1095-4WN51-6BA2		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1095-4WN51-6BA3		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1095-4WN51-6BR0		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1095-4WN51-6BR1		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1095-4WN51-6BR2		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1095-4WN51-6BR3		Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1096-4WN11-6BA0		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1096-4WN11-6BA1		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1096-4WN11-6BA2		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1096-4WN11-6BA3		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1096-4WN11-6BR0		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1096-4WN11-6BR1		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1096-4WN11-6BR2		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1096-4WN11-6BR3		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1096-4WN31-6BA0		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1096-4WN31-6BA1		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1096-4WN31-6BA2		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1096-4WN31-6BA3		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1096-4WN31-6BR0		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1096-4WN31-6BR1		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1096-4WN31-6BR2		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1096-4WN31-6BR3		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1096-4WN51-6BA0		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1096-4WN51-6BA1		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1096-4WN51-6BA2		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1096-4WN51-6BA3		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1096-4WN51-6BR0		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
1FE1096-4WN51-6BR1		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
1FE1096-4WN51-6BR2		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
1FE1096-4WN51-6BR3		Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WN11-6BA0		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WN11-6BA1		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WN11-6BA2		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WN11-6BA3		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WN31-6BA0		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WN31-6BA1		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WN31-6BA2		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WN31-6BA3		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WN51-6BA0		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WN51-6BA1		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WN51-6BA2		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WN51-6BA3		Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WQ11-6BA0		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WQ11-6BA1		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WQ11-6BA2		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WQ11-6BA3		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WQ31-6BA0		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WQ31-6BA1		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WQ31-6BA2		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WQ31-6BA3		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WQ51-6BA0		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WQ51-6BA1		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WQ51-6BA2		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WQ51-6BA3		Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WT11-6BA0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WT11-6BA1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WT11-6BA2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WT11-6BA3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WT31-6BA0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WT31-6BA1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WT31-6BA2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WT31-6BA3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1103-4WT51-6BA0		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1103-4WT51-6BA1		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1103-4WT51-6BA2		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1103-4WT51-6BA3		Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1104-4WL11-6BA0		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1104-4WL11-6BA1		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1104-4WL11-6BA2		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1104-4WL11-6BA3		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1104-4WL31-6BA0		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1104-4WL31-6BA1		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1104-4WL31-6BA2		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1104-4WL31-6BA3		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1104-4WL51-6BA0		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1104-4WL51-6BA1		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1104-4WL51-6BA2		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1104-4WL51-6BA3		Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1104-4WN11-6BA0		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1104-4WN11-6BA1		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1104-4WN11-6BA2		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1104-4WN11-6BA3		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1104-4WN31-6BA0		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1104-4WN31-6BA1		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1104-4WN31-6BA2		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1104-4WN31-6BA3		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1104-4WN51-6BA0		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1104-4WN51-6BA1		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1104-4WN51-6BA2		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1104-4WN51-6BA3		Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WN11-6BA0		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WN11-6BA1		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WN11-6BA2		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WN11-6BA3		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WN31-6BA0		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WN31-6BA1		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WN31-6BA2		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WN31-6BA3		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WN51-6BA0		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WN51-6BA1		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WN51-6BA2		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WN51-6BA3		Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WQ11-6BA0		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WQ11-6BA1		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WQ11-6BA2		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WQ11-6BA3		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WQ31-6BA0		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WQ31-6BA1		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WQ31-6BA2		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WQ31-6BA3		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WQ51-6BA0		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WQ51-6BA1		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WQ51-6BA2		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WQ51-6BA3		Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WS11-6BA0		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WS11-6BA1		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WS11-6BA2		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WS11-6BA3		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WS31-6BA0		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WS31-6BA1		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WS31-6BA2		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WS31-6BA3		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1105-4WS51-6BA0		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1105-4WS51-6BA1		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1105-4WS51-6BA2		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1105-4WS51-6BA3		Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WN11-6BA0		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WN11-6BA1		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WN11-6BA2		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WN11-6BA3		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WN31-6BA0		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WN31-6BA1		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WN31-6BA2		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WN31-6BA3		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WN51-6BA0		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WN51-6BA1		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WN51-6BA2		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WN51-6BA3		Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WR11-6BA0		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WR11-6BA1		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WR11-6BA2		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WR11-6BA3		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WR31-6BA0		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WR31-6BA1		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WR31-6BA2		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WR31-6BA3		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WR51-6BA0		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WR51-6BA1		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WR51-6BA2		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WR51-6BA3		Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WS11-6BA0		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WS11-6BA1		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WS11-6BA2		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WS11-6BA3		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WS31-6BA0		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WS31-6BA1		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WS31-6BA2		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WS31-6BA3		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WS51-6BA0		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WS51-6BA1		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WS51-6BA2		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WS51-6BA3		Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WY11-6BA0		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WY11-6BA1		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WY11-6BA2		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WY11-6BA3		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WY31-6BA0		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WY31-6BA1		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WY31-6BA2		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WY31-6BA3		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1106-4WY51-6BA0		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1106-4WY51-6BA1		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1106-4WY51-6BA2		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1106-4WY51-6BA3		Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1124-4WN11-6BA0		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1124-4WN11-6BA1		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1124-4WN11-6BA2		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1124-4WN11-6BA3		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1124-4WN31-6BA0		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1124-4WN31-6BA1		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1124-4WN31-6BA2		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1124-4WN31-6BA3		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1124-4WN51-6BA0		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1124-4WN51-6BA1		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1124-4WN51-6BA2		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1124-4WN51-6BA3		Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1124-4WQ11-6BA0		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1124-4WQ11-6BA1		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1124-4WQ11-6BA2		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1124-4WQ11-6BA3		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1124-4WQ31-6BA0		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1124-4WQ31-6BA1		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1124-4WQ31-6BA2		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1124-4WQ31-6BA3		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1124-4WQ51-6BA0		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1124-4WQ51-6BA1		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1124-4WQ51-6BA2		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1124-4WQ51-6BA3		Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WN11-6BA0		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WN11-6BA1		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WN11-6BA2		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WN11-6BA3		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WN31-6BA0		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WN31-6BA1		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WN31-6BA2		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WN31-6BA3		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WN51-6BA0		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WN51-6BA1		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WN51-6BA2		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WN51-6BA3		Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WP11-6BA0		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WP11-6BA1		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WP11-6BA2		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WP11-6BA3		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WP31-6BA0		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WP31-6BA1		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WP31-6BA2		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WP31-6BA3		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WP51-6BA0		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WP51-6BA1		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WP51-6BA2		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WP51-6BA3		Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WQ11-6BA0		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WQ11-6BA1		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WQ11-6BA2		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WQ11-6BA3		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WQ31-6BA0		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WQ31-6BA1		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WQ31-6BA2		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WQ31-6BA3		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1125-4WQ51-6BA0		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1125-4WQ51-6BA1		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1125-4WQ51-6BA2		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1125-4WQ51-6BA3		Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WN11-6BA0		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WN11-6BA1		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WN11-6BA2		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WN11-6BA3		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WN31-6BA0		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WN31-6BA1		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WN31-6BA2		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WN31-6BA3		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WN51-6BA0		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WN51-6BA1		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WN51-6BA2		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WN51-6BA3		Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WP11-6BA0		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WP11-6BA1		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WP11-6BA2		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WP11-6BA3		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WP31-6BA0		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WP31-6BA1		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WP31-6BA2		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WP31-6BA3		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WP51-6BA0		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WP51-6BA1		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WP51-6BA2		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WP51-6BA3		Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WQ11-6BA0		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WQ11-6BA1		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WQ11-6BA2		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WQ11-6BA3		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WQ31-6BA0		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WQ31-6BA1		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WQ31-6BA2		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WQ31-6BA3		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
1FE1126-4WQ51-6BA0		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
1FE1126-4WQ51-6BA1		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
1FE1126-4WQ51-6BA2		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
1FE1126-4WQ51-6BA3		Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD

Servo MotorsSiemens

480 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS M-1FE1 Built-in Motors (High Speed, 1FE109-1FE112)

Brand Siemens·Servo Motors

Available part numbers (480)

1FE1092-4WP11-6BR0, 1FE1092-4WP11-6BR1, 1FE1092-4WP11-6BR2, 1FE1092-4WP11-6BR3, 1FE1092-4WP31-6BR0, 1FE1092-4WP31-6BR1, 1FE1092-4WP31-6BR2, 1FE1092-4WP31-6BR3, 1FE1092-4WP51-6BR0, 1FE1092-4WP51-6BR1 + 470 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	1FE1092-4WP11-6BR0	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1092-4WP11-6BR1	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1092-4WP11-6BR2	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1092-4WP11-6BR3	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1092-4WP31-6BR0	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1092-4WP31-6BR1	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1092-4WP31-6BR2	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1092-4WP31-6BR3	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1092-4WP51-6BR0	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1092-4WP51-6BR1	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1092-4WP51-6BR2	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1092-4WP51-6BR3	Rating: 16 kW / 45 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1092-4WV11-6BR0	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1092-4WV11-6BR1	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1092-4WV11-6BR2	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1092-4WV11-6BR3	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1092-4WV31-6BR0	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1092-4WV31-6BR1	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1092-4WV31-6BR2	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1092-4WV31-6BR3	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1092-4WV51-6BR0	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1092-4WV51-6BR1	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1092-4WV51-6BR2	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1092-4WV51-6BR3	Rating: 10.5 kW / 50 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WH11-6BA0	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WH11-6BA1	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WH11-6BA2	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WH11-6BA3	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WH11-6BR0	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WH11-6BR1	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WH11-6BR2	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WH11-6BR3	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WH31-6BA0	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WH31-6BA1	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WH31-6BA2	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WH31-6BA3	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WH31-6BR0	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WH31-6BR1	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WH31-6BR2	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WH31-6BR3	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WH51-6BA0	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WH51-6BA1	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WH51-6BA2	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WH51-6BA3	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WH51-6BR0	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WH51-6BR1	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WH51-6BR2	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WH51-6BR3	Rating: 35.3 kW / 75 Nm / 4500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WM11-6BA0	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WM11-6BA1	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WM11-6BA2	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WM11-6BA3	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WM11-6BR0	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WM11-6BR1	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WM11-6BR2	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WM11-6BR3	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WM31-6BA0	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WM31-6BA1	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WM31-6BA2	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WM31-6BA3	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WM31-6BR0	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WM31-6BR1	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WM31-6BR2	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WM31-6BR3	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WM51-6BA0	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WM51-6BA1	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WM51-6BA2	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WM51-6BA3	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WM51-6BR0	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WM51-6BR1	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WM51-6BR2	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WM51-6BR3	Rating: 27.5 kW / 75 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WN11-6BA0	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WN11-6BA1	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WN11-6BA2	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WN11-6BA3	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WN11-6BR0	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WN11-6BR1	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WN11-6BR2	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WN11-6BR3	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WN31-6BA0	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WN31-6BA1	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WN31-6BA2	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WN31-6BA3	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WN31-6BR0	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WN31-6BR1	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WN31-6BR2	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WN31-6BR3	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WN51-6BA0	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WN51-6BA1	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WN51-6BA2	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WN51-6BA3	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1093-4WN51-6BR0	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1093-4WN51-6BR1	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1093-4WN51-6BR2	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1093-4WN51-6BR3	Rating: 26 kW / 75 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WK11-6BA0	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WK11-6BA1	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WK11-6BA2	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WK11-6BA3	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WK11-6BR0	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WK11-6BR1	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WK11-6BR2	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WK11-6BR3	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WK31-6BA0	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WK31-6BA1	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WK31-6BA2	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WK31-6BA3	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WK31-6BR0	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WK31-6BR1	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WK31-6BR2	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WK31-6BR3	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WK51-6BA0	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WK51-6BA1	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WK51-6BA2	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WK51-6BA3	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WK51-6BR0	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WK51-6BR1	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WK51-6BR2	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WK51-6BR3	Rating: 46 kW / 100 Nm / 4400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WL11-6BA0	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WL11-6BA1	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WL11-6BA2	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WL11-6BA3	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WL11-6BR0	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WL11-6BR1	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WL11-6BR2	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WL11-6BR3	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WL31-6BA0	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WL31-6BA1	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WL31-6BA2	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WL31-6BA3	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WL31-6BR0	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WL31-6BR1	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WL31-6BR2	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WL31-6BR3	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WL51-6BA0	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WL51-6BA1	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WL51-6BA2	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WL51-6BA3	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WL51-6BR0	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WL51-6BR1	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WL51-6BR2	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WL51-6BR3	Rating: 40 kW / 100 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WS11-6BA0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WS11-6BA1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WS11-6BA2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WS11-6BA3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WS11-6BR0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WS11-6BR1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WS11-6BR2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WS11-6BR3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WS31-6BA0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WS31-6BA1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WS31-6BA2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WS31-6BA3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WS31-6BR0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WS31-6BR1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WS31-6BR2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WS31-6BR3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WS51-6BA0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WS51-6BA1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WS51-6BA2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WS51-6BA3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WS51-6BR0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WS51-6BR1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WS51-6BR2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WS51-6BR3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WU11-6BA0	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WU11-6BA1	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WU11-6BA2	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WU11-6BA3	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WU11-6BR0	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WU11-6BR1	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WU11-6BR2	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WU11-6BR3	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WU31-6BA0	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WU31-6BA1	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WU31-6BA2	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WU31-6BA3	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WU31-6BR0	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WU31-6BR1	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WU31-6BR2	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WU31-6BR3	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WU51-6BA0	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WU51-6BA1	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WU51-6BA2	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WU51-6BA3	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1094-4WU51-6BR0	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1094-4WU51-6BR1	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1094-4WU51-6BR2	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1094-4WU51-6BR3	Rating: 18 kW / 95 Nm / 1800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1095-4WN11-6BA0	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1095-4WN11-6BA1	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1095-4WN11-6BA2	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1095-4WN11-6BA3	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1095-4WN11-6BR0	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1095-4WN11-6BR1	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1095-4WN11-6BR2	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1095-4WN11-6BR3	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1095-4WN31-6BA0	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1095-4WN31-6BA1	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1095-4WN31-6BA2	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1095-4WN31-6BA3	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1095-4WN31-6BR0	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1095-4WN31-6BR1	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1095-4WN31-6BR2	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1095-4WN31-6BR3	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1095-4WN51-6BA0	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1095-4WN51-6BA1	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1095-4WN51-6BA2	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1095-4WN51-6BA3	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1095-4WN51-6BR0	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1095-4WN51-6BR1	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1095-4WN51-6BR2	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1095-4WN51-6BR3	Rating: 46 kW / 125 Nm / 3500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1096-4WN11-6BA0	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1096-4WN11-6BA1	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1096-4WN11-6BA2	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1096-4WN11-6BA3	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1096-4WN11-6BR0	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1096-4WN11-6BR1	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1096-4WN11-6BR2	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1096-4WN11-6BR3	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1096-4WN31-6BA0	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1096-4WN31-6BA1	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1096-4WN31-6BA2	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1096-4WN31-6BA3	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1096-4WN31-6BR0	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1096-4WN31-6BR1	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1096-4WN31-6BR2	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1096-4WN31-6BR3	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1096-4WN51-6BA0	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1096-4WN51-6BA1	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1096-4WN51-6BA2	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1096-4WN51-6BA3	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1096-4WN51-6BR0	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at larger OD
	1FE1096-4WN51-6BR1	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 1.5 m, outlet at smaller OD
	1FE1096-4WN51-6BR2	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at larger OD
	1FE1096-4WN51-6BR3	Rating: 52 kW / 150 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without sleeve, di = 80 mm \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WN11-6BA0	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WN11-6BA1	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WN11-6BA2	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WN11-6BA3	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WN31-6BA0	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WN31-6BA1	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WN31-6BA2	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WN31-6BA3	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WN51-6BA0	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WN51-6BA1	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WN51-6BA2	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WN51-6BA3	Rating: 38.5 kW / 102 Nm / 3600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WQ11-6BA0	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WQ11-6BA1	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WQ11-6BA2	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WQ11-6BA3	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WQ31-6BA0	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WQ31-6BA1	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WQ31-6BA2	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WQ31-6BA3	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WQ51-6BA0	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WQ51-6BA1	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WQ51-6BA2	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WQ51-6BA3	Rating: 35 kW / 100 Nm / 3300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WT11-6BA0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WT11-6BA1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WT11-6BA2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WT11-6BA3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WT31-6BA0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WT31-6BA1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WT31-6BA2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WT31-6BA3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1103-4WT51-6BA0	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1103-4WT51-6BA1	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1103-4WT51-6BA2	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1103-4WT51-6BA3	Rating: 26 kW / 100 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1104-4WL11-6BA0	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1104-4WL11-6BA1	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1104-4WL11-6BA2	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1104-4WL11-6BA3	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1104-4WL31-6BA0	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1104-4WL31-6BA1	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1104-4WL31-6BA2	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1104-4WL31-6BA3	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1104-4WL51-6BA0	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1104-4WL51-6BA1	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1104-4WL51-6BA2	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1104-4WL51-6BA3	Rating: 75 kW / 136 Nm / 5300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1104-4WN11-6BA0	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1104-4WN11-6BA1	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1104-4WN11-6BA2	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1104-4WN11-6BA3	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1104-4WN31-6BA0	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1104-4WN31-6BA1	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1104-4WN31-6BA2	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1104-4WN31-6BA3	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1104-4WN51-6BA0	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1104-4WN51-6BA1	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1104-4WN51-6BA2	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1104-4WN51-6BA3	Rating: 54 kW / 136 Nm / 3800 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WN11-6BA0	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WN11-6BA1	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WN11-6BA2	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WN11-6BA3	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WN31-6BA0	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WN31-6BA1	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WN31-6BA2	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WN31-6BA3	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WN51-6BA0	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WN51-6BA1	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WN51-6BA2	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WN51-6BA3	Rating: 53.4 kW / 170 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WQ11-6BA0	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WQ11-6BA1	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WQ11-6BA2	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WQ11-6BA3	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WQ31-6BA0	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WQ31-6BA1	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WQ31-6BA2	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WQ31-6BA3	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WQ51-6BA0	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WQ51-6BA1	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WQ51-6BA2	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WQ51-6BA3	Rating: 46.3 kW / 170 Nm / 2600 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WS11-6BA0	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WS11-6BA1	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WS11-6BA2	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WS11-6BA3	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WS31-6BA0	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WS31-6BA1	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WS31-6BA2	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WS31-6BA3	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1105-4WS51-6BA0	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1105-4WS51-6BA1	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1105-4WS51-6BA2	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1105-4WS51-6BA3	Rating: 41 kW / 170 Nm / 2300 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WN11-6BA0	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WN11-6BA1	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WN11-6BA2	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WN11-6BA3	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WN31-6BA0	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WN31-6BA1	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WN31-6BA2	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WN31-6BA3	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WN51-6BA0	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WN51-6BA1	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WN51-6BA2	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WN51-6BA3	Rating: 72.6 kW / 204 Nm / 3400 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WR11-6BA0	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WR11-6BA1	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WR11-6BA2	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WR11-6BA3	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WR31-6BA0	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WR31-6BA1	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WR31-6BA2	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WR31-6BA3	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WR51-6BA0	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WR51-6BA1	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WR51-6BA2	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WR51-6BA3	Rating: 62 kW / 204 Nm / 2900 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WS11-6BA0	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WS11-6BA1	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WS11-6BA2	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WS11-6BA3	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WS31-6BA0	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WS31-6BA1	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WS31-6BA2	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WS31-6BA3	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WS51-6BA0	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WS51-6BA1	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WS51-6BA2	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WS51-6BA3	Rating: 56.5 kW / 200 Nm / 2700 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WY11-6BA0	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WY11-6BA1	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WY11-6BA2	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WY11-6BA3	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WY31-6BA0	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WY31-6BA1	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WY31-6BA2	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WY31-6BA3	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1106-4WY51-6BA0	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1106-4WY51-6BA1	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1106-4WY51-6BA2	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1106-4WY51-6BA3	Rating: 25 kW / 200 Nm / 1200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1124-4WN11-6BA0	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1124-4WN11-6BA1	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1124-4WN11-6BA2	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1124-4WN11-6BA3	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1124-4WN31-6BA0	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1124-4WN31-6BA1	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1124-4WN31-6BA2	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1124-4WN31-6BA3	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1124-4WN51-6BA0	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1124-4WN51-6BA1	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1124-4WN51-6BA2	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1124-4WN51-6BA3	Rating: 63 kW / 200 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1124-4WQ11-6BA0	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1124-4WQ11-6BA1	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1124-4WQ11-6BA2	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1124-4WQ11-6BA3	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1124-4WQ31-6BA0	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1124-4WQ31-6BA1	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1124-4WQ31-6BA2	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1124-4WQ31-6BA3	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1124-4WQ51-6BA0	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1124-4WQ51-6BA1	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1124-4WQ51-6BA2	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1124-4WQ51-6BA3	Rating: 52.4 kW / 200 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WN11-6BA0	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WN11-6BA1	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WN11-6BA2	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WN11-6BA3	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WN31-6BA0	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WN31-6BA1	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WN31-6BA2	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WN31-6BA3	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WN51-6BA0	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WN51-6BA1	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WN51-6BA2	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WN51-6BA3	Rating: 78.5 kW / 250 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WP11-6BA0	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WP11-6BA1	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WP11-6BA2	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WP11-6BA3	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WP31-6BA0	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WP31-6BA1	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WP31-6BA2	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WP31-6BA3	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WP51-6BA0	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WP51-6BA1	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WP51-6BA2	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WP51-6BA3	Rating: 65.5 kW / 250 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WQ11-6BA0	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WQ11-6BA1	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WQ11-6BA2	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WQ11-6BA3	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WQ31-6BA0	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WQ31-6BA1	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WQ31-6BA2	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WQ31-6BA3	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1125-4WQ51-6BA0	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1125-4WQ51-6BA1	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1125-4WQ51-6BA2	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1125-4WQ51-6BA3	Rating: 57.6 kW / 250 Nm / 2200 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WN11-6BA0	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WN11-6BA1	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WN11-6BA2	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WN11-6BA3	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WN31-6BA0	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WN31-6BA1	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WN31-6BA2	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WN31-6BA3	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WN51-6BA0	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WN51-6BA1	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WN51-6BA2	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WN51-6BA3	Rating: 94 kW / 300 Nm / 3000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WP11-6BA0	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WP11-6BA1	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WP11-6BA2	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WP11-6BA3	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WP31-6BA0	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WP31-6BA1	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WP31-6BA2	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WP31-6BA3	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WP51-6BA0	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WP51-6BA1	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WP51-6BA2	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WP51-6BA3	Rating: 78.5 kW / 300 Nm / 2500 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WQ11-6BA0	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WQ11-6BA1	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WQ11-6BA2	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WQ11-6BA3	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Standard, 2x Pt1000 \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WQ31-6BA0	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WQ31-6BA1	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WQ31-6BA2	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WQ31-6BA3	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Full, 2x Pt1000 + 3x PTC \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD
	1FE1126-4WQ51-6BA0	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at larger OD
	1FE1126-4WQ51-6BA1	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 1.5 m, outlet at smaller OD
	1FE1126-4WQ51-6BA2	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at larger OD
	1FE1126-4WQ51-6BA3	Rating: 63 kW / 300 Nm / 2000 rpm \| Winding protection: Universal protection \| VPM: With VPM module \| Rotor: Without rotor sleeve \| Cable: 0.5 m, outlet at smaller OD

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →

Item added to your cart

Siemens SIMOTICS M-1FE1 Built-in Motors (High Speed, 1FE109-1FE112)
