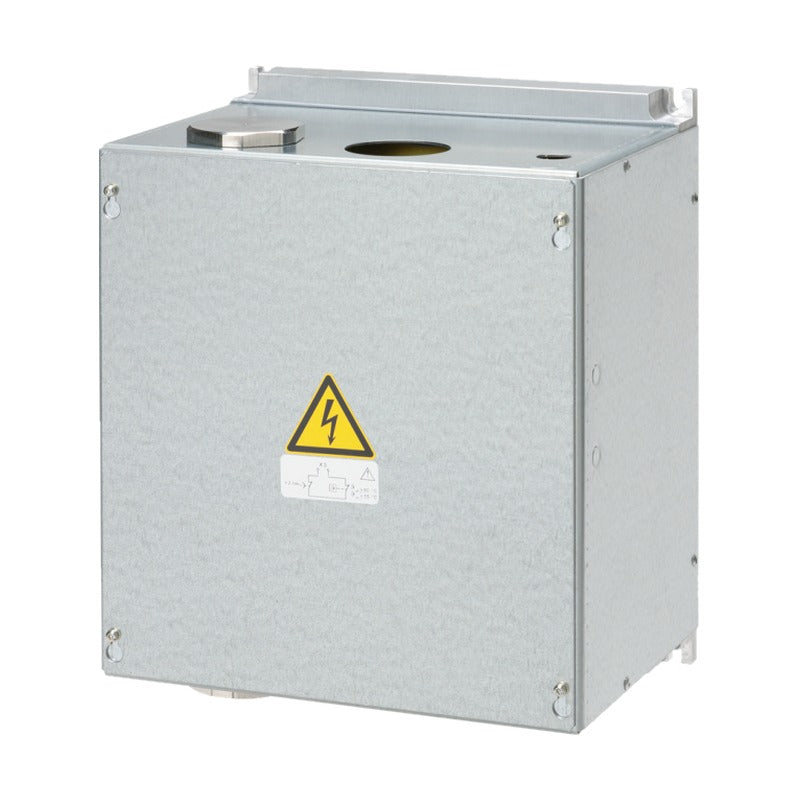

Siemens VPM Voltage Protection Module for SIMOTICS M-1FE

Siemens VPM Voltage Protection Module for SIMOTICS M-1FE

Voltage Protection Module VPM for SIMOTICS M-1FE built-in motors and 2SP1 spindles, short-circuits the motor cables if the DC link voltage exceeds 820 V.

Key features

  • Limits DC link voltage on line failure at high speed
  • For synchronous 1FE motors with EMF from 820 V up to 2000 V
  • Installed between Motor Module and motor, max. 1.5 m from drive
  • Degree of protection IP20, cULus

Specifications

Product Voltage Protection Module
Degree of protection IP20
Height 300 mm
Operating temperature 0 to 55 °C
Certificate cULus
Source Siemens Catalog D 21.4 · 2026, p. 868
6SN1113-1AA00-1JA1 Version: VPM 120 | Rated current: 120 A | Width x depth: 150 x 180 mm | Weight: 6 kg
6SN1113-1AA00-1KA1 Version: VPM 200 | Rated current: 200 A | Width x depth: 250 x 190 mm | Weight: 11 kg
6SN1113-1AA00-1KC1 Version: VPM 200 DYNAMIC, cables to 50 mm2 | Rated current: 200 A | Width x depth: 250 x 260 mm | Weight: 12 kg
Servo Drive AccessoriesSiemens
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens VPM Voltage Protection Module for SIMOTICS M-1FE

Brand Siemens·Servo Drive Accessories

Available part numbers (3)

6SN1113-1AA00-1JA1, 6SN1113-1AA00-1KA1, 6SN1113-1AA00-1KC1

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SN1113-1AA00-1JA1Version: VPM 120 | Rated current: 120 A | Width x depth: 150 x 180 mm | Weight: 6 kg
6SN1113-1AA00-1KA1Version: VPM 200 | Rated current: 200 A | Width x depth: 250 x 190 mm | Weight: 11 kg
6SN1113-1AA00-1KC1Version: VPM 200 DYNAMIC, cables to 50 mm2 | Rated current: 200 A | Width x depth: 250 x 260 mm | Weight: 12 kg
