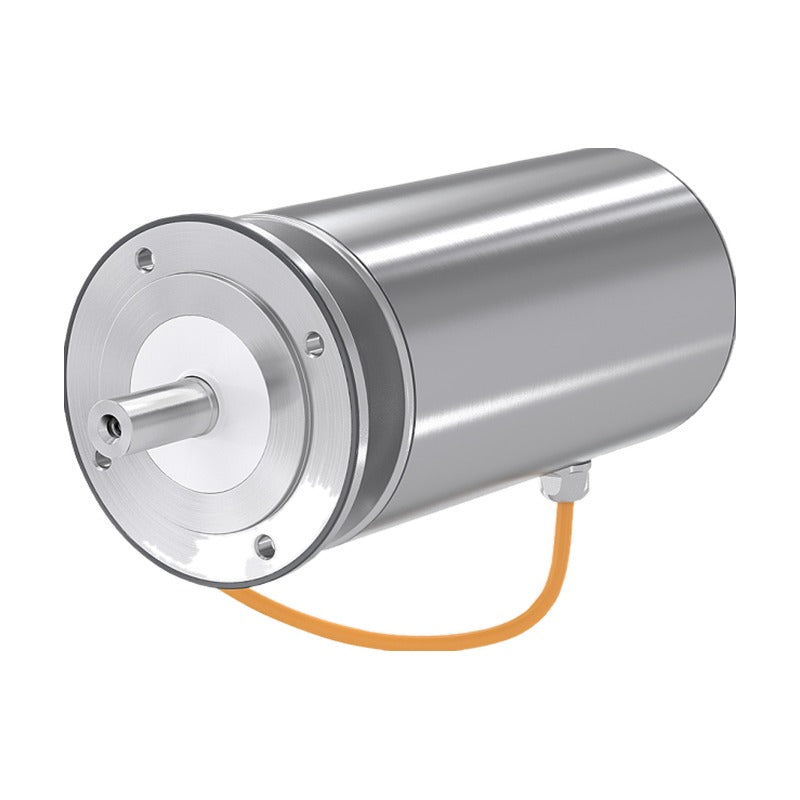

Siemens SIMOTICS S-1FS2 Hygienic Servomotors (SH 40-80)

Siemens SIMOTICS S-1FS2 Hygienic Servomotors (SH 40-80)

SIMOTICS S-1FS2 compact, highly dynamic synchronous servomotors in hygienic design with integrated connection cable for SINAMICS S120/S220 and S210 converters.

Key features

  • Hygienic design for food, beverage and pharmaceutical machines
  • Integrated one-cable connection (OCC) cable
  • Shaft heights 40, 52, 63 and 80, static torque 3.1-23.5 Nm
  • Without or with holding brake; plain shaft or feather key
  • Cable end and cable length are specified via mandatory additional order code Q..

Specifications

Series SIMOTICS S-1FS2
Connection Integrated connection cable (OCC)
Line voltage 200-240 V 1/3 AC or 380-480 V 3 AC
Drive system SINAMICS S120/S220
Cable order code Q + cable end (0/1) + length code A-X
Source Siemens Catalog D 21.4 · 2026, p. 420
1FS2104-6AF07-0MZ0 Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 3 A Booksize
1FS2104-6AF07-1MZ0 Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 3 A Booksize
1FS2104-6AF17-0MZ0 Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 3 A Booksize
1FS2104-6AF17-1MZ0 Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 3 A Booksize
1FS2105-6AF07-0MZ0 Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 9 A Booksize
1FS2105-6AF07-1MZ0 Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 9 A Booksize
1FS2105-6AF17-0MZ0 Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 9 A Booksize
1FS2105-6AF17-1MZ0 Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 9 A Booksize
1FS2106-6AE17-0MZ0 Rating: SH 63, M0 14 Nm, 2500 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2106-6AE17-1MZ0 Rating: SH 63, M0 14 Nm, 2500 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 18 A Booksize
1FS2106-6AF07-0MZ0 Rating: SH 63, M0 14 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2106-6AF07-1MZ0 Rating: SH 63, M0 14 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 18 A Booksize
1FS2208-5AC07-0MZ0 Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2208-5AC07-1MZ0 Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 18 A Booksize
1FS2208-5AC17-0MZ0 Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2208-5AC17-1MZ0 Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 18 A Booksize
Servo MotorsSiemens
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS S-1FS2 Hygienic Servomotors (SH 40-80)

Brand Siemens·Servo Motors

Available part numbers (16)

1FS2104-6AF07-0MZ0, 1FS2104-6AF07-1MZ0, 1FS2104-6AF17-0MZ0, 1FS2104-6AF17-1MZ0, 1FS2105-6AF07-0MZ0, 1FS2105-6AF07-1MZ0, 1FS2105-6AF17-0MZ0, 1FS2105-6AF17-1MZ0, 1FS2106-6AE17-0MZ0, 1FS2106-6AE17-1MZ0 + 6 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1FS2104-6AF07-0MZ0Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 3 A Booksize
1FS2104-6AF07-1MZ0Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 3 A Booksize
1FS2104-6AF17-0MZ0Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 3 A Booksize
1FS2104-6AF17-1MZ0Rating: SH 40, M0 3.1 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 3 A Booksize
1FS2105-6AF07-0MZ0Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 9 A Booksize
1FS2105-6AF07-1MZ0Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 9 A Booksize
1FS2105-6AF17-0MZ0Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 9 A Booksize
1FS2105-6AF17-1MZ0Rating: SH 52, M0 7.6 Nm, 3000 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 9 A Booksize
1FS2106-6AE17-0MZ0Rating: SH 63, M0 14 Nm, 2500 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2106-6AE17-1MZ0Rating: SH 63, M0 14 Nm, 2500 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 18 A Booksize
1FS2106-6AF07-0MZ0Rating: SH 63, M0 14 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2106-6AF07-1MZ0Rating: SH 63, M0 14 Nm, 3000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 18 A Booksize
1FS2208-5AC07-0MZ0Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: Without | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2208-5AC07-1MZ0Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: Without | Shaft: Feather key | Module rating: 18 A Booksize
1FS2208-5AC17-0MZ0Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: With | Shaft: Plain shaft | Module rating: 18 A Booksize
1FS2208-5AC17-1MZ0Rating: SH 80, M0 23.5 Nm, 2000 rpm (400 V) | Holding brake: With | Shaft: Feather key | Module rating: 18 A Booksize
