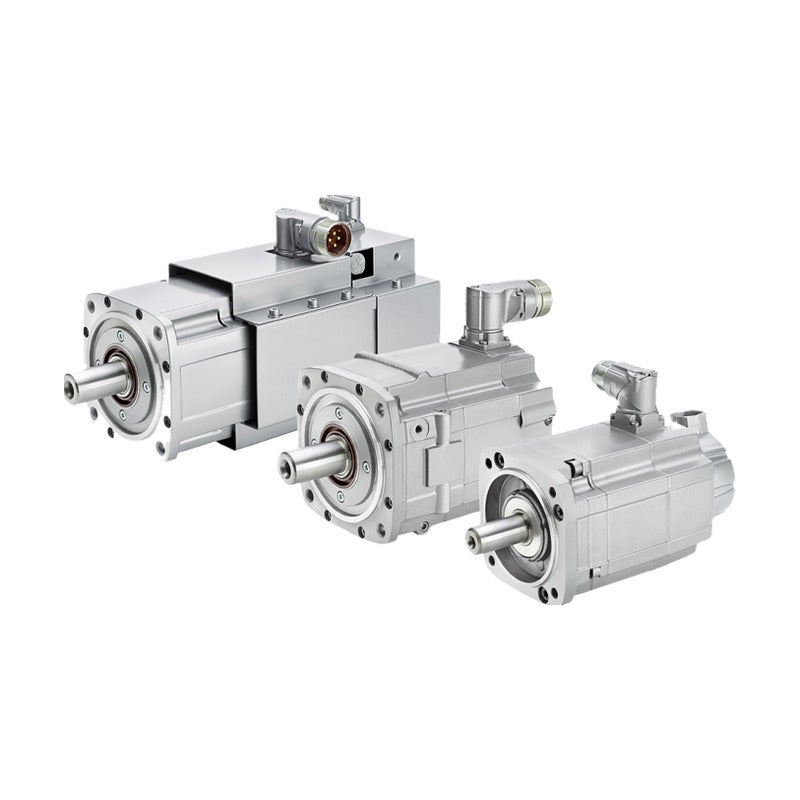

Siemens SIMOTICS S-1FT7 Compact Servomotors (Forced Vent., SH 80)

Siemens SIMOTICS S-1FT7 Compact Servomotors (Forced Vent., SH 80)

SIMOTICS S-1FT7 Compact permanent-magnet synchronous servomotors with forced ventilation for SINAMICS S120/S220 drives (DC link 510-720 V DC), shaft height 80.

Key features

  • Permanent-magnet synchronous servomotor for SINAMICS S120/S220 (DC link 510-720 V DC)
  • DRIVE-CLiQ encoders AS24DQI / AM24DQI or IC2048S/R / AM2048S/R (M23) encoders
  • Classic flange compatible with 1FT6/1FK7, IP65, vibration grade A
  • Plain shaft or feather key, tolerance N or R, with or without holding brake
  • Article number built from catalogue supplements; options (-Z order codes) on request

Specifications

Flange Classic (1FT6/1FK7 compatible)
Connector Rotatable (size 1/1.5)
Protection IP65, vibration grade A
Series SIMOTICS S-1FT7 Compact
Cooling Forced ventilation
Shaft height SH 80
Motor types 1FT7084, 1FT7086
DC link voltage 510-720 V DC
Drive system SINAMICS S120/S220
Source Siemens Catalog D 21.4 · 2026, p. 370-371
1FT7084-5SC71-1BA1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC71-1BB1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC71-1BD1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC71-1BE1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC71-1BG1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC71-1BH1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC71-1BK1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC71-1BL1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SC71-1CA1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC71-1CB1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC71-1CD1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC71-1CE1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC71-1CG1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC71-1CH1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC71-1CK1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC71-1CL1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SC74-1NA1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC74-1NB1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC74-1ND1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC74-1NE1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC74-1NG1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC74-1NH1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC74-1NK1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC74-1NL1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SC74-1MA1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC74-1MB1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC74-1MD1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC74-1ME1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC74-1MG1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC74-1MH1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC74-1MK1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC74-1ML1 Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC71-1BA1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC71-1BB1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC71-1BD1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC71-1BE1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC71-1BG1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC71-1BH1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC71-1BK1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC71-1BL1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC71-1CA1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC71-1CB1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC71-1CD1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC71-1CE1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC71-1CG1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC71-1CH1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC71-1CK1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC71-1CL1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC74-1NA1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC74-1NB1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC74-1ND1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC74-1NE1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC74-1NG1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC74-1NH1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC74-1NK1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC74-1NL1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC74-1MA1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC74-1MB1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC74-1MD1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC74-1ME1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC74-1MG1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC74-1MH1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC74-1MK1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC74-1ML1 Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF71-1BA1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF71-1BB1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF71-1BD1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF71-1BE1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF71-1BG1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF71-1BH1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF71-1BK1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF71-1BL1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF71-1CA1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF71-1CB1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF71-1CD1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF71-1CE1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF71-1CG1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF71-1CH1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF71-1CK1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF71-1CL1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF74-1NA1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF74-1NB1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF74-1ND1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF74-1NE1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF74-1NG1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF74-1NH1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF74-1NK1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF74-1NL1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF74-1MA1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF74-1MB1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF74-1MD1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF74-1ME1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF74-1MG1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF74-1MH1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF74-1MK1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF74-1ML1 Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF71-1BA1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF71-1BB1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF71-1BD1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF71-1BE1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF71-1BG1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF71-1BH1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF71-1BK1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF71-1BL1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF71-1CA1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF71-1CB1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF71-1CD1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF71-1CE1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF71-1CG1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF71-1CH1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF71-1CK1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF71-1CL1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF74-1NA1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF74-1NB1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF74-1ND1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF74-1NE1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF74-1NG1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF74-1NH1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF74-1NK1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF74-1NL1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF74-1MA1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF74-1MB1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF74-1MD1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF74-1ME1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF74-1MG1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF74-1MH1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF74-1MK1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF74-1ML1 Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH71-1BA1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH71-1BB1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH71-1BD1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH71-1BE1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH71-1BG1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH71-1BH1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH71-1BK1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH71-1BL1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH71-1CA1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH71-1CB1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH71-1CD1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH71-1CE1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH71-1CG1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH71-1CH1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH71-1CK1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH71-1CL1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH74-1NA1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH74-1NB1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH74-1ND1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH74-1NE1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH74-1NG1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH74-1NH1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH74-1NK1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH74-1NL1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH74-1MA1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH74-1MB1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH74-1MD1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH74-1ME1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH74-1MG1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH74-1MH1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH74-1MK1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH74-1ML1 Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH71-1BA1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH71-1BB1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH71-1BD1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH71-1BE1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH71-1BG1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH71-1BH1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH71-1BK1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH71-1BL1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH71-1CA1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH71-1CB1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH71-1CD1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH71-1CE1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH71-1CG1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH71-1CH1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH71-1CK1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH71-1CL1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH74-1NA1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH74-1NB1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH74-1ND1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH74-1NE1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH74-1NG1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH74-1NH1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH74-1NK1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH74-1NL1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH74-1MA1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH74-1MB1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH74-1MD1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH74-1ME1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH74-1MG1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH74-1MH1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH74-1MK1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH74-1ML1 Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
Servo MotorsSiemens
192 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS S-1FT7 Compact Servomotors (Forced Vent., SH 80)

Brand Siemens·Servo Motors

Available part numbers (192)

1FT7084-5SC71-1BA1, 1FT7084-5SC71-1BB1, 1FT7084-5SC71-1BD1, 1FT7084-5SC71-1BE1, 1FT7084-5SC71-1BG1, 1FT7084-5SC71-1BH1, 1FT7084-5SC71-1BK1, 1FT7084-5SC71-1BL1, 1FT7084-5SC71-1CA1, 1FT7084-5SC71-1CB1 + 182 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1FT7084-5SC71-1BA1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC71-1BB1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC71-1BD1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC71-1BE1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC71-1BG1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC71-1BH1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC71-1BK1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC71-1BL1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SC71-1CA1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC71-1CB1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC71-1CD1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC71-1CE1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC71-1CG1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC71-1CH1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC71-1CK1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC71-1CL1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SC74-1NA1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC74-1NB1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC74-1ND1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC74-1NE1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC74-1NG1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC74-1NH1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC74-1NK1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC74-1NL1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SC74-1MA1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SC74-1MB1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SC74-1MD1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SC74-1ME1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SC74-1MG1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SC74-1MH1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SC74-1MK1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SC74-1ML1Rating: M0 27 Nm, 2000 rpm, 5.0 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC71-1BA1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC71-1BB1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC71-1BD1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC71-1BE1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC71-1BG1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC71-1BH1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC71-1BK1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC71-1BL1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC71-1CA1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC71-1CB1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC71-1CD1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC71-1CE1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC71-1CG1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC71-1CH1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC71-1CK1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC71-1CL1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC74-1NA1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC74-1NB1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC74-1ND1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC74-1NE1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC74-1NG1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC74-1NH1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC74-1NK1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC74-1NL1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SC74-1MA1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SC74-1MB1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SC74-1MD1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SC74-1ME1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SC74-1MG1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SC74-1MH1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SC74-1MK1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SC74-1ML1Rating: M0 36 Nm, 2000 rpm, 6.7 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF71-1BA1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF71-1BB1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF71-1BD1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF71-1BE1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF71-1BG1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF71-1BH1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF71-1BK1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF71-1BL1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF71-1CA1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF71-1CB1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF71-1CD1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF71-1CE1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF71-1CG1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF71-1CH1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF71-1CK1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF71-1CL1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF74-1NA1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF74-1NB1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF74-1ND1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF74-1NE1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF74-1NG1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF74-1NH1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF74-1NK1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF74-1NL1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SF74-1MA1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SF74-1MB1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SF74-1MD1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SF74-1ME1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SF74-1MG1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SF74-1MH1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SF74-1MK1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SF74-1ML1Rating: M0 27 Nm, 3000 rpm, 7.2 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF71-1BA1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF71-1BB1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF71-1BD1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF71-1BE1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF71-1BG1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF71-1BH1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF71-1BK1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF71-1BL1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF71-1CA1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF71-1CB1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF71-1CD1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF71-1CE1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF71-1CG1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF71-1CH1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF71-1CK1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF71-1CL1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF74-1NA1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF74-1NB1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF74-1ND1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF74-1NE1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF74-1NG1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF74-1NH1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF74-1NK1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF74-1NL1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SF74-1MA1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SF74-1MB1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SF74-1MD1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SF74-1ME1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SF74-1MG1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SF74-1MH1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SF74-1MK1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SF74-1ML1Rating: M0 36 Nm, 3000 rpm, 9.1 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH71-1BA1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH71-1BB1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH71-1BD1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH71-1BE1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH71-1BG1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH71-1BH1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH71-1BK1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH71-1BL1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH71-1CA1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH71-1CB1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH71-1CD1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH71-1CE1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH71-1CG1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH71-1CH1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH71-1CK1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH71-1CL1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH74-1NA1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH74-1NB1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH74-1ND1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH74-1NE1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH74-1NG1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH74-1NH1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH74-1NK1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH74-1NL1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7084-5SH74-1MA1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7084-5SH74-1MB1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7084-5SH74-1MD1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7084-5SH74-1ME1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7084-5SH74-1MG1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7084-5SH74-1MH1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7084-5SH74-1MK1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7084-5SH74-1ML1Rating: M0 27 Nm, 4500 rpm, 9.9 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH71-1BA1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH71-1BB1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH71-1BD1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH71-1BE1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH71-1BG1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH71-1BH1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH71-1BK1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH71-1BL1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AS24DQI 24-bit ST, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH71-1CA1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH71-1CB1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH71-1CD1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH71-1CE1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH71-1CG1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH71-1CH1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH71-1CK1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH71-1CL1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM24DQI 24+12-bit MT, DQ RJ45 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH74-1NA1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH74-1NB1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH74-1ND1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH74-1NE1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH74-1NG1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH74-1NH1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH74-1NK1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH74-1NL1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: IC2048S/R incremental, M23 | Shaft/brake: Plain, tol. R, brake
1FT7086-5SH74-1MA1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, no brake
1FT7086-5SH74-1MB1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. N, brake
1FT7086-5SH74-1MD1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, no brake
1FT7086-5SH74-1ME1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Feather key, tol. R, brake
1FT7086-5SH74-1MG1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, no brake
1FT7086-5SH74-1MH1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. N, brake
1FT7086-5SH74-1MK1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, no brake
1FT7086-5SH74-1ML1Rating: M0 36 Nm, 4500 rpm, 11.8 kW | Encoder: AM2048S/R EnDat MT, M23 | Shaft/brake: Plain, tol. R, brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
