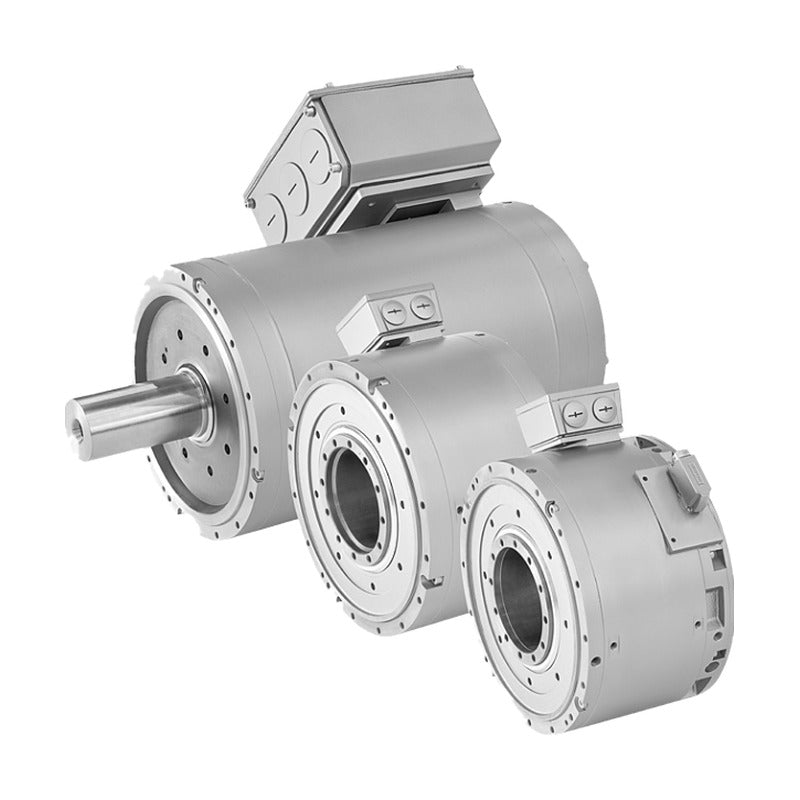

Siemens SIMOTICS T-1FW3 Complete Torque Motors (SH 150)

SIMOTICS T-1FW3 complete water-cooled torque motors, shaft height 150, for direct drives with SINAMICS S120/S220.

Key features

Complete torque motor with bearings, shaft and encoder, ready to install
Water-cooled, high torque at low speed for direct drives
Hollow, plug-on or solid shaft designs
Encoders with and without DRIVE-CLiQ interface
For SINAMICS S120/S220, 400 V 3 AC Active Line Module

Specifications

Motor type	Complete torque motor (synchronous)
Shaft height	150
Cooling	Water cooling
Line voltage	400 V 3 AC, Active Line Module
Max. speed	1000 to 1700 rpm (per type)
Bearings	Integrated, complete motor
Source	Siemens Catalog D 21.4 · 2026, p. 970-982

1FW3150-1WH62-5DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1WH62-6DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1WH62-7DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1WH62-8DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1AH72-5DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1AH72-6DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1AH72-7DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1AH72-8DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EH72-5DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EH72-6DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EH72-7DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EH72-8DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1SH72-5DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1SH72-6DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1SH72-7DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1SH72-8DA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1DH72-5AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1DH72-6AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1DH72-7AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1DH72-8AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1FH72-5AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1FH72-6AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1FH72-7AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1FH72-8AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1UH72-5AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1UH72-6AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1UH72-7AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1UH72-8AA0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EH62-5AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1EH62-6AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1EH62-7AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1EH62-8AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1BH62-5AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1BH62-6AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1BH62-7AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1BH62-8AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1CH62-5AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1CH62-6AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1CH62-7AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1CH62-8AS0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1EH62-5AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EH62-6AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EH62-7AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EH62-8AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1BH62-5AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1BH62-6AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1BH62-7AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1BH62-8AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1CH62-5AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1CH62-6AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1CH62-7AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1CH62-8AM0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EH62-5AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EH62-6AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EH62-7AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EH62-8AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1BH62-5AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1BH62-6AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1BH62-7AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1BH62-8AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1CH62-5AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1CH62-6AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1CH62-7AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1CH62-8AH0		Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1WH62-5DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1WH62-6DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1WH62-7DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1WH62-8DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1AH72-5DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1AH72-6DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1AH72-7DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1AH72-8DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EH72-5DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EH72-6DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EH72-7DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EH72-8DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1SH72-5DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1SH72-6DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1SH72-7DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1SH72-8DA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1DH72-5AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1DH72-6AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1DH72-7AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1DH72-8AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1FH72-5AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1FH72-6AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1FH72-7AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1FH72-8AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1UH72-5AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1UH72-6AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1UH72-7AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1UH72-8AA0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EH62-5AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1EH62-6AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1EH62-7AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1EH62-8AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1BH62-5AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1BH62-6AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1BH62-7AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1BH62-8AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1CH62-5AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1CH62-6AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1CH62-7AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1CH62-8AS0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1EH62-5AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EH62-6AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EH62-7AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EH62-8AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1BH62-5AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1BH62-6AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1BH62-7AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1BH62-8AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1CH62-5AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1CH62-6AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1CH62-7AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1CH62-8AM0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EH62-5AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EH62-6AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EH62-7AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EH62-8AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1BH62-5AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1BH62-6AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1BH62-7AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1BH62-8AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1CH62-5AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1CH62-6AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1CH62-7AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1CH62-8AH0		Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1WH62-5DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1WH62-6DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1WH62-7DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1WH62-8DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1AH72-5DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1AH72-6DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1AH72-7DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1AH72-8DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EH72-5DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EH72-6DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EH72-7DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EH72-8DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1SH72-5DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1SH72-6DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1SH72-7DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1SH72-8DA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1DH72-5AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1DH72-6AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1DH72-7AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1DH72-8AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1FH72-5AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1FH72-6AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1FH72-7AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1FH72-8AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1UH72-5AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1UH72-6AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1UH72-7AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1UH72-8AA0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EH62-5AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1EH62-6AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1EH62-7AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1EH62-8AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1BH62-5AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1BH62-6AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1BH62-7AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1BH62-8AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1CH62-5AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1CH62-6AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1CH62-7AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1CH62-8AS0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1EH62-5AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EH62-6AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EH62-7AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EH62-8AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1BH62-5AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1BH62-6AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1BH62-7AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1BH62-8AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1CH62-5AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1CH62-6AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1CH62-7AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1CH62-8AM0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EH62-5AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EH62-6AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EH62-7AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EH62-8AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1BH62-5AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1BH62-6AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1BH62-7AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1BH62-8AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1CH62-5AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1CH62-6AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1CH62-7AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1CH62-8AH0		Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1WH62-5DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1WH62-6DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1WH62-7DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1WH62-8DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1AH72-5DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1AH72-6DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1AH72-7DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1AH72-8DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EH72-5DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EH72-6DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EH72-7DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EH72-8DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1SH72-5DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1SH72-6DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1SH72-7DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1SH72-8DA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1DH72-5AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1DH72-6AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1DH72-7AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1DH72-8AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1FH72-5AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1FH72-6AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1FH72-7AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1FH72-8AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1UH72-5AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1UH72-6AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1UH72-7AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1UH72-8AA0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EH62-5AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1EH62-6AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1EH62-7AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1EH62-8AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1BH62-5AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1BH62-6AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1BH62-7AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1BH62-8AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1CH62-5AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1CH62-6AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1CH62-7AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1CH62-8AS0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1EH62-5AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EH62-6AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EH62-7AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EH62-8AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1BH62-5AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1BH62-6AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1BH62-7AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1BH62-8AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1CH62-5AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1CH62-6AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1CH62-7AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1CH62-8AM0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EH62-5AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EH62-6AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EH62-7AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EH62-8AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1BH62-5AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1BH62-6AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1BH62-7AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1BH62-8AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1CH62-5AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1CH62-6AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1CH62-7AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1CH62-8AH0		Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1WH62-5DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1WH62-6DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1WH62-7DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1WH62-8DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1AH72-5DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1AH72-6DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1AH72-7DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1AH72-8DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EH72-5DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EH72-6DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EH72-7DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EH72-8DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1SH72-5DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1SH72-6DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1SH72-7DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1SH72-8DA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1DH72-5AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1DH72-6AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1DH72-7AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1DH72-8AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1FH72-5AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1FH72-6AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1FH72-7AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1FH72-8AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1UH72-5AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1UH72-6AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1UH72-7AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1UH72-8AA0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EH62-5AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1EH62-6AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1EH62-7AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1EH62-8AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1BH62-5AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1BH62-6AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1BH62-7AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1BH62-8AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1CH62-5AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1CH62-6AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1CH62-7AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1CH62-8AS0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1EH62-5AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EH62-6AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EH62-7AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EH62-8AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1BH62-5AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1BH62-6AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1BH62-7AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1BH62-8AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1CH62-5AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1CH62-6AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1CH62-7AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1CH62-8AM0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EH62-5AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EH62-6AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EH62-7AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EH62-8AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1BH62-5AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1BH62-6AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1BH62-7AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1BH62-8AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1CH62-5AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1CH62-6AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1CH62-7AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1CH62-8AH0		Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1WL62-5DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1WL62-6DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1WL62-7DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1WL62-8DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1AL72-5DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1AL72-6DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1AL72-7DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1AL72-8DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EL72-5DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EL72-6DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EL72-7DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EL72-8DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1SL72-5DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1SL72-6DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1SL72-7DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1SL72-8DA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1DL72-5AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1DL72-6AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1DL72-7AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1DL72-8AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1FL72-5AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1FL72-6AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1FL72-7AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1FL72-8AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1UL72-5AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1UL72-6AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1UL72-7AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1UL72-8AA0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EL62-5AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1EL62-6AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1EL62-7AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1EL62-8AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1BL62-5AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1BL62-6AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1BL62-7AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1BL62-8AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1CL62-5AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1CL62-6AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1CL62-7AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1CL62-8AS0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1EL62-5AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EL62-6AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EL62-7AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EL62-8AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1BL62-5AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1BL62-6AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1BL62-7AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1BL62-8AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1CL62-5AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1CL62-6AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1CL62-7AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1CL62-8AM0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EL62-5AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EL62-6AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EL62-7AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EL62-8AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1BL62-5AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1BL62-6AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1BL62-7AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1BL62-8AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1CL62-5AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1CL62-6AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1CL62-7AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1CL62-8AH0		Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1WL62-5DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1WL62-6DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1WL62-7DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1WL62-8DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1AL72-5DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1AL72-6DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1AL72-7DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1AL72-8DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EL72-5DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EL72-6DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EL72-7DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EL72-8DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1SL72-5DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1SL72-6DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1SL72-7DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1SL72-8DA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1DL72-5AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1DL72-6AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1DL72-7AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1DL72-8AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1FL72-5AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1FL72-6AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1FL72-7AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1FL72-8AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1UL72-5AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1UL72-6AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1UL72-7AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1UL72-8AA0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EL62-5AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1EL62-6AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1EL62-7AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1EL62-8AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1BL62-5AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1BL62-6AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1BL62-7AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1BL62-8AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1CL62-5AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1CL62-6AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1CL62-7AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1CL62-8AS0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1EL62-5AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EL62-6AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EL62-7AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EL62-8AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1BL62-5AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1BL62-6AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1BL62-7AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1BL62-8AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1CL62-5AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1CL62-6AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1CL62-7AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1CL62-8AM0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EL62-5AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EL62-6AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EL62-7AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EL62-8AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1BL62-5AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1BL62-6AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1BL62-7AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1BL62-8AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1CL62-5AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1CL62-6AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1CL62-7AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1CL62-8AH0		Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1WL62-5DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1WL62-6DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1WL62-7DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1WL62-8DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1AL72-5DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1AL72-6DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1AL72-7DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1AL72-8DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EL72-5DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EL72-6DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EL72-7DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EL72-8DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1SL72-5DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1SL72-6DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1SL72-7DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1SL72-8DA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1DL72-5AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1DL72-6AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1DL72-7AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1DL72-8AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1FL72-5AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1FL72-6AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1FL72-7AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1FL72-8AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1UL72-5AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1UL72-6AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1UL72-7AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1UL72-8AA0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EL62-5AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1EL62-6AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1EL62-7AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1EL62-8AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1BL62-5AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1BL62-6AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1BL62-7AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1BL62-8AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1CL62-5AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1CL62-6AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1CL62-7AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1CL62-8AS0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1EL62-5AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EL62-6AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EL62-7AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EL62-8AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1BL62-5AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1BL62-6AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1BL62-7AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1BL62-8AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1CL62-5AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1CL62-6AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1CL62-7AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1CL62-8AM0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EL62-5AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EL62-6AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EL62-7AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EL62-8AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1BL62-5AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1BL62-6AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1BL62-7AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1BL62-8AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1CL62-5AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1CL62-6AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1CL62-7AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1CL62-8AH0		Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1WL62-5DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1WL62-6DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1WL62-7DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1WL62-8DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1AL72-5DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1AL72-6DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1AL72-7DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1AL72-8DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EL72-5DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EL72-6DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EL72-7DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EL72-8DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1SL72-5DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1SL72-6DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1SL72-7DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1SL72-8DA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1DL72-5AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1DL72-6AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1DL72-7AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1DL72-8AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1FL72-5AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1FL72-6AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1FL72-7AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1FL72-8AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1UL72-5AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1UL72-6AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1UL72-7AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1UL72-8AA0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EL62-5AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1EL62-6AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1EL62-7AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1EL62-8AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1BL62-5AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1BL62-6AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1BL62-7AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1BL62-8AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1CL62-5AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1CL62-6AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1CL62-7AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1CL62-8AS0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1EL62-5AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EL62-6AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EL62-7AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EL62-8AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1BL62-5AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1BL62-6AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1BL62-7AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1BL62-8AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1CL62-5AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1CL62-6AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1CL62-7AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1CL62-8AM0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EL62-5AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EL62-6AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EL62-7AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EL62-8AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1BL62-5AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1BL62-6AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1BL62-7AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1BL62-8AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1CL62-5AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1CL62-6AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1CL62-7AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1CL62-8AH0		Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1WL62-5DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1WL62-6DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1WL62-7DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1WL62-8DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1AL72-5DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1AL72-6DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1AL72-7DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1AL72-8DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EL72-5DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EL72-6DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EL72-7DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EL72-8DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1SL72-5DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1SL72-6DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1SL72-7DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1SL72-8DA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1DL72-5AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1DL72-6AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1DL72-7AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1DL72-8AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1FL72-5AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1FL72-6AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1FL72-7AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1FL72-8AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1UL72-5AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1UL72-6AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1UL72-7AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1UL72-8AA0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EL62-5AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1EL62-6AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1EL62-7AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1EL62-8AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1BL62-5AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1BL62-6AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1BL62-7AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1BL62-8AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1CL62-5AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1CL62-6AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1CL62-7AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1CL62-8AS0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1EL62-5AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EL62-6AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EL62-7AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EL62-8AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1BL62-5AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1BL62-6AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1BL62-7AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1BL62-8AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1CL62-5AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1CL62-6AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1CL62-7AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1CL62-8AM0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EL62-5AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EL62-6AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EL62-7AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EL62-8AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1BL62-5AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1BL62-6AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1BL62-7AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1BL62-8AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1CL62-5AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1CL62-6AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1CL62-7AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1CL62-8AH0		Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1WP62-5DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1WP62-6DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1WP62-7DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1WP62-8DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1AP72-5DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1AP72-6DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1AP72-7DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1AP72-8DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EP72-5DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EP72-6DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EP72-7DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EP72-8DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1SP72-5DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1SP72-6DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1SP72-7DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1SP72-8DA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1DP72-5AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1DP72-6AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1DP72-7AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1DP72-8AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1FP72-5AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1FP72-6AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1FP72-7AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1FP72-8AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1UP72-5AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1UP72-6AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1UP72-7AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1UP72-8AA0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EP62-5AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1EP62-6AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1EP62-7AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1EP62-8AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1BP62-5AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1BP62-6AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1BP62-7AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1BP62-8AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1CP62-5AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3150-1CP62-6AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3150-1CP62-7AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3150-1CP62-8AS0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3150-1EP62-5AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EP62-6AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EP62-7AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EP62-8AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1BP62-5AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1BP62-6AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1BP62-7AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1BP62-8AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1CP62-5AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1CP62-6AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1CP62-7AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1CP62-8AM0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1EP62-5AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1EP62-6AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1EP62-7AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1EP62-8AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1BP62-5AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1BP62-6AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1BP62-7AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1BP62-8AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3150-1CP62-5AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3150-1CP62-6AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3150-1CP62-7AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3150-1CP62-8AH0		Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1WP62-5DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1WP62-6DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1WP62-7DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1WP62-8DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1AP72-5DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1AP72-6DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1AP72-7DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1AP72-8DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EP72-5DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EP72-6DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EP72-7DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EP72-8DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1SP72-5DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1SP72-6DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1SP72-7DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1SP72-8DA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1DP72-5AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1DP72-6AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1DP72-7AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1DP72-8AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1FP72-5AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1FP72-6AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1FP72-7AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1FP72-8AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1UP72-5AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1UP72-6AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1UP72-7AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1UP72-8AA0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EP62-5AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1EP62-6AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1EP62-7AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1EP62-8AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1BP62-5AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1BP62-6AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1BP62-7AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1BP62-8AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1CP62-5AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3152-1CP62-6AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3152-1CP62-7AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3152-1CP62-8AS0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3152-1EP62-5AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EP62-6AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EP62-7AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EP62-8AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1BP62-5AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1BP62-6AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1BP62-7AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1BP62-8AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1CP62-5AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1CP62-6AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1CP62-7AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1CP62-8AM0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1EP62-5AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1EP62-6AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1EP62-7AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1EP62-8AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1BP62-5AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1BP62-6AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1BP62-7AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1BP62-8AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3152-1CP62-5AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3152-1CP62-6AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3152-1CP62-7AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3152-1CP62-8AH0		Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1WP62-5DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1WP62-6DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1WP62-7DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1WP62-8DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1AP72-5DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1AP72-6DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1AP72-7DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1AP72-8DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EP72-5DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EP72-6DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EP72-7DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EP72-8DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1SP72-5DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1SP72-6DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1SP72-7DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1SP72-8DA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1DP72-5AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1DP72-6AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1DP72-7AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1DP72-8AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1FP72-5AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1FP72-6AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1FP72-7AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1FP72-8AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1UP72-5AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1UP72-6AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1UP72-7AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1UP72-8AA0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EP62-5AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1EP62-6AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1EP62-7AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1EP62-8AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1BP62-5AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1BP62-6AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1BP62-7AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1BP62-8AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1CP62-5AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3154-1CP62-6AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3154-1CP62-7AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3154-1CP62-8AS0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3154-1EP62-5AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EP62-6AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EP62-7AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EP62-8AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1BP62-5AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1BP62-6AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1BP62-7AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1BP62-8AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1CP62-5AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1CP62-6AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1CP62-7AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1CP62-8AM0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1EP62-5AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1EP62-6AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1EP62-7AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1EP62-8AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1BP62-5AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1BP62-6AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1BP62-7AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1BP62-8AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3154-1CP62-5AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3154-1CP62-6AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3154-1CP62-7AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3154-1CP62-8AH0		Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1WP62-5DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1WP62-6DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1WP62-7DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1WP62-8DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1AP72-5DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1AP72-6DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1AP72-7DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1AP72-8DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EP72-5DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EP72-6DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EP72-7DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EP72-8DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1SP72-5DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1SP72-6DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1SP72-7DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1SP72-8DA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1DP72-5AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1DP72-6AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1DP72-7AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1DP72-8AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1FP72-5AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1FP72-6AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1FP72-7AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1FP72-8AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1UP72-5AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1UP72-6AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1UP72-7AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1UP72-8AA0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EP62-5AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1EP62-6AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1EP62-7AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1EP62-8AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1BP62-5AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1BP62-6AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1BP62-7AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1BP62-8AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1CP62-5AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3155-1CP62-6AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3155-1CP62-7AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3155-1CP62-8AS0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3155-1EP62-5AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EP62-6AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EP62-7AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EP62-8AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1BP62-5AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1BP62-6AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1BP62-7AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1BP62-8AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1CP62-5AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1CP62-6AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1CP62-7AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1CP62-8AM0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1EP62-5AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1EP62-6AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1EP62-7AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1EP62-8AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1BP62-5AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1BP62-6AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1BP62-7AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1BP62-8AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3155-1CP62-5AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3155-1CP62-6AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3155-1CP62-7AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3155-1CP62-8AH0		Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1WP62-5DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1WP62-6DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1WP62-7DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1WP62-8DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1AP72-5DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1AP72-6DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1AP72-7DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1AP72-8DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EP72-5DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EP72-6DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EP72-7DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EP72-8DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1SP72-5DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1SP72-6DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1SP72-7DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1SP72-8DA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1DP72-5AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1DP72-6AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1DP72-7AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1DP72-8AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1FP72-5AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1FP72-6AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1FP72-7AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1FP72-8AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1UP72-5AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1UP72-6AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1UP72-7AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1UP72-8AA0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EP62-5AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1EP62-6AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1EP62-7AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1EP62-8AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1BP62-5AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1BP62-6AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1BP62-7AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1BP62-8AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1CP62-5AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
1FW3156-1CP62-6AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
1FW3156-1CP62-7AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
1FW3156-1CP62-8AS0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
1FW3156-1EP62-5AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EP62-6AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EP62-7AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EP62-8AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1BP62-5AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1BP62-6AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1BP62-7AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1BP62-8AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1CP62-5AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1CP62-6AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1CP62-7AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1CP62-8AM0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1EP62-5AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1EP62-6AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1EP62-7AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1EP62-8AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1BP62-5AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1BP62-6AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1BP62-7AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1BP62-8AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
1FW3156-1CP62-5AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
1FW3156-1CP62-6AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
1FW3156-1CP62-7AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
1FW3156-1CP62-8AH0		Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE

Servo MotorsSiemens

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS T-1FW3 Complete Torque Motors (SH 150)

Brand Siemens·Servo Motors

Available part numbers (960)

1FW3150-1WH62-5DA0, 1FW3150-1WH62-6DA0, 1FW3150-1WH62-7DA0, 1FW3150-1WH62-8DA0, 1FW3150-1AH72-5DA0, 1FW3150-1AH72-6DA0, 1FW3150-1AH72-7DA0, 1FW3150-1AH72-8DA0, 1FW3150-1EH72-5DA0, 1FW3150-1EH72-6DA0 + 950 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	1FW3150-1WH62-5DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1WH62-6DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1WH62-7DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1WH62-8DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1AH72-5DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1AH72-6DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1AH72-7DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1AH72-8DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EH72-5DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EH72-6DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EH72-7DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EH72-8DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1SH72-5DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1SH72-6DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1SH72-7DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1SH72-8DA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1DH72-5AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1DH72-6AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1DH72-7AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1DH72-8AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1FH72-5AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1FH72-6AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1FH72-7AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1FH72-8AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1UH72-5AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1UH72-6AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1UH72-7AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1UH72-8AA0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EH62-5AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1EH62-6AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1EH62-7AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EH62-8AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1BH62-5AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1BH62-6AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1BH62-7AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BH62-8AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1CH62-5AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1CH62-6AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1CH62-7AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CH62-8AS0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1EH62-5AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EH62-6AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EH62-7AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EH62-8AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1BH62-5AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1BH62-6AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1BH62-7AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BH62-8AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1CH62-5AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1CH62-6AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1CH62-7AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CH62-8AM0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EH62-5AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EH62-6AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EH62-7AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EH62-8AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1BH62-5AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1BH62-6AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1BH62-7AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BH62-8AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1CH62-5AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1CH62-6AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1CH62-7AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CH62-8AH0	Rating: 3.1 kW / 100 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1WH62-5DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1WH62-6DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1WH62-7DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1WH62-8DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1AH72-5DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1AH72-6DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1AH72-7DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1AH72-8DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EH72-5DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EH72-6DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EH72-7DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EH72-8DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1SH72-5DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1SH72-6DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1SH72-7DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1SH72-8DA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1DH72-5AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1DH72-6AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1DH72-7AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1DH72-8AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1FH72-5AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1FH72-6AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1FH72-7AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1FH72-8AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1UH72-5AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1UH72-6AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1UH72-7AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1UH72-8AA0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EH62-5AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1EH62-6AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1EH62-7AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EH62-8AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1BH62-5AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1BH62-6AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1BH62-7AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BH62-8AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1CH62-5AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1CH62-6AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1CH62-7AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CH62-8AS0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1EH62-5AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EH62-6AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EH62-7AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EH62-8AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1BH62-5AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1BH62-6AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1BH62-7AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BH62-8AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1CH62-5AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1CH62-6AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1CH62-7AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CH62-8AM0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EH62-5AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EH62-6AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EH62-7AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EH62-8AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1BH62-5AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1BH62-6AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1BH62-7AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BH62-8AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1CH62-5AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1CH62-6AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1CH62-7AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CH62-8AH0	Rating: 6.3 kW / 200 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1WH62-5DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1WH62-6DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1WH62-7DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1WH62-8DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1AH72-5DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1AH72-6DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1AH72-7DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1AH72-8DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EH72-5DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EH72-6DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EH72-7DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EH72-8DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1SH72-5DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1SH72-6DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1SH72-7DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1SH72-8DA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1DH72-5AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1DH72-6AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1DH72-7AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1DH72-8AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1FH72-5AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1FH72-6AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1FH72-7AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1FH72-8AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1UH72-5AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1UH72-6AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1UH72-7AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1UH72-8AA0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EH62-5AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1EH62-6AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1EH62-7AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EH62-8AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1BH62-5AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1BH62-6AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1BH62-7AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BH62-8AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1CH62-5AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1CH62-6AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1CH62-7AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CH62-8AS0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1EH62-5AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EH62-6AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EH62-7AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EH62-8AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1BH62-5AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1BH62-6AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1BH62-7AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BH62-8AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1CH62-5AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1CH62-6AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1CH62-7AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CH62-8AM0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EH62-5AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EH62-6AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EH62-7AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EH62-8AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1BH62-5AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1BH62-6AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1BH62-7AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BH62-8AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1CH62-5AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1CH62-6AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1CH62-7AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CH62-8AH0	Rating: 9.4 kW / 300 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1WH62-5DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1WH62-6DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1WH62-7DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1WH62-8DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1AH72-5DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1AH72-6DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1AH72-7DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1AH72-8DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EH72-5DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EH72-6DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EH72-7DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EH72-8DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1SH72-5DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1SH72-6DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1SH72-7DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1SH72-8DA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1DH72-5AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1DH72-6AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1DH72-7AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1DH72-8AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1FH72-5AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1FH72-6AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1FH72-7AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1FH72-8AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1UH72-5AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1UH72-6AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1UH72-7AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1UH72-8AA0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EH62-5AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1EH62-6AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1EH62-7AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EH62-8AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1BH62-5AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1BH62-6AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1BH62-7AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BH62-8AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1CH62-5AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1CH62-6AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1CH62-7AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CH62-8AS0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1EH62-5AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EH62-6AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EH62-7AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EH62-8AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1BH62-5AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1BH62-6AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1BH62-7AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BH62-8AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1CH62-5AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1CH62-6AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1CH62-7AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CH62-8AM0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EH62-5AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EH62-6AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EH62-7AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EH62-8AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1BH62-5AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1BH62-6AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1BH62-7AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BH62-8AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1CH62-5AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1CH62-6AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1CH62-7AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CH62-8AH0	Rating: 12.6 kW / 400 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1WH62-5DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1WH62-6DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1WH62-7DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1WH62-8DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1AH72-5DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1AH72-6DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1AH72-7DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1AH72-8DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EH72-5DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EH72-6DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EH72-7DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EH72-8DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1SH72-5DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1SH72-6DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1SH72-7DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1SH72-8DA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1DH72-5AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1DH72-6AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1DH72-7AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1DH72-8AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1FH72-5AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1FH72-6AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1FH72-7AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1FH72-8AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1UH72-5AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1UH72-6AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1UH72-7AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1UH72-8AA0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EH62-5AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1EH62-6AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1EH62-7AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EH62-8AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1BH62-5AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1BH62-6AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1BH62-7AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BH62-8AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1CH62-5AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1CH62-6AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1CH62-7AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CH62-8AS0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1EH62-5AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EH62-6AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EH62-7AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EH62-8AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1BH62-5AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1BH62-6AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1BH62-7AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BH62-8AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1CH62-5AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1CH62-6AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1CH62-7AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CH62-8AM0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EH62-5AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EH62-6AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EH62-7AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EH62-8AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1BH62-5AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1BH62-6AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1BH62-7AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BH62-8AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1CH62-5AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1CH62-6AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1CH62-7AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CH62-8AH0	Rating: 15.7 kW / 500 Nm / 300 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1WL62-5DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1WL62-6DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1WL62-7DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1WL62-8DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1AL72-5DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1AL72-6DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1AL72-7DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1AL72-8DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EL72-5DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EL72-6DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EL72-7DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EL72-8DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1SL72-5DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1SL72-6DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1SL72-7DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1SL72-8DA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1DL72-5AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1DL72-6AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1DL72-7AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1DL72-8AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1FL72-5AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1FL72-6AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1FL72-7AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1FL72-8AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1UL72-5AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1UL72-6AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1UL72-7AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1UL72-8AA0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EL62-5AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1EL62-6AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1EL62-7AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EL62-8AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1BL62-5AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1BL62-6AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1BL62-7AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BL62-8AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1CL62-5AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1CL62-6AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1CL62-7AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CL62-8AS0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1EL62-5AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EL62-6AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EL62-7AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EL62-8AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1BL62-5AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1BL62-6AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1BL62-7AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BL62-8AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1CL62-5AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1CL62-6AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1CL62-7AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CL62-8AM0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EL62-5AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EL62-6AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EL62-7AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EL62-8AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1BL62-5AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1BL62-6AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1BL62-7AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BL62-8AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1CL62-5AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1CL62-6AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1CL62-7AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CL62-8AH0	Rating: 5.2 kW / 100 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1WL62-5DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1WL62-6DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1WL62-7DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1WL62-8DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1AL72-5DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1AL72-6DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1AL72-7DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1AL72-8DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EL72-5DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EL72-6DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EL72-7DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EL72-8DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1SL72-5DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1SL72-6DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1SL72-7DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1SL72-8DA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1DL72-5AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1DL72-6AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1DL72-7AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1DL72-8AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1FL72-5AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1FL72-6AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1FL72-7AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1FL72-8AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1UL72-5AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1UL72-6AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1UL72-7AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1UL72-8AA0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EL62-5AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1EL62-6AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1EL62-7AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EL62-8AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1BL62-5AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1BL62-6AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1BL62-7AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BL62-8AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1CL62-5AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1CL62-6AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1CL62-7AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CL62-8AS0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1EL62-5AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EL62-6AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EL62-7AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EL62-8AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1BL62-5AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1BL62-6AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1BL62-7AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BL62-8AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1CL62-5AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1CL62-6AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1CL62-7AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CL62-8AM0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EL62-5AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EL62-6AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EL62-7AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EL62-8AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1BL62-5AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1BL62-6AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1BL62-7AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BL62-8AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1CL62-5AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1CL62-6AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1CL62-7AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CL62-8AH0	Rating: 10.5 kW / 200 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1WL62-5DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1WL62-6DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1WL62-7DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1WL62-8DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1AL72-5DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1AL72-6DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1AL72-7DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1AL72-8DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EL72-5DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EL72-6DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EL72-7DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EL72-8DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1SL72-5DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1SL72-6DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1SL72-7DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1SL72-8DA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1DL72-5AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1DL72-6AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1DL72-7AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1DL72-8AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1FL72-5AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1FL72-6AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1FL72-7AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1FL72-8AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1UL72-5AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1UL72-6AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1UL72-7AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1UL72-8AA0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EL62-5AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1EL62-6AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1EL62-7AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EL62-8AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1BL62-5AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1BL62-6AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1BL62-7AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BL62-8AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1CL62-5AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1CL62-6AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1CL62-7AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CL62-8AS0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1EL62-5AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EL62-6AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EL62-7AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EL62-8AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1BL62-5AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1BL62-6AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1BL62-7AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BL62-8AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1CL62-5AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1CL62-6AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1CL62-7AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CL62-8AM0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EL62-5AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EL62-6AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EL62-7AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EL62-8AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1BL62-5AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1BL62-6AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1BL62-7AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BL62-8AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1CL62-5AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1CL62-6AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1CL62-7AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CL62-8AH0	Rating: 15.7 kW / 300 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1WL62-5DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1WL62-6DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1WL62-7DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1WL62-8DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1AL72-5DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1AL72-6DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1AL72-7DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1AL72-8DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EL72-5DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EL72-6DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EL72-7DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EL72-8DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1SL72-5DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1SL72-6DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1SL72-7DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1SL72-8DA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1DL72-5AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1DL72-6AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1DL72-7AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1DL72-8AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1FL72-5AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1FL72-6AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1FL72-7AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1FL72-8AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1UL72-5AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1UL72-6AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1UL72-7AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1UL72-8AA0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EL62-5AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1EL62-6AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1EL62-7AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EL62-8AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1BL62-5AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1BL62-6AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1BL62-7AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BL62-8AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1CL62-5AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1CL62-6AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1CL62-7AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CL62-8AS0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1EL62-5AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EL62-6AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EL62-7AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EL62-8AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1BL62-5AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1BL62-6AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1BL62-7AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BL62-8AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1CL62-5AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1CL62-6AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1CL62-7AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CL62-8AM0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EL62-5AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EL62-6AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EL62-7AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EL62-8AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1BL62-5AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1BL62-6AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1BL62-7AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BL62-8AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1CL62-5AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1CL62-6AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1CL62-7AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CL62-8AH0	Rating: 20.9 kW / 400 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1WL62-5DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1WL62-6DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1WL62-7DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1WL62-8DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1AL72-5DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1AL72-6DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1AL72-7DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1AL72-8DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EL72-5DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EL72-6DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EL72-7DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EL72-8DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1SL72-5DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1SL72-6DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1SL72-7DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1SL72-8DA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1DL72-5AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1DL72-6AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1DL72-7AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1DL72-8AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1FL72-5AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1FL72-6AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1FL72-7AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1FL72-8AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1UL72-5AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1UL72-6AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1UL72-7AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1UL72-8AA0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EL62-5AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1EL62-6AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1EL62-7AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EL62-8AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1BL62-5AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1BL62-6AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1BL62-7AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BL62-8AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1CL62-5AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1CL62-6AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1CL62-7AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CL62-8AS0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1EL62-5AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EL62-6AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EL62-7AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EL62-8AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1BL62-5AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1BL62-6AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1BL62-7AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BL62-8AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1CL62-5AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1CL62-6AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1CL62-7AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CL62-8AM0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EL62-5AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EL62-6AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EL62-7AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EL62-8AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1BL62-5AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1BL62-6AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1BL62-7AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BL62-8AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1CL62-5AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1CL62-6AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1CL62-7AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CL62-8AH0	Rating: 26.2 kW / 500 Nm / 500 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1WP62-5DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1WP62-6DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1WP62-7DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1WP62-8DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1AP72-5DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1AP72-6DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1AP72-7DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1AP72-8DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EP72-5DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EP72-6DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EP72-7DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EP72-8DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1SP72-5DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1SP72-6DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1SP72-7DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1SP72-8DA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1DP72-5AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1DP72-6AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1DP72-7AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1DP72-8AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1FP72-5AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1FP72-6AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1FP72-7AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1FP72-8AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1UP72-5AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1UP72-6AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1UP72-7AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1UP72-8AA0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EP62-5AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1EP62-6AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1EP62-7AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EP62-8AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1BP62-5AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1BP62-6AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1BP62-7AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BP62-8AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1CP62-5AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3150-1CP62-6AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3150-1CP62-7AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CP62-8AS0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3150-1EP62-5AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EP62-6AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EP62-7AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EP62-8AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1BP62-5AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1BP62-6AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1BP62-7AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BP62-8AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1CP62-5AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1CP62-6AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1CP62-7AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CP62-8AM0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1EP62-5AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1EP62-6AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1EP62-7AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1EP62-8AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1BP62-5AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1BP62-6AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1BP62-7AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1BP62-8AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3150-1CP62-5AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3150-1CP62-6AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3150-1CP62-7AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3150-1CP62-8AH0	Rating: 7.9 kW / 100 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1WP62-5DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1WP62-6DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1WP62-7DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1WP62-8DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1AP72-5DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1AP72-6DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1AP72-7DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1AP72-8DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EP72-5DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EP72-6DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EP72-7DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EP72-8DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1SP72-5DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1SP72-6DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1SP72-7DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1SP72-8DA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1DP72-5AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1DP72-6AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1DP72-7AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1DP72-8AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1FP72-5AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1FP72-6AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1FP72-7AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1FP72-8AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1UP72-5AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1UP72-6AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1UP72-7AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1UP72-8AA0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EP62-5AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1EP62-6AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1EP62-7AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EP62-8AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1BP62-5AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1BP62-6AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1BP62-7AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BP62-8AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1CP62-5AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3152-1CP62-6AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3152-1CP62-7AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CP62-8AS0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3152-1EP62-5AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EP62-6AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EP62-7AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EP62-8AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1BP62-5AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1BP62-6AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1BP62-7AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BP62-8AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1CP62-5AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1CP62-6AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1CP62-7AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CP62-8AM0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1EP62-5AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1EP62-6AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1EP62-7AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1EP62-8AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1BP62-5AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1BP62-6AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1BP62-7AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1BP62-8AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3152-1CP62-5AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3152-1CP62-6AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3152-1CP62-7AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3152-1CP62-8AH0	Rating: 15.7 kW / 200 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1WP62-5DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1WP62-6DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1WP62-7DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1WP62-8DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1AP72-5DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1AP72-6DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1AP72-7DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1AP72-8DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EP72-5DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EP72-6DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EP72-7DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EP72-8DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1SP72-5DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1SP72-6DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1SP72-7DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1SP72-8DA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1DP72-5AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1DP72-6AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1DP72-7AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1DP72-8AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1FP72-5AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1FP72-6AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1FP72-7AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1FP72-8AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1UP72-5AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1UP72-6AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1UP72-7AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1UP72-8AA0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EP62-5AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1EP62-6AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1EP62-7AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EP62-8AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1BP62-5AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1BP62-6AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1BP62-7AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BP62-8AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1CP62-5AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3154-1CP62-6AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3154-1CP62-7AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CP62-8AS0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3154-1EP62-5AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EP62-6AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EP62-7AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EP62-8AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1BP62-5AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1BP62-6AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1BP62-7AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BP62-8AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1CP62-5AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1CP62-6AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1CP62-7AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CP62-8AM0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1EP62-5AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1EP62-6AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1EP62-7AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1EP62-8AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1BP62-5AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1BP62-6AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1BP62-7AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1BP62-8AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3154-1CP62-5AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3154-1CP62-6AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3154-1CP62-7AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3154-1CP62-8AH0	Rating: 23.6 kW / 300 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1WP62-5DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1WP62-6DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1WP62-7DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1WP62-8DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1AP72-5DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1AP72-6DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1AP72-7DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1AP72-8DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EP72-5DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EP72-6DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EP72-7DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EP72-8DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1SP72-5DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1SP72-6DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1SP72-7DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1SP72-8DA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1DP72-5AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1DP72-6AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1DP72-7AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1DP72-8AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1FP72-5AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1FP72-6AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1FP72-7AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1FP72-8AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1UP72-5AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1UP72-6AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1UP72-7AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1UP72-8AA0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EP62-5AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1EP62-6AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1EP62-7AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EP62-8AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1BP62-5AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1BP62-6AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1BP62-7AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BP62-8AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1CP62-5AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3155-1CP62-6AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3155-1CP62-7AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CP62-8AS0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3155-1EP62-5AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EP62-6AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EP62-7AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EP62-8AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1BP62-5AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1BP62-6AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1BP62-7AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BP62-8AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1CP62-5AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1CP62-6AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1CP62-7AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CP62-8AM0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1EP62-5AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1EP62-6AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1EP62-7AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1EP62-8AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1BP62-5AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1BP62-6AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1BP62-7AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1BP62-8AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3155-1CP62-5AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3155-1CP62-6AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3155-1CP62-7AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3155-1CP62-8AH0	Rating: 31.4 kW / 400 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1WP62-5DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1WP62-6DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1WP62-7DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1WP62-8DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Without encoder \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1AP72-5DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1AP72-6DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1AP72-7DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1AP72-8DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC2048S/R (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EP72-5DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EP72-6DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EP72-7DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EP72-8DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1SP72-5DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1SP72-6DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1SP72-7DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1SP72-8DA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: Multi-pole resolver (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1DP72-5AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1DP72-6AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1DP72-7AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1DP72-8AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: IC22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1FP72-5AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1FP72-6AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1FP72-7AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1FP72-8AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: AM22DQ, DRIVE-CLiQ (toothed belt) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1UP72-5AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1UP72-6AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1UP72-7AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1UP72-8AA0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Hollow shaft \| Encoder: R15DQ resolver, DRIVE-CLiQ \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EP62-5AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1EP62-6AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1EP62-7AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EP62-8AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM2048S/R \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1BP62-5AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1BP62-6AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1BP62-7AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BP62-8AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1CP62-5AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse right
	1FW3156-1CP62-6AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, transverse left
	1FW3156-1CP62-7AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CP62-8AS0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Plug-on shaft \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: Plug-on mounting \| Power connection: Terminal box top, outlet DE
	1FW3156-1EP62-5AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EP62-6AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EP62-7AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EP62-8AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1BP62-5AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1BP62-6AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1BP62-7AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BP62-8AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1CP62-5AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1CP62-6AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1CP62-7AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CP62-8AM0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, no feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1EP62-5AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1EP62-6AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1EP62-7AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1EP62-8AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM2048S/R \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1BP62-5AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1BP62-6AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1BP62-7AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1BP62-8AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AS24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE
	1FW3156-1CP62-5AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse right
	1FW3156-1CP62-6AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, transverse left
	1FW3156-1CP62-7AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet NDE
	1FW3156-1CP62-8AH0	Rating: 39.3 kW / 500 Nm / 750 rpm \| Shaft: Solid shaft, feather key \| Encoder: AM24DQI, DRIVE-CLiQ (coaxial) \| Mounting: IM B14 flange \| Power connection: Terminal box top, outlet DE

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →

Item added to your cart

Siemens SIMOTICS T-1FW3 Complete Torque Motors (SH 150)
