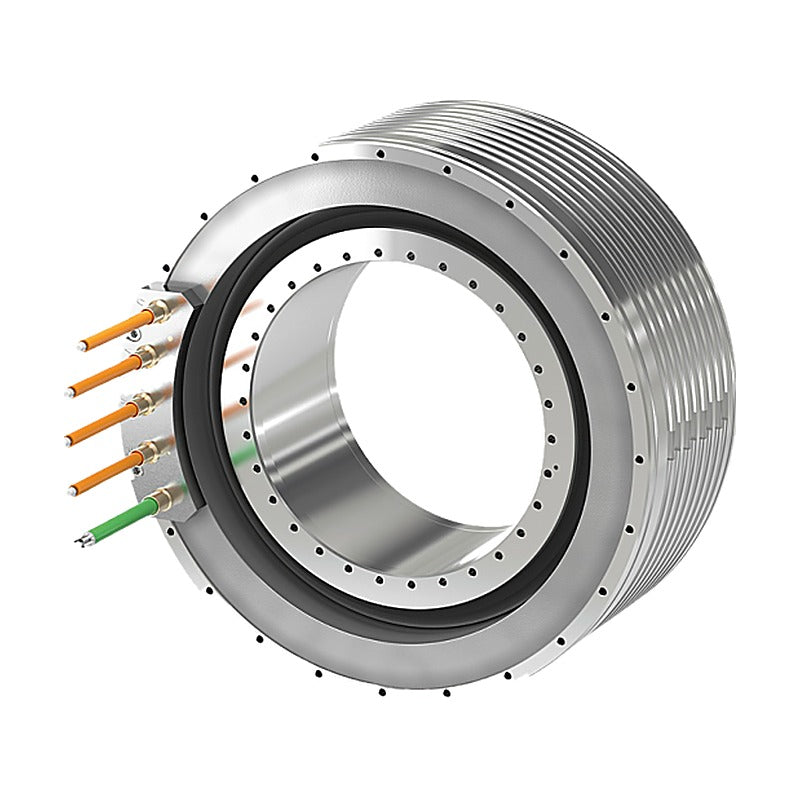

Siemens SIMOTICS T-1FW6 Torque Motors (High Speed)

Siemens SIMOTICS T-1FW6 Torque Motors (High Speed)

SIMOTICS T-1FW6 built-in torque motors, High Speed series 1FW6092 to 1FW6232, water cooling, for direct drives with SINAMICS S120/S220.

Key features

  • Built-in torque motor: stator and rotor integrated directly into the machine
  • Permanent-magnet synchronous direct drive, high torque at low speed
  • Hollow-shaft design for large through-openings
  • For rotary tables, swivel axes and roller drives on SINAMICS S120/S220
  • High Speed series 1FW6092 to 1FW6232, water cooling

Specifications

Motor type Synchronous built-in torque motor
Rotor Internal rotor
Cooling Water cooling
Supply 400 V 3 AC, DC link 600 V
Delivery Stator
Source Siemens Catalog D 21.4 · 2026, p. 958-961
1FW6092-8PC05-2EB3 Rated torque: 153 Nm | Rated speed: 571 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6092-8PC05-4FB3 Rated torque: 150 Nm | Rated speed: 1040 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6092-8PC10-4FB3 Rated torque: 305 Nm | Rated speed: 590 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6092-8PC10-8FB3 Rated torque: 299 Nm | Rated speed: 1060 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6092-8PC15-6AB3 Rated torque: 459 Nm | Rated speed: 560 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6092-8PC15-8FB3 Rated torque: 453 Nm | Rated speed: 824 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6132-8PC05-3AB3 Rated torque: 268 Nm | Rated speed: 490 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6132-8PC05-6AB3 Rated torque: 260 Nm | Rated speed: 1050 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6132-8PC10-6AB3 Rated torque: 537 Nm | Rated speed: 500 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6132-8PC10-2PB3 Rated torque: 519 Nm | Rated speed: 1060 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6132-8PC15-6AB3 Rated torque: 811 Nm | Rated speed: 365 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6132-8PC15-2PB3 Rated torque: 792 Nm | Rated speed: 777 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6152-8PC05-3AB3 Rated torque: 536 Nm | Rated speed: 203 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6152-8PC05-6AB3 Rated torque: 525 Nm | Rated speed: 460 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6152-8PC10-6AB3 Rated torque: 1070 Nm | Rated speed: 216 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6152-8PC10-2PB3 Rated torque: 1050 Nm | Rated speed: 467 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6152-8PC15-8FB3 Rated torque: 1610 Nm | Rated speed: 213 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6152-8PC15-2PB3 Rated torque: 1590 Nm | Rated speed: 343 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC05-4FB3 Rated torque: 849 Nm | Rated speed: 196 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC05-4FB3 Rated torque: 849 Nm | Rated speed: 196 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC05-8FB3 Rated torque: 826 Nm | Rated speed: 423 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC05-8FB3 Rated torque: 826 Nm | Rated speed: 423 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC10-8FB3 Rated torque: 1700 Nm | Rated speed: 200 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC10-8FB3 Rated torque: 1700 Nm | Rated speed: 200 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC10-2FB3 Rated torque: 1670 Nm | Rated speed: 329 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC10-2FB3 Rated torque: 1670 Nm | Rated speed: 329 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC15-8FB3 Rated torque: 2570 Nm | Rated speed: 128 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC15-8FB3 Rated torque: 2570 Nm | Rated speed: 128 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC15-0WB3 Rated torque: 2520 Nm | Rated speed: 277 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC15-0WB3 Rated torque: 2520 Nm | Rated speed: 277 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC20-8FB3 Rated torque: 3440 Nm | Rated speed: 92 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC20-8FB3 Rated torque: 3440 Nm | Rated speed: 92 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8WC20-0WB3 Rated torque: 3390 Nm | Rated speed: 203 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6192-8VC20-0WB3 Rated torque: 3390 Nm | Rated speed: 203 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC05-6AB3 Rated torque: 1060 Nm | Rated speed: 227 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC05-6AB3 Rated torque: 1060 Nm | Rated speed: 227 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC05-8FB3 Rated torque: 1040 Nm | Rated speed: 326 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC05-8FB3 Rated torque: 1040 Nm | Rated speed: 326 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC10-2PB3 Rated torque: 2120 Nm | Rated speed: 230 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC10-2PB3 Rated torque: 2120 Nm | Rated speed: 230 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC10-0WB3 Rated torque: 2090 Nm | Rated speed: 331 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC10-0WB3 Rated torque: 2090 Nm | Rated speed: 331 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC15-2PB3 Rated torque: 3210 Nm | Rated speed: 148 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC15-2PB3 Rated torque: 3210 Nm | Rated speed: 148 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC15-0WB3 Rated torque: 3180 Nm | Rated speed: 215 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC15-0WB3 Rated torque: 3180 Nm | Rated speed: 215 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC20-2PB3 Rated torque: 4310 Nm | Rated speed: 108 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC20-2PB3 Rated torque: 4310 Nm | Rated speed: 108 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8WC20-0WB3 Rated torque: 4280 Nm | Rated speed: 158 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6232-8VC20-0WB3 Rated torque: 4280 Nm | Rated speed: 158 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
Servo MotorsSiemens
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS T-1FW6 Torque Motors (High Speed)

Brand Siemens·Servo Motors

Available part numbers (50)

1FW6092-8PC05-2EB3, 1FW6092-8PC05-4FB3, 1FW6092-8PC10-4FB3, 1FW6092-8PC10-8FB3, 1FW6092-8PC15-6AB3, 1FW6092-8PC15-8FB3, 1FW6132-8PC05-3AB3, 1FW6132-8PC05-6AB3, 1FW6132-8PC10-6AB3, 1FW6132-8PC10-2PB3 + 40 more — see full table ↓
