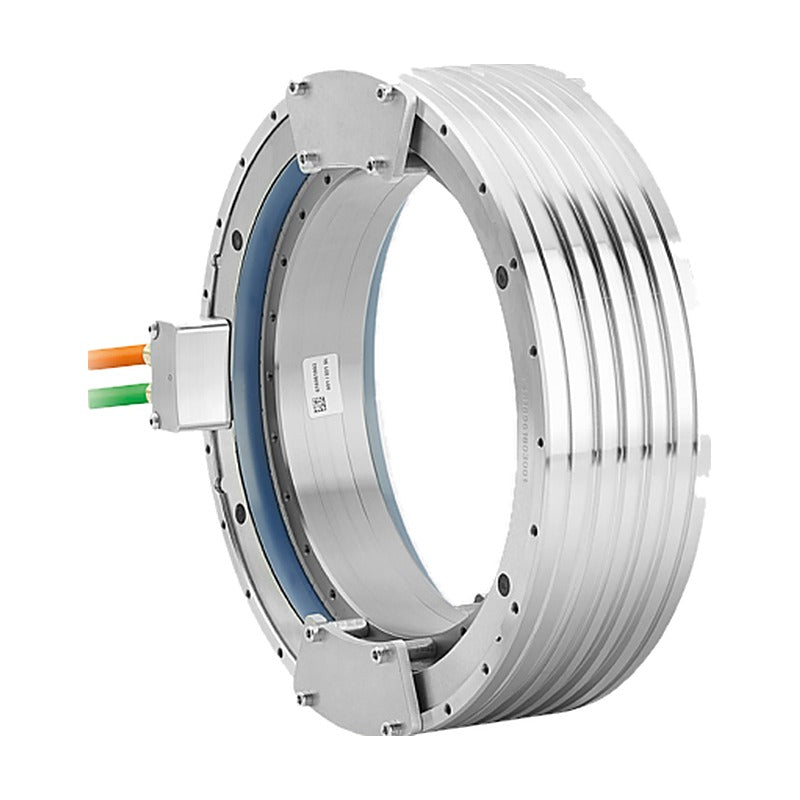

SIMOTICS T-1FW6 built-in torque motors, Standard series 1FW6090/1FW6130/1FW6150, water cooling, for direct drives with SINAMICS S120/S220.

Key features

  • Built-in torque motor: stator and rotor integrated directly into the machine
  • Permanent-magnet synchronous direct drive, high torque at low speed
  • Hollow-shaft design for large through-openings
  • For rotary tables, swivel axes and roller drives on SINAMICS S120/S220
  • Standard series 1FW6090/1FW6130/1FW6150, water cooling

Specifications

Motor type Synchronous built-in torque motor
Rotor Internal rotor
Cooling Water cooling
Supply 400 V 3 AC, DC link 600 V
Delivery Stator + rotor
Source Siemens Catalog D 21.4 · 2026, p. 948-949
1FW6090-0PB05-0FC3 Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB05-0FD3 Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB05-0FC3 Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB05-0FD3 Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB05-0FC3 Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB05-0FD3 Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB05-0KC3 Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB05-0KD3 Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB05-0KC3 Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB05-0KD3 Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB05-0KC3 Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB05-0KD3 Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB07-0KC3 Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB07-0KD3 Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB07-0KC3 Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB07-0KD3 Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB07-0KC3 Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB07-0KD3 Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB07-1JC2 Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB07-1JD2 Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB07-1JC2 Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB07-1JD2 Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB07-1JC2 Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB07-1JD2 Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB10-0KC3 Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB10-0KD3 Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB10-0KC3 Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB10-0KD3 Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB10-0KC3 Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB10-0KD3 Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB10-1JC3 Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB10-1JD3 Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB10-1JC3 Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB10-1JD3 Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB10-1JC3 Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB10-1JD3 Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB15-1JC3 Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB15-1JD3 Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB15-1JC3 Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB15-1JD3 Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB15-1JC3 Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB15-1JD3 Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB15-2JC3 Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB15-2JD3 Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB15-2JC3 Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB15-2JD3 Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB15-2JC3 Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB15-2JD3 Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB05-0KC3 Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB05-0KD3 Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB05-0KC3 Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB05-0KD3 Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB05-0KC3 Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB05-0KD3 Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB05-1JC3 Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB05-1JD3 Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB05-1JC3 Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB05-1JD3 Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB05-1JC3 Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB05-1JD3 Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB07-0KC3 Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB07-0KD3 Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB07-0KC3 Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB07-0KD3 Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB07-0KC3 Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB07-0KD3 Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB07-1JC3 Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB07-1JD3 Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB07-1JC3 Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB07-1JD3 Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB07-1JC3 Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB07-1JD3 Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB10-1JC3 Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB10-1JD3 Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB10-1JC3 Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB10-1JD3 Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB10-1JC3 Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB10-1JD3 Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB10-2JC3 Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB10-2JD3 Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB10-2JC3 Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB10-2JD3 Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB10-2JC3 Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB10-2JD3 Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB15-1JC3 Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB15-1JD3 Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB15-1JC3 Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB15-1JD3 Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB15-1JC3 Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB15-1JD3 Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB15-2JC3 Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB15-2JD3 Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB15-2JC3 Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB15-2JD3 Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB15-2JC3 Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB15-2JD3 Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB05-1JC3 Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB05-1JD3 Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB05-1JC3 Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB05-1JD3 Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB05-1JC3 Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB05-1JD3 Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB05-4FC3 Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB05-4FD3 Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB05-4FC3 Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB05-4FD3 Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB05-4FC3 Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB05-4FD3 Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB07-1JC3 Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB07-1JD3 Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB07-1JC3 Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB07-1JD3 Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB07-1JC3 Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB07-1JD3 Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB10-1JC3 Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB10-1JD3 Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB10-1JC3 Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB10-1JD3 Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB10-1JC3 Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB10-1JD3 Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB07-2JC3 Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB07-2JD3 Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB07-2JC3 Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB07-2JD3 Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB07-2JC3 Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB07-2JD3 Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB07-4FC3 Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB07-4FD3 Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB07-4FC3 Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB07-4FD3 Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB07-4FC3 Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB07-4FD3 Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB10-2JC3 Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB10-2JD3 Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB10-2JC3 Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB10-2JD3 Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB10-2JC3 Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB10-2JD3 Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB10-4FC3 Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB10-4FD3 Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB10-4FC3 Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB10-4FD3 Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB10-4FC3 Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB10-4FD3 Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB15-2JC3 Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB15-2JD3 Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB15-2JC3 Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB15-2JD3 Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB15-2JC3 Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB15-2JD3 Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB15-4FC3 Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB15-4FD3 Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB15-4FC3 Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB15-4FD3 Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB15-4FC3 Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB15-4FD3 Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
Servo MotorsSiemens
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS T-1FW6 Torque Motors (Standard, 1FW6090-1FW6150)

Brand Siemens·Servo Motors

Available part numbers (156)

1FW6090-0PB05-0FC3, 1FW6090-0PB05-0FD3, 1FW6090-0QB05-0FC3, 1FW6090-0QB05-0FD3, 1FW6090-0NB05-0FC3, 1FW6090-0NB05-0FD3, 1FW6090-0PB05-0KC3, 1FW6090-0PB05-0KD3, 1FW6090-0QB05-0KC3, 1FW6090-0QB05-0KD3 + 146 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1FW6090-0PB05-0FC3Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB05-0FD3Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB05-0FC3Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB05-0FD3Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB05-0FC3Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB05-0FD3Rated torque: 113 Nm | Rated speed: 142 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB05-0KC3Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB05-0KD3Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB05-0KC3Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB05-0KD3Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB05-0KC3Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB05-0KD3Rated torque: 109 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB07-0KC3Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB07-0KD3Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB07-0KC3Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB07-0KD3Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB07-0KC3Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB07-0KD3Rated torque: 154 Nm | Rated speed: 224 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB07-1JC2Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB07-1JD2Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB07-1JC2Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB07-1JD2Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB07-1JC2Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB07-1JD2Rated torque: 142 Nm | Rated speed: 428 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB10-0KC3Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB10-0KD3Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB10-0KC3Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB10-0KD3Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB10-0KC3Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB10-0KD3Rated torque: 231 Nm | Rated speed: 83.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB10-1JC3Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB10-1JD3Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB10-1JC3Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB10-1JD3Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB10-1JC3Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB10-1JD3Rated torque: 216 Nm | Rated speed: 272 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB15-1JC3Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB15-1JD3Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB15-1JC3Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB15-1JD3Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB15-1JC3Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB15-1JD3Rated torque: 338 Nm | Rated speed: 154 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6090-0PB15-2JC3Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0PB15-2JD3Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6090-0QB15-2JC3Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0QB15-2JD3Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6090-0NB15-2JC3Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6090-0NB15-2JD3Rated torque: 319 Nm | Rated speed: 312 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB05-0KC3Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB05-0KD3Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB05-0KC3Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB05-0KD3Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB05-0KC3Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB05-0KD3Rated torque: 241 Nm | Rated speed: 132 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB05-1JC3Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB05-1JD3Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB05-1JC3Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB05-1JD3Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB05-1JC3Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB05-1JD3Rated torque: 217 Nm | Rated speed: 308 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB07-0KC3Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB07-0KD3Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB07-0KC3Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB07-0KD3Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB07-0KC3Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB07-0KD3Rated torque: 344 Nm | Rated speed: 96.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB07-1JC3Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB07-1JD3Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB07-1JC3Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB07-1JD3Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB07-1JC3Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB07-1JD3Rated torque: 324 Nm | Rated speed: 201 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB10-1JC3Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB10-1JD3Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB10-1JC3Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB10-1JD3Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB10-1JC3Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB10-1JD3Rated torque: 484 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB10-2JC3Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB10-2JD3Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB10-2JC3Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB10-2JD3Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB10-2JC3Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB10-2JD3Rated torque: 449 Nm | Rated speed: 249 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB15-1JC3Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB15-1JD3Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB15-1JC3Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB15-1JD3Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB15-1JC3Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB15-1JD3Rated torque: 743 Nm | Rated speed: 78.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6130-0PB15-2JC3Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0PB15-2JD3Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6130-0QB15-2JC3Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0QB15-2JD3Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6130-0NB15-2JC3Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6130-0NB15-2JD3Rated torque: 714 Nm | Rated speed: 152 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB05-1JC3Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB05-1JD3Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB05-1JC3Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB05-1JD3Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB05-1JC3Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB05-1JD3Rated torque: 338 Nm | Rated speed: 234 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB05-4FC3Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB05-4FD3Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB05-4FC3Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB05-4FD3Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB05-4FC3Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB05-4FD3Rated torque: 298 Nm | Rated speed: 654 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB07-1JC3Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB07-1JD3Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB07-1JC3Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB07-1JD3Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB07-1JC3Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB07-1JD3Rated torque: 483 Nm | Rated speed: 157 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB10-1JC3Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB10-1JD3Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB10-1JC3Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB10-1JD3Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB10-1JC3Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB10-1JD3Rated torque: 701 Nm | Rated speed: 100 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB07-2JC3Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB07-2JD3Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB07-2JC3Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB07-2JD3Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB07-2JC3Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB07-2JD3Rated torque: 470 Nm | Rated speed: 259 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB07-4FC3Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB07-4FD3Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB07-4FC3Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB07-4FD3Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB07-4FC3Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB07-4FD3Rated torque: 444 Nm | Rated speed: 449 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB10-2JC3Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB10-2JD3Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB10-2JC3Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB10-2JD3Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB10-2JC3Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB10-2JD3Rated torque: 688 Nm | Rated speed: 171 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB10-4FC3Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB10-4FD3Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB10-4FC3Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB10-4FD3Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB10-4FC3Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB10-4FD3Rated torque: 663 Nm | Rated speed: 301 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB15-2JC3Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB15-2JD3Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB15-2JC3Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB15-2JD3Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB15-2JC3Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB15-2JD3Rated torque: 1050 Nm | Rated speed: 103 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6150-0PB15-4FC3Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0PB15-4FD3Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6150-0QB15-4FC3Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0QB15-4FD3Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6150-0NB15-4FC3Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6150-0NB15-4FD3Rated torque: 1030 Nm | Rated speed: 188 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
