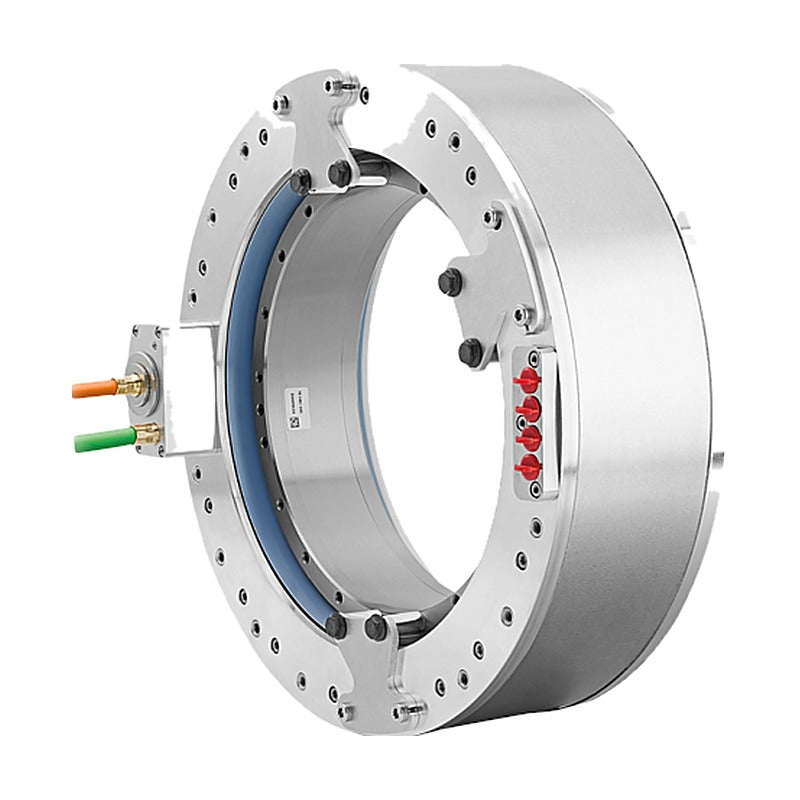

Siemens SIMOTICS T-1FW6 Torque Motors (Standard, 1FW6160-1FW6290)

Siemens SIMOTICS T-1FW6 Torque Motors (Standard, 1FW6160-1FW6290)

SIMOTICS T-1FW6 built-in torque motors, Standard series 1FW6160 to 1FW6290, water cooling, for direct drives with SINAMICS S120/S220.

Key features

  • Built-in torque motor: stator and rotor integrated directly into the machine
  • Permanent-magnet synchronous direct drive, high torque at low speed
  • Hollow-shaft design for large through-openings
  • For rotary tables, swivel axes and roller drives on SINAMICS S120/S220
  • Standard series 1FW6160 to 1FW6290, water cooling

Specifications

Motor type Synchronous built-in torque motor
Rotor Internal rotor
Cooling Water cooling
Supply 400 V 3 AC, DC link 600 V
Delivery Stator + rotor
Source Siemens Catalog D 21.4 · 2026, p. 950-957
1FW6160-0WB05-1JC3 Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-1JD3 Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-1JC3 Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-1JD3 Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-1JC3 Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-1JD3 Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB05-2JC3 Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-2JD3 Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-2JC3 Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-2JD3 Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-2JC3 Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-2JD3 Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB05-5GC3 Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-5GD3 Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-5GC3 Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-5GD3 Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-5GC3 Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-5GD3 Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB05-0KC3 Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-0KD3 Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-0KC3 Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-0KD3 Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-0KC3 Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-0KD3 Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-1JC3 Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB07-1JD3 Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB07-1JC3 Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB07-1JD3 Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB07-1JC3 Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB07-1JD3 Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-2JC3 Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB07-2JD3 Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB07-2JC3 Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB07-2JD3 Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB07-2JC3 Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB07-2JD3 Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-5GC3 Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB07-5GD3 Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB07-5GC3 Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB07-5GD3 Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB07-5GC3 Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB07-5GD3 Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-8FB3 Rated torque: 436 Nm | Rated speed: 594 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB07-8FB3 Rated torque: 436 Nm | Rated speed: 594 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB10-1JC3 Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-1JD3 Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-1JC3 Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-1JD3 Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-1JC3 Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-1JD3 Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-2EC3 Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-2ED3 Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-2EC3 Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-2ED3 Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-2EC3 Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-2ED3 Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-2JC3 Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-2JD3 Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-2JC3 Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-2JD3 Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-2JC3 Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-2JD3 Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-5GC3 Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-5GD3 Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-5GC3 Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-5GD3 Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-5GC3 Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-5GD3 Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-8FB3 Rated torque: 737 Nm | Rated speed: 383 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB10-8FB3 Rated torque: 737 Nm | Rated speed: 383 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB10-2PB3 Rated torque: 629 Nm | Rated speed: 584 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB10-2PB3 Rated torque: 629 Nm | Rated speed: 584 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB15-2JC3 Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB15-2JD3 Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB15-2JC3 Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB15-2JD3 Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB15-2JC3 Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB15-2JD3 Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB15-5GC3 Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB15-5GD3 Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB15-5GC3 Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB15-5GD3 Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB15-5GC3 Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB15-5GD3 Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB15-8FB3 Rated torque: 1220 Nm | Rated speed: 237 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB15-8FB3 Rated torque: 1220 Nm | Rated speed: 237 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB15-2PB3 Rated torque: 1130 Nm | Rated speed: 355 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB15-2PB3 Rated torque: 1130 Nm | Rated speed: 355 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB15-0WB3 Rated torque: 970 Nm | Rated speed: 551 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB15-0WB3 Rated torque: 970 Nm | Rated speed: 551 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB20-5GC3 Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB20-5GD3 Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB20-5GC3 Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB20-5GD3 Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB20-5GC3 Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB20-5GD3 Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB20-8FB3 Rated torque: 1700 Nm | Rated speed: 170 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB20-8FB3 Rated torque: 1700 Nm | Rated speed: 170 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB20-2PB3 Rated torque: 1610 Nm | Rated speed: 253 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB20-2PB3 Rated torque: 1610 Nm | Rated speed: 253 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB20-0WB3 Rated torque: 1470 Nm | Rated speed: 387 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB20-0WB3 Rated torque: 1470 Nm | Rated speed: 387 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB05-1JC3 Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB05-1JD3 Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB05-1JC3 Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB05-1JD3 Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB05-1JC3 Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB05-1JD3 Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB05-2JC3 Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB05-2JD3 Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB05-2JC3 Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB05-2JD3 Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB05-2JC3 Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB05-2JD3 Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB05-5GC3 Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB05-5GD3 Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB05-5GC3 Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB05-5GD3 Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB05-5GC3 Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB05-5GD3 Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-1JC3 Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB07-1JD3 Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB07-1JC3 Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB07-1JD3 Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB07-1JC3 Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB07-1JD3 Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-2JC3 Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB07-2JD3 Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB07-2JC3 Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB07-2JD3 Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB07-2JC3 Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB07-2JD3 Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-5GC3 Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB07-5GD3 Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB07-5GC3 Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB07-5GD3 Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB07-5GC3 Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB07-5GD3 Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-8FB3 Rated torque: 714 Nm | Rated speed: 377 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB07-8FB3 Rated torque: 714 Nm | Rated speed: 377 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB10-1JC3 Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB10-1JD3 Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB10-1JC3 Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB10-1JD3 Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB10-1JC3 Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB10-1JD3 Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB10-2JC3 Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB10-2JD3 Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB10-2JC3 Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB10-2JD3 Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB10-2JC3 Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB10-2JD3 Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB10-5GC3 Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB10-5GD3 Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB10-5GC3 Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB10-5GD3 Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB10-5GC3 Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB10-5GD3 Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB10-8FB3 Rated torque: 1140 Nm | Rated speed: 246 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB10-8FB3 Rated torque: 1140 Nm | Rated speed: 246 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB10-2PB3 Rated torque: 971 Nm | Rated speed: 431 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB10-2PB3 Rated torque: 971 Nm | Rated speed: 431 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB15-2JC3 Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB15-2JD3 Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB15-2JC3 Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB15-2JD3 Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB15-2JC3 Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB15-2JD3 Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB15-5GC3 Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB15-5GD3 Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB15-5GC3 Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB15-5GD3 Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB15-5GC3 Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB15-5GD3 Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB15-8FB3 Rated torque: 1830 Nm | Rated speed: 153 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB15-8FB3 Rated torque: 1830 Nm | Rated speed: 153 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB15-2PB3 Rated torque: 1680 Nm | Rated speed: 263 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB15-2PB3 Rated torque: 1680 Nm | Rated speed: 263 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB15-0WB3 Rated torque: 1560 Nm | Rated speed: 352 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB15-0WB3 Rated torque: 1560 Nm | Rated speed: 352 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB20-5GC3 Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB20-5GD3 Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB20-5GC3 Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB20-5GD3 Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB20-5GC3 Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB20-5GD3 Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB20-4FC3 Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB20-4FD3 Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB20-4FC3 Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB20-4FD3 Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB20-4FC3 Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB20-4FD3 Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB20-8FB3 Rated torque: 2510 Nm | Rated speed: 109 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB20-8FB3 Rated torque: 2510 Nm | Rated speed: 109 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB20-2PB3 Rated torque: 2380 Nm | Rated speed: 188 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB20-2PB3 Rated torque: 2380 Nm | Rated speed: 188 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB20-0WB3 Rated torque: 2270 Nm | Rated speed: 249 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB20-0WB3 Rated torque: 2270 Nm | Rated speed: 249 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB05-1JC3 Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB05-1JD3 Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB05-1JC3 Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB05-1JD3 Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB05-1JC3 Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB05-1JD3 Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB05-2JC3 Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB05-2JD3 Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB05-2JC3 Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB05-2JD3 Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB05-2JC3 Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB05-2JD3 Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB05-5GC3 Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB05-5GD3 Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB05-5GC3 Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB05-5GD3 Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB05-5GC3 Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB05-5GD3 Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-1JC3 Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB07-1JD3 Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB07-1JC3 Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB07-1JD3 Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB07-1JC3 Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB07-1JD3 Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-2JC3 Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB07-2JD3 Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB07-2JC3 Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB07-2JD3 Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB07-2JC3 Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB07-2JD3 Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-5GC3 Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB07-5GD3 Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB07-5GC3 Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB07-5GD3 Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB07-5GC3 Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB07-5GD3 Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-8FB3 Rated torque: 936 Nm | Rated speed: 275 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB07-8FB3 Rated torque: 936 Nm | Rated speed: 275 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB10-2JC3 Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB10-2JD3 Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB10-2JC3 Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB10-2JD3 Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB10-2JC3 Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB10-2JD3 Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB10-5GC3 Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB10-5GD3 Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB10-5GC3 Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB10-5GD3 Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB10-5GC3 Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB10-5GD3 Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB10-8FB3 Rated torque: 1460 Nm | Rated speed: 181 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB10-8FB3 Rated torque: 1460 Nm | Rated speed: 181 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB10-2PB3 Rated torque: 1330 Nm | Rated speed: 278 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB10-2PB3 Rated torque: 1330 Nm | Rated speed: 278 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB15-4CC3 Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB15-4CD3 Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB15-4CC3 Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB15-4CD3 Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB15-4CC3 Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB15-4CD3 Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB15-5GC3 Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB15-5GD3 Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB15-5GC3 Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB15-5GD3 Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB15-5GC3 Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB15-5GD3 Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB15-8FB3 Rated torque: 2320 Nm | Rated speed: 113 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB15-8FB3 Rated torque: 2320 Nm | Rated speed: 113 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB15-2PB3 Rated torque: 2210 Nm | Rated speed: 172 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB15-2PB3 Rated torque: 2210 Nm | Rated speed: 172 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB15-0WB3 Rated torque: 2040 Nm | Rated speed: 258 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB15-0WB3 Rated torque: 2040 Nm | Rated speed: 258 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB20-5GC3 Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB20-5GD3 Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB20-5GC3 Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB20-5GD3 Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB20-5GC3 Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB20-5GD3 Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB20-8FB3 Rated torque: 3170 Nm | Rated speed: 80.7 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB20-8FB3 Rated torque: 3170 Nm | Rated speed: 80.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB20-2PB3 Rated torque: 3060 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB20-2PB3 Rated torque: 3060 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB20-0WB3 Rated torque: 2910 Nm | Rated speed: 184 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB20-0WB3 Rated torque: 2910 Nm | Rated speed: 184 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB07-5GC3 Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB07-5GD3 Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB07-5GC3 Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB07-5GD3 Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB07-5GC3 Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB07-5GD3 Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB07-0LB3 Rated torque: 1920 Nm | Rated speed: 204 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB07-0LB3 Rated torque: 1920 Nm | Rated speed: 204 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB07-2PB3 Rated torque: 1810 Nm | Rated speed: 272 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB07-2PB3 Rated torque: 1810 Nm | Rated speed: 272 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB11-7AC3 Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB11-7AD3 Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB11-7AC3 Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB11-7AD3 Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB11-7AC3 Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB11-7AD3 Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB11-5GC3 Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB11-5GD3 Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB11-5GC3 Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB11-5GD3 Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB11-5GC3 Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB11-5GD3 Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB11-0LB3 Rated torque: 3200 Nm | Rated speed: 125 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB11-0LB3 Rated torque: 3200 Nm | Rated speed: 125 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB11-2PB3 Rated torque: 3110 Nm | Rated speed: 165 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB11-2PB3 Rated torque: 3110 Nm | Rated speed: 165 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB15-7AC3 Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB15-7AD3 Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB15-7AC3 Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB15-7AD3 Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB15-7AC3 Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB15-7AD3 Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB15-0LB3 Rated torque: 4480 Nm | Rated speed: 88.5 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB15-0LB3 Rated torque: 4480 Nm | Rated speed: 88.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB15-2PB3 Rated torque: 4390 Nm | Rated speed: 117 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB15-2PB3 Rated torque: 4390 Nm | Rated speed: 117 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB20-0LB3 Rated torque: 5760 Nm | Rated speed: 67.9 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB20-0LB3 Rated torque: 5760 Nm | Rated speed: 67.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB20-2PB3 Rated torque: 5670 Nm | Rated speed: 90.3 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB20-2PB3 Rated torque: 5670 Nm | Rated speed: 90.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
Servo MotorsSiemens
322 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOTICS T-1FW6 Torque Motors (Standard, 1FW6160-1FW6290)

Brand Siemens·Servo Motors

Available part numbers (322)

1FW6160-0WB05-1JC3, 1FW6160-0WB05-1JD3, 1FW6160-0VB05-1JC3, 1FW6160-0VB05-1JD3, 1FW6160-0TB05-1JC3, 1FW6160-0TB05-1JD3, 1FW6160-0WB05-2JC3, 1FW6160-0WB05-2JD3, 1FW6160-0VB05-2JC3, 1FW6160-0VB05-2JD3 + 312 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1FW6160-0WB05-1JC3Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-1JD3Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-1JC3Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-1JD3Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-1JC3Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-1JD3Rated torque: 432 Nm | Rated speed: 140 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB05-2JC3Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-2JD3Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-2JC3Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-2JD3Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-2JC3Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-2JD3Rated torque: 405 Nm | Rated speed: 242 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB05-5GC3Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-5GD3Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-5GC3Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-5GD3Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-5GC3Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-5GD3Rated torque: 317 Nm | Rated speed: 574 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB05-0KC3Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB05-0KD3Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB05-0KC3Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB05-0KD3Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB05-0KC3Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB05-0KD3Rated torque: 453 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-1JC3Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB07-1JD3Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB07-1JC3Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB07-1JD3Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB07-1JC3Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB07-1JD3Rated torque: 621 Nm | Rated speed: 93.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-2JC3Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB07-2JD3Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB07-2JC3Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB07-2JD3Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB07-2JC3Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB07-2JD3Rated torque: 596 Nm | Rated speed: 164 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-5GC3Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB07-5GD3Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB07-5GC3Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB07-5GD3Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB07-5GC3Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB07-5GD3Rated torque: 517 Nm | Rated speed: 379 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB07-8FB3Rated torque: 436 Nm | Rated speed: 594 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB07-8FB3Rated torque: 436 Nm | Rated speed: 594 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB10-1JC3Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-1JD3Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-1JC3Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-1JD3Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-1JC3Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-1JD3Rated torque: 904 Nm | Rated speed: 59 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-2EC3Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-2ED3Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-2EC3Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-2ED3Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-2EC3Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-2ED3Rated torque: 893 Nm | Rated speed: 80.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-2JC3Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-2JD3Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-2JC3Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-2JD3Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-2JC3Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-2JD3Rated torque: 880 Nm | Rated speed: 108 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-5GC3Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB10-5GD3Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB10-5GC3Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB10-5GD3Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB10-5GC3Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB10-5GD3Rated torque: 807 Nm | Rated speed: 250 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB10-8FB3Rated torque: 737 Nm | Rated speed: 383 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB10-8FB3Rated torque: 737 Nm | Rated speed: 383 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB10-2PB3Rated torque: 629 Nm | Rated speed: 584 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB10-2PB3Rated torque: 629 Nm | Rated speed: 584 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB15-2JC3Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB15-2JD3Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB15-2JC3Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB15-2JD3Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB15-2JC3Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB15-2JD3Rated torque: 1350 Nm | Rated speed: 64.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB15-5GC3Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB15-5GD3Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB15-5GC3Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB15-5GD3Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB15-5GC3Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB15-5GD3Rated torque: 1280 Nm | Rated speed: 156 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB15-8FB3Rated torque: 1220 Nm | Rated speed: 237 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB15-8FB3Rated torque: 1220 Nm | Rated speed: 237 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB15-2PB3Rated torque: 1130 Nm | Rated speed: 355 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB15-2PB3Rated torque: 1130 Nm | Rated speed: 355 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB15-0WB3Rated torque: 970 Nm | Rated speed: 551 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB15-0WB3Rated torque: 970 Nm | Rated speed: 551 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB20-5GC3Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0WB20-5GD3Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6160-0VB20-5GC3Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0VB20-5GD3Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6160-0TB20-5GC3Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6160-0TB20-5GD3Rated torque: 1760 Nm | Rated speed: 111 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6160-0WB20-8FB3Rated torque: 1700 Nm | Rated speed: 170 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB20-8FB3Rated torque: 1700 Nm | Rated speed: 170 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB20-2PB3Rated torque: 1610 Nm | Rated speed: 253 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB20-2PB3Rated torque: 1610 Nm | Rated speed: 253 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0WB20-0WB3Rated torque: 1470 Nm | Rated speed: 387 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6160-0VB20-0WB3Rated torque: 1470 Nm | Rated speed: 387 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB05-1JC3Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB05-1JD3Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB05-1JC3Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB05-1JD3Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB05-1JC3Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB05-1JD3Rated torque: 634 Nm | Rated speed: 92.7 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB05-2JC3Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB05-2JD3Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB05-2JC3Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB05-2JD3Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB05-2JC3Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB05-2JD3Rated torque: 608 Nm | Rated speed: 155 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB05-5GC3Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB05-5GD3Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB05-5GC3Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB05-5GD3Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB05-5GC3Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB05-5GD3Rated torque: 516 Nm | Rated speed: 364 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-1JC3Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB07-1JD3Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB07-1JC3Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB07-1JD3Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB07-1JC3Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB07-1JD3Rated torque: 907 Nm | Rated speed: 61 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-2JC3Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB07-2JD3Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB07-2JC3Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB07-2JD3Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB07-2JC3Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB07-2JD3Rated torque: 881 Nm | Rated speed: 105 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-5GC3Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB07-5GD3Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB07-5GC3Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB07-5GD3Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB07-5GC3Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB07-5GD3Rated torque: 798 Nm | Rated speed: 244 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB07-8FB3Rated torque: 714 Nm | Rated speed: 377 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB07-8FB3Rated torque: 714 Nm | Rated speed: 377 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB10-1JC3Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB10-1JD3Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB10-1JC3Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB10-1JD3Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB10-1JC3Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB10-1JD3Rated torque: 1310 Nm | Rated speed: 37.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB10-2JC3Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB10-2JD3Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB10-2JC3Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB10-2JD3Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB10-2JC3Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB10-2JD3Rated torque: 1290 Nm | Rated speed: 67.6 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB10-5GC3Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB10-5GD3Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB10-5GC3Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB10-5GD3Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB10-5GC3Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB10-5GD3Rated torque: 1210 Nm | Rated speed: 161 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB10-8FB3Rated torque: 1140 Nm | Rated speed: 246 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB10-8FB3Rated torque: 1140 Nm | Rated speed: 246 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB10-2PB3Rated torque: 971 Nm | Rated speed: 431 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB10-2PB3Rated torque: 971 Nm | Rated speed: 431 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB15-2JC3Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB15-2JD3Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB15-2JC3Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB15-2JD3Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB15-2JC3Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB15-2JD3Rated torque: 1970 Nm | Rated speed: 39 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB15-5GC3Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB15-5GD3Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB15-5GC3Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB15-5GD3Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB15-5GC3Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB15-5GD3Rated torque: 1890 Nm | Rated speed: 99.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB15-8FB3Rated torque: 1830 Nm | Rated speed: 153 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB15-8FB3Rated torque: 1830 Nm | Rated speed: 153 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB15-2PB3Rated torque: 1680 Nm | Rated speed: 263 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB15-2PB3Rated torque: 1680 Nm | Rated speed: 263 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB15-0WB3Rated torque: 1560 Nm | Rated speed: 352 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB15-0WB3Rated torque: 1560 Nm | Rated speed: 352 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB20-5GC3Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB20-5GD3Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB20-5GC3Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB20-5GD3Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB20-5GC3Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB20-5GD3Rated torque: 2580 Nm | Rated speed: 70.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB20-4FC3Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0WB20-4FD3Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6190-0VB20-4FC3Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0VB20-4FD3Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6190-0TB20-4FC3Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6190-0TB20-4FD3Rated torque: 2610 Nm | Rated speed: 51.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6190-0WB20-8FB3Rated torque: 2510 Nm | Rated speed: 109 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB20-8FB3Rated torque: 2510 Nm | Rated speed: 109 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB20-2PB3Rated torque: 2380 Nm | Rated speed: 188 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB20-2PB3Rated torque: 2380 Nm | Rated speed: 188 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0WB20-0WB3Rated torque: 2270 Nm | Rated speed: 249 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6190-0VB20-0WB3Rated torque: 2270 Nm | Rated speed: 249 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB05-1JC3Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB05-1JD3Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB05-1JC3Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB05-1JD3Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB05-1JC3Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB05-1JD3Rated torque: 801 Nm | Rated speed: 66.1 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB05-2JC3Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB05-2JD3Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB05-2JC3Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB05-2JD3Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB05-2JC3Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB05-2JD3Rated torque: 778 Nm | Rated speed: 104 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB05-5GC3Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB05-5GD3Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB05-5GC3Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB05-5GD3Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB05-5GC3Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB05-5GD3Rated torque: 669 Nm | Rated speed: 275 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-1JC3Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB07-1JD3Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB07-1JC3Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB07-1JD3Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB07-1JC3Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB07-1JD3Rated torque: 1140 Nm | Rated speed: 43.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-2JC3Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB07-2JD3Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB07-2JC3Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB07-2JD3Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB07-2JC3Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB07-2JD3Rated torque: 1120 Nm | Rated speed: 69.8 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-5GC3Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB07-5GD3Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB07-5GC3Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB07-5GD3Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB07-5GC3Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB07-5GD3Rated torque: 1020 Nm | Rated speed: 185 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB07-8FB3Rated torque: 936 Nm | Rated speed: 275 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB07-8FB3Rated torque: 936 Nm | Rated speed: 275 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB10-2JC3Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB10-2JD3Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB10-2JC3Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB10-2JD3Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB10-2JC3Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB10-2JD3Rated torque: 1630 Nm | Rated speed: 44.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB10-5GC3Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB10-5GD3Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB10-5GC3Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB10-5GD3Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB10-5GC3Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB10-5GD3Rated torque: 1530 Nm | Rated speed: 123 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB10-8FB3Rated torque: 1460 Nm | Rated speed: 181 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB10-8FB3Rated torque: 1460 Nm | Rated speed: 181 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB10-2PB3Rated torque: 1330 Nm | Rated speed: 278 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB10-2PB3Rated torque: 1330 Nm | Rated speed: 278 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB15-4CC3Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB15-4CD3Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB15-4CC3Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB15-4CD3Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB15-4CC3Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB15-4CD3Rated torque: 2450 Nm | Rated speed: 41.5 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB15-5GC3Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB15-5GD3Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB15-5GC3Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB15-5GD3Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB15-5GC3Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB15-5GD3Rated torque: 2380 Nm | Rated speed: 76.2 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB15-8FB3Rated torque: 2320 Nm | Rated speed: 113 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB15-8FB3Rated torque: 2320 Nm | Rated speed: 113 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB15-2PB3Rated torque: 2210 Nm | Rated speed: 172 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB15-2PB3Rated torque: 2210 Nm | Rated speed: 172 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB15-0WB3Rated torque: 2040 Nm | Rated speed: 258 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB15-0WB3Rated torque: 2040 Nm | Rated speed: 258 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB20-5GC3Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0WB20-5GD3Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6230-0VB20-5GC3Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0VB20-5GD3Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6230-0TB20-5GC3Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6230-0TB20-5GD3Rated torque: 3230 Nm | Rated speed: 53.4 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6230-0WB20-8FB3Rated torque: 3170 Nm | Rated speed: 80.7 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB20-8FB3Rated torque: 3170 Nm | Rated speed: 80.7 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB20-2PB3Rated torque: 3060 Nm | Rated speed: 123 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB20-2PB3Rated torque: 3060 Nm | Rated speed: 123 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0WB20-0WB3Rated torque: 2910 Nm | Rated speed: 184 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6230-0VB20-0WB3Rated torque: 2910 Nm | Rated speed: 184 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB07-5GC3Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB07-5GD3Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB07-5GC3Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB07-5GD3Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB07-5GC3Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB07-5GD3Rated torque: 2060 Nm | Rated speed: 106 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB07-0LB3Rated torque: 1920 Nm | Rated speed: 204 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB07-0LB3Rated torque: 1920 Nm | Rated speed: 204 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB07-2PB3Rated torque: 1810 Nm | Rated speed: 272 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB07-2PB3Rated torque: 1810 Nm | Rated speed: 272 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB11-7AC3Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB11-7AD3Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB11-7AC3Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB11-7AD3Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB11-7AC3Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB11-7AD3Rated torque: 3320 Nm | Rated speed: 72.9 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB11-5GC3Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB11-5GD3Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB11-5GC3Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB11-5GD3Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB11-5GC3Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB11-5GD3Rated torque: 3340 Nm | Rated speed: 64.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB11-0LB3Rated torque: 3200 Nm | Rated speed: 125 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB11-0LB3Rated torque: 3200 Nm | Rated speed: 125 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB11-2PB3Rated torque: 3110 Nm | Rated speed: 165 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB11-2PB3Rated torque: 3110 Nm | Rated speed: 165 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB15-7AC3Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Axial | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0WB15-7AD3Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Axial | Connection: Fixed cables 0.5 m, connectors
1FW6290-0VB15-7AC3Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0VB15-7AD3Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 0.5 m, connectors
1FW6290-0TB15-7AC3Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 2 m, bare wire ends
1FW6290-0TB15-7AD3Rated torque: 4600 Nm | Rated speed: 51.3 rpm | Cable outlet: Tangential | Connection: Fixed cables 0.5 m, connectors
1FW6290-0WB15-0LB3Rated torque: 4480 Nm | Rated speed: 88.5 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB15-0LB3Rated torque: 4480 Nm | Rated speed: 88.5 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB15-2PB3Rated torque: 4390 Nm | Rated speed: 117 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB15-2PB3Rated torque: 4390 Nm | Rated speed: 117 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB20-0LB3Rated torque: 5760 Nm | Rated speed: 67.9 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB20-0LB3Rated torque: 5760 Nm | Rated speed: 67.9 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0WB20-2PB3Rated torque: 5670 Nm | Rated speed: 90.3 rpm | Cable outlet: Axial | Connection: Fixed cables 1 m, bare wire ends
1FW6290-0VB20-2PB3Rated torque: 5670 Nm | Rated speed: 90.3 rpm | Cable outlet: Radially outwards | Connection: Fixed cables 1 m, bare wire ends

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
