Siemens SINAMICS braking resistors and V20 Braking Module

Siemens SINAMICS braking resistors and V20 Braking Module

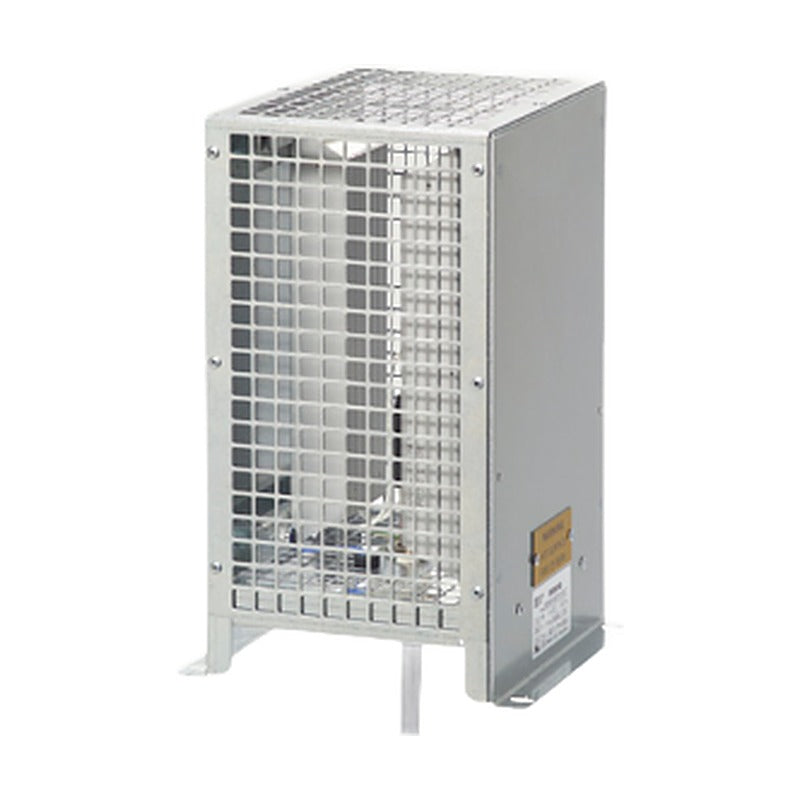

External braking resistors for SINAMICS V20 and G120C converters, plus the SINAMICS V20 Braking Module for frame sizes FSAA to FSAD.

Key features

  • Dissipate regenerative energy as heat for dynamic braking
  • V20 FSA-FSE and all G120C frame sizes have an integrated braking chopper
  • V20 FSAA-FSAD require the SINAMICS V20 Braking Module (3 kW/8 A at 230 V)
  • Every G120C braking resistor has a temperature switch
  • JJY: codes are Siemens order codes for Heine Resistor GmbH resistors

Specifications

Brand Siemens SINAMICS
Category DC link components
G120C load cycle ta = 12 s, t = 240 s
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 95-134
6SE6400-4BC05-0AA0 Type: Braking resistor | For V20: 1AC FSAA/FSAB, 0.12-0.75 kW | For G120C: -
JJY:023151720007 Type: Braking resistor | For V20: 1AC FSAC, 1.1-1.5 kW | For G120C: -
JJY:023163720018 Type: Braking resistor | For V20: 1AC FSAD, 2.2-3 kW | For G120C: -
6SL3201-0BE14-3AA0 Type: Braking resistor | For V20: 3AC FSA, 0.37-1.5 kW | For G120C: FSAA, 0.55-1.5 kW
6SL3201-0BE21-0AA0 Type: Braking resistor | For V20: 3AC FSA/FSB, 2.2-4 kW | For G120C: FSAA/FSA, 2.2-4 kW
6SL3201-0BE21-8AA0 Type: Braking resistor | For V20: 3AC FSC, 5.5-7.5 kW | For G120C: FSB, 5.5-7.5 kW
6SL3201-0BE23-8AA0 Type: Braking resistor | For V20: 3AC FSD, 11-15 kW | For G120C: FSC, 11-18.5 kW
6SE6400-4BD21-2DA0 Type: Braking resistor | For V20: 3AC FSE, 22-30 kW | For G120C: -
6SE6400-4BD11-0AA0 Type: Braking resistor, base mounting | For V20: - | For G120C: FSAA, 0.55-2.2 kW
JJY:023422620001 Type: Braking resistor | For V20: - | For G120C: FSD, 22 kW
JJY:023424020001 Type: Braking resistor | For V20: - | For G120C: FSD, 30-37 kW
JJY:023434020001 Type: Braking resistor | For V20: - | For G120C: FSD 45 kW / FSE 55 kW
JJY:023454020001 Type: Braking resistor | For V20: - | For G120C: FSF, 75-90 kW
JJY:023464020001 Type: Braking resistor | For V20: - | For G120C: FSF, 110-132 kW
6SL3201-2AD20-8VA0 Type: SINAMICS V20 Braking Module | For V20: FSAA, FSAB, FSAC, FSAD | For G120C: -
