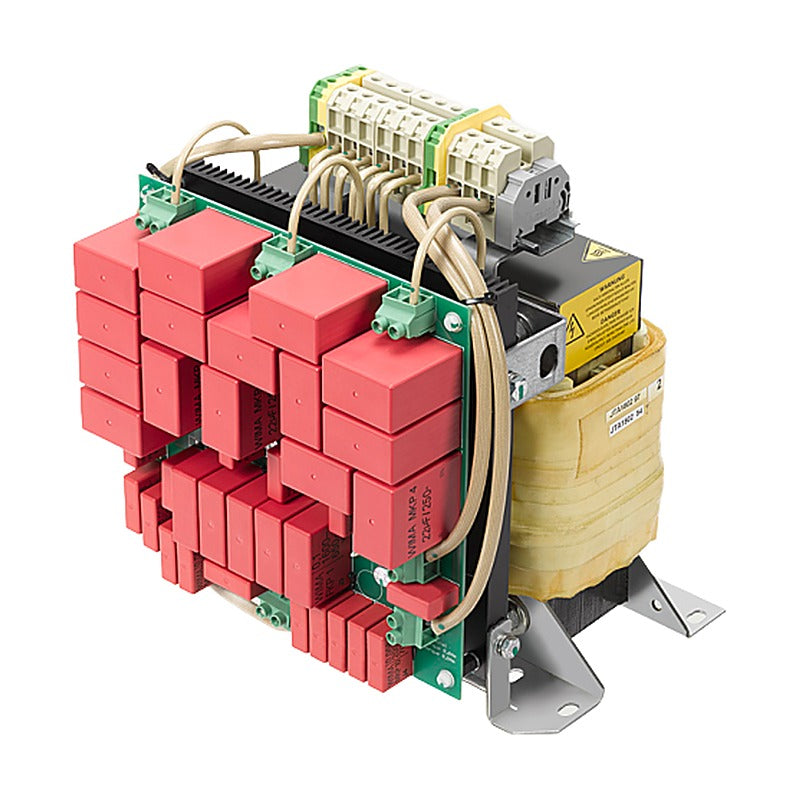

Siemens SINAMICS G120 dv/dt Filters plus VPL (PM240-2 FSD-FSG)

Siemens SINAMICS G120 dv/dt Filters plus VPL (PM240-2 FSD-FSG)

dv/dt filters plus Voltage Peak Limiter for PM240-2 Power Modules FSD to FSG that protect motor insulation.

Key features

  • Limit the voltage rate of rise dv/dt and the peak voltage at the motor terminals
  • Voltage Peak Limiter (VPL) protects the motor winding insulation
  • For PM240-2 380-480 V and 500-690 V, FSD to FSG
  • Supplied by Mdexx Magnetronic Devices; "JTA:" prefix is part of the Siemens order code

Specifications

Brand Siemens
Product line SINAMICS G120 standard converters
Component dv/dt filter plus VPL
Module PM240-2
Catalog section Load-side power components
Max. cable to Power Module 5 m (16.4 ft)
Prefix JTA: Mdexx Magnetronic Devices (OEM)
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 250
JTA:TEF1203-0HB Line voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 18.5; 690V 22-37 | Frame size: FSD
JTA:TEF1203-0JB Line voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 22-30; 690V 45-55 | Frame size: FSD/FSE
JTA:TEF1203-0KB Line voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 37-45; 690V 75-90 | Frame size: FSD/FSE/FSF
JTA:TEF1203-0LB Line voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 55-75; 690V 110-132 | Frame size: FSE/FSF
JTA:TEF1203-0MB Line voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 90-132; 690V 160-250 | Frame size: FSF/FSG
JTA:TEF1203-0GB Line voltage: 500-690 V 3 AC | Rated power (kW): 11-18.5 | Frame size: FSD
Inverter Options & AccessoriesSiemens
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 dv/dt Filters plus VPL (PM240-2 FSD-FSG)

Brand Siemens·Inverter Options & Accessories

Available part numbers (6)

JTA:TEF1203-0HB, JTA:TEF1203-0JB, JTA:TEF1203-0KB, JTA:TEF1203-0LB, JTA:TEF1203-0MB, JTA:TEF1203-0GB

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JTA:TEF1203-0HBLine voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 18.5; 690V 22-37 | Frame size: FSD
JTA:TEF1203-0JBLine voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 22-30; 690V 45-55 | Frame size: FSD/FSE
JTA:TEF1203-0KBLine voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 37-45; 690V 75-90 | Frame size: FSD/FSE/FSF
JTA:TEF1203-0LBLine voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 55-75; 690V 110-132 | Frame size: FSE/FSF
JTA:TEF1203-0MBLine voltage: 380-480 V / 500-690 V | Rated power (kW): 400V 90-132; 690V 160-250 | Frame size: FSF/FSG
JTA:TEF1203-0GBLine voltage: 500-690 V 3 AC | Rated power (kW): 11-18.5 | Frame size: FSD
