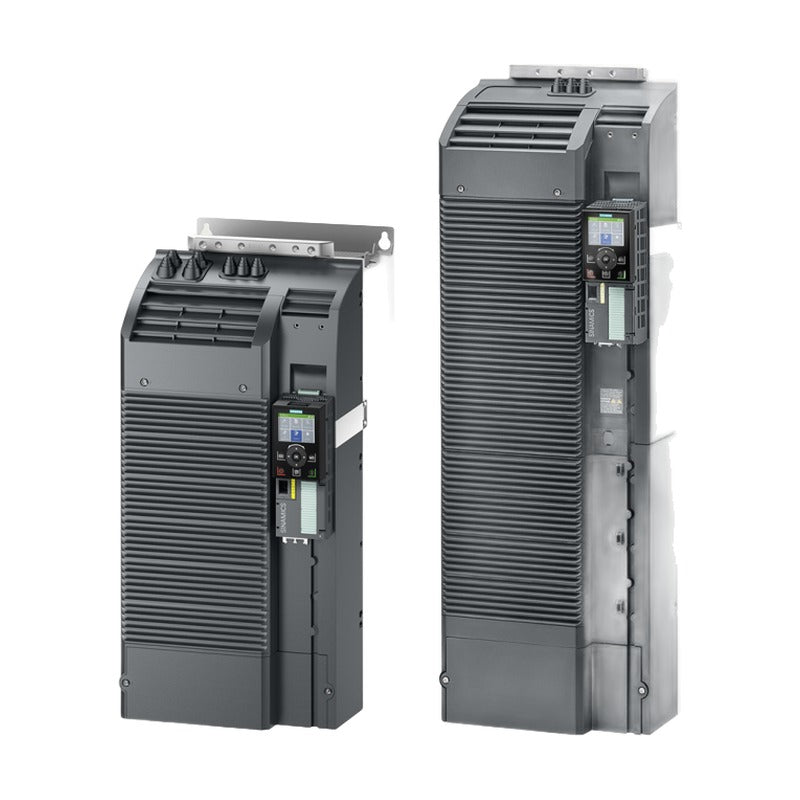

Siemens SINAMICS G120 PM240-2 Power Modules (200-240 V, 0.55-55 kW)

Siemens SINAMICS G120 PM240-2 Power Modules (200-240 V, 0.55-55 kW)

SINAMICS G120 PM240-2 Power Modules for 200-240 V 1 AC/3 AC line supplies, the power section of the modular G120 converter combined with a separate Control Unit.

Key features

  • Low-overload (LO) and high-overload (HO) ratings for each frame size
  • Integrated braking chopper for connection of an external braking resistor
  • Variants with or without integrated line filter
  • Safety Integrated functions provided via the plugged Control Unit
  • Combines with any CU230P-2, CU240E-2 or CU250S-2 Control Unit

Specifications

Brand Siemens
Product line SINAMICS G120 standard converters
Power Module PM240-2 standard variant, IP20
Line voltage range 200-240 V
Braking Integrated braking chopper
Degree of protection IP20
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 190
6SL3210-1PB13-0UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.55 kW / 0.75 hp | Rated current IN: 3.2 A | Base-load current IH: 2.3 A | Frame size: FSA | Integrated line filter: None
6SL3210-1PB13-0AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.55 kW / 0.75 hp | Rated current IN: 3.2 A | Base-load current IH: 2.3 A | Frame size: FSA | Integrated line filter: Class A
6SL3210-1PB13-8UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.75 kW / 1 hp | Rated current IN: 4.2 A | Base-load current IH: 3.2 A | Frame size: FSA | Integrated line filter: None
6SL3210-1PB13-8AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.75 kW / 1 hp | Rated current IN: 4.2 A | Base-load current IH: 3.2 A | Frame size: FSA | Integrated line filter: Class A
6SL3210-1PB15-5UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.1 kW / 1.5 hp | Rated current IN: 6 A | Base-load current IH: 4.2 A | Frame size: FSB | Integrated line filter: None
6SL3210-1PB15-5AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.1 kW / 1.5 hp | Rated current IN: 6 A | Base-load current IH: 4.2 A | Frame size: FSB | Integrated line filter: Class A
6SL3210-1PB17-4UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.5 kW / 2 hp | Rated current IN: 7.4 A | Base-load current IH: 6 A | Frame size: FSB | Integrated line filter: None
6SL3210-1PB17-4AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.5 kW / 2 hp | Rated current IN: 7.4 A | Base-load current IH: 6 A | Frame size: FSB | Integrated line filter: Class A
6SL3210-1PB21-0UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 2.2 kW / 3 hp | Rated current IN: 10.4 A | Base-load current IH: 7.4 A | Frame size: FSB | Integrated line filter: None
6SL3210-1PB21-0AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 2.2 kW / 3 hp | Rated current IN: 10.4 A | Base-load current IH: 7.4 A | Frame size: FSB | Integrated line filter: Class A
6SL3210-1PB21-4UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 3 kW / 4 hp | Rated current IN: 13.6 A | Base-load current IH: 10.4 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PB21-4AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 3 kW / 4 hp | Rated current IN: 13.6 A | Base-load current IH: 10.4 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PB21-8UL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 4 kW / 5 hp | Rated current IN: 17.5 A | Base-load current IH: 13.6 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PB21-8AL0 Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 4 kW / 5 hp | Rated current IN: 17.5 A | Base-load current IH: 13.6 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PC22-2UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 5.5 kW / 7.5 hp | Rated current IN: 22 A | Base-load current IH: 17.5 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PC22-2AL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 5.5 kW / 7.5 hp | Rated current IN: 22 A | Base-load current IH: 17.5 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PC22-8UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 7.5 kW / 10 hp | Rated current IN: 28 A | Base-load current IH: 22 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PC22-8AL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 7.5 kW / 10 hp | Rated current IN: 28 A | Base-load current IH: 22 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PC24-2UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 11 kW / 15 hp | Rated current IN: 42 A | Base-load current IH: 35 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PC25-4UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 15 kW / 20 hp | Rated current IN: 54 A | Base-load current IH: 42 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PC26-8UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 18.5 kW / 25 hp | Rated current IN: 68 A | Base-load current IH: 54 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PC28-0UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 22 kW / 30 hp | Rated current IN: 80 A | Base-load current IH: 68 A | Frame size: FSE | Integrated line filter: None
6SL3210-1PC31-1UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 30 kW / 40 hp | Rated current IN: 104 A | Base-load current IH: 80 A | Frame size: FSE | Integrated line filter: None
6SL3210-1PC31-3UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 37 kW / 50 hp | Rated current IN: 130 A | Base-load current IH: 104 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PC31-6UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 45 kW / 60 hp | Rated current IN: 154 A | Base-load current IH: 130 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PC31-8UL0 Line voltage: 200-240 V 3 AC | Rated power (LO): 55 kW / 75 hp | Rated current IN: 178 A | Base-load current IH: 154 A | Frame size: FSF | Integrated line filter: None
Inverters (VFD)Siemens
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 PM240-2 Power Modules (200-240 V, 0.55-55 kW)

Brand Siemens·Inverters (VFD)

Available part numbers (26)

6SL3210-1PB13-0UL0, 6SL3210-1PB13-0AL0, 6SL3210-1PB13-8UL0, 6SL3210-1PB13-8AL0, 6SL3210-1PB15-5UL0, 6SL3210-1PB15-5AL0, 6SL3210-1PB17-4UL0, 6SL3210-1PB17-4AL0, 6SL3210-1PB21-0UL0, 6SL3210-1PB21-0AL0 + 16 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL3210-1PB13-0UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.55 kW / 0.75 hp | Rated current IN: 3.2 A | Base-load current IH: 2.3 A | Frame size: FSA | Integrated line filter: None
6SL3210-1PB13-0AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.55 kW / 0.75 hp | Rated current IN: 3.2 A | Base-load current IH: 2.3 A | Frame size: FSA | Integrated line filter: Class A
6SL3210-1PB13-8UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.75 kW / 1 hp | Rated current IN: 4.2 A | Base-load current IH: 3.2 A | Frame size: FSA | Integrated line filter: None
6SL3210-1PB13-8AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 0.75 kW / 1 hp | Rated current IN: 4.2 A | Base-load current IH: 3.2 A | Frame size: FSA | Integrated line filter: Class A
6SL3210-1PB15-5UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.1 kW / 1.5 hp | Rated current IN: 6 A | Base-load current IH: 4.2 A | Frame size: FSB | Integrated line filter: None
6SL3210-1PB15-5AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.1 kW / 1.5 hp | Rated current IN: 6 A | Base-load current IH: 4.2 A | Frame size: FSB | Integrated line filter: Class A
6SL3210-1PB17-4UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.5 kW / 2 hp | Rated current IN: 7.4 A | Base-load current IH: 6 A | Frame size: FSB | Integrated line filter: None
6SL3210-1PB17-4AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 1.5 kW / 2 hp | Rated current IN: 7.4 A | Base-load current IH: 6 A | Frame size: FSB | Integrated line filter: Class A
6SL3210-1PB21-0UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 2.2 kW / 3 hp | Rated current IN: 10.4 A | Base-load current IH: 7.4 A | Frame size: FSB | Integrated line filter: None
6SL3210-1PB21-0AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 2.2 kW / 3 hp | Rated current IN: 10.4 A | Base-load current IH: 7.4 A | Frame size: FSB | Integrated line filter: Class A
6SL3210-1PB21-4UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 3 kW / 4 hp | Rated current IN: 13.6 A | Base-load current IH: 10.4 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PB21-4AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 3 kW / 4 hp | Rated current IN: 13.6 A | Base-load current IH: 10.4 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PB21-8UL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 4 kW / 5 hp | Rated current IN: 17.5 A | Base-load current IH: 13.6 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PB21-8AL0Line voltage: 200-240 V 1 AC/3 AC | Rated power (LO): 4 kW / 5 hp | Rated current IN: 17.5 A | Base-load current IH: 13.6 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PC22-2UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 5.5 kW / 7.5 hp | Rated current IN: 22 A | Base-load current IH: 17.5 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PC22-2AL0Line voltage: 200-240 V 3 AC | Rated power (LO): 5.5 kW / 7.5 hp | Rated current IN: 22 A | Base-load current IH: 17.5 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PC22-8UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 7.5 kW / 10 hp | Rated current IN: 28 A | Base-load current IH: 22 A | Frame size: FSC | Integrated line filter: None
6SL3210-1PC22-8AL0Line voltage: 200-240 V 3 AC | Rated power (LO): 7.5 kW / 10 hp | Rated current IN: 28 A | Base-load current IH: 22 A | Frame size: FSC | Integrated line filter: Class A
6SL3210-1PC24-2UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 11 kW / 15 hp | Rated current IN: 42 A | Base-load current IH: 35 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PC25-4UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 15 kW / 20 hp | Rated current IN: 54 A | Base-load current IH: 42 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PC26-8UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 18.5 kW / 25 hp | Rated current IN: 68 A | Base-load current IH: 54 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PC28-0UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 22 kW / 30 hp | Rated current IN: 80 A | Base-load current IH: 68 A | Frame size: FSE | Integrated line filter: None
6SL3210-1PC31-1UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 30 kW / 40 hp | Rated current IN: 104 A | Base-load current IH: 80 A | Frame size: FSE | Integrated line filter: None
6SL3210-1PC31-3UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 37 kW / 50 hp | Rated current IN: 130 A | Base-load current IH: 104 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PC31-6UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 45 kW / 60 hp | Rated current IN: 154 A | Base-load current IH: 130 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PC31-8UL0Line voltage: 200-240 V 3 AC | Rated power (LO): 55 kW / 75 hp | Rated current IN: 178 A | Base-load current IH: 154 A | Frame size: FSF | Integrated line filter: None
