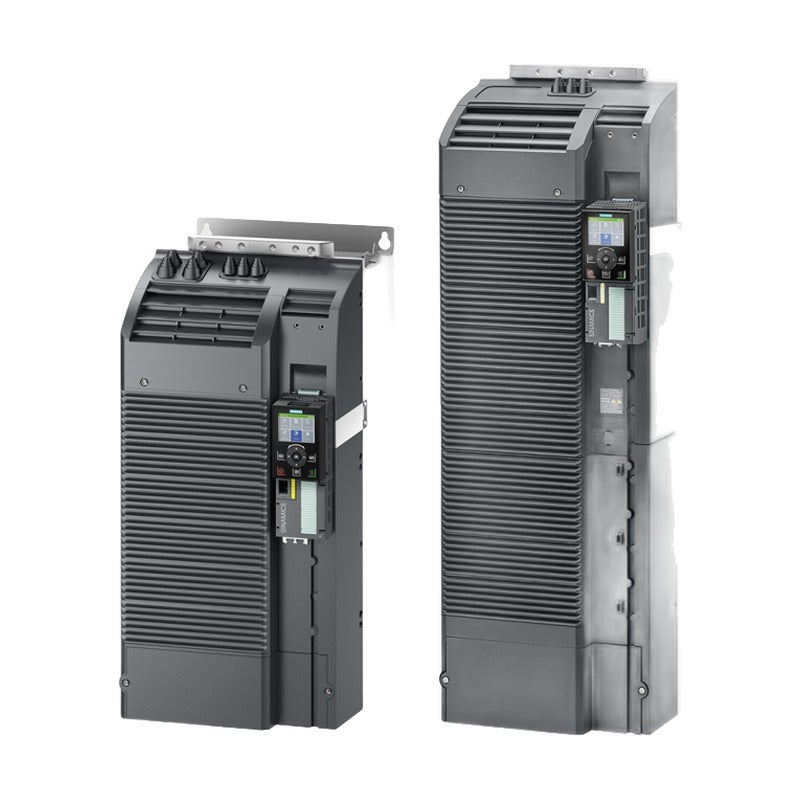

Siemens SINAMICS G120 PM240-2 Power Modules (500-690 V, 11-250 kW)

Siemens SINAMICS G120 PM240-2 Power Modules (500-690 V, 11-250 kW)

SINAMICS G120 PM240-2 Power Modules for 500-690 V 3 AC line supplies, the power section of the modular G120 converter combined with a separate Control Unit.

Key features

  • Low-overload (LO) and high-overload (HO) ratings for each frame size
  • Integrated braking chopper for connection of an external braking resistor
  • Variants with or without integrated line filter
  • Safety Integrated functions provided via the plugged Control Unit
  • Combines with any CU230P-2, CU240E-2 or CU250S-2 Control Unit

Specifications

Brand Siemens
Product line SINAMICS G120 standard converters
Power Module PM240-2 standard variant, IP20
Line voltage 500-690 V 3 AC
Braking Integrated braking chopper
Degree of protection IP20
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 191
6SL3210-1PH21-4UL0 Rated power (LO): 11 kW / 10 hp | Rated current IN: 14 A | Power (HO): 7.5 kW / 7.5 hp | Base-load current IH: 11 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PH21-4AL0 Rated power (LO): 11 kW / 10 hp | Rated current IN: 14 A | Power (HO): 7.5 kW / 7.5 hp | Base-load current IH: 11 A | Frame size: FSD | Integrated line filter: Class A
6SL3210-1PH22-0UL0 Rated power (LO): 15 kW / 15 hp | Rated current IN: 19 A | Power (HO): 11 kW / 10 hp | Base-load current IH: 14 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PH22-0AL0 Rated power (LO): 15 kW / 15 hp | Rated current IN: 19 A | Power (HO): 11 kW / 10 hp | Base-load current IH: 14 A | Frame size: FSD | Integrated line filter: Class A
6SL3210-1PH22-3UL0 Rated power (LO): 18.5 kW / 20 hp | Rated current IN: 23 A | Power (HO): 15 kW / 15 hp | Base-load current IH: 19 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PH22-3AL0 Rated power (LO): 18.5 kW / 20 hp | Rated current IN: 23 A | Power (HO): 15 kW / 15 hp | Base-load current IH: 19 A | Frame size: FSD | Integrated line filter: Class A
6SL3210-1PH22-7UL0 Rated power (LO): 22 kW / 25 hp | Rated current IN: 27 A | Power (HO): 18.5 kW / 20 hp | Base-load current IH: 23 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PH22-7AL0 Rated power (LO): 22 kW / 25 hp | Rated current IN: 27 A | Power (HO): 18.5 kW / 20 hp | Base-load current IH: 23 A | Frame size: FSD | Integrated line filter: Class A
6SL3210-1PH23-5UL0 Rated power (LO): 30 kW / 30 hp | Rated current IN: 35 A | Power (HO): 22 kW / 25 hp | Base-load current IH: 27 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PH23-5AL0 Rated power (LO): 30 kW / 30 hp | Rated current IN: 35 A | Power (HO): 22 kW / 25 hp | Base-load current IH: 27 A | Frame size: FSD | Integrated line filter: Class A
6SL3210-1PH24-2UL0 Rated power (LO): 37 kW / 40 hp | Rated current IN: 42 A | Power (HO): 30 kW / 30 hp | Base-load current IH: 35 A | Frame size: FSD | Integrated line filter: None
6SL3210-1PH24-2AL0 Rated power (LO): 37 kW / 40 hp | Rated current IN: 42 A | Power (HO): 30 kW / 30 hp | Base-load current IH: 35 A | Frame size: FSD | Integrated line filter: Class A
6SL3210-1PH25-2UL0 Rated power (LO): 45 kW / 50 hp | Rated current IN: 52 A | Power (HO): 37 kW / 40 hp | Base-load current IH: 42 A | Frame size: FSE | Integrated line filter: None
6SL3210-1PH25-2AL0 Rated power (LO): 45 kW / 50 hp | Rated current IN: 52 A | Power (HO): 37 kW / 40 hp | Base-load current IH: 42 A | Frame size: FSE | Integrated line filter: Class A
6SL3210-1PH26-2UL0 Rated power (LO): 55 kW / 60 hp | Rated current IN: 62 A | Power (HO): 45 kW / 50 hp | Base-load current IH: 52 A | Frame size: FSE | Integrated line filter: None
6SL3210-1PH26-2AL0 Rated power (LO): 55 kW / 60 hp | Rated current IN: 62 A | Power (HO): 45 kW / 50 hp | Base-load current IH: 52 A | Frame size: FSE | Integrated line filter: Class A
6SL3210-1PH28-0UL0 Rated power (LO): 75 kW / 75 hp | Rated current IN: 80 A | Power (HO): 55 kW / 60 hp | Base-load current IH: 62 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PH28-0AL0 Rated power (LO): 75 kW / 75 hp | Rated current IN: 80 A | Power (HO): 55 kW / 60 hp | Base-load current IH: 62 A | Frame size: FSF | Integrated line filter: Category C3
6SL3210-1PH31-0UL0 Rated power (LO): 90 kW / 100 hp | Rated current IN: 100 A | Power (HO): 75 kW / 75 hp | Base-load current IH: 80 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PH31-0AL0 Rated power (LO): 90 kW / 100 hp | Rated current IN: 100 A | Power (HO): 75 kW / 75 hp | Base-load current IH: 80 A | Frame size: FSF | Integrated line filter: Category C3
6SL3210-1PH31-2UL0 Rated power (LO): 110 kW / 100 hp | Rated current IN: 115 A | Power (HO): 90 kW / 100 hp | Base-load current IH: 100 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PH31-2AL0 Rated power (LO): 110 kW / 100 hp | Rated current IN: 115 A | Power (HO): 90 kW / 100 hp | Base-load current IH: 100 A | Frame size: FSF | Integrated line filter: Category C3
6SL3210-1PH31-4UL0 Rated power (LO): 132 kW / 125 hp | Rated current IN: 142 A | Power (HO): 110 kW / 100 hp | Base-load current IH: 115 A | Frame size: FSF | Integrated line filter: None
6SL3210-1PH31-4AL0 Rated power (LO): 132 kW / 125 hp | Rated current IN: 142 A | Power (HO): 110 kW / 100 hp | Base-load current IH: 115 A | Frame size: FSF | Integrated line filter: Category C3
6SL3210-1PH31-7CL0 Rated power (LO): 160 kW / 150 hp | Rated current IN: 171 A | Power (HO): 132 kW / 150 hp | Base-load current IH: 142 A | Frame size: FSG | Integrated line filter: Category C3
6SL3210-1PH32-1CL0 Rated power (LO): 200 kW / 200 hp | Rated current IN: 208 A | Power (HO): 160 kW / 150 hp | Base-load current IH: 171 A | Frame size: FSG | Integrated line filter: Category C3
6SL3210-1PH32-5CL0 Rated power (LO): 250 kW / 250 hp | Rated current IN: 250 A | Power (HO): 200 kW / 200 hp | Base-load current IH: 208 A | Frame size: FSG | Integrated line filter: Category C3
Inverters (VFD)Siemens
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 PM240-2 Power Modules (500-690 V, 11-250 kW)

Brand Siemens·Inverters (VFD)

Available part numbers (27)

6SL3210-1PH21-4UL0, 6SL3210-1PH21-4AL0, 6SL3210-1PH22-0UL0, 6SL3210-1PH22-0AL0, 6SL3210-1PH22-3UL0, 6SL3210-1PH22-3AL0, 6SL3210-1PH22-7UL0, 6SL3210-1PH22-7AL0, 6SL3210-1PH23-5UL0, 6SL3210-1PH23-5AL0 + 17 more — see full table ↓
