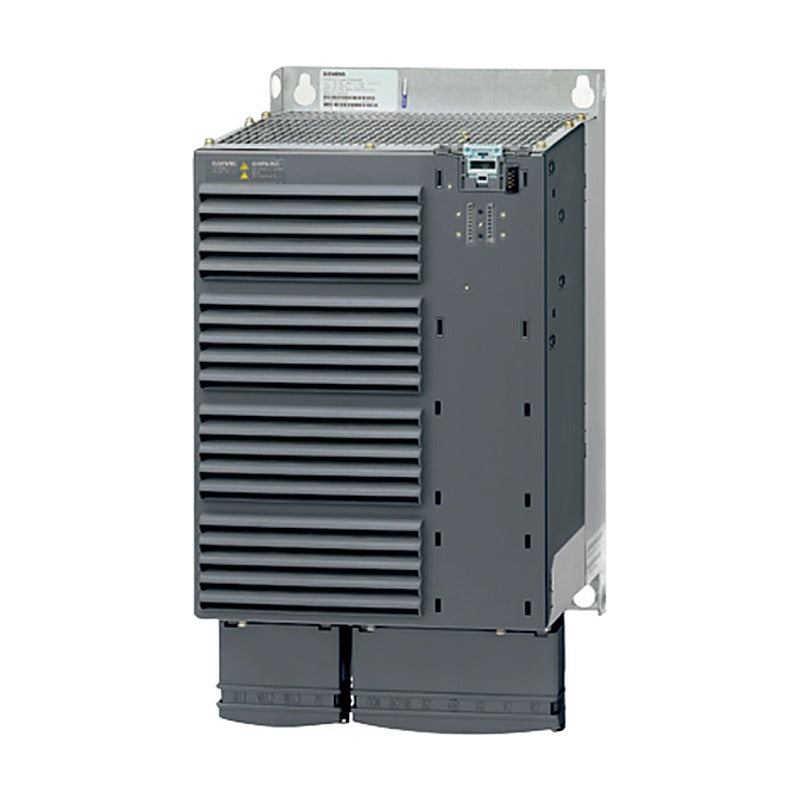

Siemens SINAMICS G120 PM250 Power Modules (380-480 V, 7.5-90 kW)

Siemens SINAMICS G120 PM250 Power Modules (380-480 V, 7.5-90 kW)

SINAMICS G120 PM250 Power Modules with line-commutated energy recovery, feeding braking energy back to the supply without a braking resistor.

Key features

  • Regenerative feedback of braking energy into the line supply (no braking resistor required)
  • Efficient Infeed Technology with low line harmonics, no line reactor needed or permitted
  • Frame sizes FSC to FSF, 7.5 kW to 90 kW (LO)
  • FSC with integrated class A line filter; FSD-FSF with or without filter
  • Combines with CU230P-2, CU240E-2 or CU250S-2 Control Units

Specifications

Brand Siemens
Product line SINAMICS G120 standard converters
Power Module PM250, IP20
Line voltage 380-480 V 3 AC
Energy recovery Line-commutated regenerative feedback
Degree of protection IP20
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 192
6SL3225-0BE25-5AA1 Rated power (LO): 7.5 kW / 10 hp | Rated current IN: 18 A | Power (HO): 5.5 kW / 7.5 hp | Base-load current IH: 13.2 A | Frame size: FSC | Integrated line filter: Class A
6SL3225-0BE27-5AA1 Rated power (LO): 11 kW / 15 hp | Rated current IN: 25 A | Power (HO): 7.5 kW / 10 hp | Base-load current IH: 19 A | Frame size: FSC | Integrated line filter: Class A
6SL3225-0BE31-1AA1 Rated power (LO): 15 kW / 20 hp | Rated current IN: 32 A | Power (HO): 11 kW / 15 hp | Base-load current IH: 26 A | Frame size: FSC | Integrated line filter: Class A
6SL3225-0BE31-5UA0 Rated power (LO): 18.5 kW / 25 hp | Rated current IN: 38 A | Power (HO): 15 kW / 20 hp | Base-load current IH: 32 A | Frame size: FSD | Integrated line filter: None
6SL3225-0BE31-5AA0 Rated power (LO): 18.5 kW / 25 hp | Rated current IN: 38 A | Power (HO): 15 kW / 20 hp | Base-load current IH: 32 A | Frame size: FSD | Integrated line filter: Class A
6SL3225-0BE31-8UA0 Rated power (LO): 22 kW / 30 hp | Rated current IN: 45 A | Power (HO): 18.5 kW / 25 hp | Base-load current IH: 38 A | Frame size: FSD | Integrated line filter: None
6SL3225-0BE31-8AA0 Rated power (LO): 22 kW / 30 hp | Rated current IN: 45 A | Power (HO): 18.5 kW / 25 hp | Base-load current IH: 38 A | Frame size: FSD | Integrated line filter: Class A
6SL3225-0BE32-2UA0 Rated power (LO): 30 kW / 40 hp | Rated current IN: 60 A | Power (HO): 22 kW / 30 hp | Base-load current IH: 45 A | Frame size: FSD | Integrated line filter: None
6SL3225-0BE32-2AA0 Rated power (LO): 30 kW / 40 hp | Rated current IN: 60 A | Power (HO): 22 kW / 30 hp | Base-load current IH: 45 A | Frame size: FSD | Integrated line filter: Class A
6SL3225-0BE33-0UA0 Rated power (LO): 37 kW / 50 hp | Rated current IN: 75 A | Power (HO): 30 kW / 40 hp | Base-load current IH: 60 A | Frame size: FSE | Integrated line filter: None
6SL3225-0BE33-0AA0 Rated power (LO): 37 kW / 50 hp | Rated current IN: 75 A | Power (HO): 30 kW / 40 hp | Base-load current IH: 60 A | Frame size: FSE | Integrated line filter: Class A
6SL3225-0BE33-7UA0 Rated power (LO): 45 kW / 60 hp | Rated current IN: 90 A | Power (HO): 37 kW / 50 hp | Base-load current IH: 75 A | Frame size: FSE | Integrated line filter: None
6SL3225-0BE33-7AA0 Rated power (LO): 45 kW / 60 hp | Rated current IN: 90 A | Power (HO): 37 kW / 50 hp | Base-load current IH: 75 A | Frame size: FSE | Integrated line filter: Class A
6SL3225-0BE34-5UA0 Rated power (LO): 55 kW / 75 hp | Rated current IN: 110 A | Power (HO): 45 kW / 60 hp | Base-load current IH: 90 A | Frame size: FSF | Integrated line filter: None
6SL3225-0BE34-5AA0 Rated power (LO): 55 kW / 75 hp | Rated current IN: 110 A | Power (HO): 45 kW / 60 hp | Base-load current IH: 90 A | Frame size: FSF | Integrated line filter: Class A
6SL3225-0BE35-5UA0 Rated power (LO): 75 kW / 100 hp | Rated current IN: 145 A | Power (HO): 55 kW / 75 hp | Base-load current IH: 110 A | Frame size: FSF | Integrated line filter: None
6SL3225-0BE35-5AA0 Rated power (LO): 75 kW / 100 hp | Rated current IN: 145 A | Power (HO): 55 kW / 75 hp | Base-load current IH: 110 A | Frame size: FSF | Integrated line filter: Class A
6SL3225-0BE37-5UA0 Rated power (LO): 90 kW / 125 hp | Rated current IN: 178 A | Power (HO): 75 kW / 100 hp | Base-load current IH: 145 A | Frame size: FSF | Integrated line filter: None
6SL3225-0BE37-5AA0 Rated power (LO): 90 kW / 125 hp | Rated current IN: 178 A | Power (HO): 75 kW / 100 hp | Base-load current IH: 145 A | Frame size: FSF | Integrated line filter: Class A
Inverters (VFD)Siemens
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 PM250 Power Modules (380-480 V, 7.5-90 kW)

Brand Siemens·Inverters (VFD)

Available part numbers (19)

6SL3225-0BE25-5AA1, 6SL3225-0BE27-5AA1, 6SL3225-0BE31-1AA1, 6SL3225-0BE31-5UA0, 6SL3225-0BE31-5AA0, 6SL3225-0BE31-8UA0, 6SL3225-0BE31-8AA0, 6SL3225-0BE32-2UA0, 6SL3225-0BE32-2AA0, 6SL3225-0BE33-0UA0 + 9 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL3225-0BE25-5AA1Rated power (LO): 7.5 kW / 10 hp | Rated current IN: 18 A | Power (HO): 5.5 kW / 7.5 hp | Base-load current IH: 13.2 A | Frame size: FSC | Integrated line filter: Class A
6SL3225-0BE27-5AA1Rated power (LO): 11 kW / 15 hp | Rated current IN: 25 A | Power (HO): 7.5 kW / 10 hp | Base-load current IH: 19 A | Frame size: FSC | Integrated line filter: Class A
6SL3225-0BE31-1AA1Rated power (LO): 15 kW / 20 hp | Rated current IN: 32 A | Power (HO): 11 kW / 15 hp | Base-load current IH: 26 A | Frame size: FSC | Integrated line filter: Class A
6SL3225-0BE31-5UA0Rated power (LO): 18.5 kW / 25 hp | Rated current IN: 38 A | Power (HO): 15 kW / 20 hp | Base-load current IH: 32 A | Frame size: FSD | Integrated line filter: None
6SL3225-0BE31-5AA0Rated power (LO): 18.5 kW / 25 hp | Rated current IN: 38 A | Power (HO): 15 kW / 20 hp | Base-load current IH: 32 A | Frame size: FSD | Integrated line filter: Class A
6SL3225-0BE31-8UA0Rated power (LO): 22 kW / 30 hp | Rated current IN: 45 A | Power (HO): 18.5 kW / 25 hp | Base-load current IH: 38 A | Frame size: FSD | Integrated line filter: None
6SL3225-0BE31-8AA0Rated power (LO): 22 kW / 30 hp | Rated current IN: 45 A | Power (HO): 18.5 kW / 25 hp | Base-load current IH: 38 A | Frame size: FSD | Integrated line filter: Class A
6SL3225-0BE32-2UA0Rated power (LO): 30 kW / 40 hp | Rated current IN: 60 A | Power (HO): 22 kW / 30 hp | Base-load current IH: 45 A | Frame size: FSD | Integrated line filter: None
6SL3225-0BE32-2AA0Rated power (LO): 30 kW / 40 hp | Rated current IN: 60 A | Power (HO): 22 kW / 30 hp | Base-load current IH: 45 A | Frame size: FSD | Integrated line filter: Class A
6SL3225-0BE33-0UA0Rated power (LO): 37 kW / 50 hp | Rated current IN: 75 A | Power (HO): 30 kW / 40 hp | Base-load current IH: 60 A | Frame size: FSE | Integrated line filter: None
6SL3225-0BE33-0AA0Rated power (LO): 37 kW / 50 hp | Rated current IN: 75 A | Power (HO): 30 kW / 40 hp | Base-load current IH: 60 A | Frame size: FSE | Integrated line filter: Class A
6SL3225-0BE33-7UA0Rated power (LO): 45 kW / 60 hp | Rated current IN: 90 A | Power (HO): 37 kW / 50 hp | Base-load current IH: 75 A | Frame size: FSE | Integrated line filter: None
6SL3225-0BE33-7AA0Rated power (LO): 45 kW / 60 hp | Rated current IN: 90 A | Power (HO): 37 kW / 50 hp | Base-load current IH: 75 A | Frame size: FSE | Integrated line filter: Class A
6SL3225-0BE34-5UA0Rated power (LO): 55 kW / 75 hp | Rated current IN: 110 A | Power (HO): 45 kW / 60 hp | Base-load current IH: 90 A | Frame size: FSF | Integrated line filter: None
6SL3225-0BE34-5AA0Rated power (LO): 55 kW / 75 hp | Rated current IN: 110 A | Power (HO): 45 kW / 60 hp | Base-load current IH: 90 A | Frame size: FSF | Integrated line filter: Class A
6SL3225-0BE35-5UA0Rated power (LO): 75 kW / 100 hp | Rated current IN: 145 A | Power (HO): 55 kW / 75 hp | Base-load current IH: 110 A | Frame size: FSF | Integrated line filter: None
6SL3225-0BE35-5AA0Rated power (LO): 75 kW / 100 hp | Rated current IN: 145 A | Power (HO): 55 kW / 75 hp | Base-load current IH: 110 A | Frame size: FSF | Integrated line filter: Class A
6SL3225-0BE37-5UA0Rated power (LO): 90 kW / 125 hp | Rated current IN: 178 A | Power (HO): 75 kW / 100 hp | Base-load current IH: 145 A | Frame size: FSF | Integrated line filter: None
6SL3225-0BE37-5AA0Rated power (LO): 90 kW / 125 hp | Rated current IN: 178 A | Power (HO): 75 kW / 100 hp | Base-load current IH: 145 A | Frame size: FSF | Integrated line filter: Class A
