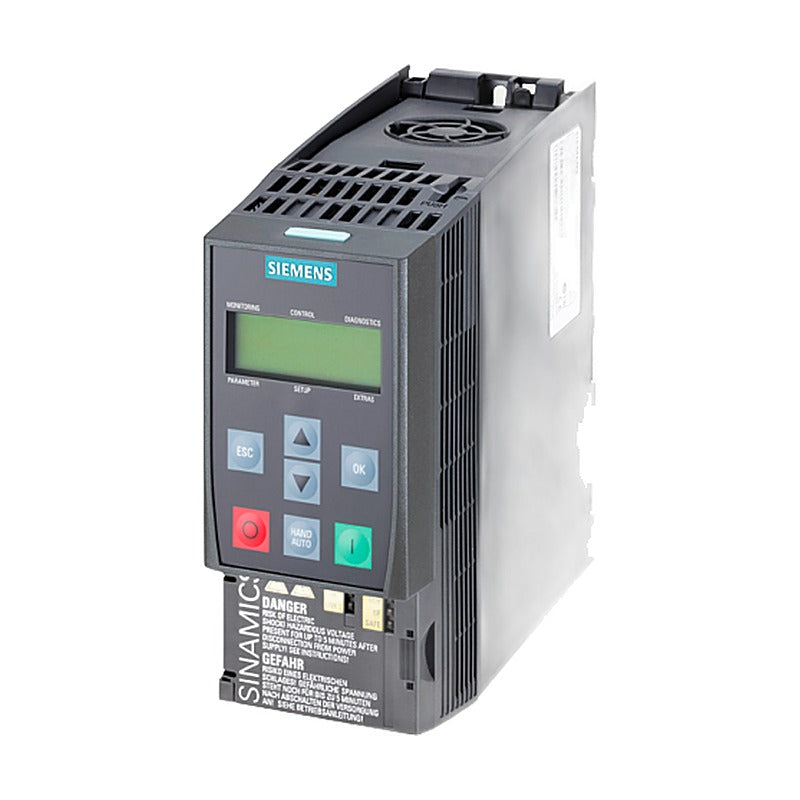

Siemens SINAMICS G120C compact converters 3AC 380-480 V (0.55-132 kW)

Siemens SINAMICS G120C compact converters 3AC 380-480 V (0.55-132 kW)

SINAMICS G120C compact converters for 380-480 V 3AC supplies, 0.55 to 132 kW, with USS/Modbus RTU, PROFIBUS DP or PROFINET/EtherNet/IP and optional class A line filter.

Key features

  • Frame sizes FSAA to FSF, compact side-by-side design, DIN rail mounting for FSAA
  • Energy-efficient sensorless vector control and V/f ECO flux reduction
  • Safety Integrated STO (Safe Torque Off) on board
  • Integrated braking chopper; operator panel BOP-2 or IOP-2 can be plugged on
  • Integrated USB interface and memory card slot for cloning
  • Operation up to 60 °C ambient; varnished modules

Specifications

Brand Siemens SINAMICS
Series SINAMICS G120C
Line voltage 380-480 V 3AC
Power range 0.55-132 kW (0.75-150 hp)
Safety STO (Safety Integrated)
Control V/f, sensorless vector control
Communication USS/Modbus RTU, PROFIBUS DP, PROFINET/EtherNet/IP
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 115-116
6SL3210-1KE11-8UB2 Rated power: 0.55 kW / 0.75 hp | Base-load current IL/IH: 1.7 / 1.3 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE11-8UP2 Rated power: 0.55 kW / 0.75 hp | Base-load current IL/IH: 1.7 / 1.3 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE11-8UF2 Rated power: 0.55 kW / 0.75 hp | Base-load current IL/IH: 1.7 / 1.3 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE11-8AB2 Rated power: 0.55 kW / 0.75 hp | Base-load current IL/IH: 1.7 / 1.3 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE11-8AP2 Rated power: 0.55 kW / 0.75 hp | Base-load current IL/IH: 1.7 / 1.3 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE11-8AF2 Rated power: 0.55 kW / 0.75 hp | Base-load current IL/IH: 1.7 / 1.3 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE12-3UB2 Rated power: 0.75 kW / 1 hp | Base-load current IL/IH: 2.2 / 1.7 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE12-3UP2 Rated power: 0.75 kW / 1 hp | Base-load current IL/IH: 2.2 / 1.7 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE12-3UF2 Rated power: 0.75 kW / 1 hp | Base-load current IL/IH: 2.2 / 1.7 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE12-3AB2 Rated power: 0.75 kW / 1 hp | Base-load current IL/IH: 2.2 / 1.7 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE12-3AP2 Rated power: 0.75 kW / 1 hp | Base-load current IL/IH: 2.2 / 1.7 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE12-3AF2 Rated power: 0.75 kW / 1 hp | Base-load current IL/IH: 2.2 / 1.7 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE13-2UB2 Rated power: 1.1 kW / 1.5 hp | Base-load current IL/IH: 3.1 / 2.2 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE13-2UP2 Rated power: 1.1 kW / 1.5 hp | Base-load current IL/IH: 3.1 / 2.2 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE13-2UF2 Rated power: 1.1 kW / 1.5 hp | Base-load current IL/IH: 3.1 / 2.2 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE13-2AB2 Rated power: 1.1 kW / 1.5 hp | Base-load current IL/IH: 3.1 / 2.2 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE13-2AP2 Rated power: 1.1 kW / 1.5 hp | Base-load current IL/IH: 3.1 / 2.2 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE13-2AF2 Rated power: 1.1 kW / 1.5 hp | Base-load current IL/IH: 3.1 / 2.2 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE14-3UB2 Rated power: 1.5 kW / 2 hp | Base-load current IL/IH: 4.1 / 3.1 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE14-3UP2 Rated power: 1.5 kW / 2 hp | Base-load current IL/IH: 4.1 / 3.1 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE14-3UF2 Rated power: 1.5 kW / 2 hp | Base-load current IL/IH: 4.1 / 3.1 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE14-3AB2 Rated power: 1.5 kW / 2 hp | Base-load current IL/IH: 4.1 / 3.1 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE14-3AP2 Rated power: 1.5 kW / 2 hp | Base-load current IL/IH: 4.1 / 3.1 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE14-3AF2 Rated power: 1.5 kW / 2 hp | Base-load current IL/IH: 4.1 / 3.1 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE15-8UB2 Rated power: 2.2 kW / 3 hp | Base-load current IL/IH: 5.6 / 4.1 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE15-8UP2 Rated power: 2.2 kW / 3 hp | Base-load current IL/IH: 5.6 / 4.1 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE15-8UF2 Rated power: 2.2 kW / 3 hp | Base-load current IL/IH: 5.6 / 4.1 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE15-8AB2 Rated power: 2.2 kW / 3 hp | Base-load current IL/IH: 5.6 / 4.1 A | Frame size: FSAA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE15-8AP2 Rated power: 2.2 kW / 3 hp | Base-load current IL/IH: 5.6 / 4.1 A | Frame size: FSAA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE15-8AF2 Rated power: 2.2 kW / 3 hp | Base-load current IL/IH: 5.6 / 4.1 A | Frame size: FSAA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE17-5UB1 Rated power: 3 kW / 4 hp | Base-load current IL/IH: 7.3 / 5.6 A | Frame size: FSA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE17-5UP1 Rated power: 3 kW / 4 hp | Base-load current IL/IH: 7.3 / 5.6 A | Frame size: FSA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE17-5UF1 Rated power: 3 kW / 4 hp | Base-load current IL/IH: 7.3 / 5.6 A | Frame size: FSA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE17-5AB1 Rated power: 3 kW / 4 hp | Base-load current IL/IH: 7.3 / 5.6 A | Frame size: FSA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE17-5AP1 Rated power: 3 kW / 4 hp | Base-load current IL/IH: 7.3 / 5.6 A | Frame size: FSA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE17-5AF1 Rated power: 3 kW / 4 hp | Base-load current IL/IH: 7.3 / 5.6 A | Frame size: FSA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE18-8UB1 Rated power: 4 kW / 5 hp | Base-load current IL/IH: 8.8 / 7.3 A | Frame size: FSA | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE18-8UP1 Rated power: 4 kW / 5 hp | Base-load current IL/IH: 8.8 / 7.3 A | Frame size: FSA | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE18-8UF1 Rated power: 4 kW / 5 hp | Base-load current IL/IH: 8.8 / 7.3 A | Frame size: FSA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE18-8AB1 Rated power: 4 kW / 5 hp | Base-load current IL/IH: 8.8 / 7.3 A | Frame size: FSA | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE18-8AP1 Rated power: 4 kW / 5 hp | Base-load current IL/IH: 8.8 / 7.3 A | Frame size: FSA | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE18-8AF1 Rated power: 4 kW / 5 hp | Base-load current IL/IH: 8.8 / 7.3 A | Frame size: FSA | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE21-3UB1 Rated power: 5.5 kW / 7.5 hp | Base-load current IL/IH: 12.5 / 8.8 A | Frame size: FSB | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE21-3UP1 Rated power: 5.5 kW / 7.5 hp | Base-load current IL/IH: 12.5 / 8.8 A | Frame size: FSB | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE21-3UF1 Rated power: 5.5 kW / 7.5 hp | Base-load current IL/IH: 12.5 / 8.8 A | Frame size: FSB | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE21-3AB1 Rated power: 5.5 kW / 7.5 hp | Base-load current IL/IH: 12.5 / 8.8 A | Frame size: FSB | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE21-3AP1 Rated power: 5.5 kW / 7.5 hp | Base-load current IL/IH: 12.5 / 8.8 A | Frame size: FSB | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE21-3AF1 Rated power: 5.5 kW / 7.5 hp | Base-load current IL/IH: 12.5 / 8.8 A | Frame size: FSB | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE21-7UB1 Rated power: 7.5 kW / 10 hp | Base-load current IL/IH: 16.5 / 12.5 A | Frame size: FSB | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE21-7UP1 Rated power: 7.5 kW / 10 hp | Base-load current IL/IH: 16.5 / 12.5 A | Frame size: FSB | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE21-7UF1 Rated power: 7.5 kW / 10 hp | Base-load current IL/IH: 16.5 / 12.5 A | Frame size: FSB | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE21-7AB1 Rated power: 7.5 kW / 10 hp | Base-load current IL/IH: 16.5 / 12.5 A | Frame size: FSB | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE21-7AP1 Rated power: 7.5 kW / 10 hp | Base-load current IL/IH: 16.5 / 12.5 A | Frame size: FSB | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE21-7AF1 Rated power: 7.5 kW / 10 hp | Base-load current IL/IH: 16.5 / 12.5 A | Frame size: FSB | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE22-6UB1 Rated power: 11 kW / 15 hp | Base-load current IL/IH: 25 / 16.5 A | Frame size: FSC | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE22-6UP1 Rated power: 11 kW / 15 hp | Base-load current IL/IH: 25 / 16.5 A | Frame size: FSC | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE22-6UF1 Rated power: 11 kW / 15 hp | Base-load current IL/IH: 25 / 16.5 A | Frame size: FSC | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE22-6AB1 Rated power: 11 kW / 15 hp | Base-load current IL/IH: 25 / 16.5 A | Frame size: FSC | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE22-6AP1 Rated power: 11 kW / 15 hp | Base-load current IL/IH: 25 / 16.5 A | Frame size: FSC | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE22-6AF1 Rated power: 11 kW / 15 hp | Base-load current IL/IH: 25 / 16.5 A | Frame size: FSC | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE23-2UB1 Rated power: 15 kW / 20 hp | Base-load current IL/IH: 31 / 25 A | Frame size: FSC | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE23-2UP1 Rated power: 15 kW / 20 hp | Base-load current IL/IH: 31 / 25 A | Frame size: FSC | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE23-2UF1 Rated power: 15 kW / 20 hp | Base-load current IL/IH: 31 / 25 A | Frame size: FSC | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE23-2AB1 Rated power: 15 kW / 20 hp | Base-load current IL/IH: 31 / 25 A | Frame size: FSC | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE23-2AP1 Rated power: 15 kW / 20 hp | Base-load current IL/IH: 31 / 25 A | Frame size: FSC | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE23-2AF1 Rated power: 15 kW / 20 hp | Base-load current IL/IH: 31 / 25 A | Frame size: FSC | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE23-8UB1 Rated power: 18.5 kW / 25 hp | Base-load current IL/IH: 37 / 31 A | Frame size: FSC | Fieldbus: USS, Modbus RTU | Line filter: Without
6SL3210-1KE23-8UP1 Rated power: 18.5 kW / 25 hp | Base-load current IL/IH: 37 / 31 A | Frame size: FSC | Fieldbus: PROFIBUS DP | Line filter: Without
6SL3210-1KE23-8UF1 Rated power: 18.5 kW / 25 hp | Base-load current IL/IH: 37 / 31 A | Frame size: FSC | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE23-8AB1 Rated power: 18.5 kW / 25 hp | Base-load current IL/IH: 37 / 31 A | Frame size: FSC | Fieldbus: USS, Modbus RTU | Line filter: Integrated, class A
6SL3210-1KE23-8AP1 Rated power: 18.5 kW / 25 hp | Base-load current IL/IH: 37 / 31 A | Frame size: FSC | Fieldbus: PROFIBUS DP | Line filter: Integrated, class A
6SL3210-1KE23-8AF1 Rated power: 18.5 kW / 25 hp | Base-load current IL/IH: 37 / 31 A | Frame size: FSC | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE24-4UF1 Rated power: 22 kW / 25 hp | Base-load current IL/IH: 43 / 37 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE24-4AF1 Rated power: 22 kW / 25 hp | Base-load current IL/IH: 43 / 37 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE26-0UF1 Rated power: 30 kW / 30 hp | Base-load current IL/IH: 58 / 43 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE26-0AF1 Rated power: 30 kW / 30 hp | Base-load current IL/IH: 58 / 43 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE27-0UF1 Rated power: 37 kW / 40 hp | Base-load current IL/IH: 68 / 58 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE27-0AF1 Rated power: 37 kW / 40 hp | Base-load current IL/IH: 68 / 58 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE28-4UF1 Rated power: 45 kW / 50 hp | Base-load current IL/IH: 82.5 / 68 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE28-4AF1 Rated power: 45 kW / 50 hp | Base-load current IL/IH: 82.5 / 68 A | Frame size: FSD | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE31-1UF1 Rated power: 55 kW / 60 hp | Base-load current IL/IH: 103 / 83 A | Frame size: FSE | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE31-1AF1 Rated power: 55 kW / 60 hp | Base-load current IL/IH: 103 / 83 A | Frame size: FSE | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE31-4UF1 Rated power: 75 kW / 75 hp | Base-load current IL/IH: 136 / 103 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE31-4AF1 Rated power: 75 kW / 75 hp | Base-load current IL/IH: 136 / 103 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE31-7UF1 Rated power: 90 kW / 100 hp | Base-load current IL/IH: 164 / 136 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE31-7AF1 Rated power: 90 kW / 100 hp | Base-load current IL/IH: 164 / 136 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE32-1UF1 Rated power: 110 kW / 125 hp | Base-load current IL/IH: 201 / 164 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE32-1AF1 Rated power: 110 kW / 125 hp | Base-load current IL/IH: 201 / 164 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
6SL3210-1KE32-4UF1 Rated power: 132 kW / 150 hp | Base-load current IL/IH: 237 / 201 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Without
6SL3210-1KE32-4AF1 Rated power: 132 kW / 150 hp | Base-load current IL/IH: 237 / 201 A | Frame size: FSF | Fieldbus: PROFINET, EtherNet/IP | Line filter: Integrated, class A
Inverters (VFD)Siemens
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120C compact converters 3AC 380-480 V (0.55-132 kW)

Brand Siemens·Inverters (VFD)

Available part numbers (90)

6SL3210-1KE11-8UB2, 6SL3210-1KE11-8UP2, 6SL3210-1KE11-8UF2, 6SL3210-1KE11-8AB2, 6SL3210-1KE11-8AP2, 6SL3210-1KE11-8AF2, 6SL3210-1KE12-3UB2, 6SL3210-1KE12-3UP2, 6SL3210-1KE12-3UF2, 6SL3210-1KE12-3AB2 + 80 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
