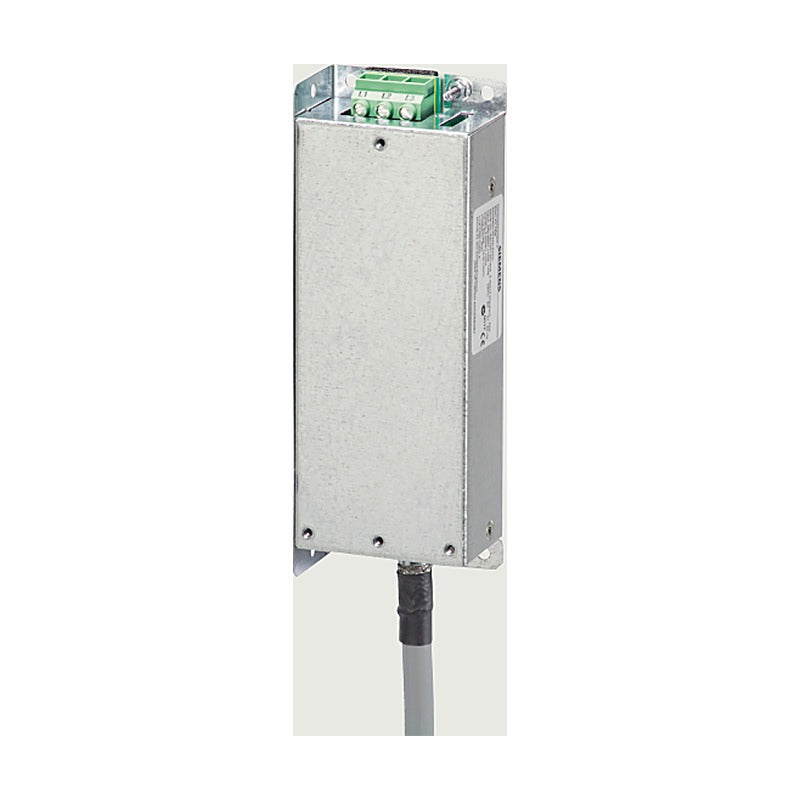

Siemens SINAMICS line filters class B for V20 / G120C (380-480 V)

Siemens SINAMICS line filters class B for V20 / G120C (380-480 V)

External class B line filters for SINAMICS V20 (400 V) and SINAMICS G120C converters, suitable for base mounting.

Key features

  • Class B line filters according to EN 55011
  • V20 3AC: Category C2 with shielded motor cable up to 25 m
  • G120C: for unfiltered frame sizes FSAA to FSC
  • Suitable as base component under the converter
  • Usable in dry-room conditions down to 0.2 % relative humidity at 25 °C

Specifications

Brand Siemens SINAMICS
Line voltage 380-480 V 3AC
Filter class Class B (EN 55011)
Pulse frequency 4-16 kHz
Degree of protection IP20
Mounting Base component or side
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 90-131
6SL3203-0BE17-7BA0 Rated current: 11.4 A | For V20: FSA, 0.37-2.2 kW | For G120C: FSAA/FSA, 0.55-4 kW
6SL3203-0BE21-8BA0 Rated current: 23.5 A | For V20: FSB/FSC, 3-5.5 kW | For G120C: FSB, 5.5-7.5 kW
6SL3203-0BE23-8BA0 Rated current: 49.4 A | For V20: FSC/FSD, 7.5-15 kW | For G120C: FSC, 11-18.5 kW
6SL3203-0BE27-5BA0 Rated current: - | For V20: FSE, 22-30 kW | For G120C: -
Inverter Options & AccessoriesSiemens
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS line filters class B for V20 / G120C (380-480 V)

Brand Siemens·Inverter Options & Accessories

Available part numbers (4)

6SL3203-0BE17-7BA0, 6SL3203-0BE21-8BA0, 6SL3203-0BE23-8BA0, 6SL3203-0BE27-5BA0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL3203-0BE17-7BA0Rated current: 11.4 A | For V20: FSA, 0.37-2.2 kW | For G120C: FSAA/FSA, 0.55-4 kW
6SL3203-0BE21-8BA0Rated current: 23.5 A | For V20: FSB/FSC, 3-5.5 kW | For G120C: FSB, 5.5-7.5 kW
6SL3203-0BE23-8BA0Rated current: 49.4 A | For V20: FSC/FSD, 7.5-15 kW | For G120C: FSC, 11-18.5 kW
6SL3203-0BE27-5BA0Rated current: - | For V20: FSE, 22-30 kW | For G120C: -

Need a different model, or a part not listed here? Send us your parts list →
