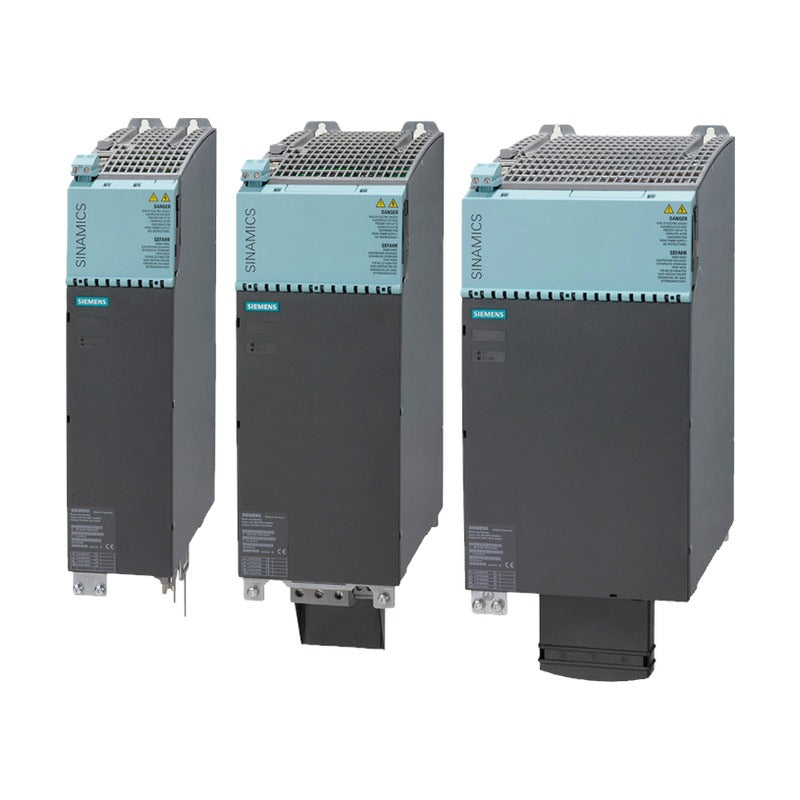

Siemens SINAMICS S120 Basic Line Modules Booksize (20-100 kW)

Siemens SINAMICS S120 Basic Line Modules Booksize (20-100 kW)

Basic Line Modules in booksize format for infeed-only SINAMICS S120 drive line-ups without regenerative feedback.

Key features

  • Infeed only, no regenerative feedback
  • DC link voltage approx. 1.35 x line voltage
  • Integrated braking chopper for 20 kW and 40 kW (external resistor)
  • Category C2 with optional Basic Line Filter
  • Internal air cooling with built-in fan

Specifications

Brand Siemens
Product line SINAMICS S120
Line voltage 380 ... 480 V 3 AC
Line frequency 47 ... 63 Hz
Electronics power supply 24 V DC -15 %/+20 %
Certificate of suitability cULus
Source Siemens Catalog D 21.4 · 2026, p. 135-141
6SL3130-1TE22-0AA0 Rated power: 20 kW (25 hp) | Width: 100 mm
6SL3130-1TE24-0AA0 Rated power: 40 kW (50 hp) | Width: 150 mm
6SL3130-1TE31-0AA0 Rated power: 100 kW (125 hp) | Width: 200 mm
Servo DrivesSiemens
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS S120 Basic Line Modules Booksize (20-100 kW)

Brand Siemens·Servo Drives

Available part numbers (3)

6SL3130-1TE22-0AA0, 6SL3130-1TE24-0AA0, 6SL3130-1TE31-0AA0
