Siemens SINAMICS S120 Booksize System Accessories (DC Link, 24 V)

Siemens SINAMICS S120 Booksize System Accessories (DC Link, 24 V)

Mounting and connection accessories for SINAMICS S120 Line and Motor Modules in booksize and booksize compact format.

Key features

  • DC link rectifier adapters for direct DC infeed and multi-tier DC link adapters
  • Shield connection plates and clamps for EMC-compliant cable connection
  • 24 V terminal adapters and jumpers for the 24 V busbars
  • Motor Module power connectors with screw or push-in terminals
  • DRIVE-CLiQ dust protection plugs, short DRIVE-CLiQ cables and warning label sets

Specifications

Brand Siemens
Product line SINAMICS S120
Format Booksize / booksize compact
Component System accessories
Source Siemens Catalog D 21.4 · 2026, p. 96-187
6SL3162-1AD00-0AA0 Item: Shield connection plate | Application: Modules 100 mm wide (MM C type 45/60 A)
6SL3162-1AF00-0AA1 Item: Shield connection plate | Application: Line/Motor Modules 150 mm wide
6SL3162-1AH01-0AA0 Item: Shield connection plate | Application: Line/Motor Modules 200 mm wide
6SL3162-1AH00-0AA0 Item: Shield connection plate | Application: Line/Motor Modules 300 mm wide
8WH9130-0MA00 Item: Shield connection clamp, dia. 3-14 mm | Application: MM booksize C type 45/60 A
6SL3162-0AQ00-0AA0 Item: Shield connection clamp | Application: Single MM booksize C/D 3-30 A
6SL3162-0AR00-0AA0 Item: Shield connection clamp | Application: Double MM booksize C/D

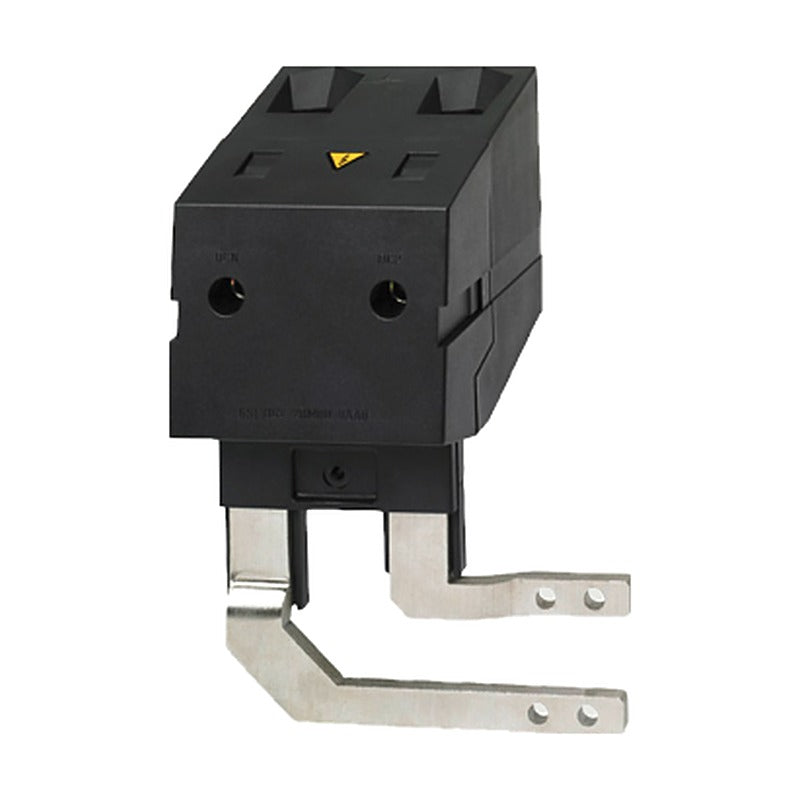

6SL3162-2BM00-0AA0 Item: DC link rectifier adapter, 35-120 mm2 | Application: Modules 150/200/300 mm wide
6SL3162-2BB00-0AA0 Item: Reinforced DC link bridge 6 mm | Application: SMM 3-24 A, DMM 2x3-2x9 A
6SL3162-2MA00-0AC0 Item: Power connector X1/X2, screw terminals | Application: MM booksize C/D 3-30 A
6SL3162-2MB00-0AC0 Item: Power connector X1/X2, push-in terminals | Application: MM booksize C/D 3-30 A
6SL3462-1CC00-0AA0 Item: Spacing bolt (4 units) | Application: Booksize compact modules, AM600
6SL3060-4AD00-0AA0 Item: DRIVE-CLiQ cable 0.16 m, IP20/IP20 | Application: SLM 5/10 kW to CU320-2
6SL5060-4AD00-0AA0 Item: DRIVE-CLiQ cable 0.16 m, IP20/IP20 | Application: SLM 5/10 kW to S220 CU320-3
Servo Drive AccessoriesSiemens
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS S120 Booksize System Accessories (DC Link, 24 V)

Brand Siemens·Servo Drive Accessories

Available part numbers (14)

6SL3162-1AD00-0AA0, 6SL3162-1AF00-0AA1, 6SL3162-1AH01-0AA0, 6SL3162-1AH00-0AA0, 8WH9130-0MA00, 6SL3162-0AQ00-0AA0, 6SL3162-0AR00-0AA0, 6SL3162-2BM00-0AA0, 6SL3162-2BB00-0AA0, 6SL3162-2MA00-0AC0 + 4 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL3162-1AD00-0AA0Item: Shield connection plate | Application: Modules 100 mm wide (MM C type 45/60 A)
6SL3162-1AF00-0AA1Item: Shield connection plate | Application: Line/Motor Modules 150 mm wide
6SL3162-1AH01-0AA0Item: Shield connection plate | Application: Line/Motor Modules 200 mm wide
6SL3162-1AH00-0AA0Item: Shield connection plate | Application: Line/Motor Modules 300 mm wide
8WH9130-0MA00Item: Shield connection clamp, dia. 3-14 mm | Application: MM booksize C type 45/60 A
6SL3162-0AQ00-0AA0Item: Shield connection clamp | Application: Single MM booksize C/D 3-30 A
6SL3162-0AR00-0AA0Item: Shield connection clamp | Application: Double MM booksize C/D
6SL3162-2BM00-0AA0Item: DC link rectifier adapter, 35-120 mm2 | Application: Modules 150/200/300 mm wide
6SL3162-2BB00-0AA0Item: Reinforced DC link bridge 6 mm | Application: SMM 3-24 A, DMM 2x3-2x9 A
6SL3162-2MA00-0AC0Item: Power connector X1/X2, screw terminals | Application: MM booksize C/D 3-30 A
6SL3162-2MB00-0AC0Item: Power connector X1/X2, push-in terminals | Application: MM booksize C/D 3-30 A
6SL3462-1CC00-0AA0Item: Spacing bolt (4 units) | Application: Booksize compact modules, AM600
6SL3060-4AD00-0AA0Item: DRIVE-CLiQ cable 0.16 m, IP20/IP20 | Application: SLM 5/10 kW to CU320-2
6SL5060-4AD00-0AA0Item: DRIVE-CLiQ cable 0.16 m, IP20/IP20 | Application: SLM 5/10 kW to S220 CU320-3
