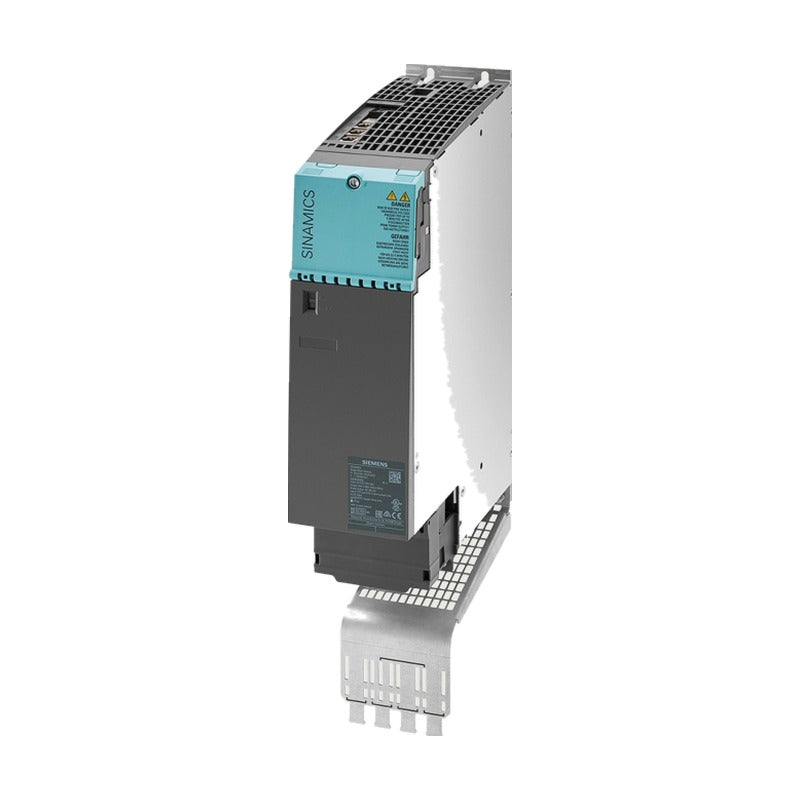

Siemens SINAMICS S120 Single Motor Modules Booksize (3-200 A, C/D)

Siemens SINAMICS S120 Single Motor Modules Booksize (3-200 A, C/D)

Single Motor Modules in booksize format (C type, D type and standard) that supply one motor from the SINAMICS S120 common DC link.

Key features

  • Inverter for one motor fed from the common DC link
  • D type for high-dynamic servo duty, C type for continuous load
  • Rated output currents from 3 A to 200 A
  • Controlled by the CU320-2 Control Unit via DRIVE-CLiQ
  • Power connector X1 with screw or push-in terminals (3-30 A)

Specifications

Brand Siemens
Product line SINAMICS S120
DC link voltage 510 ... 720 V DC
Format Booksize
Number of axes 1
Cooling Internal air cooling
Source Siemens Catalog D 21.4 · 2026, p. 151-163
6SL3120-1TE13-0AD0 Rated output current: 3 A | Type rating: 1.6 kW (1.5 hp) | Version: D type | Width: 50 mm
6SL3120-1TE15-0AD0 Rated output current: 5 A | Type rating: 2.7 kW (3 hp) | Version: D type | Width: 50 mm
6SL3120-1TE21-0AD0 Rated output current: 9 A | Type rating: 4.8 kW (5 hp) | Version: D type | Width: 50 mm
6SL3120-1TE21-8AC0 Rated output current: 18 A | Type rating: 9.7 kW (10 hp) | Version: C type | Width: 50 mm
6SL3120-1TE21-8AD0 Rated output current: 18 A | Type rating: 9.7 kW (10 hp) | Version: D type | Width: 50 mm
6SL3120-1TE22-4AC0 Rated output current: 24 A | Type rating: 12.9 kW (15 hp) | Version: C type | Width: 50 mm
6SL3120-1TE22-4AD0 Rated output current: 24 A | Type rating: 12.9 kW (15 hp) | Version: D type | Width: 50 mm
6SL3120-1TE23-0AC0 Rated output current: 30 A | Type rating: 16 kW (20 hp) | Version: C type | Width: 100 mm
6SL3120-1TE23-0AD0 Rated output current: 30 A | Type rating: 16 kW (20 hp) | Version: D type | Width: 100 mm
6SL3120-1TE24-5AC0 Rated output current: 45 A | Type rating: 24 kW (30 hp) | Version: C type | Width: 100 mm
6SL3120-1TE26-0AC0 Rated output current: 60 A | Type rating: 32 kW (40 hp) | Version: C type | Width: 100 mm
6SL3120-1TE28-5AA3 Rated output current: 85 A | Type rating: 46 kW (60 hp) | Version: Standard | Width: 200 mm
6SL3120-1TE31-3AA3 Rated output current: 132 A | Type rating: 71 kW (100 hp) | Version: Standard | Width: 300 mm
6SL3120-1TE32-0AA4 Rated output current: 200 A | Type rating: 107 kW (150 hp) | Version: Standard | Width: 300 mm
Servo DrivesSiemens
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS S120 Single Motor Modules Booksize (3-200 A, C/D)

Brand Siemens·Servo Drives

Available part numbers (14)

6SL3120-1TE13-0AD0, 6SL3120-1TE15-0AD0, 6SL3120-1TE21-0AD0, 6SL3120-1TE21-8AC0, 6SL3120-1TE21-8AD0, 6SL3120-1TE22-4AC0, 6SL3120-1TE22-4AD0, 6SL3120-1TE23-0AC0, 6SL3120-1TE23-0AD0, 6SL3120-1TE24-5AC0 + 4 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL3120-1TE13-0AD0Rated output current: 3 A | Type rating: 1.6 kW (1.5 hp) | Version: D type | Width: 50 mm
6SL3120-1TE15-0AD0Rated output current: 5 A | Type rating: 2.7 kW (3 hp) | Version: D type | Width: 50 mm
6SL3120-1TE21-0AD0Rated output current: 9 A | Type rating: 4.8 kW (5 hp) | Version: D type | Width: 50 mm
6SL3120-1TE21-8AC0Rated output current: 18 A | Type rating: 9.7 kW (10 hp) | Version: C type | Width: 50 mm
6SL3120-1TE21-8AD0Rated output current: 18 A | Type rating: 9.7 kW (10 hp) | Version: D type | Width: 50 mm
6SL3120-1TE22-4AC0Rated output current: 24 A | Type rating: 12.9 kW (15 hp) | Version: C type | Width: 50 mm
6SL3120-1TE22-4AD0Rated output current: 24 A | Type rating: 12.9 kW (15 hp) | Version: D type | Width: 50 mm
6SL3120-1TE23-0AC0Rated output current: 30 A | Type rating: 16 kW (20 hp) | Version: C type | Width: 100 mm
6SL3120-1TE23-0AD0Rated output current: 30 A | Type rating: 16 kW (20 hp) | Version: D type | Width: 100 mm
6SL3120-1TE24-5AC0Rated output current: 45 A | Type rating: 24 kW (30 hp) | Version: C type | Width: 100 mm
6SL3120-1TE26-0AC0Rated output current: 60 A | Type rating: 32 kW (40 hp) | Version: C type | Width: 100 mm
6SL3120-1TE28-5AA3Rated output current: 85 A | Type rating: 46 kW (60 hp) | Version: Standard | Width: 200 mm
6SL3120-1TE31-3AA3Rated output current: 132 A | Type rating: 71 kW (100 hp) | Version: Standard | Width: 300 mm
6SL3120-1TE32-0AA4Rated output current: 200 A | Type rating: 107 kW (150 hp) | Version: Standard | Width: 300 mm
