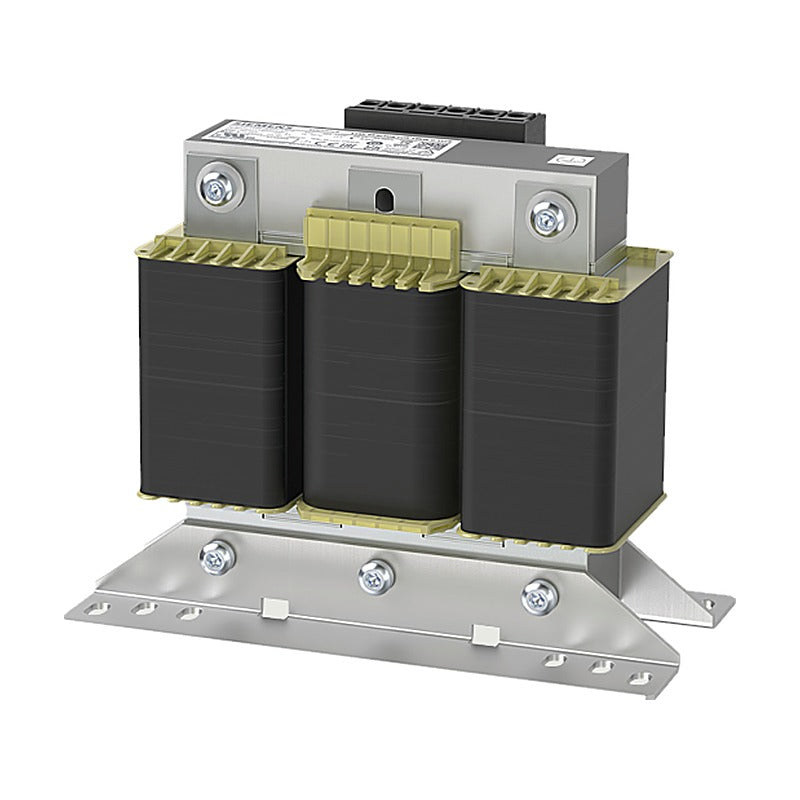

Siemens SINAMICS S220 Line Reactors & Filters for Smart Line Modules

Line reactors and line filters assigned to SINAMICS S220 Smart Line Modules in booksize format, 16-55 kW, 380-480 V 3 AC.

Key features

Line reactors are always required for Smart Line Module operation to limit line harmonics
Line filters limit conducted emissions to IEC 61800-3 limits together with line reactors
Line filters suitable for direct connection to TN systems only
One reactor per Smart Line Module type (C or D); one filter per power rating

Specifications

Line voltage	380-480 V 3 AC
Degree of protection	IP20
Suitable for	SINAMICS S220 Smart Line Modules
Source	Siemens Catalog D 21.4 · 2026, p. 301-303

6SL3100-0EE21-6AA0		Item: Line reactor \| SLM rated power: 16 kW \| For SLM: 6SL5130-6UE21-6AC1
6SL5100-0EE21-6AD0		Item: Line reactor \| SLM rated power: 16 kW \| For SLM: 6SL5130-6UE21-6AD1
6SL5100-0EE22-4AC0		Item: Line reactor \| SLM rated power: 24 kW \| For SLM: 6SL5130-6UE22-4AC1
6SL5100-0EE22-4AD0		Item: Line reactor \| SLM rated power: 24 kW \| For SLM: 6SL5130-6UE22-4AD1
6SL5100-0EE23-6AC0		Item: Line reactor \| SLM rated power: 36 kW \| For SLM: 6SL5130-6UE23-6AC1
6SL5100-0EE23-6AD0		Item: Line reactor \| SLM rated power: 36 kW \| For SLM: 6SL5130-6UE23-6AD1
6SL5100-0EE25-5AC0		Item: Line reactor \| SLM rated power: 55 kW \| For SLM: 6SL5130-6UE25-5AC1
6SL5100-0EE25-5AD0		Item: Line reactor \| SLM rated power: 55 kW \| For SLM: 6SL5130-6UE25-5AD1
6SL5100-0HE21-6DD0		Item: Line filter (30 A) \| SLM rated power: 16 kW \| For SLM: 6SL5130-6UE21-6A.1 (C/D)
6SL5100-0HE22-4DD0		Item: Line filter (44 A) \| SLM rated power: 24 kW \| For SLM: 6SL5130-6UE22-4A.1 (C/D)
6SL5100-0HE23-6DD0		Item: Line filter (73 A) \| SLM rated power: 36 kW \| For SLM: 6SL5130-6UE23-6A.1 (C/D)
6SL5100-0HE25-5DD0		Item: Line filter (105 A) \| SLM rated power: 55 kW \| For SLM: 6SL5130-6UE25-5A.1 (C/D)

Servo Drive AccessoriesSiemens

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS S220 Line Reactors & Filters for Smart Line Modules

Brand Siemens·Servo Drive Accessories

Available part numbers (12)

6SL3100-0EE21-6AA0, 6SL5100-0EE21-6AD0, 6SL5100-0EE22-4AC0, 6SL5100-0EE22-4AD0, 6SL5100-0EE23-6AC0, 6SL5100-0EE23-6AD0, 6SL5100-0EE25-5AC0, 6SL5100-0EE25-5AD0, 6SL5100-0HE21-6DD0, 6SL5100-0HE22-4DD0 + 2 more — see full table ↓
