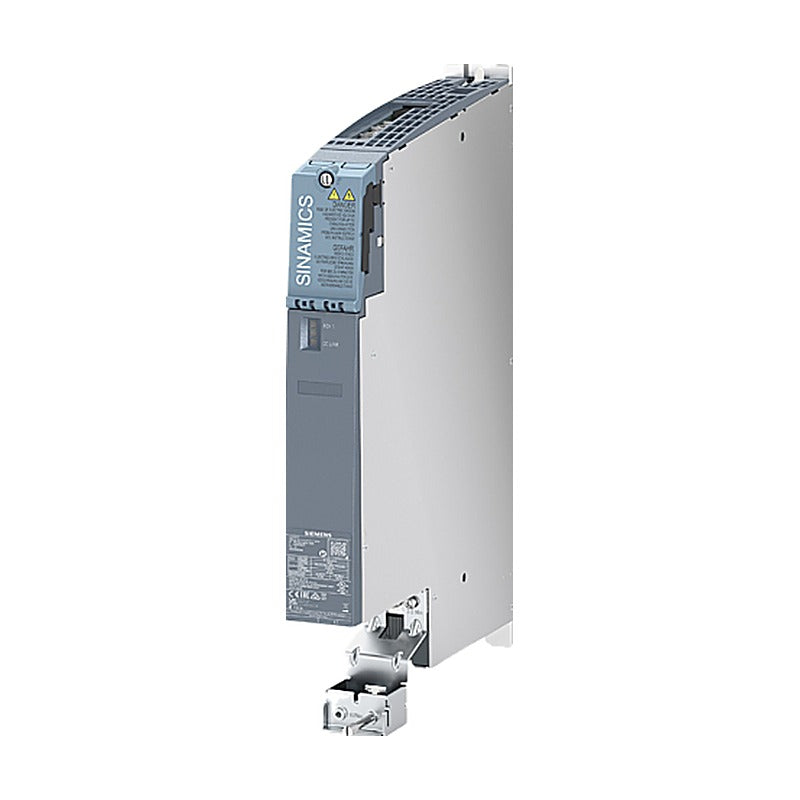

Siemens SINAMICS S220 Single Motor Modules Booksize (3-200 A)

Siemens SINAMICS S220 Single Motor Modules Booksize (3-200 A)

SINAMICS S220 Single Motor Modules in booksize format, 3-200 A rated output current at DC link voltage 495-720 V DC, with accessories.

Key features

  • Inverters for one motor axis on the common S220 booksize DC link
  • Rated output current 3 A to 200 A (1.1-110 kW)
  • C type and D type (higher overload capability), 30 A also in slim versions
  • DC link voltage 495-720 V DC
  • Accessories: power connectors, shield plates/clamps, terminal kits, replacement fans

Specifications

DC link voltage 495-720 V DC
Format Booksize
Drive system SINAMICS S220
Source Siemens Catalog D 21.4 · 2026, p. 310-311
6SL5120-1UE13-0AD1 Rated output current: 3 A | Rated power: 1.1 kW (1.5 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE15-0AD1 Rated output current: 5 A | Rated power: 2.2 kW (3 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE21-0AD1 Rated output current: 9 A | Rated power: 4 kW (5 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE21-8AC1 Rated output current: 18 A | Rated power: 7.5 kW (10 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE21-8AD1 Rated output current: 18 A | Rated power: 7.5 kW (10 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE22-4AC1 Rated output current: 24 A | Rated power: 11 kW (15 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE22-4AD1 Rated output current: 24 A | Rated power: 11 kW (15 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE23-0AC1 Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE23-0AD1 Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE23-0SC1 Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: C type slim | Item: Single Motor Module
6SL5120-1UE23-0SD1 Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: D type slim | Item: Single Motor Module
6SL5120-1UE24-5AC1 Rated output current: 45 A | Rated power: 22 kW (30 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE26-0AC1 Rated output current: 60 A | Rated power: 30 kW (40 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE28-5AC1 Rated output current: 85 A | Rated power: 45 kW (60 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE28-5AD1 Rated output current: 85 A | Rated power: 45 kW (60 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE31-3AC1 Rated output current: 132 A | Rated power: 75 kW (100 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE31-3AD1 Rated output current: 132 A | Rated power: 75 kW (100 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE32-0AC1 Rated output current: 200 A | Rated power: 110 kW (150 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE32-0AD1 Rated output current: 200 A | Rated power: 110 kW (150 hp) | Type: D type | Item: Single Motor Module
6SL5166-1AH00-0AA0 Rated output current: - | Rated power: - | Type: Accessory | Item: Shield plate 200 mm (200 A)
6SL5166-8AB00-0AA1 Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 50 mm (30 A slim)
6SL5166-8AD00-0AA1 Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 100 mm (30 A)
6SL5166-8AD01-0AA1 Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 100 mm (45/60 A)
6SL5166-8AF00-0AA1 Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 150 mm (85/132 A)
6SL5166-8AH00-0AA1 Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 200 mm (200 A)
6SL5166-3BW00-0AA0 Rated output current: - | Rated power: - | Type: Accessory | Item: Warning labels, 36 languages
6SL5166-0AD00-0AA0 Rated output current: - | Rated power: - | Type: Accessory | Item: Replacement fan 100 mm (30 A)
6SL5166-0AF00-0AA0 Rated output current: - | Rated power: - | Type: Accessory | Item: Replacement fan 150 mm (85/132 A)
6SL5166-0AH00-0AA0 Rated output current: - | Rated power: - | Type: Accessory | Item: Replacement fan 200 mm (200 A)
Servo DrivesSiemens
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS S220 Single Motor Modules Booksize (3-200 A)

Brand Siemens·Servo Drives

Available part numbers (29)

6SL5120-1UE13-0AD1, 6SL5120-1UE15-0AD1, 6SL5120-1UE21-0AD1, 6SL5120-1UE21-8AC1, 6SL5120-1UE21-8AD1, 6SL5120-1UE22-4AC1, 6SL5120-1UE22-4AD1, 6SL5120-1UE23-0AC1, 6SL5120-1UE23-0AD1, 6SL5120-1UE23-0SC1 + 19 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL5120-1UE13-0AD1Rated output current: 3 A | Rated power: 1.1 kW (1.5 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE15-0AD1Rated output current: 5 A | Rated power: 2.2 kW (3 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE21-0AD1Rated output current: 9 A | Rated power: 4 kW (5 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE21-8AC1Rated output current: 18 A | Rated power: 7.5 kW (10 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE21-8AD1Rated output current: 18 A | Rated power: 7.5 kW (10 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE22-4AC1Rated output current: 24 A | Rated power: 11 kW (15 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE22-4AD1Rated output current: 24 A | Rated power: 11 kW (15 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE23-0AC1Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE23-0AD1Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE23-0SC1Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: C type slim | Item: Single Motor Module
6SL5120-1UE23-0SD1Rated output current: 30 A | Rated power: 15 kW (20 hp) | Type: D type slim | Item: Single Motor Module
6SL5120-1UE24-5AC1Rated output current: 45 A | Rated power: 22 kW (30 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE26-0AC1Rated output current: 60 A | Rated power: 30 kW (40 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE28-5AC1Rated output current: 85 A | Rated power: 45 kW (60 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE28-5AD1Rated output current: 85 A | Rated power: 45 kW (60 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE31-3AC1Rated output current: 132 A | Rated power: 75 kW (100 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE31-3AD1Rated output current: 132 A | Rated power: 75 kW (100 hp) | Type: D type | Item: Single Motor Module
6SL5120-1UE32-0AC1Rated output current: 200 A | Rated power: 110 kW (150 hp) | Type: C type | Item: Single Motor Module
6SL5120-1UE32-0AD1Rated output current: 200 A | Rated power: 110 kW (150 hp) | Type: D type | Item: Single Motor Module
6SL5166-1AH00-0AA0Rated output current: - | Rated power: - | Type: Accessory | Item: Shield plate 200 mm (200 A)
6SL5166-8AB00-0AA1Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 50 mm (30 A slim)
6SL5166-8AD00-0AA1Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 100 mm (30 A)
6SL5166-8AD01-0AA1Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 100 mm (45/60 A)
6SL5166-8AF00-0AA1Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 150 mm (85/132 A)
6SL5166-8AH00-0AA1Rated output current: - | Rated power: - | Type: Accessory | Item: Terminal Kit 200 mm (200 A)
6SL5166-3BW00-0AA0Rated output current: - | Rated power: - | Type: Accessory | Item: Warning labels, 36 languages
6SL5166-0AD00-0AA0Rated output current: - | Rated power: - | Type: Accessory | Item: Replacement fan 100 mm (30 A)
6SL5166-0AF00-0AA0Rated output current: - | Rated power: - | Type: Accessory | Item: Replacement fan 150 mm (85/132 A)
6SL5166-0AH00-0AA0Rated output current: - | Rated power: - | Type: Accessory | Item: Replacement fan 200 mm (200 A)
