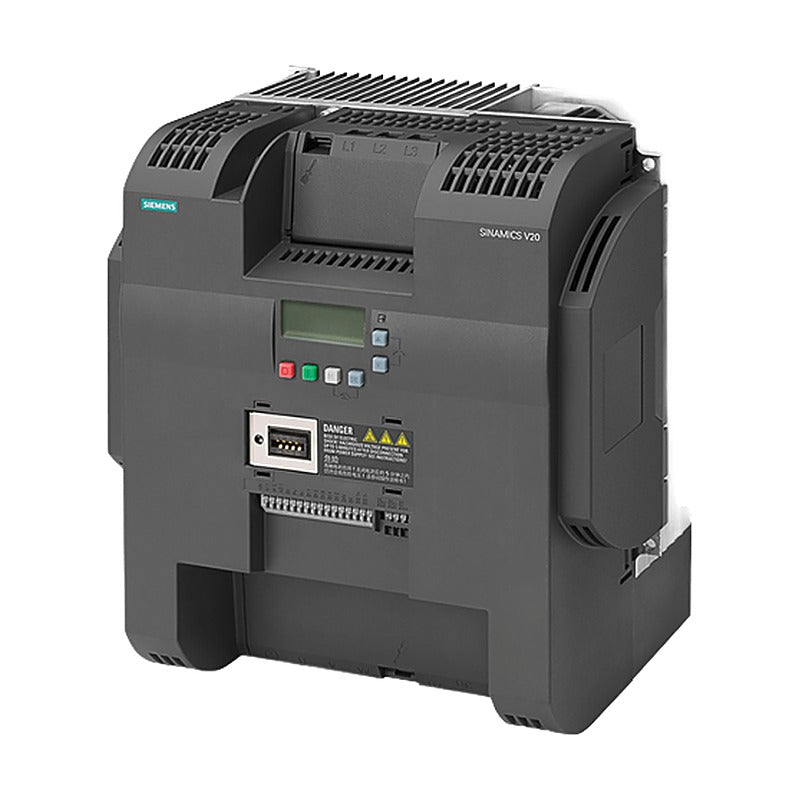

Siemens SINAMICS V20 basic converters 3AC 380-480 V (0.37-30 kW)

Siemens SINAMICS V20 basic converters 3AC 380-480 V (0.37-30 kW)

SINAMICS V20 basic converters for three-phase 380-480 V supplies, 0.37 to 30 kW, available with or without integrated Category C3 line filter.

Key features

  • Frame sizes FSA to FSE with integrated braking chopper
  • Built-in BOP; USS and Modbus RTU via integrated RS485 interface
  • Optional I/O Extension Module adds 2 DI and 2 relay outputs
  • Variants with integrated EMC filter to IEC 61800-3 Category C3
  • Low overload / high overload ratings; frame sizes FSD/FSE with dual fans
  • Energy-saving functions with automatic flux reduction

Specifications

Brand Siemens SINAMICS
Series SINAMICS V20
Line voltage 380-480 V 3AC (-15/+10 %)
Line frequency 50/60 Hz
Output frequency 0-550 Hz
Braking chopper Integrated (FSA-FSE)
Communication RS485: USS, Modbus RTU
Efficiency class IE2 (IEC 61800-9-2)
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 82-83
6SL3210-5BE13-7UV1 Rated power LO: 0.37 kW / 0.5 hp | Power HO: 0.37 kW / 0.5 hp | Output current IL: 1.3/1.3 A (400/480 V) | Frame size: FSA | Line filter: Without
6SL3210-5BE13-7CV1 Rated power LO: 0.37 kW / 0.5 hp | Power HO: 0.37 kW / 0.5 hp | Output current IL: 1.3/1.3 A (400/480 V) | Frame size: FSA | Line filter: Integrated, Category C3
6SL3210-5BE15-5UV1 Rated power LO: 0.55 kW / 0.75 hp | Power HO: 0.55 kW / 0.75 hp | Output current IL: 1.7/1.7 A (400/480 V) | Frame size: FSA | Line filter: Without
6SL3210-5BE15-5CV1 Rated power LO: 0.55 kW / 0.75 hp | Power HO: 0.55 kW / 0.75 hp | Output current IL: 1.7/1.7 A (400/480 V) | Frame size: FSA | Line filter: Integrated, Category C3
6SL3210-5BE17-5UV1 Rated power LO: 0.75 kW / 1 hp | Power HO: 0.75 kW / 1 hp | Output current IL: 2.2/2.2 A (400/480 V) | Frame size: FSA | Line filter: Without
6SL3210-5BE17-5CV1 Rated power LO: 0.75 kW / 1 hp | Power HO: 0.75 kW / 1 hp | Output current IL: 2.2/2.2 A (400/480 V) | Frame size: FSA | Line filter: Integrated, Category C3
6SL3210-5BE21-1UV1 Rated power LO: 1.1 kW / 1.5 hp | Power HO: 1.1 kW / 1.5 hp | Output current IL: 3.1/3.1 A (400/480 V) | Frame size: FSA | Line filter: Without
6SL3210-5BE21-1CV1 Rated power LO: 1.1 kW / 1.5 hp | Power HO: 1.1 kW / 1.5 hp | Output current IL: 3.1/3.1 A (400/480 V) | Frame size: FSA | Line filter: Integrated, Category C3
6SL3210-5BE21-5UV1 Rated power LO: 1.5 kW / 2 hp | Power HO: 1.5 kW / 2 hp | Output current IL: 4.1/4.1 A (400/480 V) | Frame size: FSA | Line filter: Without
6SL3210-5BE21-5CV1 Rated power LO: 1.5 kW / 2 hp | Power HO: 1.5 kW / 2 hp | Output current IL: 4.1/4.1 A (400/480 V) | Frame size: FSA | Line filter: Integrated, Category C3
6SL3210-5BE22-2UV1 Rated power LO: 2.2 kW / 3 hp | Power HO: 2.2 kW / 3 hp | Output current IL: 5.6/4.8 A (400/480 V) | Frame size: FSA | Line filter: Without
6SL3210-5BE22-2CV1 Rated power LO: 2.2 kW / 3 hp | Power HO: 2.2 kW / 3 hp | Output current IL: 5.6/4.8 A (400/480 V) | Frame size: FSA | Line filter: Integrated, Category C3
6SL3210-5BE23-0UV1 Rated power LO: 3 kW / 4 hp | Power HO: 3 kW / 4 hp | Output current IL: 7.3/7.3 A (400/480 V) | Frame size: FSB | Line filter: Without
6SL3210-5BE23-0CV1 Rated power LO: 3 kW / 4 hp | Power HO: 3 kW / 4 hp | Output current IL: 7.3/7.3 A (400/480 V) | Frame size: FSB | Line filter: Integrated, Category C3
6SL3210-5BE24-0UV1 Rated power LO: 4 kW / 5 hp | Power HO: 4 kW / 5 hp | Output current IL: 8.8/8.24 A (400/480 V) | Frame size: FSB | Line filter: Without
6SL3210-5BE24-0CV1 Rated power LO: 4 kW / 5 hp | Power HO: 4 kW / 5 hp | Output current IL: 8.8/8.24 A (400/480 V) | Frame size: FSB | Line filter: Integrated, Category C3
6SL3210-5BE25-5UV1 Rated power LO: 5.5 kW / 7.5 hp | Power HO: 5.5 kW / 7.5 hp | Output current IL: 12.5/11 A (400/480 V) | Frame size: FSC | Line filter: Without
6SL3210-5BE25-5CV1 Rated power LO: 5.5 kW / 7.5 hp | Power HO: 5.5 kW / 7.5 hp | Output current IL: 12.5/11 A (400/480 V) | Frame size: FSC | Line filter: Integrated, Category C3
6SL3210-5BE27-5UV1 Rated power LO: 7.5 kW / 10 hp | Power HO: 7.5 kW / 10 hp | Output current IL: 16.5/16.5 A (400/480 V) | Frame size: FSC | Line filter: Without
6SL3210-5BE27-5CV1 Rated power LO: 7.5 kW / 10 hp | Power HO: 7.5 kW / 10 hp | Output current IL: 16.5/16.5 A (400/480 V) | Frame size: FSC | Line filter: Integrated, Category C3
6SL3210-5BE31-1UV0 Rated power LO: 11 kW / 15 hp | Power HO: 11 kW / 15 hp | Output current IL: 25/21 A (400/480 V) | Frame size: FSD | Line filter: Without
6SL3210-5BE31-1CV0 Rated power LO: 11 kW / 15 hp | Power HO: 11 kW / 15 hp | Output current IL: 25/21 A (400/480 V) | Frame size: FSD | Line filter: Integrated, Category C3
6SL3210-5BE31-5UV0 Rated power LO: 15 kW / 20 hp | Power HO: 15 kW / 20 hp | Output current IL: 31/31 A (400/480 V) | Frame size: FSD | Line filter: Without
6SL3210-5BE31-5CV0 Rated power LO: 15 kW / 20 hp | Power HO: 15 kW / 20 hp | Output current IL: 31/31 A (400/480 V) | Frame size: FSD | Line filter: Integrated, Category C3
6SL3210-5BE31-8UV0 Rated power LO: 22 kW / 30 hp | Power HO: 18.5 kW / 25 hp | Output current IL: 45/40 A (400/480 V) | Frame size: FSE | Line filter: Without
6SL3210-5BE31-8CV0 Rated power LO: 22 kW / 30 hp | Power HO: 18.5 kW / 25 hp | Output current IL: 45/40 A (400/480 V) | Frame size: FSE | Line filter: Integrated, Category C3
6SL3210-5BE32-2UV0 Rated power LO: 30 kW / 40 hp | Power HO: 22 kW / 30 hp | Output current IL: 60/52 A (400/480 V) | Frame size: FSE | Line filter: Without
6SL3210-5BE32-2CV0 Rated power LO: 30 kW / 40 hp | Power HO: 22 kW / 30 hp | Output current IL: 60/52 A (400/480 V) | Frame size: FSE | Line filter: Integrated, Category C3
Inverters (VFD)Siemens
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS V20 basic converters 3AC 380-480 V (0.37-30 kW)

Brand Siemens·Inverters (VFD)

Available part numbers (28)

6SL3210-5BE13-7UV1, 6SL3210-5BE13-7CV1, 6SL3210-5BE15-5UV1, 6SL3210-5BE15-5CV1, 6SL3210-5BE17-5UV1, 6SL3210-5BE17-5CV1, 6SL3210-5BE21-1UV1, 6SL3210-5BE21-1CV1, 6SL3210-5BE21-5UV1, 6SL3210-5BE21-5CV1 + 18 more — see full table ↓
