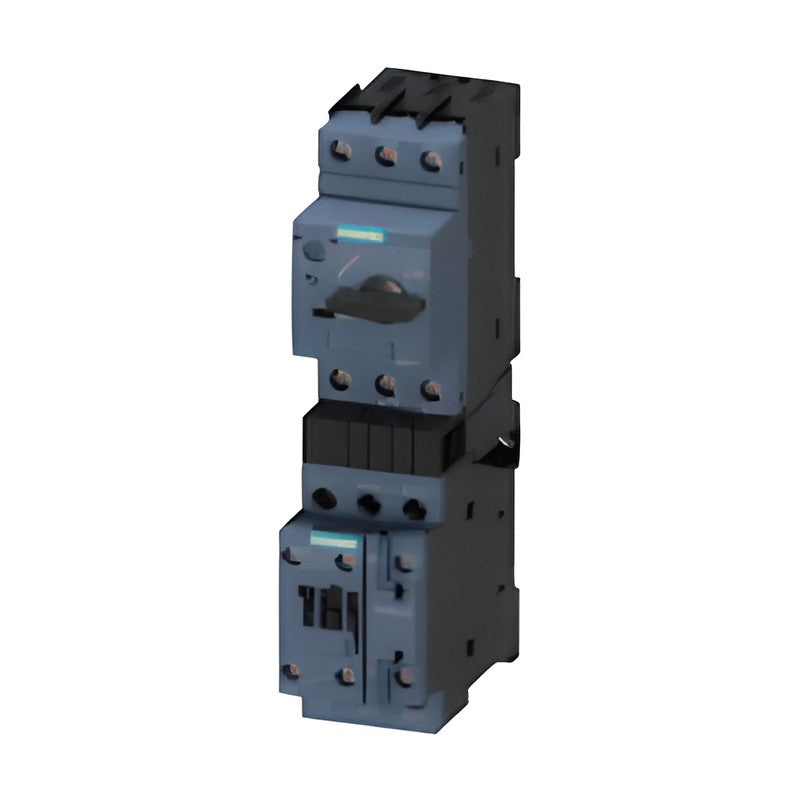

Siemens SIRIUS 3RA21 Direct-on-Line Starters (S00-S2, DIN Rail)

Siemens SIRIUS 3RA21 Direct-on-Line Starters (S00-S2, DIN Rail)

Factory-assembled SIRIUS 3RA21 fuseless direct-on-line starters combining a 3RV20 motor starter protector and a 3RT20 contactor for DIN-rail mounting or screw fixing.

Key features

  • Sizes S00, S0 and S2 for standard motor outputs from 0.06 kW to 37 kW at 400 V
  • Type of coordination 2 (or 1) at Iq = 150 kA / 100 kA at 400 V
  • Motor starter protector and contactor mechanically and electrically joined by a link module
  • Screw or spring-loaded terminals; 230 V AC or 24 V DC contactor control voltage
  • Integrated auxiliary contacts: S00 1 NO, S0/S2 1 NO + 1 NC
  • Screw fixing possible with two push-in lugs per load feeder

Specifications

Brand Siemens
Product line SIRIUS 3RA2 load feeders
Design Fuseless, factory-assembled
Components 3RV20 MSP + 3RT20 contactor + link module
Utilization category AC-3/AC-3e
Motor readiness IE3/IE4 ready
Function Direct-on-line starting
Mounting DIN rail or screw fixing
Category Motor Starters
Source Siemens Catalog IC 10 · 2026, p. 744-751
3RA2110-0BA15-1AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0CA15-1AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0DA15-1AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0EA15-1AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0FA15-1AP0 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0GA15-1AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0HA15-1AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0JA15-1AP0 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0KA15-1AP0 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1AA15-1AP0 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1BA15-1AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1CA15-1AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1DA15-1AP0 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1EA15-1AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2120-1FA24-0AP0 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1GA24-0AP0 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1HA24-0AP0 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1JA24-0AP0 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1KA24-0AP0 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4AA26-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4BA27-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4CA27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4DA27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4NA27-0AP0 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4EA27-0AP0 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4EA35-0AP0 Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4PA35-0AP0 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4UA35-0AP0 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4VA36-0AP0 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4WA36-0AP0 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4XA37-0AP0 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4JA37-0AP0 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4KA38-0AP0 Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-75 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2110-1FA15-1AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1GA15-1AP0 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1HA15-1AP0 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1JA16-1AP0 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1KA17-1AP0 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-4AA18-1AP0 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2130-4EA35-0AP0 Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4PA35-0AP0 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4UA35-0AP0 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4VA36-0AP0 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4WA36-0AP0 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4XA37-0AP0 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4JA37-0AP0 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4KA38-0AP0 Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-73 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2110-0BE15-1AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0CE15-1AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0DE15-1AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0EE15-1AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0FE15-1AP0 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0GE15-1AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0HE15-1AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0JE15-1AP0 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0KE15-1AP0 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1AE15-1AP0 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1BE15-1AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1CE15-1AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1DE15-1AP0 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1EE15-1AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2120-1FE24-0AP0 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1GE24-0AP0 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1HE24-0AP0 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1JE24-0AP0 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1KE24-0AP0 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4AE26-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4BE27-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4CE27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4DE27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4NE27-0AP0 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4EE27-0AP0 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2110-1FE15-1AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1GE15-1AP0 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1HE15-1AP0 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1JE16-1AP0 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1KE17-1AP0 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-4AE18-1AP0 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0BA15-1BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0CA15-1BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0DA15-1BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0EA15-1BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0FA15-1BB4 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0GA15-1BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0HA15-1BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0JA15-1BB4 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0KA15-1BB4 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1AA15-1BB4 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1BA15-1BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1CA15-1BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1DA15-1BB4 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1EA15-1BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1FA24-0BB4 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1GA24-0BB4 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1HA24-0BB4 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1JA24-0BB4 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1KA24-0BB4 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4AA26-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4BA27-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4CA27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4DA27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4NA27-0BB4 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4EA27-0BB4 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4EA35-0NB3 Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4PA35-0NB3 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4UA35-0NB3 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4VA36-0NB3 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4WA36-0NB3 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4XA37-0NB3 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4JA37-0NB3 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4KA38-0NB3 Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-73 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1FA15-1BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1GA15-1BB4 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1HA15-1BB4 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1JA16-1BB4 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1KA17-1BB4 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-4AA18-1BB4 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4EA35-0NB3 Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4PA35-0NB3 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4UA35-0NB3 Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4VA36-0NB3 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4WA36-0NB3 Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4XA37-0NB3 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4JA37-0NB3 Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4KA38-0NB3 Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-73 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0BE15-1BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0CE15-1BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0DE15-1BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0EE15-1BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0FE15-1BB4 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0GE15-1BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0HE15-1BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0JE15-1BB4 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0KE15-1BB4 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1AE15-1BB4 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1BE15-1BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1CE15-1BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1DE15-1BB4 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1EE15-1BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1FE24-0BB4 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1GE24-0BB4 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1HE24-0BB4 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1JE24-0BB4 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1KE24-0BB4 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4AE26-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4BE27-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4CE27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4DE27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4NE27-0BB4 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4EE27-0BB4 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1FE15-1BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1GE15-1BB4 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1HE15-1BB4 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1JE16-1BB4 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1KE17-1BB4 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-4AE18-1BB4 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
Motor StartersSiemens
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RA21 Direct-on-Line Starters (S00-S2, DIN Rail)

Brand Siemens·Motor Starters

Available part numbers (156)

3RA2110-0BA15-1AP0, 3RA2110-0CA15-1AP0, 3RA2110-0DA15-1AP0, 3RA2110-0EA15-1AP0, 3RA2110-0FA15-1AP0, 3RA2110-0GA15-1AP0, 3RA2110-0HA15-1AP0, 3RA2110-0JA15-1AP0, 3RA2110-0KA15-1AP0, 3RA2110-1AA15-1AP0 + 146 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RA2110-0BA15-1AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0CA15-1AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0DA15-1AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0EA15-1AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0FA15-1AP0Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0GA15-1AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0HA15-1AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0JA15-1AP0Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-0KA15-1AP0Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1AA15-1AP0Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1BA15-1AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1CA15-1AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1DA15-1AP0Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1EA15-1AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2120-1FA24-0AP0Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1GA24-0AP0Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1HA24-0AP0Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1JA24-0AP0Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-1KA24-0AP0Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4AA26-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4BA27-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4CA27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4DA27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4NA27-0AP0Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2120-4EA27-0AP0Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4EA35-0AP0Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4PA35-0AP0Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4UA35-0AP0Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4VA36-0AP0Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4WA36-0AP0Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4XA37-0AP0Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4JA37-0AP0Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2150-4KA38-0AP0Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-75 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2110-1FA15-1AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1GA15-1AP0Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1HA15-1AP0Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1JA16-1AP0Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-1KA17-1AP0Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2110-4AA18-1AP0Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2130-4EA35-0AP0Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4PA35-0AP0Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4UA35-0AP0Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4VA36-0AP0Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4WA36-0AP0Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4XA37-0AP0Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4JA37-0AP0Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2130-4KA38-0AP0Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-73 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2110-0BE15-1AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0CE15-1AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0DE15-1AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0EE15-1AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0FE15-1AP0Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0GE15-1AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0HE15-1AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0JE15-1AP0Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0KE15-1AP0Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1AE15-1AP0Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1BE15-1AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1CE15-1AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1DE15-1AP0Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1EE15-1AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2120-1FE24-0AP0Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1GE24-0AP0Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1HE24-0AP0Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1JE24-0AP0Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-1KE24-0AP0Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4AE26-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4BE27-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4CE27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4DE27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4NE27-0AP0Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2120-4EE27-0AP0Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2110-1FE15-1AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1GE15-1AP0Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1HE15-1AP0Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1JE16-1AP0Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-1KE17-1AP0Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-4AE18-1AP0Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2110-0BA15-1BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0CA15-1BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0DA15-1BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0EA15-1BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0FA15-1BB4Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0GA15-1BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0HA15-1BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0JA15-1BB4Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0KA15-1BB4Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1AA15-1BB4Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1BA15-1BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1CA15-1BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1DA15-1BB4Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1EA15-1BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1FA24-0BB4Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1GA24-0BB4Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1HA24-0BB4Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1JA24-0BB4Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-1KA24-0BB4Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4AA26-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4BA27-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4CA27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4DA27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4NA27-0BB4Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2120-4EA27-0BB4Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4EA35-0NB3Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4PA35-0NB3Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4UA35-0NB3Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4VA36-0NB3Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4WA36-0NB3Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4XA37-0NB3Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4JA37-0NB3Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2150-4KA38-0NB3Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-73 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1FA15-1BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1GA15-1BB4Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1HA15-1BB4Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1JA16-1BB4Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-1KA17-1BB4Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-4AA18-1BB4Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4EA35-0NB3Size: S2 | Motor 400 V: 15 kW / 29 A | Overload setting: 22-32 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4PA35-0NB3Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 28-36 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4UA35-0NB3Size: S2 | Motor 400 V: 18.5 kW / 35 A | Overload setting: 32-40 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4VA36-0NB3Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 35-45 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4WA36-0NB3Size: S2 | Motor 400 V: 22 kW / 41 A | Overload setting: 42-50 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4XA37-0NB3Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 49-59 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4JA37-0NB3Size: S2 | Motor 400 V: 30 kW / 55 A | Overload setting: 54-65 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2130-4KA38-0NB3Size: S2 | Motor 400 V: 37 kW / 66 A | Overload setting: 62-73 A | Coordination: Type 2, 100 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2110-0BE15-1BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0CE15-1BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0DE15-1BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0EE15-1BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0FE15-1BB4Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0GE15-1BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0HE15-1BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0JE15-1BB4Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-0KE15-1BB4Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1AE15-1BB4Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1BE15-1BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1CE15-1BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1DE15-1BB4Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1EE15-1BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1FE24-0BB4Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1GE24-0BB4Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1HE24-0BB4Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1JE24-0BB4Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-1KE24-0BB4Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4AE26-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4BE27-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4CE27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4DE27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4NE27-0BB4Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2120-4EE27-0BB4Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1FE15-1BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1GE15-1BB4Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1HE15-1BB4Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1JE16-1BB4Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-1KE17-1BB4Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2110-4AE18-1BB4Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
