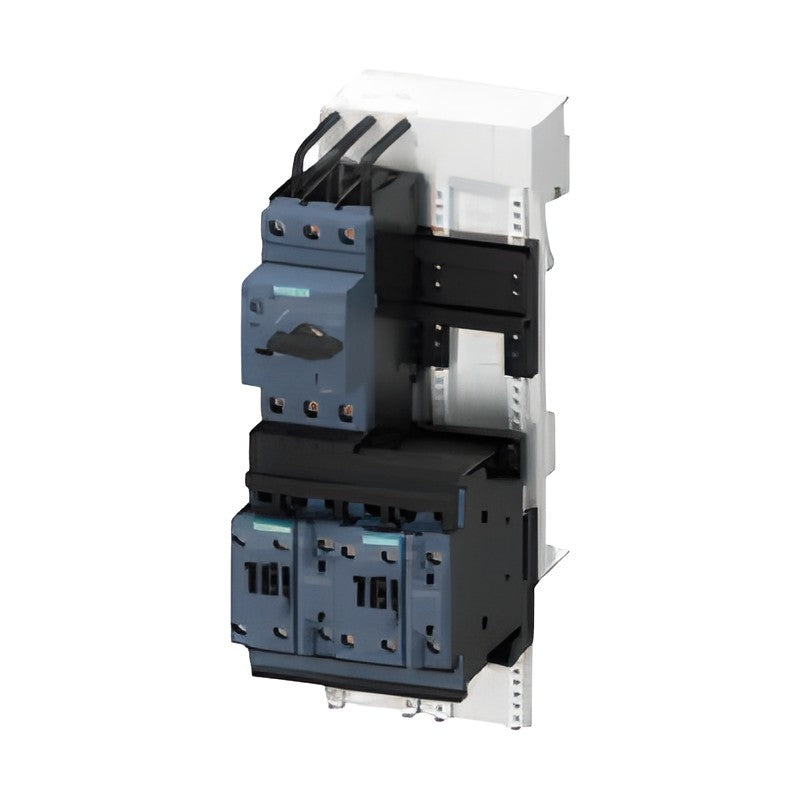

Siemens SIRIUS 3RA22 Reversing Starters (S00-S0, 60 mm Busbar)

Siemens SIRIUS 3RA22 Reversing Starters (S00-S0, 60 mm Busbar)

SIRIUS 3RA22 fuseless reversing starters supplied with busbar adapter and device holder for 60 mm busbar systems.

Key features

  • Busbar adapter and device holder included in the scope of supply
  • Sizes S00 and S0 for standard motor outputs from 0.06 kW to 15 kW at 400 V
  • Type of coordination 2 (or 1) at Iq = 150 kA at 400 V
  • Screw or spring-loaded terminals; 230 V AC or 24 V DC control voltage
  • RS mounting kit with mechanical interlock and wiring for main and auxiliary circuit

Specifications

Brand Siemens
Product line SIRIUS 3RA2 load feeders
Design Fuseless, factory-assembled
Components 3RV20 MSP + 2x 3RT20 + link + RS kit
Utilization category AC-3/AC-3e
Motor readiness IE3/IE4 ready
Function Reversing operation
Mounting 60 mm busbar adapter
Category Motor Starters
Source Siemens Catalog IC 10 · 2026, p. 762-766
3RA2210-0BD15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CD15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DD15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0ED15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FD15-2AP0 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GD15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HD15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JD15-2AP0 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KD15-2AP0 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AD15-2AP0 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BD15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CD15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DD15-2AP0 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1ED15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FD24-0AP0 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1GD24-0AP0 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1HD24-0AP0 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1JD24-0AP0 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1KD24-0AP0 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4AD26-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4BD27-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4CD27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4DD27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4ND27-0AP0 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4ED27-0AP0 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2210-1FD15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GD15-2AP0 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HD15-2AP0 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JD16-2AP0 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KD17-2AP0 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AD18-2AP0 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BH15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CH15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DH15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0EH15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FH15-2AP0 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GH15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HH15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JH15-2AP0 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KH15-2AP0 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AH15-2AP0 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BH15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CH15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DH15-2AP0 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1EH15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FH24-0AP0 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1GH24-0AP0 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1HH24-0AP0 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1JH24-0AP0 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1KH24-0AP0 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4AH26-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4BH27-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4CH27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4DH27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4NH27-0AP0 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4EH27-0AP0 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2210-1FH15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GH15-2AP0 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HH15-2AP0 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JH16-2AP0 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KH17-2AP0 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AH18-2AP0 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BD15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0CD15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0DD15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0ED15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0FD15-2BB4 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0GD15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0HD15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0JD15-2BB4 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0KD15-2BB4 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1AD15-2BB4 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1BD15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1CD15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1DD15-2BB4 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1ED15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1FD24-0BB4 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1GD24-0BB4 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1HD24-0BB4 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1JD24-0BB4 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1KD24-0BB4 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4AD26-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4BD27-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4CD27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4DD27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4ND27-0BB4 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4ED27-0BB4 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1FD15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1GD15-2BB4 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1HD15-2BB4 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1JD16-2BB4 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1KD17-2BB4 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-4AD18-2BB4 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0BH15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0CH15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0DH15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0EH15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0FH15-2BB4 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0GH15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0HH15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0JH15-2BB4 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0KH15-2BB4 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1AH15-2BB4 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1BH15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1CH15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1DH15-2BB4 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1EH15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1FH24-0BB4 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1GH24-0BB4 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1HH24-0BB4 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1JH24-0BB4 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1KH24-0BB4 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4AH26-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4BH27-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4CH27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4DH27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4NH27-0BB4 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4EH27-0BB4 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1FH15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1GH15-2BB4 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1HH15-2BB4 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1JH16-2BB4 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1KH17-2BB4 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-4AH18-2BB4 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
Motor StartersSiemens
124 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RA22 Reversing Starters (S00-S0, 60 mm Busbar)

Brand Siemens·Motor Starters

Available part numbers (124)

3RA2210-0BD15-2AP0, 3RA2210-0CD15-2AP0, 3RA2210-0DD15-2AP0, 3RA2210-0ED15-2AP0, 3RA2210-0FD15-2AP0, 3RA2210-0GD15-2AP0, 3RA2210-0HD15-2AP0, 3RA2210-0JD15-2AP0, 3RA2210-0KD15-2AP0, 3RA2210-1AD15-2AP0 + 114 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RA2210-0BD15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CD15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DD15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0ED15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FD15-2AP0Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GD15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HD15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JD15-2AP0Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KD15-2AP0Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AD15-2AP0Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BD15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CD15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DD15-2AP0Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1ED15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FD24-0AP0Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1GD24-0AP0Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1HD24-0AP0Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1JD24-0AP0Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1KD24-0AP0Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4AD26-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4BD27-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4CD27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4DD27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4ND27-0AP0Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4ED27-0AP0Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2210-1FD15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GD15-2AP0Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HD15-2AP0Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JD16-2AP0Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KD17-2AP0Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AD18-2AP0Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BH15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CH15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DH15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0EH15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FH15-2AP0Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GH15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HH15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JH15-2AP0Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KH15-2AP0Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AH15-2AP0Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BH15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CH15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DH15-2AP0Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1EH15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FH24-0AP0Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1GH24-0AP0Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1HH24-0AP0Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1JH24-0AP0Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1KH24-0AP0Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4AH26-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4BH27-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4CH27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4DH27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4NH27-0AP0Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4EH27-0AP0Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2210-1FH15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GH15-2AP0Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HH15-2AP0Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JH16-2AP0Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KH17-2AP0Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AH18-2AP0Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BD15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0CD15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0DD15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0ED15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0FD15-2BB4Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0GD15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0HD15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0JD15-2BB4Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0KD15-2BB4Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1AD15-2BB4Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1BD15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1CD15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1DD15-2BB4Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1ED15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1FD24-0BB4Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1GD24-0BB4Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1HD24-0BB4Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1JD24-0BB4Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1KD24-0BB4Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4AD26-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4BD27-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4CD27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4DD27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4ND27-0BB4Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4ED27-0BB4Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1FD15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1GD15-2BB4Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1HD15-2BB4Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1JD16-2BB4Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1KD17-2BB4Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-4AD18-2BB4Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0BH15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0CH15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0DH15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0EH15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0FH15-2BB4Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0GH15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0HH15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0JH15-2BB4Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0KH15-2BB4Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1AH15-2BB4Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1BH15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1CH15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1DH15-2BB4Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1EH15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1FH24-0BB4Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1GH24-0BB4Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1HH24-0BB4Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1JH24-0BB4Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1KH24-0BB4Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4AH26-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4BH27-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4CH27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4DH27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4NH27-0BB4Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4EH27-0BB4Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1FH15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1GH15-2BB4Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1HH15-2BB4Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1JH16-2BB4Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1KH17-2BB4Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-4AH18-2BB4Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
