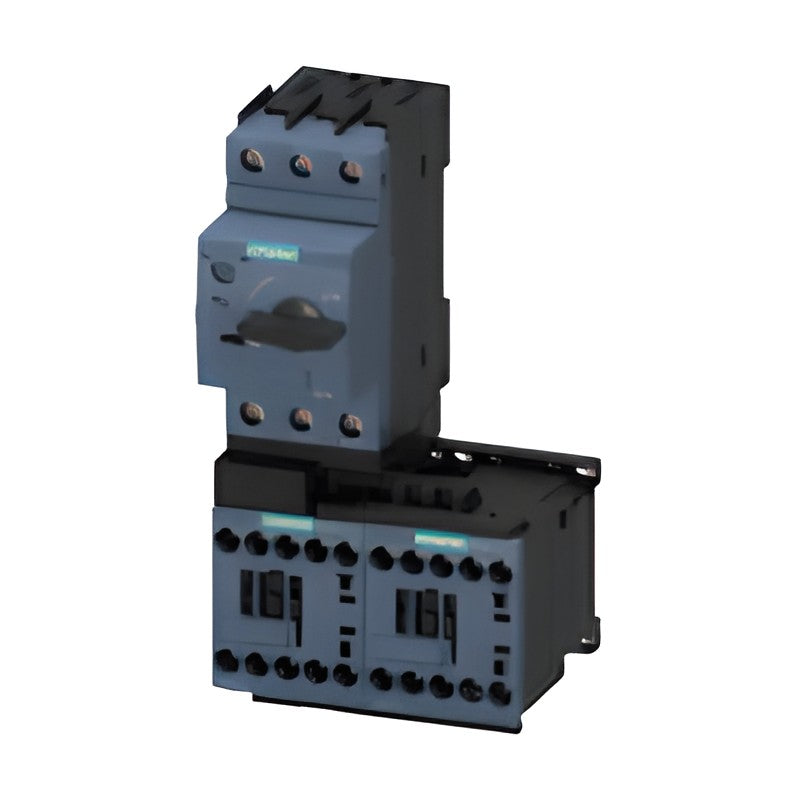

Siemens SIRIUS 3RA22 Reversing Starters (S00-S0, DIN Rail)

Siemens SIRIUS 3RA22 Reversing Starters (S00-S0, DIN Rail)

Factory-assembled SIRIUS 3RA22 fuseless reversing starters with a 3RV20 motor starter protector, two 3RT20 contactors, link module and RH mounting/wiring kit.

Key features

  • Sizes S00 and S0 for standard motor outputs from 0.06 kW to 15 kW at 400 V
  • Type of coordination 2 (or 1) at Iq = 150 kA at 400 V
  • Mechanical interlock and wiring kit for main and auxiliary circuit included
  • Screw or spring-loaded terminals; 230 V AC or 24 V DC control voltage
  • S0: two DIN-rail adapters for mechanical reinforcement included

Specifications

Brand Siemens
Product line SIRIUS 3RA2 load feeders
Design Fuseless, factory-assembled
Components 3RV20 MSP + 2x 3RT20 + link + RH kit
Utilization category AC-3/AC-3e
Motor readiness IE3/IE4 ready
Function Reversing operation
Mounting DIN rail or screw fixing
Category Motor Starters
Source Siemens Catalog IC 10 · 2026, p. 756-761
3RA2210-0BA15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CA15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DA15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0EA15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FA15-2AP0 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GA15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HA15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JA15-2AP0 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KA15-2AP0 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AA15-2AP0 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BA15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CA15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DA15-2AP0 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1EA15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FB24-0AP0 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1GB24-0AP0 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1HB24-0AP0 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1JB24-0AP0 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1KB24-0AP0 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4AB26-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4BB27-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4CB27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4DB27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4NB27-0AP0 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4EB27-0AP0 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2210-1FA15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GA15-2AP0 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HA15-2AP0 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JA16-2AP0 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KA17-2AP0 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AA18-2AP0 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BE15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CE15-2AP0 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DE15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0EE15-2AP0 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FE15-2AP0 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GE15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HE15-2AP0 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JE15-2AP0 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KE15-2AP0 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AE15-2AP0 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BE15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CE15-2AP0 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DE15-2AP0 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1EE15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FF24-0AP0 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1GF24-0AP0 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1HF24-0AP0 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1JF24-0AP0 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1KF24-0AP0 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4AF26-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4BF27-0AP0 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4CF27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4DF27-0AP0 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4NF27-0AP0 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4EF27-0AP0 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2210-1FE15-2AP0 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GE15-2AP0 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HE15-2AP0 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JE16-2AP0 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KE17-2AP0 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AE18-2AP0 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BA15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0CA15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0DA15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0EA15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0FA15-2BB4 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0GA15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0HA15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0JA15-2BB4 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0KA15-2BB4 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1AA15-2BB4 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1BA15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1CA15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1DA15-2BB4 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1EA15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1FB24-0BB4 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1GB24-0BB4 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1HB24-0BB4 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1JB24-0BB4 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1KB24-0BB4 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4AB26-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4BB27-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4CB27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4DB27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4NB27-0BB4 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4EB27-0BB4 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1FA15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1GA15-2BB4 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1HA15-2BB4 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1JA16-2BB4 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1KA17-2BB4 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-4AA18-2BB4 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0BE15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0CE15-2BB4 Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0DE15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0EE15-2BB4 Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0FE15-2BB4 Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0GE15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0HE15-2BB4 Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0JE15-2BB4 Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0KE15-2BB4 Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1AE15-2BB4 Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1BE15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1CE15-2BB4 Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1DE15-2BB4 Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1EE15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1FF24-0BB4 Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1GF24-0BB4 Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1HF24-0BB4 Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1JF24-0BB4 Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1KF24-0BB4 Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4AF26-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4BF27-0BB4 Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4CF27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4DF27-0BB4 Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4NF27-0BB4 Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4EF27-0BB4 Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1FE15-2BB4 Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1GE15-2BB4 Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1HE15-2BB4 Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1JE16-2BB4 Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1KE17-2BB4 Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-4AE18-2BB4 Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
Motor StartersSiemens
124 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RA22 Reversing Starters (S00-S0, DIN Rail)

Brand Siemens·Motor Starters

Available part numbers (124)

3RA2210-0BA15-2AP0, 3RA2210-0CA15-2AP0, 3RA2210-0DA15-2AP0, 3RA2210-0EA15-2AP0, 3RA2210-0FA15-2AP0, 3RA2210-0GA15-2AP0, 3RA2210-0HA15-2AP0, 3RA2210-0JA15-2AP0, 3RA2210-0KA15-2AP0, 3RA2210-1AA15-2AP0 + 114 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RA2210-0BA15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CA15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DA15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0EA15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FA15-2AP0Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GA15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HA15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JA15-2AP0Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KA15-2AP0Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AA15-2AP0Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BA15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CA15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DA15-2AP0Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1EA15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FB24-0AP0Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1GB24-0AP0Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1HB24-0AP0Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1JB24-0AP0Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-1KB24-0AP0Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4AB26-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4BB27-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4CB27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4DB27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4NB27-0AP0Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2220-4EB27-0AP0Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50 Hz
3RA2210-1FA15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GA15-2AP0Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HA15-2AP0Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JA16-2AP0Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KA17-2AP0Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AA18-2AP0Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BE15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0CE15-2AP0Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0DE15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0EE15-2AP0Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0FE15-2AP0Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0GE15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0HE15-2AP0Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0JE15-2AP0Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0KE15-2AP0Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1AE15-2AP0Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1BE15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1CE15-2AP0Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1DE15-2AP0Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1EE15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2220-1FF24-0AP0Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1GF24-0AP0Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1HF24-0AP0Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1JF24-0AP0Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-1KF24-0AP0Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4AF26-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4BF27-0AP0Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4CF27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4DF27-0AP0Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4NF27-0AP0Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2220-4EF27-0AP0Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50 Hz
3RA2210-1FE15-2AP0Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1GE15-2AP0Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1HE15-2AP0Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1JE16-2AP0Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-1KE17-2AP0Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-4AE18-2AP0Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 230 V AC 50/60 Hz
3RA2210-0BA15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0CA15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0DA15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0EA15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0FA15-2BB4Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0GA15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0HA15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0JA15-2BB4Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0KA15-2BB4Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1AA15-2BB4Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1BA15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1CA15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1DA15-2BB4Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1EA15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1FB24-0BB4Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1GB24-0BB4Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1HB24-0BB4Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1JB24-0BB4Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-1KB24-0BB4Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4AB26-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4BB27-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4CB27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4DB27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4NB27-0BB4Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2220-4EB27-0BB4Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1FA15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1GA15-2BB4Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1HA15-2BB4Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1JA16-2BB4Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-1KA17-2BB4Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-4AA18-2BB4Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Screw | Control voltage: 24 V DC
3RA2210-0BE15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.14-0.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0CE15-2BB4Size: S00 | Motor 400 V: 0.06 kW / 0.2 A | Overload setting: 0.18-0.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0DE15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.22-0.32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0EE15-2BB4Size: S00 | Motor 400 V: 0.09 kW / 0.3 A | Overload setting: 0.28-0.4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0FE15-2BB4Size: S00 | Motor 400 V: 0.12 kW / 0.4 A | Overload setting: 0.35-0.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0GE15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.45-0.63 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0HE15-2BB4Size: S00 | Motor 400 V: 0.18 kW / 0.6 A | Overload setting: 0.55-0.8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0JE15-2BB4Size: S00 | Motor 400 V: 0.25 kW / 0.85 A | Overload setting: 0.7-1 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-0KE15-2BB4Size: S00 | Motor 400 V: 0.37 kW / 1.1 A | Overload setting: 0.9-1.25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1AE15-2BB4Size: S00 | Motor 400 V: 0.55 kW / 1.5 A | Overload setting: 1.1-1.6 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1BE15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.4-2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1CE15-2BB4Size: S00 | Motor 400 V: 0.75 kW / 1.9 A | Overload setting: 1.8-2.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1DE15-2BB4Size: S00 | Motor 400 V: 1.1 kW / 2.7 A | Overload setting: 2.2-3.2 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1EE15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 2.8-4 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1FF24-0BB4Size: S0 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1GF24-0BB4Size: S0 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1HF24-0BB4Size: S0 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1JF24-0BB4Size: S0 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-1KF24-0BB4Size: S0 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4AF26-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4BF27-0BB4Size: S0 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 13-20 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4CF27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 16-22 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4DF27-0BB4Size: S0 | Motor 400 V: 11 kW / 22 A | Overload setting: 18-25 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4NF27-0BB4Size: S0 | Motor 400 V: 15 kW / 28 A | Overload setting: 23-28 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2220-4EF27-0BB4Size: S0 | Motor 400 V: 15 kW / 29 A | Overload setting: 27-32 A | Coordination: Type 2, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1FE15-2BB4Size: S00 | Motor 400 V: 1.5 kW / 3.6 A | Overload setting: 3.5-5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1GE15-2BB4Size: S00 | Motor 400 V: 2.2 kW / 4.9 A | Overload setting: 4.5-6.3 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1HE15-2BB4Size: S00 | Motor 400 V: 3 kW / 6.5 A | Overload setting: 5.5-8 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1JE16-2BB4Size: S00 | Motor 400 V: 4 kW / 8.5 A | Overload setting: 7-10 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-1KE17-2BB4Size: S00 | Motor 400 V: 5.5 kW / 11.5 A | Overload setting: 9-12.5 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC
3RA2210-4AE18-2BB4Size: S00 | Motor 400 V: 7.5 kW / 15.5 A | Overload setting: 10-16 A | Coordination: Type 1, 150 kA | Terminals: Spring-loaded | Control voltage: 24 V DC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
