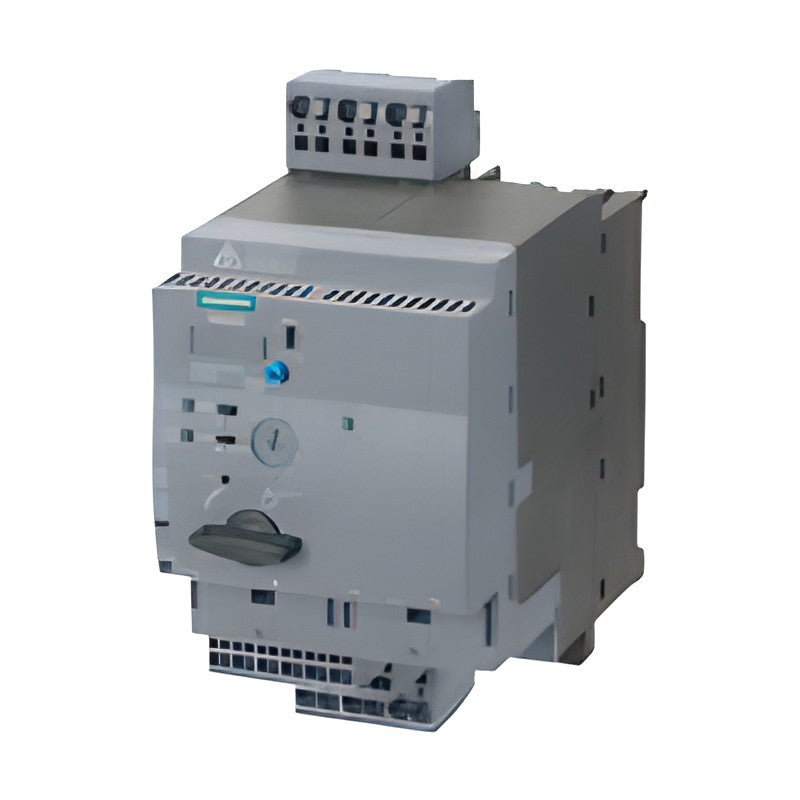

Siemens SIRIUS 3RA62 Compact Reversing Starters (0.1-32 A)

Siemens SIRIUS 3RA62 Compact Reversing Starters (0.1-32 A)

SIRIUS 3RA62 compact reversing starters with integrated circuit breaker, two switching directions and electronic overload protection in a 90 mm wide device.

Key features

  • Setting ranges 0.1-0.4 A up to 8-32 A for motors 0.09 kW to 15 kW at 400 V
  • Rated short-circuit current 53 kA at 400 V, width 90 mm
  • Control supply 24 V AC/DC or 110-240 V AC/DC
  • Versions for DIN rail, 3RA6 infeed system and AS-i add-on module
  • Screw fixing with two sets of 3RA6940-0A adapters

Specifications

Brand Siemens
Product line SIRIUS 3RA6 compact starters
Rated short-circuit current Ics = 53 kA at 400 V
Overload release Electronic, adjustable
Motor readiness IE3/IE4 ready
Function Reversing operation
Width 90 mm
Category Motor Starters
Source Siemens Catalog IC 10 · 2026, p. 789-790
3RA6250-0AB30 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 24 V AC/DC
3RA6250-0BB30 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 24 V AC/DC
3RA6250-0CB30 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 24 V AC/DC
3RA6250-0DB30 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 24 V AC/DC
3RA6250-0EB30 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 24 V AC/DC
3RA6250-1AB32 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2AB32 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1BB32 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2BB32 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1CB32 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2CB32 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1DB32 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2DB32 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1EB32 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2EB32 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1AB33 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2AB33 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1BB33 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2BB33 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1CB33 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2CB33 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1DB33 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2DB33 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Infeed, control terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1EB33 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2EB33 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Infeed, control terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1AB34 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: AS-i, main terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-1BB34 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: AS-i, main terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-1CB34 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: AS-i, main terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2CB34 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: AS-i, main terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1DB34 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: AS-i, main terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2DB34 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: AS-i, main terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-1EB34 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: AS-i, main terminals only | Terminals: Screw | Control voltage: 24 V AC/DC
3RA6250-2EB34 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: AS-i, main terminals only | Terminals: Spring-loaded | Control voltage: 24 V AC/DC
3RA6250-0BP30 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 110-240 V AC/DC
3RA6250-0EP30 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Infeed/AS-i, no main/control terminals | Terminals: None | Control voltage: 110-240 V AC/DC
3RA6250-2AP32 Motor 400 V: 0.09 kW | Overload setting: 0.1-0.4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 110-240 V AC/DC
3RA6250-1BP32 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 110-240 V AC/DC
3RA6250-2BP32 Motor 400 V: 0.37 kW | Overload setting: 0.32-1.25 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 110-240 V AC/DC
3RA6250-1CP32 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 110-240 V AC/DC
3RA6250-2CP32 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 110-240 V AC/DC
3RA6250-1DP32 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 110-240 V AC/DC
3RA6250-2DP32 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 110-240 V AC/DC
3RA6250-1EP32 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Main + control terminals | Terminals: Screw | Control voltage: 110-240 V AC/DC
3RA6250-2EP32 Motor 400 V: 15 kW | Overload setting: 8-32 A | Instantaneous release: 448 A | Version: Main + control terminals | Terminals: Spring-loaded | Control voltage: 110-240 V AC/DC
3RA6250-1CP33 Motor 400 V: 1.5 kW | Overload setting: 1-4 A | Instantaneous release: 56 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 110-240 V AC/DC
3RA6250-1DP33 Motor 400 V: 5.5 kW | Overload setting: 3-12 A | Instantaneous release: 168 A | Version: Infeed, control terminals only | Terminals: Screw | Control voltage: 110-240 V AC/DC
Motor StartersSiemens
46 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RA62 Compact Reversing Starters (0.1-32 A)

Brand Siemens·Motor Starters

Available part numbers (46)

3RA6250-0AB30, 3RA6250-0BB30, 3RA6250-0CB30, 3RA6250-0DB30, 3RA6250-0EB30, 3RA6250-1AB32, 3RA6250-2AB32, 3RA6250-1BB32, 3RA6250-2BB32, 3RA6250-1CB32 + 36 more — see full table ↓
