Siemens SIRIUS 3RC7 Intelligent Link Modules (S00-S0)

Siemens SIRIUS 3RC7 Intelligent Link Modules (S00-S0)

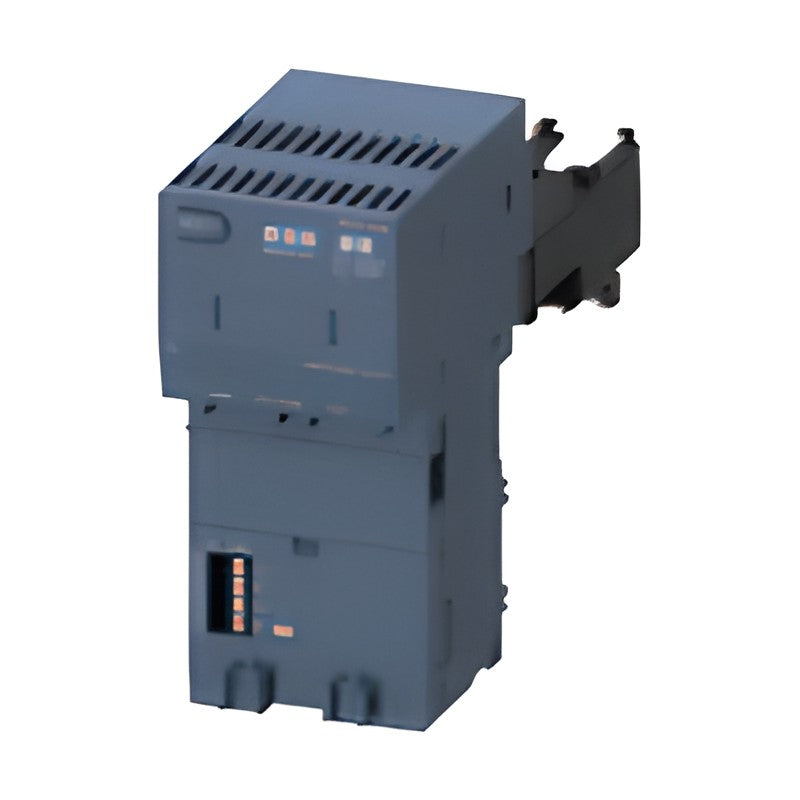

SIRIUS 3RC7 intelligent link modules connecting motor starter protector/circuit breaker and contactor to form direct-on-line or reversing starters.

Key features

  • Direct-on-line and reversing starter versions
  • Standard and High Feature versions
  • Adjustable overload release 0.4 to 32 A for sizes S00 and S0
  • Spring-loaded terminals (push-in); for use with the ET 200SP I/O system

Specifications

Brand line SIRIUS
Connection Spring-loaded (push-in)
Manufacturer Siemens
Product category Accessories
Catalog chapter Contactors for switching motors
Catalog section 3RT/3RH2 accessories: SIRIUS 3RC7 intelligent link modules
Source Siemens Catalog IC 10 · 2026, p. 230
3RC7140-1EE00 Function: Direct-on-line starter | Version: Standard | Size: S00 | Current range: 0.4-4 A
3RC7140-1KE00 Function: Direct-on-line starter | Version: Standard | Size: S00 | Current range: 1.2-12 A
3RC7140-4EE01 Function: Direct-on-line starter | Version: Standard | Size: S0 | Current range: 3.5-32 A
3RC7140-1EE10 Function: Direct-on-line starter | Version: High Feature | Size: S00 | Current range: 0.4-4 A
3RC7140-1KE10 Function: Direct-on-line starter | Version: High Feature | Size: S00 | Current range: 1.2-12 A
3RC7140-4EE11 Function: Direct-on-line starter | Version: High Feature | Size: S0 | Current range: 3.5-32 A
3RC7141-1EE00 Function: Reversing starter | Version: Standard | Size: S00 | Current range: 0.4-4 A
3RC7141-1KE00 Function: Reversing starter | Version: Standard | Size: S00 | Current range: 1.2-12 A
3RC7141-4EE01 Function: Reversing starter | Version: Standard | Size: S0 | Current range: 3.5-32 A
3RC7141-1EE10 Function: Reversing starter | Version: High Feature | Size: S00 | Current range: 0.4-4 A
3RC7141-1KE10 Function: Reversing starter | Version: High Feature | Size: S00 | Current range: 1.2-12 A
3RC7141-4EE11 Function: Reversing starter | Version: High Feature | Size: S0 | Current range: 3.5-32 A
3RC7940-2TE00 Type: Adapter stand-alone installation | Version: Spring-loaded | For: Size S00 | Detail: For 3RC7 with contactor S00
3RC7940-2TE01 Type: Adapter stand-alone installation | Version: Spring-loaded | For: Size S0 | Detail: For 3RC7 with contactor S0
3RC7940-0TE10 Type: Communication cable | Version: ET 200SP BusAdapter - 3RC7 | For: 3RC7 ILM | Detail: Length 0.5 m
3RC7940-0TE20 Type: Communication cable | Version: ET 200SP BusAdapter - 3RC7 | For: 3RC7 ILM | Detail: Length 2 m
3RC7940-0TE30 Type: Communication cable | Version: ET 200SP BusAdapter - 3RC7 | For: 3RC7 ILM | Detail: Length 5 m
3RC7940-0TE40 Type: Communication cable | Version: ET 200SP BusAdapter - 3RC7 | For: 3RC7 ILM | Detail: Length 10 m
3RC7940-0TE01 Type: Communication cable | Version: 3RC7 - 3RC7 | For: DOL starters side by side | Detail: Side-by-side mounting
3RC7940-0TE02 Type: Communication cable | Version: 3RC7 - 3RC7 | For: Reversing starters side by side | Detail: Side-by-side mounting
3RC7940-0TE03 Type: Communication cable | Version: 3RC7 - 3RC7 | For: 3RC7 ILM | Detail: Length 0.75 m
3RC7940-0TE04 Type: Communication cable | Version: 3RC7 - 3RC7 | For: 3RC7 ILM | Detail: Length 1.5 m
3RC7940-0TE05 Type: Communication cable | Version: 3RC7 - 3RC7 | For: 3RC7 ILM | Detail: Length 2 m
3RC7940-1TE01 Type: Power cable | Version: 3RC7 power | For: Direct-on-line starters | Detail: --
3RC7940-1TE02 Type: Power cable | Version: 3RC7 power | For: Reversing starters | Detail: --
3RA2913-2LA2 Type: RH mounting kit (reversing) | Version: Spring-loaded | For: Contactor S00 | Detail: DIN rail, 8US busbar or 3RV29
3RA2923-2LB2 Type: RH mounting kit (reversing) | Version: Spring-loaded | For: Contactor S0 | Detail: DIN rail mounting
3RA2923-2MB2 Type: RH mounting kit (reversing) | Version: Spring-loaded | For: Contactor S0 | Detail: 60 mm 8US busbar or 3RV29
