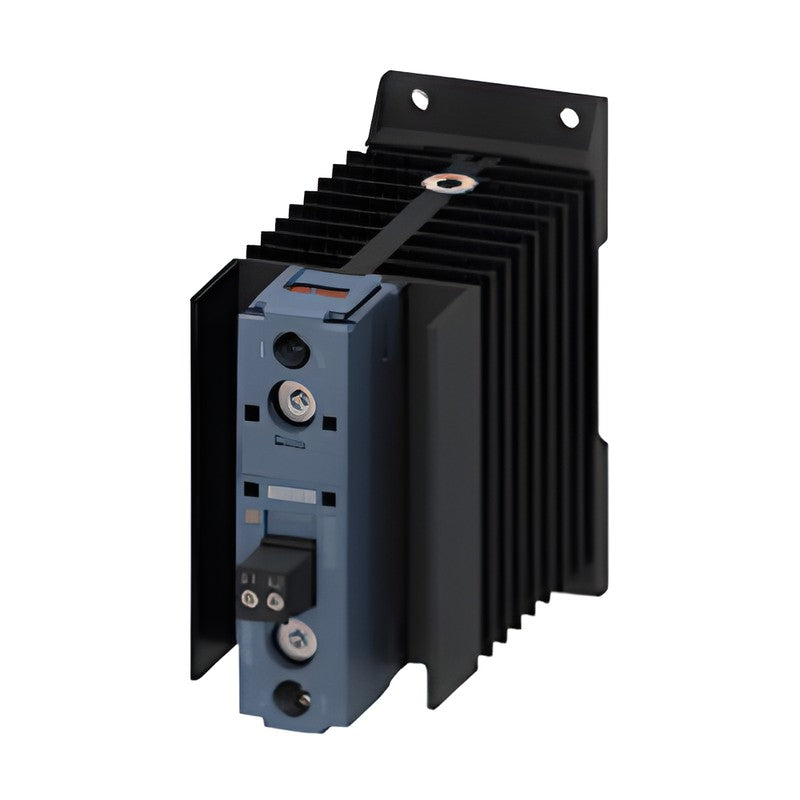

Siemens SIRIUS 3RF33 Solid-State Contactors 1-Pole (6-80 A)

Siemens SIRIUS 3RF33 Solid-State Contactors 1-Pole (6-80 A)

SIRIUS 3RF33 1-pole solid-state contactors with integrated, optimally matched heat sink, ready to use for resistive and inductive loads.

Key features

  • Operational current at AC-1 from 6 A to 80 A
  • Operational voltage 24-230 V, 48-460 V or 48-600 V AC
  • Zero-point or instantaneous switching (AC-15 for valves)
  • Short-circuit-proof versions with B miniature circuit breaker
  • Screw, spring-loaded or ring cable lug connection
  • Grounding via DIN rail or heat sink screw terminal

Specifications

Brand Siemens
Product line SIRIUS 3RF33
Category Solid-state contactor
Poles 1
Heat sink Integrated
Catalog chapter 6 - Soft starters and solid-state switching devices
Source Siemens Catalog IC 10 · 2026, p. 571-576
3RF3310-1AA02 AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA12 AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA22 AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA02 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA22 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA02 AC-1 (400 V) / AC-15: 30 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA22 AC-1 (400 V) / AC-15: 30 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA02 AC-1 (400 V) / AC-15: 40 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA22 AC-1 (400 V) / AC-15: 40 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA02 AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA22 AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3320-1AA02-0KN0 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point; low power | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA04 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA44 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA14 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA24 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA04 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA44 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA14 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA24 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA04 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA44 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA14 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA24 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA04 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA14 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA24 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA04 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA14 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA24 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1AA04-0KN0 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; low power | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA02 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA22 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA04 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA44 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA24 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1DA44 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1DA04-0KN0 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof; low power | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1DA04-0KN0 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof; low power | Connection: Screw | Grounding: Heat sink screw terminal
3RF3306-1AA45 AC-1 (400 V) / AC-15: 6 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: Plastic heat sink, none needed
3RF3310-1AA45 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA45 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA65 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 110 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA45 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA25 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA45 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA45 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1AA06 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA26 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA06 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA26 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA06 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA26 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA06 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA26 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA06 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA26 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3330-1DA06 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof; high blocking | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-2AA02 AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA22 AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA02 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA22 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2DA22 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA04 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA24 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA04 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA24 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2DA04 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2DA24 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA06 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA26 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA06 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA26 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-3AA02 AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3320-3AA02 AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA02 AC-1 (400 V) / AC-15: 30 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3340-3AA02 AC-1 (400 V) / AC-15: 40 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA02 AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA22 AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA02 AC-1 (400 V) / AC-15: 65 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA22 AC-1 (400 V) / AC-15: 65 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA02 AC-1 (400 V) / AC-15: 80 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA22 AC-1 (400 V) / AC-15: 80 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3310-3AA04 AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3320-3AA04 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3320-3AA44 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA04 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA44 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA24 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3340-3AA04 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA04 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA44 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA24 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA04 AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA24 AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA04 AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA24 AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3340-3AA45 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA45 AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA45 AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3320-3AA06 AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA06 AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3340-3AA06 AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA06 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA26 AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA06 AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA26 AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA06 AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA26 AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3310-1BA02 AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1BA22 AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA02 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA22 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA02 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA22 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1BA02 AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1BA22 AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA02 AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA22 AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA02 AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA02 AC-1 (400 V) / AC-15: -- / -- | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA22 AC-1 (400 V) / AC-15: -- / -- | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1BA04 AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1BA24 AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA04 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA24 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA44 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA04 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA24 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA44 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1BA04 AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1BA24 AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA04 AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA24 AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA44 AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA04 AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA24 AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA04 AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA24 AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1BA06 AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1BA26 AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA06 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA26 AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA06 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA26 AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1BA06 AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1BA26 AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA06 AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA06 AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA06 AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA26 AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-3BA02 AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA22 AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA02 AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA22 AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA04 AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA24 AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA04 AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA24 AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA06 AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA26 AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA06 AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA26 AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
Solid-State ContactorsSiemens
163 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RF33 Solid-State Contactors 1-Pole (6-80 A)

Brand Siemens·Solid-State Contactors

Available part numbers (163)

3RF3310-1AA02, 3RF3310-1AA12, 3RF3310-1AA22, 3RF3320-1AA02, 3RF3320-1AA22, 3RF3330-1AA02, 3RF3330-1AA22, 3RF3340-1AA02, 3RF3340-1AA22, 3RF3350-1AA02 + 153 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RF3310-1AA02AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA12AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA22AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA02AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA22AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA02AC-1 (400 V) / AC-15: 30 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA22AC-1 (400 V) / AC-15: 30 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA02AC-1 (400 V) / AC-15: 40 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA22AC-1 (400 V) / AC-15: 40 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA02AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA22AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3320-1AA02-0KN0AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point; low power | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA04AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA44AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA14AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA24AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA04AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA44AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA14AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA24AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA04AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA44AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA14AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA24AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA04AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA14AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA24AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA04AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA14AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 24 V AC/DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA24AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1AA04-0KN0AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; low power | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA02AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA22AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA04AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA44AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1DA24AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1DA44AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point; B-MCB-proof | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1DA04-0KN0AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof; low power | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1DA04-0KN0AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof; low power | Connection: Screw | Grounding: Heat sink screw terminal
3RF3306-1AA45AC-1 (400 V) / AC-15: 6 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: Plastic heat sink, none needed
3RF3310-1AA45AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA45AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA65AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 110 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA45AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA25AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA45AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA45AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1AA06AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1AA26AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA06AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1AA26AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA06AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1AA26AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1AA06AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1AA26AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA06AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1AA26AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3330-1DA06AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof; high blocking | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-2AA02AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA22AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA02AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA22AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2DA22AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA04AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA24AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA04AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA24AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2DA04AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point; B-MCB-proof | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2DA24AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point; B-MCB-proof | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA06AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-2AA26AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA06AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3320-2AA26AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Spring-loaded | Grounding: DIN rail snap-on
3RF3310-3AA02AC-1 (400 V) / AC-15: 10 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3320-3AA02AC-1 (400 V) / AC-15: 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA02AC-1 (400 V) / AC-15: 30 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3340-3AA02AC-1 (400 V) / AC-15: 40 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA02AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA22AC-1 (400 V) / AC-15: 50 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA02AC-1 (400 V) / AC-15: 65 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA22AC-1 (400 V) / AC-15: 65 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA02AC-1 (400 V) / AC-15: 80 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA22AC-1 (400 V) / AC-15: 80 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3310-3AA04AC-1 (400 V) / AC-15: 10 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3320-3AA04AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3320-3AA44AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA04AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA44AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA24AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3340-3AA04AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA04AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA44AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA24AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA04AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA24AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA04AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA24AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3340-3AA45AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA45AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA45AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-600 V AC | Control supply: 4-30 V DC | Switching: Zero-point | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3320-3AA06AC-1 (400 V) / AC-15: 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3330-3AA06AC-1 (400 V) / AC-15: 30 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: DIN rail snap-on
3RF3340-3AA06AC-1 (400 V) / AC-15: 40 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA06AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3350-3AA26AC-1 (400 V) / AC-15: 50 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA06AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3AA26AC-1 (400 V) / AC-15: 65 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA06AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3AA26AC-1 (400 V) / AC-15: 80 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Zero-point; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3310-1BA02AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1BA22AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA02AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA22AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA02AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA22AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1BA02AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1BA22AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA02AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA22AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA02AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA02AC-1 (400 V) / AC-15: -- / -- | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA22AC-1 (400 V) / AC-15: -- / -- | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1BA04AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1BA24AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA04AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA24AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA44AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA04AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA24AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA44AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Instantaneous | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1BA04AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1BA24AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA04AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA24AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA44AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-460 V AC | Control supply: 4-30 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA04AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA24AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA04AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA24AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Screw | Grounding: Heat sink screw terminal
3RF3310-1BA06AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3310-1BA26AC-1 (400 V) / AC-15: 10 A / 6 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA06AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3320-1BA26AC-1 (400 V) / AC-15: 20 A / 12 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA06AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3330-1BA26AC-1 (400 V) / AC-15: 30 A / 15 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: DIN rail snap-on
3RF3340-1BA06AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3340-1BA26AC-1 (400 V) / AC-15: 40 A / 20 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3350-1BA06AC-1 (400 V) / AC-15: 50 A / 25 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-1BA06AC-1 (400 V) / AC-15: -- / 27.5 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA06AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3380-1BA26AC-1 (400 V) / AC-15: -- / -- | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Screw | Grounding: Heat sink screw terminal
3RF3365-3BA02AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA22AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA02AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA22AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 24-230 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA04AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA24AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA04AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 24 V DC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA24AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-460 V AC | Control supply: 110-230 V AC | Switching: Instantaneous | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA06AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3365-3BA26AC-1 (400 V) / AC-15: 65 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA06AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 24 V DC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal
3RF3380-3BA26AC-1 (400 V) / AC-15: 80 A / 27.5 A | Op voltage: 48-600 V AC | Control supply: 110-230 V AC | Switching: Instantaneous; high blocking voltage | Connection: Ring cable lug | Grounding: Heat sink screw terminal

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
