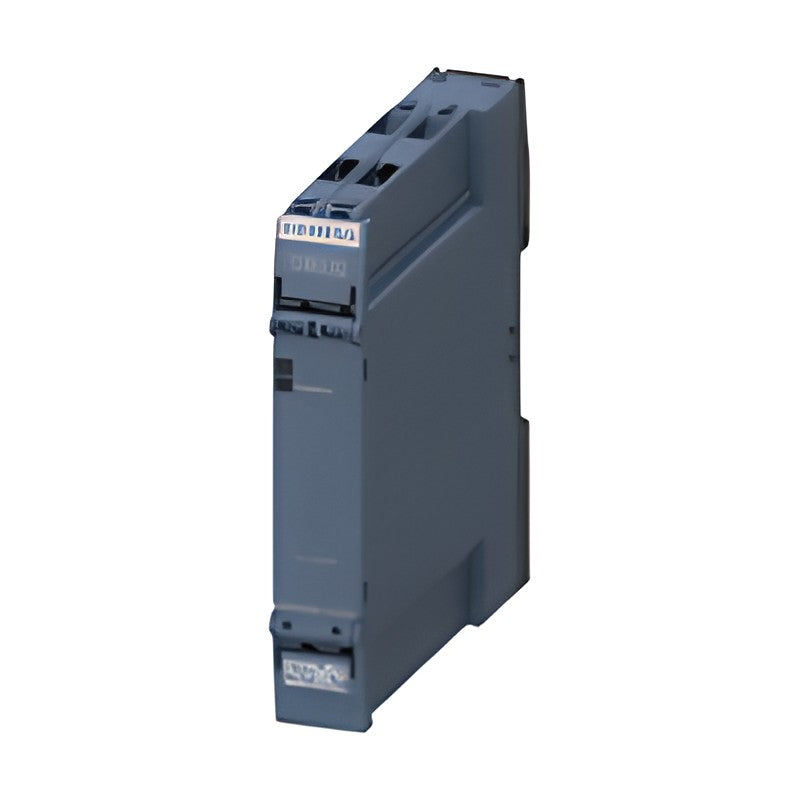

Siemens SIRIUS 3RN2 Thermistor Motor Protection Relays

Siemens SIRIUS 3RN2 Thermistor Motor Protection Relays

SIRIUS 3RN2 thermistor motor protection relays evaluate PTC sensors in the motor winding for direct motor temperature protection.

Key features

  • Compact and standard evaluation units, also suitable for bimetallic switches
  • Open-circuit and short-circuit detection in the sensor circuit
  • ATEX-approved versions for motors in hazardous areas
  • Non-volatile fault storage and protective separation up to 300 V (3RN2013/3RN2023)
  • 3RN2023 with 2 sensor circuits for warning and disconnection
  • Control supply 24 V AC/DC or 24-240 V AC/DC

Specifications

Brand Siemens
Product line SIRIUS 3RN2
Function Thermistor motor protection
Sensor Type A PTC thermistor
Width 17.5 / 22.5 mm
Mounting DIN rail, stand-alone
Source Siemens Catalog IC 10 · 2026, p. 1023
3RN2000-1AA30 Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2000-2AA30 Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2000-1AW30 Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2000-2AW30 Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1CA30 Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2CA30 Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1CW30 Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2CW30 Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1BA30 Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2BA30 Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1BW30 Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2BW30 Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2012-1BW31 Type: Bistable, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2012-2BW31 Type: Bistable, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2011-1BA30 Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2011-2BA30 Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2011-1BW30 Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2011-2BW30 Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2012-1BA30 Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2012-2BA30 Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2012-1BW30 Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2012-2BW30 Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2013-1BA30 Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2013-2BA30 Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2013-1BW30 Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2013-2BW30 Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2013-1GW30 Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 hard gold-plated | Connection: Screw
3RN2013-2GW30 Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 hard gold-plated | Connection: Spring-loaded (push-in)
3RN2023-1DW30 Type: ATEX, 2 sensor circuits | Contacts: 1 NO + 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2023-2DW30 Type: ATEX, 2 sensor circuits | Contacts: 1 NO + 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
Monitoring RelaysSiemens
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RN2 Thermistor Motor Protection Relays

Brand Siemens·Monitoring Relays

Available part numbers (30)

3RN2000-1AA30, 3RN2000-2AA30, 3RN2000-1AW30, 3RN2000-2AW30, 3RN2010-1CA30, 3RN2010-2CA30, 3RN2010-1CW30, 3RN2010-2CW30, 3RN2010-1BA30, 3RN2010-2BA30 + 20 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RN2000-1AA30Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2000-2AA30Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2000-1AW30Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2000-2AW30Type: Compact, bimetal | Contacts: 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1CA30Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2CA30Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1CW30Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2CW30Type: Compact, bimetal | Contacts: 1 NO + 1 NC | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1BA30Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2BA30Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2010-1BW30Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2010-2BW30Type: Standard, bimetal | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2012-1BW31Type: Bistable, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2012-2BW31Type: Bistable, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2011-1BA30Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2011-2BA30Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2011-1BW30Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2011-2BW30Type: ATEX, OC/SC detection | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2012-1BA30Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2012-2BA30Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2012-1BW30Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2012-2BW30Type: ATEX, non-volatile | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2013-1BA30Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2013-2BA30Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2013-1BW30Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2013-2BW30Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
3RN2013-1GW30Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 hard gold-plated | Connection: Screw
3RN2013-2GW30Type: ATEX, prot. separation | Contacts: 2 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 hard gold-plated | Connection: Spring-loaded (push-in)
3RN2023-1DW30Type: ATEX, 2 sensor circuits | Contacts: 1 NO + 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Screw
3RN2023-2DW30Type: ATEX, 2 sensor circuits | Contacts: 1 NO + 1 CO | Supply: 24 ... 240 V AC/DC | Contact material: AgSnO2 | Connection: Spring-loaded (push-in)
