• Siemens SIRIUS 3RW30 Soft Starters (3.6-106 A, S00-S3)
1 1

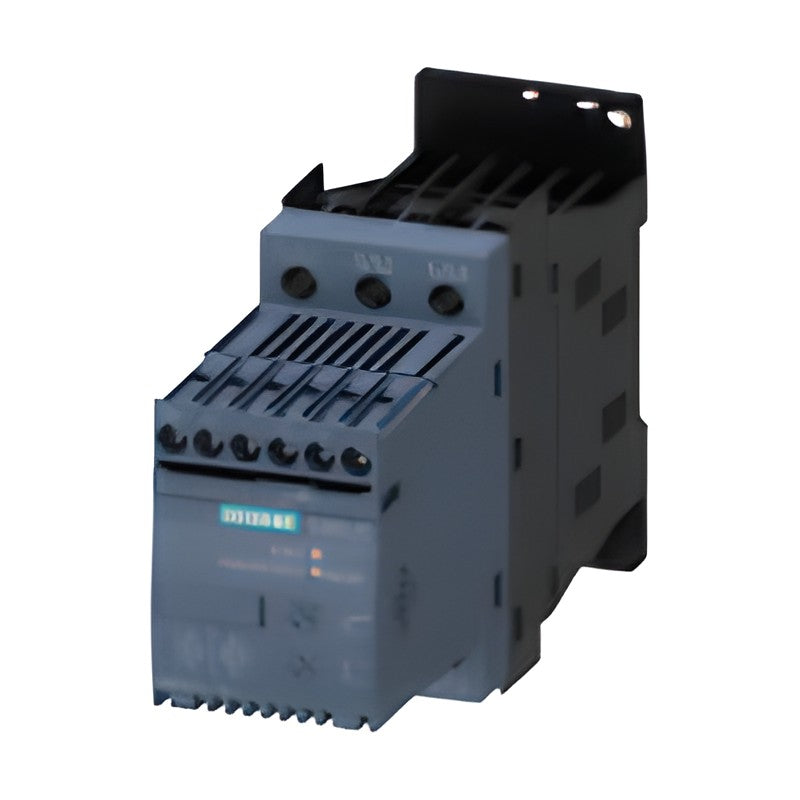

Siemens SIRIUS 3RW30 Soft Starters (3.6-106 A, S00-S3)

Siemens SIRIUS 3RW30 Soft Starters (3.6-106 A, S00-S3)

SIRIUS 3RW30 Basic Performance soft starters for simple starting conditions in sizes S00 to S3 for motors from 3.6 A to 106 A.

Key features

  • Rated operational voltage 200-480 V
  • Control supply voltage 24 V AC/DC or 110-230 V AC/DC
  • For simple starting conditions, 2-phase controlled with integrated bypass
  • Compact design matching SIRIUS motor starter protectors
  • Screw or spring-loaded terminals (spring-loaded S2 and larger: control circuit only)

Specifications

Brand Siemens
Product line SIRIUS 3RW30 Basic Performance
Category Soft starter
Starting Simple starting conditions
Circuit Standard (inline)
Ratings basis 40 °C
Op. voltage 200-480 V
Catalog chapter 6 - Soft starters and solid-state switching devices
Source Siemens Catalog IC 10 · 2026, p. 541
3RW3013-1BB04 Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3013-2BB04 Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3014-1BB04 Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3014-2BB04 Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3016-1BB04 Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3016-2BB04 Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3017-1BB04 Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3017-2BB04 Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3018-1BB04 Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3018-2BB04 Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3026-1BB04 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3026-2BB04 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3027-1BB04 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3027-2BB04 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3028-1BB04 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3028-2BB04 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3036-1BB04 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3036-2BB04 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3037-1BB04 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3037-2BB04 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3038-1BB04 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3038-2BB04 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3046-1BB04 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3046-2BB04 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3047-1BB04 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3047-2BB04 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3013-1BB14 Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3013-2BB14 Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3014-1BB14 Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3014-2BB14 Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3016-1BB14 Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3016-2BB14 Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3017-1BB14 Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3017-2BB14 Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3018-1BB14 Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3018-2BB14 Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3026-1BB14 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3026-2BB14 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3027-1BB14 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3027-2BB14 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3028-1BB14 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3028-2BB14 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3036-1BB14 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3036-2BB14 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3037-1BB14 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3037-2BB14 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3038-1BB14 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3038-2BB14 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3046-1BB14 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3046-2BB14 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3047-1BB14 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3047-2BB14 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
Soft StartersSiemens
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RW30 Soft Starters (3.6-106 A, S00-S3)

Brand Siemens·Soft Starters

Available part numbers (52)

3RW3013-1BB04, 3RW3013-2BB04, 3RW3014-1BB04, 3RW3014-2BB04, 3RW3016-1BB04, 3RW3016-2BB04, 3RW3017-1BB04, 3RW3017-2BB04, 3RW3018-1BB04, 3RW3018-2BB04 + 42 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RW3013-1BB04Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3013-2BB04Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3014-1BB04Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3014-2BB04Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3016-1BB04Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3016-2BB04Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3017-1BB04Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3017-2BB04Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3018-1BB04Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3018-2BB04Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3026-1BB04Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3026-2BB04Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3027-1BB04Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3027-2BB04Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3028-1BB04Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3028-2BB04Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3036-1BB04Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3036-2BB04Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3037-1BB04Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3037-2BB04Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3038-1BB04Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3038-2BB04Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3046-1BB04Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3046-2BB04Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3047-1BB04Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW3047-2BB04Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW3013-1BB14Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3013-2BB14Size: S00 | Rated current: 3.6 A | Motor power 400 V: 1.5 kW | Motor power 460/480 V: 1.5 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3014-1BB14Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3014-2BB14Size: S00 | Rated current: 6.5 A | Motor power 400 V: 3 kW | Motor power 460/480 V: 3 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3016-1BB14Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3016-2BB14Size: S00 | Rated current: 9 A | Motor power 400 V: 4 kW | Motor power 460/480 V: 5 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3017-1BB14Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3017-2BB14Size: S00 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3018-1BB14Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3018-2BB14Size: S00 | Rated current: 17.6 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3026-1BB14Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3026-2BB14Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3027-1BB14Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3027-2BB14Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3028-1BB14Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3028-2BB14Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3036-1BB14Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3036-2BB14Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3037-1BB14Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3037-2BB14Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3038-1BB14Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3038-2BB14Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3046-1BB14Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3046-2BB14Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW3047-1BB14Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW3047-2BB14Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
