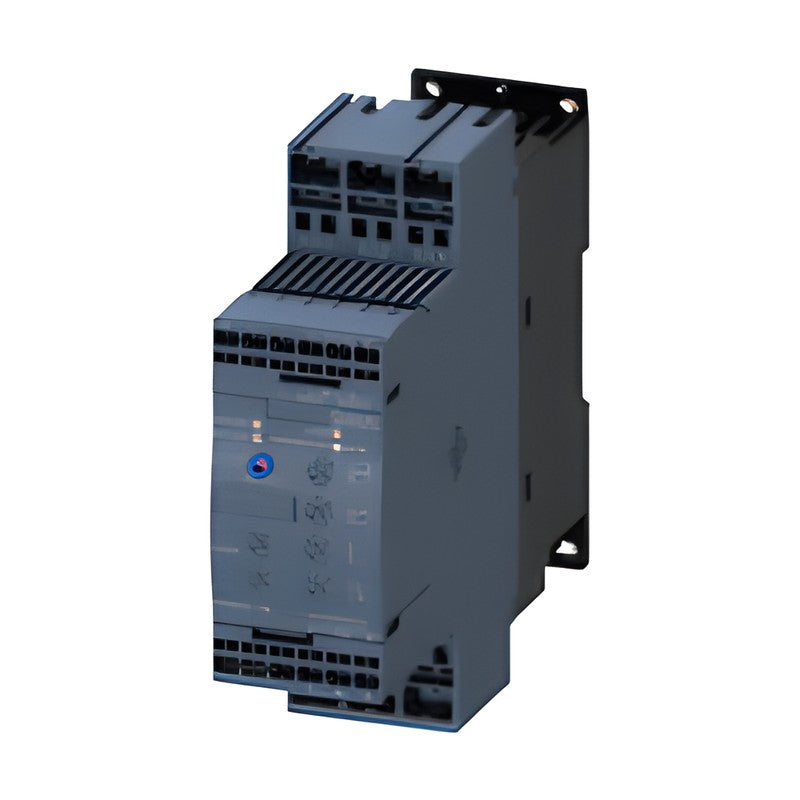

Siemens SIRIUS 3RW40 Soft Starters (12.5-106 A, S0-S3)

Siemens SIRIUS 3RW40 Soft Starters (12.5-106 A, S0-S3)

SIRIUS 3RW40 Basic Performance soft starters in sizes S0 to S3 with integrated bypass and electronic overload protection for motors from 12.5 A to 106 A.

Key features

  • Rated operational voltage 200-480 V or 400-600 V
  • Control supply voltage 24 V AC/DC or 110-230 V AC/DC
  • Normal starting (Class 10)
  • Integrated bypass contacts and solid-state motor overload protection
  • Screw or spring-loaded terminals (spring-loaded S2 and larger: control circuit only)

Specifications

Brand Siemens
Product line SIRIUS 3RW40 Basic Performance
Category Soft starter
Starting class Class 10 (normal starting)
Circuit Standard (inline)
Ratings basis 40 °C
Catalog chapter 6 - Soft starters and solid-state switching devices
Source Siemens Catalog IC 10 · 2026, p. 529-530
3RW4024-1BB04 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4024-2BB04 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4026-1BB04 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4026-2BB04 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4027-1BB04 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4027-2BB04 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4028-1BB04 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4028-2BB04 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4036-1BB04 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4036-2BB04 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4037-1BB04 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4037-2BB04 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4038-1BB04 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4038-2BB04 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4046-1BB04 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4046-2BB04 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4047-1BB04 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4047-2BB04 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4024-1BB14 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4024-2BB14 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4026-1BB14 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4026-2BB14 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4027-1BB14 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4027-2BB14 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4028-1BB14 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4028-2BB14 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4036-1BB14 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4036-2BB14 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4037-1BB14 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4037-2BB14 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4038-1BB14 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4038-2BB14 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4046-1BB14 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4046-2BB14 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4047-1BB14 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4047-2BB14 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4024-1TB04 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4024-2TB04 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4026-1TB04 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4026-2TB04 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4027-1TB04 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4027-2TB04 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4028-1TB04 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4028-2TB04 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4036-1TB04 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4036-2TB04 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4037-1TB04 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4037-2TB04 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4038-1TB04 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4038-2TB04 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4046-1TB04 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4046-2TB04 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4047-1TB04 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4047-2TB04 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4024-1BB05 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4024-2BB05 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4026-1BB05 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4026-2BB05 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4027-1BB05 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4027-2BB05 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4028-1BB05 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4028-2BB05 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4036-1BB05 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4036-2BB05 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4037-1BB05 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4037-2BB05 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4038-1BB05 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4038-2BB05 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4046-1BB05 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4046-2BB05 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4047-1BB05 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4047-2BB05 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4024-1BB15 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4024-2BB15 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4026-1BB15 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4026-2BB15 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4027-1BB15 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4027-2BB15 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4028-1BB15 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4028-2BB15 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4036-1BB15 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4036-2BB15 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4037-1BB15 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4037-2BB15 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4038-1BB15 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4038-2BB15 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4046-1BB15 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4046-2BB15 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4047-1BB15 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Screw
3RW4047-2BB15 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 400-600 V | Control supply: 110-230 V AC/DC | Terminals: Spring-loaded
3RW4024-1TB05 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4024-2TB05 Size: S0 | Rated current: 12.5 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4026-1TB05 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4026-2TB05 Size: S0 | Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4027-1TB05 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4027-2TB05 Size: S0 | Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4028-1TB05 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4028-2TB05 Size: S0 | Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 25 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4036-1TB05 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4036-2TB05 Size: S2 | Rated current: 45 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4037-1TB05 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4037-2TB05 Size: S2 | Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4038-1TB05 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4038-2TB05 Size: S2 | Rated current: 72 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 40 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4046-1TB05 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4046-2TB05 Size: S3 | Rated current: 80 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 50 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW4047-1TB05 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Screw
3RW4047-2TB05 Size: S3 | Rated current: 106 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 400-600 V | Control supply: 24 V AC/DC | Terminals: Spring-loaded
