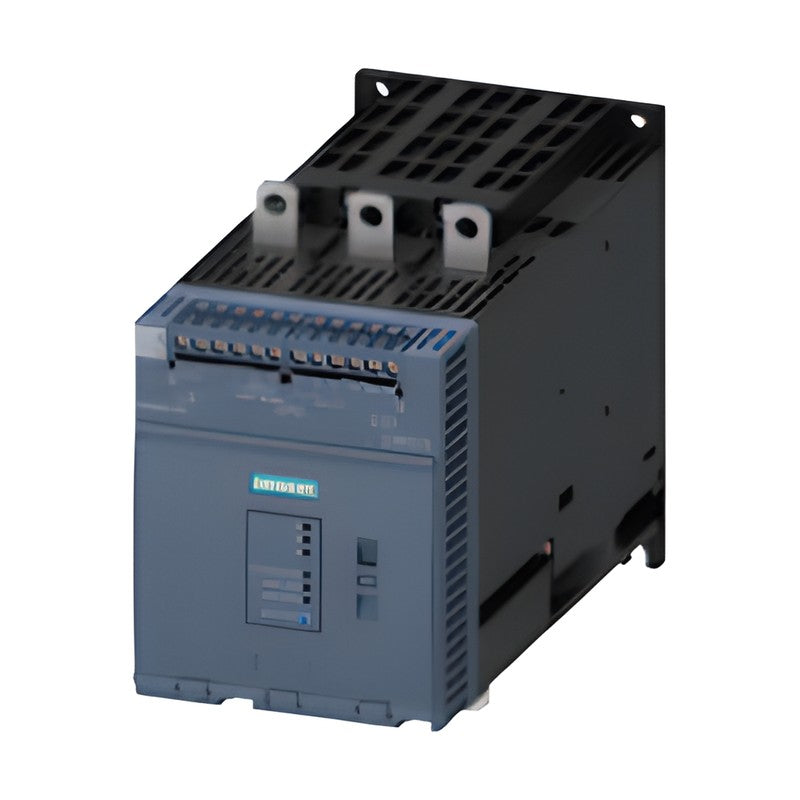

Siemens SIRIUS 3RW50 Basic Performance Soft Starters (143-570 A)

Siemens SIRIUS 3RW50 Basic Performance Soft Starters (143-570 A)

SIRIUS 3RW50 Basic Performance soft starters in sizes S6 and S12 for three-phase motors from 143 A to 570 A.

Key features

  • Rated operational voltage 200-480 V or 200-600 V
  • Control supply voltage 24 V AC/DC or 110-250 V AC
  • Versions with analog output or thermistor motor protection input
  • Integrated bypass and electronic motor overload protection
  • Screw or spring-loaded control terminals

Specifications

Brand Siemens
Product line SIRIUS 3RW50 Basic Performance
Category Soft starter
Starting class Class 10E (normal starting)
Circuit Standard (inline)
Ratings basis 40 °C
Catalog chapter 6 - Soft starters and solid-state switching devices
Source Siemens Catalog IC 10 · 2026, p. 517-518
3RW5055-6AB04 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5055-2AB04 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB04 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5056-2AB04 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB04 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5072-2AB04 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB04 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5073-2AB04 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB04 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5074-2AB04 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB04 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5075-2AB04 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB04 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5076-2AB04 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB04 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5077-2AB04 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6AB14 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5055-2AB14 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB14 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5056-2AB14 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB14 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5072-2AB14 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB14 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5073-2AB14 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB14 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5074-2AB14 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB14 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5075-2AB14 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB14 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5076-2AB14 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB14 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5077-2AB14 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6TB04 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB04 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB04 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB04 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB04 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB04 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB04 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB04 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB04 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB04 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB04 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB04 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB04 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB04 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB04 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB04 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5055-6TB14 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB14 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB14 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB14 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB14 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB14 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB14 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB14 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB14 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB14 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB14 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB14 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB14 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB14 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB14 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB14 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5055-6AB05 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5055-2AB05 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB05 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5056-2AB05 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB05 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5072-2AB05 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB05 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5073-2AB05 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB05 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5074-2AB05 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB05 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5075-2AB05 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB05 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5076-2AB05 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB05 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5077-2AB05 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6AB15 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5055-2AB15 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB15 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5056-2AB15 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB15 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5072-2AB15 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB15 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5073-2AB15 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB15 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5074-2AB15 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB15 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5075-2AB15 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB15 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5076-2AB15 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB15 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5077-2AB15 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6TB05 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB05 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB05 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB05 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB05 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB05 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB05 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB05 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB05 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB05 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB05 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB05 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB05 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB05 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB05 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB05 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5055-6TB15 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB15 Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB15 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB15 Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB15 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB15 Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB15 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB15 Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB15 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB15 Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB15 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB15 Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB15 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB15 Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB15 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB15 Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
Soft StartersSiemens
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RW50 Basic Performance Soft Starters (143-570 A)

Brand Siemens·Soft Starters

Available part numbers (128)

3RW5055-6AB04, 3RW5055-2AB04, 3RW5056-6AB04, 3RW5056-2AB04, 3RW5072-6AB04, 3RW5072-2AB04, 3RW5073-6AB04, 3RW5073-2AB04, 3RW5074-6AB04, 3RW5074-2AB04 + 118 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RW5055-6AB04Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5055-2AB04Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB04Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5056-2AB04Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB04Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5072-2AB04Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB04Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5073-2AB04Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB04Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5074-2AB04Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB04Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5075-2AB04Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB04Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5076-2AB04Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB04Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5077-2AB04Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6AB14Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5055-2AB14Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB14Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5056-2AB14Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB14Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5072-2AB14Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB14Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5073-2AB14Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB14Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5074-2AB14Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB14Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5075-2AB14Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB14Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5076-2AB14Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB14Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5077-2AB14Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6TB04Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB04Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB04Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB04Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB04Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB04Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB04Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB04Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB04Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB04Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB04Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB04Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB04Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB04Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB04Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB04Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5055-6TB14Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB14Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB14Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB14Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB14Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB14Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB14Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB14Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB14Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB14Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB14Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB14Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB14Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB14Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB14Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB14Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5055-6AB05Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5055-2AB05Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB05Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5056-2AB05Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB05Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5072-2AB05Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB05Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5073-2AB05Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB05Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5074-2AB05Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB05Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5075-2AB05Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB05Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5076-2AB05Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB05Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5077-2AB05Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6AB15Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5055-2AB15Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5056-6AB15Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5056-2AB15Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5072-6AB15Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5072-2AB15Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5073-6AB15Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5073-2AB15Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5074-6AB15Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5074-2AB15Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5075-6AB15Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5075-2AB15Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5076-6AB15Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5076-2AB15Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5077-6AB15Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5077-2AB15Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5055-6TB05Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB05Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB05Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB05Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB05Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB05Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB05Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB05Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB05Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB05Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB05Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB05Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB05Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB05Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB05Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB05Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5055-6TB15Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5055-2TB15Size: S6 | Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5056-6TB15Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5056-2TB15Size: S6 | Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5072-6TB15Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5072-2TB15Size: S12 | Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5073-6TB15Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5073-2TB15Size: S12 | Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5074-6TB15Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5074-2TB15Size: S12 | Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5075-6TB15Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5075-2TB15Size: S12 | Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5076-6TB15Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5076-2TB15Size: S12 | Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5077-6TB15Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5077-2TB15Size: S12 | Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
