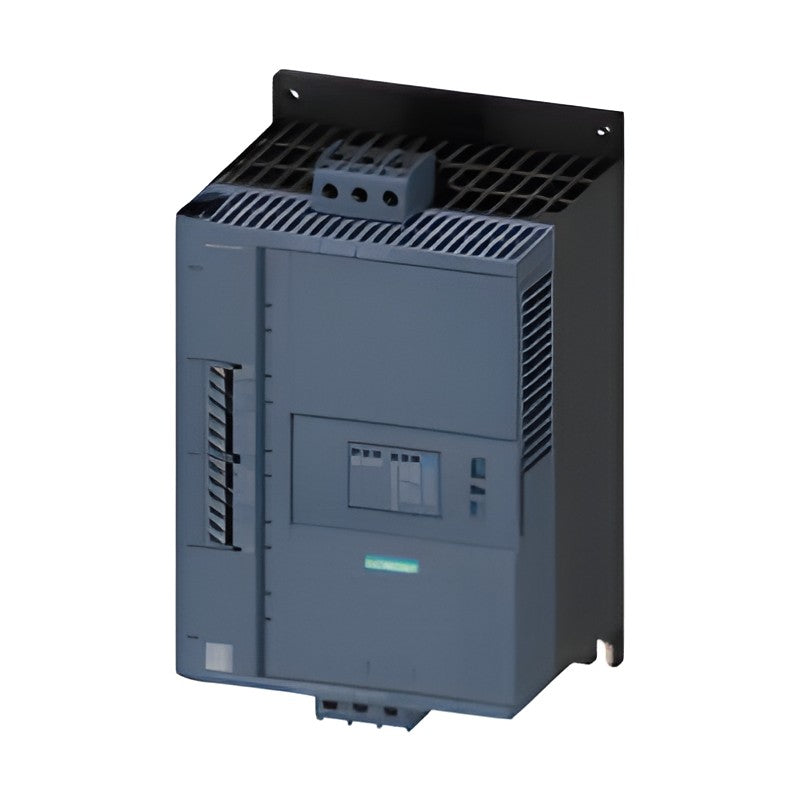

Siemens SIRIUS 3RW52 General Performance Soft Starters (13-570 A)

Siemens SIRIUS 3RW52 General Performance Soft Starters (13-570 A)

SIRIUS 3RW52 General Performance soft starters with integrated bypass and electronic motor overload protection for three-phase motors from 13 A to 570 A.

Key features

  • Rated operational voltage 200-480 V or 200-600 V
  • Control supply voltage 24 V AC/DC or 110-250 V AC
  • Versions with analog output or thermistor motor protection input
  • Normal starting (Class 10A); standard and inside-delta circuit
  • Optional HMI modules and communication modules
  • Screw or spring-loaded control terminals

Specifications

Brand Siemens
Product line SIRIUS 3RW52 General Performance
Category Soft starter
Starting class Class 10A (normal starting)
Circuit Standard (inline) / inside-delta
Ratings basis Inline circuit, 40 °C
Catalog chapter 6 - Soft starters and solid-state switching devices
Source Siemens Catalog IC 10 · 2026, p. 499-506
3RW5213-1AC04 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5213-3AC04 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC04 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5214-3AC04 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC04 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5215-3AC04 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC04 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5216-3AC04 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC04 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5217-3AC04 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC04 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5224-3AC04 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC04 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5225-3AC04 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC04 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5226-3AC04 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC04 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5227-3AC04 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC04 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5234-2AC04 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC04 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5235-2AC04 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC04 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5236-2AC04 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC04 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5243-2AC04 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC04 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5244-2AC04 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC04 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5245-2AC04 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC04 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5246-2AC04 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC04 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5247-2AC04 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC04 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5248-2AC04 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1AC14 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5213-3AC14 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC14 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5214-3AC14 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC14 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5215-3AC14 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC14 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5216-3AC14 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC14 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5217-3AC14 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC14 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5224-3AC14 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC14 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5225-3AC14 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC14 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5226-3AC14 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC14 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5227-3AC14 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC14 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5234-2AC14 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC14 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5235-2AC14 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC14 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5236-2AC14 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC14 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5243-2AC14 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC14 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5244-2AC14 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC14 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5245-2AC14 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC14 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5246-2AC14 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC14 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5247-2AC14 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC14 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5248-2AC14 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1TC04 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC04 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC04 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC04 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC04 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC04 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC04 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC04 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC04 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC04 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC04 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC04 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC04 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC04 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC04 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC04 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-1TC04 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5227-3TC04 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC04 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC04 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC04 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC04 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC04 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC04 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC04 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC04 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC04 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC04 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC04 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC04 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC04 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC04 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC04 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC04 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC04 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC04 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5213-1TC14 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC14 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC14 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC14 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC14 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC14 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC14 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC14 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC14 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC14 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC14 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC14 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC14 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC14 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC14 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC14 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-1TC14 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5227-3TC14 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC14 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC14 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC14 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC14 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC14 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC14 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC14 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC14 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC14 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC14 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC14 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC14 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC14 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC14 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC14 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC14 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC14 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC14 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5213-1AC05 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5213-3AC05 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC05 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5214-3AC05 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC05 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5215-3AC05 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC05 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5216-3AC05 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC05 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5217-3AC05 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC05 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5224-3AC05 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC05 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5225-3AC05 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC05 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5226-3AC05 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC05 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5227-3AC05 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC05 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5234-2AC05 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC05 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5235-2AC05 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC05 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5236-2AC05 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC05 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5243-2AC05 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC05 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5244-2AC05 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC05 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5245-2AC05 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC05 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5246-2AC05 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC05 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5247-2AC05 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC05 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5248-2AC05 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1AC15 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5213-3AC15 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC15 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5214-3AC15 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC15 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5215-3AC15 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC15 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5216-3AC15 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC15 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5217-3AC15 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC15 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5224-3AC15 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC15 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5225-3AC15 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC15 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5226-3AC15 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC15 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5227-3AC15 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC15 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5234-2AC15 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC15 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5235-2AC15 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC15 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5236-2AC15 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC15 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5243-2AC15 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC15 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5244-2AC15 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC15 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5245-2AC15 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC15 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5246-2AC15 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC15 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5247-2AC15 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC15 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5248-2AC15 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1TC05 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC05 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC05 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC05 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC05 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC05 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC05 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC05 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC05 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC05 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC05 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC05 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC05 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC05 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC05 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC05 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-1TC05 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5227-3TC05 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC05 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC05 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC05 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC05 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC05 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC05 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC05 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC05 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC05 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC05 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC05 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC05 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC05 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC05 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC05 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC05 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC05 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC05 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5213-1TC15 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC15 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC15 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC15 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC15 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC15 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC15 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC15 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC15 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC15 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC15 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC15 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC15 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC15 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC15 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC15 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-3TC15 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC15 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC15 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC15 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC15 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC15 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC15 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC15 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC15 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC15 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC15 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC15 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC15 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC15 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC15 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC15 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC15 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC15 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC15 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
Soft StartersSiemens
287 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RW52 General Performance Soft Starters (13-570 A)

Brand Siemens·Soft Starters

Available part numbers (287)

3RW5213-1AC04, 3RW5213-3AC04, 3RW5214-1AC04, 3RW5214-3AC04, 3RW5215-1AC04, 3RW5215-3AC04, 3RW5216-1AC04, 3RW5216-3AC04, 3RW5217-1AC04, 3RW5217-3AC04 + 277 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RW5213-1AC04Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5213-3AC04Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC04Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5214-3AC04Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC04Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5215-3AC04Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC04Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5216-3AC04Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC04Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5217-3AC04Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC04Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5224-3AC04Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC04Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5225-3AC04Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC04Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5226-3AC04Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC04Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5227-3AC04Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC04Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5234-2AC04Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC04Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5235-2AC04Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC04Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5236-2AC04Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC04Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5243-2AC04Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC04Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5244-2AC04Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC04Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5245-2AC04Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC04Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5246-2AC04Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC04Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5247-2AC04Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC04Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5248-2AC04Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1AC14Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5213-3AC14Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC14Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5214-3AC14Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC14Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5215-3AC14Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC14Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5216-3AC14Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC14Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5217-3AC14Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC14Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5224-3AC14Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC14Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5225-3AC14Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC14Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5226-3AC14Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC14Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5227-3AC14Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC14Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5234-2AC14Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC14Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5235-2AC14Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC14Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5236-2AC14Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC14Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5243-2AC14Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC14Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5244-2AC14Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC14Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5245-2AC14Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC14Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5246-2AC14Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC14Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5247-2AC14Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC14Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5248-2AC14Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1TC04Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC04Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC04Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC04Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC04Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC04Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC04Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC04Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC04Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC04Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC04Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC04Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC04Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC04Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC04Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC04Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-1TC04Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5227-3TC04Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC04Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC04Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC04Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC04Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC04Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC04Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC04Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC04Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC04Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC04Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC04Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC04Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC04Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC04Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC04Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC04Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC04Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC04Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5213-1TC14Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC14Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC14Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC14Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC14Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC14Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC14Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC14Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC14Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC14Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC14Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC14Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC14Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC14Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC14Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC14Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-1TC14Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5227-3TC14Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC14Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC14Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC14Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC14Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC14Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC14Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC14Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC14Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC14Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC14Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC14Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC14Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC14Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC14Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC14Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC14Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC14Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC14Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-480 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5213-1AC05Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5213-3AC05Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC05Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5214-3AC05Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC05Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5215-3AC05Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC05Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5216-3AC05Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC05Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5217-3AC05Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC05Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5224-3AC05Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC05Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5225-3AC05Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC05Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5226-3AC05Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC05Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5227-3AC05Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC05Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5234-2AC05Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC05Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5235-2AC05Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC05Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5236-2AC05Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC05Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5243-2AC05Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC05Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5244-2AC05Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC05Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5245-2AC05Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC05Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5246-2AC05Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC05Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5247-2AC05Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC05Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Screw
3RW5248-2AC05Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1AC15Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5213-3AC15Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5214-1AC15Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5214-3AC15Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5215-1AC15Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5215-3AC15Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5216-1AC15Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5216-3AC15Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5217-1AC15Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5217-3AC15Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5224-1AC15Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5224-3AC15Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5225-1AC15Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5225-3AC15Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5226-1AC15Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5226-3AC15Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5227-1AC15Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5227-3AC15Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5234-6AC15Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5234-2AC15Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5235-6AC15Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5235-2AC15Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5236-6AC15Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5236-2AC15Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5243-6AC15Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5243-2AC15Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5244-6AC15Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5244-2AC15Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5245-6AC15Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5245-2AC15Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5246-6AC15Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5246-2AC15Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5247-6AC15Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5247-2AC15Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5248-6AC15Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Screw
3RW5248-2AC15Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Analog output | Terminals: Spring-loaded
3RW5213-1TC05Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC05Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC05Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC05Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC05Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC05Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC05Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC05Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC05Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC05Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC05Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC05Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC05Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC05Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC05Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC05Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-1TC05Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5227-3TC05Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC05Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC05Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC05Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC05Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC05Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC05Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC05Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC05Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC05Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC05Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC05Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC05Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC05Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC05Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC05Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC05Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC05Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC05Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 24 V AC/DC | Function: Thermistor input | Terminals: Spring-loaded
3RW5213-1TC15Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5213-3TC15Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5214-1TC15Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5214-3TC15Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5215-1TC15Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5215-3TC15Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5216-1TC15Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5216-3TC15Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5217-1TC15Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5217-3TC15Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5224-1TC15Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5224-3TC15Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5225-1TC15Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5225-3TC15Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5226-1TC15Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5226-3TC15Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5227-3TC15Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5234-6TC15Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5234-2TC15Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5235-6TC15Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5235-2TC15Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5236-6TC15Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5236-2TC15Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5243-6TC15Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5243-2TC15Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5244-6TC15Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5244-2TC15Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5245-6TC15Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5245-2TC15Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5246-6TC15Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5246-2TC15Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5247-6TC15Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5247-2TC15Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded
3RW5248-6TC15Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Screw
3RW5248-2TC15Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Op. voltage: 200-600 V | Control supply: 110-250 V AC | Function: Thermistor input | Terminals: Spring-loaded

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
