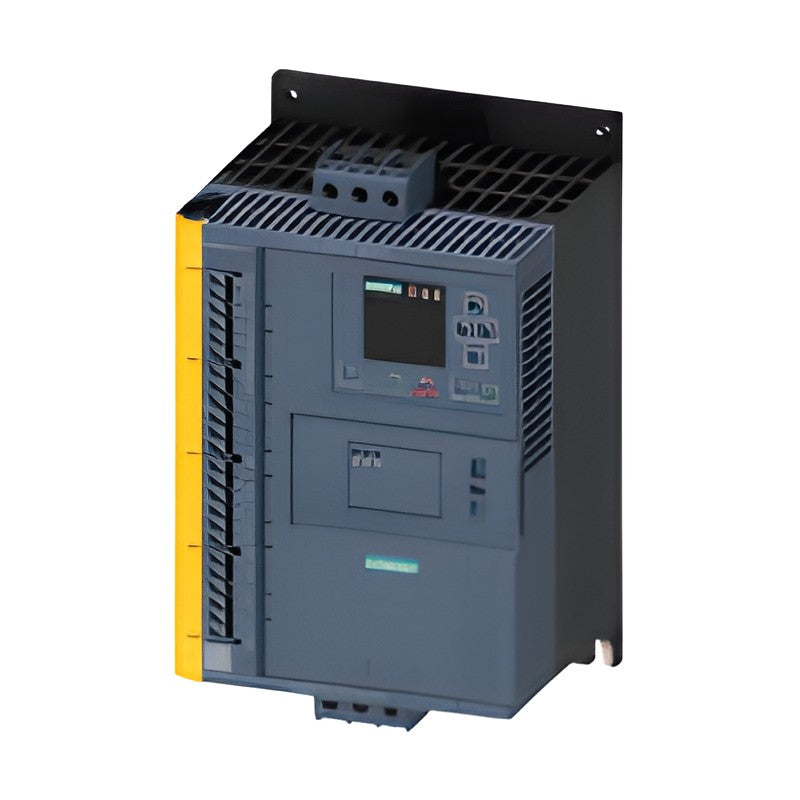

Siemens SIRIUS 3RW55 Failsafe Soft Starters (13-570 A)

Siemens SIRIUS 3RW55 Failsafe Soft Starters (13-570 A)

SIRIUS 3RW55 Failsafe High Performance soft starters with integrated safety-related shutdown for three-phase motors from 13 A to 570 A.

Key features

  • Failsafe version with safety-related shutdown via fail-safe digital input
  • Rated operational voltage 200-480 V
  • Control supply voltage 24 V AC/DC or 110-250 V AC
  • Normal starting (Class 10E); standard and inside-delta circuit
  • Screw or spring-loaded control terminals

Specifications

Brand Siemens
Product line SIRIUS 3RW55 Failsafe
Category Soft starter
Starting class Class 10E (normal starting)
Circuit Standard (inline) / inside-delta
Ratings basis Inline circuit, 40 °C
Op. voltage 200-480 V
Catalog chapter 6 - Soft starters and solid-state switching devices
Source Siemens Catalog IC 10 · 2026, p. 483-484
3RW5513-1HF04 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5513-3HF04 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5514-1HF04 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5514-3HF04 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5515-1HF04 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5515-3HF04 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5516-1HF04 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5516-3HF04 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5517-1HF04 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5517-3HF04 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5524-1HF04 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5524-3HF04 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5525-1HF04 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5525-3HF04 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5526-1HF04 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5526-3HF04 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5527-1HF04 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5527-3HF04 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5534-6HF04 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5534-2HF04 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5535-6HF04 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5535-2HF04 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5536-6HF04 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5536-2HF04 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5543-6HF04 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5543-2HF04 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5544-6HF04 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5544-2HF04 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5545-6HF04 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5545-2HF04 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5546-6HF04 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5546-2HF04 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5547-6HF04 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5547-2HF04 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5548-6HF04 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Control supply: 24 V AC/DC | Terminals: Screw
3RW5548-2HF04 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Control supply: 24 V AC/DC | Terminals: Spring-loaded
3RW5513-1HF14 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5513-3HF14 Rated current: 13 A | Motor power 400 V: 5.5 kW | Motor power 460/480 V: 7.5 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5514-1HF14 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5514-3HF14 Rated current: 18 A | Motor power 400 V: 7.5 kW | Motor power 460/480 V: 10 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5515-1HF14 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5515-3HF14 Rated current: 25 A | Motor power 400 V: 11 kW | Motor power 460/480 V: 15 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5516-1HF14 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5516-3HF14 Rated current: 32 A | Motor power 400 V: 15 kW | Motor power 460/480 V: 20 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5517-1HF14 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5517-3HF14 Rated current: 38 A | Motor power 400 V: 18.5 kW | Motor power 460/480 V: 20 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5524-1HF14 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5524-3HF14 Rated current: 47 A | Motor power 400 V: 22 kW | Motor power 460/480 V: 30 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5525-1HF14 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5525-3HF14 Rated current: 63 A | Motor power 400 V: 30 kW | Motor power 460/480 V: 40 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5526-1HF14 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5526-3HF14 Rated current: 77 A | Motor power 400 V: 37 kW | Motor power 460/480 V: 50 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5527-1HF14 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5527-3HF14 Rated current: 93 A | Motor power 400 V: 45 kW | Motor power 460/480 V: 60 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5534-6HF14 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5534-2HF14 Rated current: 113 A | Motor power 400 V: 55 kW | Motor power 460/480 V: 75 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5535-6HF14 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5535-2HF14 Rated current: 143 A | Motor power 400 V: 75 kW | Motor power 460/480 V: 100 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5536-6HF14 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5536-2HF14 Rated current: 171 A | Motor power 400 V: 90 kW | Motor power 460/480 V: 100 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5543-6HF14 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5543-2HF14 Rated current: 210 A | Motor power 400 V: 110 kW | Motor power 460/480 V: 150 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5544-6HF14 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5544-2HF14 Rated current: 250 A | Motor power 400 V: 132 kW | Motor power 460/480 V: 150 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5545-6HF14 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5545-2HF14 Rated current: 315 A | Motor power 400 V: 160 kW | Motor power 460/480 V: 200 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5546-6HF14 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5546-2HF14 Rated current: 370 A | Motor power 400 V: 200 kW | Motor power 460/480 V: 250 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5547-6HF14 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5547-2HF14 Rated current: 470 A | Motor power 400 V: 250 kW | Motor power 460/480 V: 350 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
3RW5548-6HF14 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Control supply: 110-250 V AC | Terminals: Screw
3RW5548-2HF14 Rated current: 570 A | Motor power 400 V: 315 kW | Motor power 460/480 V: 400 hp | Control supply: 110-250 V AC | Terminals: Spring-loaded
