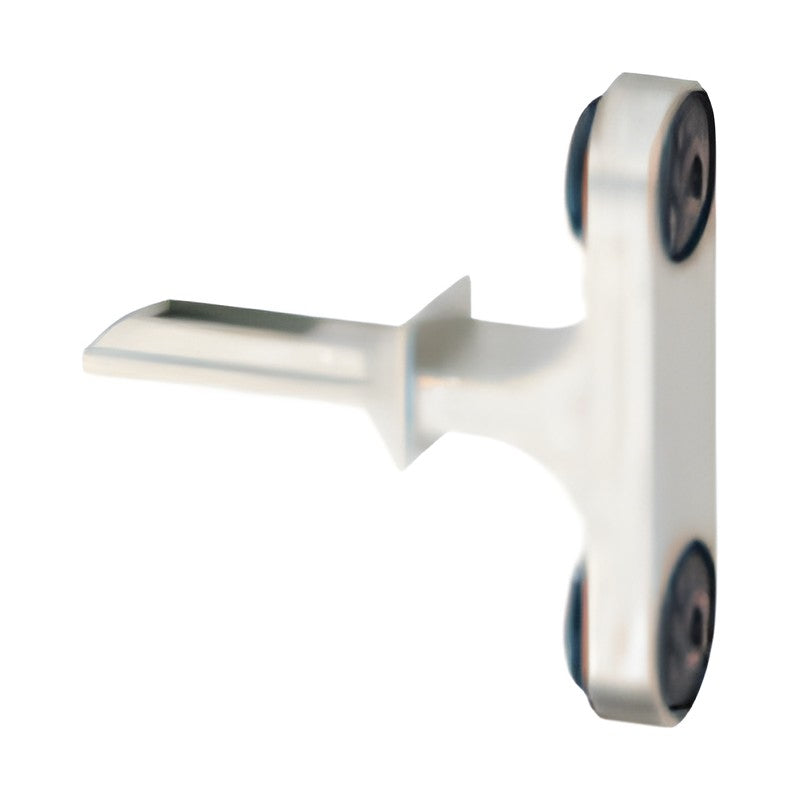

Siemens SIRIUS 3SE5 Safety Switch Actuators & Accessories

Siemens SIRIUS 3SE5 Safety Switch Actuators & Accessories

Separate actuators, optional accessories, connection accessories and spare parts for SIRIUS 3SE5 safety switches with separate actuator and with tumbler.

Key features

  • Standard, high-grade steel, radius and universal radius actuators (IP66/IP67)
  • Protective cap and blocking insert for the actuator head
  • M12 device plugs, connecting cables, M12 plugs and ET 200 Y-cables
  • Spare contact blocks and spare key for RONIS SH115 lock

Specifications

Brand Siemens
Product line SIRIUS 3SE5 safety switches
Degree of protection IP66 / IP67 (actuators)
Compatible with 3SE5 separate-actuator and tumbler switches
Standard ISO 14119
Category Accessories
Source Siemens Catalog IC 10 · 2026, p. 1131-1142
3SE5000-0AV01 Item: Standard actuator | Version: Length 75.6 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AV02 Item: Standard actuator | Version: Vertical fixing, length 53 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AV03 Item: Standard actuator | Version: Transverse fixing | Detail: Length 47 mm | Group: Actuator IP66/IP67
3SE5000-0AW11 Item: Standard actuator | Version: Transverse fixing | Detail: Length 40 mm, plastic | Group: Actuator IP66/IP67
3SE5000-0AW51 Item: Stainless steel actuator | Version: Length 75.6 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AW52 Item: Stainless steel actuator | Version: Vertical fixing, length 53 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AW53 Item: Stainless steel actuator | Version: Transverse fixing, length 47 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AV04 Item: Radius actuator | Version: Length 51 mm | Detail: Direction of approach from the left | Group: Actuator IP66/IP67
3SE5000-0AV06 Item: Radius actuator | Version: Length 51 mm | Detail: Direction of approach from the right | Group: Actuator IP66/IP67
3SE5000-0AV05 Item: Universal radius actuator | Version: Length 77 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AV05-1AA6 Item: Universal radius actuator | Version: Length 77 mm | Detail: Tab rotated 90° | Group: Actuator IP66/IP67
3SE5000-0AV07-1AK2 Item: Universal radius actuator, heavy duty | Version: Length 67 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AV07 Item: Universal radius actuator, heavy duty | Version: Length 77 mm | Detail: - | Group: Actuator IP66/IP67
3SE5000-0AW57 Item: Universal radius actuator, heavy duty | Version: Length 77 mm | Detail: Stainless steel actuator | Group: Actuator IP66/IP67
3SE5000-0AV08-1AA2 Item: Protective cap | Version: Black rubber, for actuator head | Detail: Protects actuator openings | Group: Accessory for 3SE5
3SE5000-0AV08-1AA3 Item: Blocking insert | Version: Stainless steel, for actuator head | Detail: For up to 8 padlocks | Group: Accessory for 3SE5
3SX5100-1F Item: Spare key for key type RONIS SH115 | Version: - | Detail: - | Group: Spare parts for 3SE5
3SX5601-3SV18 Item: Connecting cable | Version: M12 socket 8-pole to M12 plug 8-pole | Detail: Length 1 m | Group: Connection for 3SE5
6GT2090-0BE00 Item: M12 plug, 8-pole | Version: Straight | Detail: Packing size 5 units | Group: Connection for 3SE5
6ES7194-6KC00-0XA0 Item: ET 200 Y-cable, 1 x 2-channel sensor | Version: - | Detail: M12 8-pole to 2 x M12 5-pole, 200 mm | Group: Connection for 3SE5
AccessoriesSiemens
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3SE5 Safety Switch Actuators & Accessories

Brand Siemens·Accessories

Available part numbers (20)

3SE5000-0AV01, 3SE5000-0AV02, 3SE5000-0AV03, 3SE5000-0AW11, 3SE5000-0AW51, 3SE5000-0AW52, 3SE5000-0AW53, 3SE5000-0AV04, 3SE5000-0AV06, 3SE5000-0AV05 + 10 more — see full table ↓
