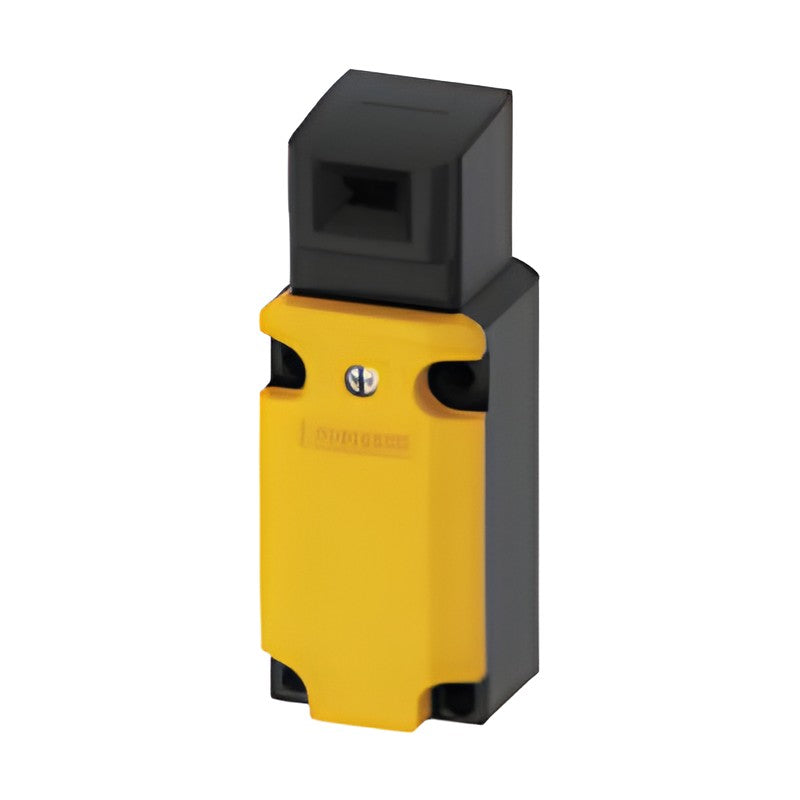

Siemens SIRIUS 3SE5 Safety Switches with Separate Actuator

Siemens SIRIUS 3SE5 Safety Switches with Separate Actuator

SIRIUS 3SE5 mechanical safety switches with separate actuator in plastic and metal enclosures (31, 40, 50, 56 mm) for monitoring protective doors.

Key features

  • Four-way actuator head, actuating from 8 directions
  • Positive opening NC contacts according to IEC 60947-5-1, Annex K
  • Plastic or metal enclosures in 31, 40, 50 and 56 mm widths
  • Versions with 2 LEDs, M12 device plug or increased actuating force 30 N
  • Actuators ordered separately (standard, high-grade steel, radius actuators)

Specifications

Brand Siemens
Product line SIRIUS 3SE5 safety switches
Actuator Separate actuator, order separately
Contacts Slow-action
Standard ISO 14119
Directions of approach 5
Degree of protection IP65 (plastic 31 mm), IP66/IP67
Corrosion protection Increased
Category Safety Switches
Source Siemens Catalog IC 10 · 2026, p. 1127-1130
3SE5232-0RV40 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5232-0QV40 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5232-1RV40 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 24 V DC
3SE5232-3RV40 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 230 V AC
3SE5232-0QV40-1AA1 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Increased minimum actuating force 30 N | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5234-0RV40-1AC4 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: M12 plug, 4-pole (250 V, 4 A) | LEDs: None
3SE5234-0QV40-1AE0 Enclosure: Plastic, 31 mm | Contacts: 2 NC, slow-action | Variant: Standard | Connection: M12 plug, 4-pole (250 V, 4 A) | LEDs: None
3SE5234-0QV40-1AE2 Enclosure: Plastic, 31 mm | Contacts: 2 NC, slow-action | Variant: ET 200 pin assignment | Connection: M12 plug, 5-pole (125 V, 4 A) | LEDs: None
3SE5234-1RV40-1AF3 Enclosure: Plastic, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: M12 plug, 5-pole (125 V, 4 A) | LEDs: 2 LEDs 24 V DC
3SE5132-0QV20 Enclosure: Plastic, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5132-1QV20 Enclosure: Plastic, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 24 V DC
3SE5132-3QV20 Enclosure: Plastic, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 230 V AC
3SE5242-0QV40 Enclosure: Plastic, 50 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 2 x M20 x 1.5 | LEDs: None
3SE5242-0RV40-1AA1 Enclosure: Plastic, 50 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Increased minimum actuating force 30 N | Connection: Cable entry 2 x M20 x 1.5 | LEDs: None
3SE5242-1QV40 Enclosure: Plastic, 50 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 2 x M20 x 1.5 | LEDs: 2 LEDs 24 V DC
3SE5242-3QV40 Enclosure: Plastic, 50 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 2 x M20 x 1.5 | LEDs: 2 LEDs 230 V AC
3SE5212-0RV40 Enclosure: Metal, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5212-0QV40 Enclosure: Metal, 31 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5212-1RV40 Enclosure: Metal, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 24 V DC
3SE5212-3RV40 Enclosure: Metal, 31 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 230 V AC
3SE5112-0QV10 Enclosure: Metal, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5112-0QV10-1AA7 Enclosure: Metal, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Increased minimum actuating force 30 N | Connection: Cable entry 1 x M20 x 1.5 | LEDs: None
3SE5112-1QV10 Enclosure: Metal, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 24 V DC
3SE5112-3QV10 Enclosure: Metal, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 1 x M20 x 1.5 | LEDs: 2 LEDs 230 V AC
3SE5114-0RV10-1AC5 Enclosure: Metal, 40 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: M12 plug, 5-pole (125 V, 4 A) | LEDs: None
3SE5114-0QV10-1AE1 Enclosure: Metal, 40 mm | Contacts: 2 NC, slow-action | Variant: Standard | Connection: M12 plug, 5-pole (125 V, 4 A) | LEDs: None
3SE5114-1RV10-1AF3 Enclosure: Metal, 40 mm | Contacts: 1 NO + 1 NC, slow-action | Variant: Standard | Connection: M12 plug, 5-pole (125 V, 4 A) | LEDs: 2 LEDs 24 V DC
3SE5114-0QV10-1AE3 Enclosure: Metal, 40 mm | Contacts: 2 NC, slow-action | Variant: ET 200 pin assignment | Connection: M12 plug, 5-pole (125 V, 4 A) | LEDs: None
3SE5115-0QV10-1AD1 Enclosure: Metal, 40 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Device plug, 6-pole + PE (250 V, 10 A) | LEDs: None
3SE5122-0QV10 Enclosure: Metal, 56 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 3 x M20 x 1.5 | LEDs: None
3SE5122-0QV10-1AA7 Enclosure: Metal, 56 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Increased minimum actuating force 30 N | Connection: Cable entry 3 x M20 x 1.5 | LEDs: None
3SE5122-1QV10 Enclosure: Metal, 56 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 3 x M20 x 1.5 | LEDs: 2 LEDs 24 V DC
3SE5122-3QV10 Enclosure: Metal, 56 mm | Contacts: 1 NO + 2 NC, slow-action | Variant: Standard | Connection: Cable entry 3 x M20 x 1.5 | LEDs: 2 LEDs 230 V AC
Safety SwitchesSiemens
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3SE5 Safety Switches with Separate Actuator

Brand Siemens·Safety Switches

Available part numbers (33)

3SE5232-0RV40, 3SE5232-0QV40, 3SE5232-1RV40, 3SE5232-3RV40, 3SE5232-0QV40-1AA1, 3SE5234-0RV40-1AC4, 3SE5234-0QV40-1AE0, 3SE5234-0QV40-1AE2, 3SE5234-1RV40-1AF3, 3SE5132-0QV20 + 23 more — see full table ↓
