Siemens SIRIUS 3SE7 Cable System Accessories & Belt Unbalance Trackers

Siemens SIRIUS 3SE7 Cable System Accessories & Belt Unbalance Trackers

Trip-wire system accessories for SIRIUS 3SE71 cable-operated switches (steel cables, clamps, springs, rollers, eyebolts, turnbuckles) plus 3SE7310 conveyor belt unbalance trackers.

Key features

  • Red-sheathed steel trip-wires 10, 15, 20 and 50 m
  • Cable clamps, thimbles, cable rollers and fixtures for routing the cable
  • Tension springs, eyebolts, turnbuckles and snap hooks for tensioning
  • Spare red 24 V DC LED light for cable-operated switches
  • Conveyor belt unbalance trackers in metal IP65 enclosure, 2 NO + 2 NC

Specifications

Brand Siemens
Product line SIRIUS 3SE7
Application Conveyor systems
Cable diameter 4 mm (incl. sheath)
PG 41K
Source Siemens Catalog IC 10 · 2026, p. 1369-1372
3SE7910-3AA Type: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 10 m | PU: 1 unit
3SE7910-3AB Type: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 15 m | PU: 1 unit
3SE7910-3AC Type: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 20 m | PU: 1 unit
3SE7910-3AH Type: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 50 m | PU: 1 unit
3SE7941-1AC Type: Cable clamp | Version: Oval, galvanized | Length/diameter: 4 mm | PU: 1 unit
3SE7942-1AA Type: Cable clamp | Version: Single, galvanized | Length/diameter: 2 x 4 mm | PU: 4 units
3SE7943-1AC Type: Cable clamp | Version: Simplex, galvanized | Length/diameter: 4 mm | PU: 4 units
3SE7944-1AC Type: Cable clamp | Version: Duplex, galvanized | Length/diameter: 2 x 4 mm | PU: 4 units
3SE7931-1AB Type: Tension spring | Version: 13 N | Length/diameter: -- | PU: 1 unit
3SE7931-1AD Type: Tension spring | Version: 35 N, cable pulls up to 50 m | Length/diameter: -- | PU: 1 unit
3SE7931-1AE Type: Tension spring | Version: > 35 N, cable pulls up to 2 x 75 m | Length/diameter: -- | PU: 1 unit
3SE7921-1AC Type: Cable roller | Version: Rotatable, for direction change | Length/diameter: 4 mm | PU: 1 unit
3SE7921-1AA Type: Fixture for cable rollers | Version: Including fixing nuts | Length/diameter: -- | PU: 1 unit
3SE7930-1AD Type: Thimbles | Version: Direction change, fixing points | Length/diameter: 4 mm | PU: 4 units
3SE7920-1AB Type: Eyebolt | Version: Including M8 nut | Length/diameter: -- | PU: 1 unit
3SE7920-1AC Type: Eyebolt | Version: Including M10 nut | Length/diameter: -- | PU: 1 unit
3SE7922-1AB Type: Lifting eyebolt, rotated | Version: Including M6 nut | Length/diameter: -- | PU: 1 unit

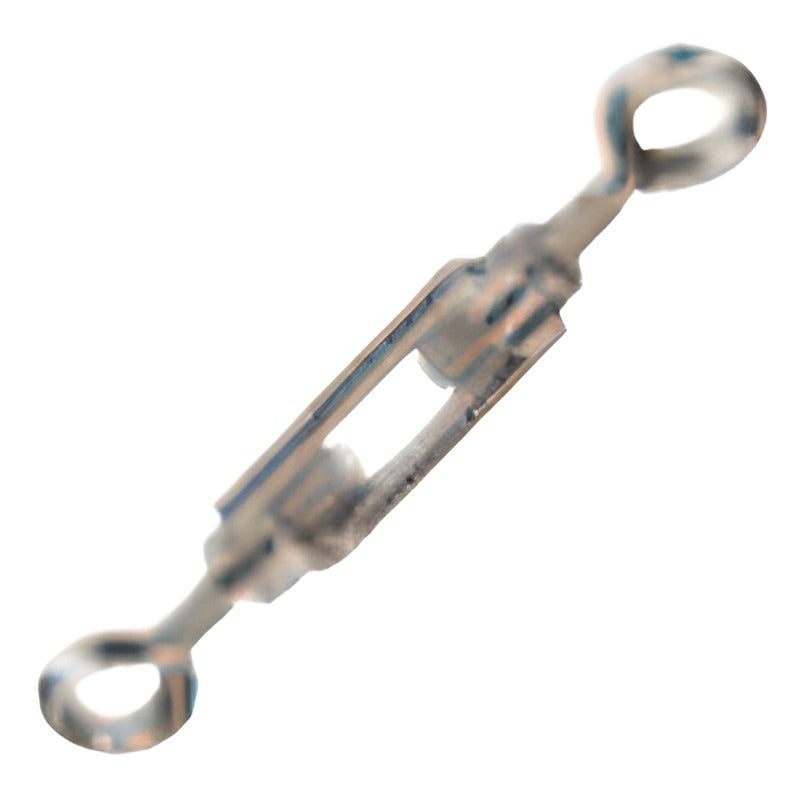

3SE7950-1AB Type: Turnbuckle | Version: M6 x 60 | Length/diameter: -- | PU: 1 unit
3SE7950-1AD Type: Turnbuckle | Version: M6 x 110 | Length/diameter: -- | PU: 1 unit
3SE7932-1AC Type: Snap hooks DIN 5299 form C | Version: 50 x 5 mm, high-grade steel, set of 2 | Length/diameter: -- | PU: 4 units
3SX3235 Type: Spare LED light | Version: Red, 24 V DC, 25 mm, M20 x 1.5 | Length/diameter: -- | PU: 1 unit
3SE7310-1AE00 Type: Conveyor belt unbalance tracker | Version: Metal IP65, latching, 2 NO + 2 NC | Length/diameter: -- | PU: 1 unit
3SE7310-1AE04 Type: Conveyor belt unbalance tracker | Version: As above, with LED red 24 V DC | Length/diameter: -- | PU: 1 unit
Safety SwitchesSiemens
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3SE7 Cable System Accessories & Belt Unbalance Trackers

Brand Siemens·Safety Switches

Available part numbers (23)

3SE7910-3AA, 3SE7910-3AB, 3SE7910-3AC, 3SE7910-3AH, 3SE7941-1AC, 3SE7942-1AA, 3SE7943-1AC, 3SE7944-1AC, 3SE7931-1AB, 3SE7931-1AD + 13 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3SE7910-3AAType: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 10 m | PU: 1 unit
3SE7910-3ABType: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 15 m | PU: 1 unit
3SE7910-3ACType: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 20 m | PU: 1 unit
3SE7910-3AHType: Steel cable, red sheath | Version: 4 mm incl. sheath, wire 3.2 mm | Length/diameter: 50 m | PU: 1 unit
3SE7941-1ACType: Cable clamp | Version: Oval, galvanized | Length/diameter: 4 mm | PU: 1 unit
3SE7942-1AAType: Cable clamp | Version: Single, galvanized | Length/diameter: 2 x 4 mm | PU: 4 units
3SE7943-1ACType: Cable clamp | Version: Simplex, galvanized | Length/diameter: 4 mm | PU: 4 units
3SE7944-1ACType: Cable clamp | Version: Duplex, galvanized | Length/diameter: 2 x 4 mm | PU: 4 units
3SE7931-1ABType: Tension spring | Version: 13 N | Length/diameter: -- | PU: 1 unit
3SE7931-1ADType: Tension spring | Version: 35 N, cable pulls up to 50 m | Length/diameter: -- | PU: 1 unit
3SE7931-1AEType: Tension spring | Version: > 35 N, cable pulls up to 2 x 75 m | Length/diameter: -- | PU: 1 unit
3SE7921-1ACType: Cable roller | Version: Rotatable, for direction change | Length/diameter: 4 mm | PU: 1 unit
3SE7921-1AAType: Fixture for cable rollers | Version: Including fixing nuts | Length/diameter: -- | PU: 1 unit
3SE7930-1ADType: Thimbles | Version: Direction change, fixing points | Length/diameter: 4 mm | PU: 4 units
3SE7920-1ABType: Eyebolt | Version: Including M8 nut | Length/diameter: -- | PU: 1 unit
3SE7920-1ACType: Eyebolt | Version: Including M10 nut | Length/diameter: -- | PU: 1 unit
3SE7922-1ABType: Lifting eyebolt, rotated | Version: Including M6 nut | Length/diameter: -- | PU: 1 unit
3SE7950-1ABType: Turnbuckle | Version: M6 x 60 | Length/diameter: -- | PU: 1 unit
3SE7950-1ADType: Turnbuckle | Version: M6 x 110 | Length/diameter: -- | PU: 1 unit
3SE7932-1ACType: Snap hooks DIN 5299 form C | Version: 50 x 5 mm, high-grade steel, set of 2 | Length/diameter: -- | PU: 4 units
3SX3235Type: Spare LED light | Version: Red, 24 V DC, 25 mm, M20 x 1.5 | Length/diameter: -- | PU: 1 unit
3SE7310-1AE00Type: Conveyor belt unbalance tracker | Version: Metal IP65, latching, 2 NO + 2 NC | Length/diameter: -- | PU: 1 unit
3SE7310-1AE04Type: Conveyor belt unbalance tracker | Version: As above, with LED red 24 V DC | Length/diameter: -- | PU: 1 unit

Need a different model, or a part not listed here? Send us your parts list →
