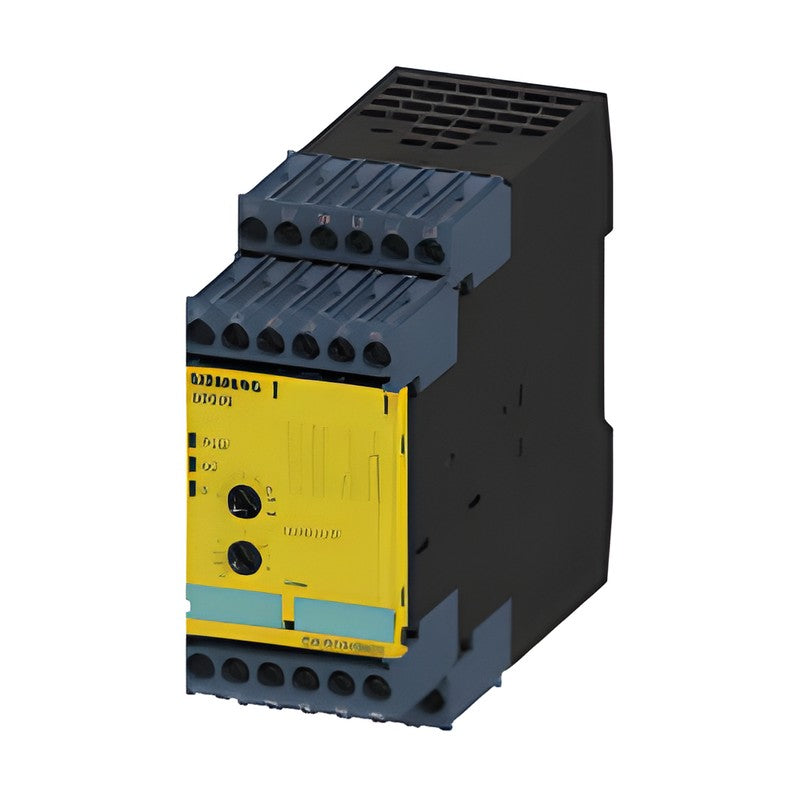

Siemens SIRIUS 3TK2810 Standstill & Speed Monitors

Siemens SIRIUS 3TK2810 Standstill & Speed Monitors

SIRIUS 3TK2810 safety relays with special functions: sensorless standstill monitors and speed monitors with integrated protective door monitoring.

Key features

  • SIL 3 (IEC 62061 / IEC 61508) and PL e (ISO 13849-1)
  • 3TK2810-0 detects motor standstill from residual voltage without sensors; usable with frequency converters
  • 3TK2810-1 monitors standstill and speed with NPN/PNP or NAMUR proximity switches and encoders
  • Integrated monitoring of a spring-locked protective door on speed monitors
  • Display for parameterization and permanent diagnostics (3TK2810-1)
  • Screw or spring-loaded terminals

Specifications

Brand Siemens
Product line SIRIUS 3TK28
Safety level SIL 3 / PL e
Approvals TÜV, UL, CSA
Mounting 35 mm DIN rail
Source Siemens Catalog IC 10 · 2026, p. 1066-1067
3TK2810-0BA01 Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 24 V DC | Time: 0.2 ... 6 s (standstill) | Connection: Screw
3TK2810-0BA02 Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 24 V DC | Time: 0.2 ... 6 s (standstill) | Connection: Spring-loaded
3TK2810-0GA01 Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 230 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Screw
3TK2810-0GA02 Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 230 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Spring-loaded
3TK2810-0JA01 Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 400 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Screw
3TK2810-0JA02 Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 400 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Spring-loaded
3TK2810-1BA41 Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1BA42 Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
3TK2810-1KA41 Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1KA42 Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
3TK2810-1BA41-0AA0 Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1BA42-0AA0 Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
3TK2810-1KA41-0AA0 Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1KA42-0AA0 Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
Safety RelaysSiemens
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3TK2810 Standstill & Speed Monitors

Brand Siemens·Safety Relays

Available part numbers (14)

3TK2810-0BA01, 3TK2810-0BA02, 3TK2810-0GA01, 3TK2810-0GA02, 3TK2810-0JA01, 3TK2810-0JA02, 3TK2810-1BA41, 3TK2810-1BA42, 3TK2810-1KA41, 3TK2810-1KA42 + 4 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3TK2810-0BA01Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 24 V DC | Time: 0.2 ... 6 s (standstill) | Connection: Screw
3TK2810-0BA02Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 24 V DC | Time: 0.2 ... 6 s (standstill) | Connection: Spring-loaded
3TK2810-0GA01Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 230 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Screw
3TK2810-0GA02Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 230 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Spring-loaded
3TK2810-0JA01Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 400 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Screw
3TK2810-0JA02Type: 3TK2810-0 standstill monitor | Sensors: Without sensor (residual voltage) | Supply: 400 V AC | Time: 0.2 ... 6 s (standstill) | Connection: Spring-loaded
3TK2810-1BA41Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1BA42Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
3TK2810-1KA41Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1KA42Type: 3TK2810-1 speed monitor | Sensors: NPN/PNP proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
3TK2810-1BA41-0AA0Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1BA42-0AA0Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 24 V DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
3TK2810-1KA41-0AA0Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Screw
3TK2810-1KA42-0AA0Type: 3TK2810-1 speed monitor | Sensors: NAMUR proximity switches, encoders | Supply: 120 ... 240 V AC/DC | Time: 0 ... 999 s (release delay) | Connection: Spring-loaded
