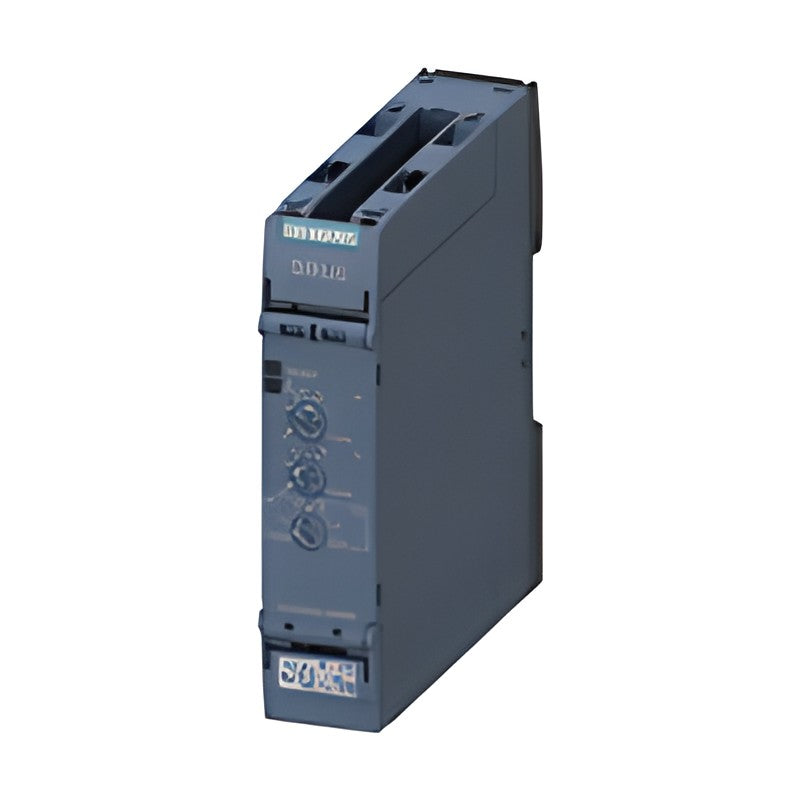

Siemens SIRIUS 3UG5522 Current Monitoring Relays (0.05-10 A)

Siemens SIRIUS 3UG5522 Current Monitoring Relays (0.05-10 A)

Analog adjustable SIRIUS 3UG5522 relay for overcurrent and undercurrent monitoring of 1-phase AC and DC currents.

Key features

  • Measuring range 0.05 to 10 A (rms value)
  • Overshoot, undershoot or range monitoring set by three rotary switches
  • Tripping delay adjustable 0.5-30 s
  • Auxiliary voltage 24-240 V AC/DC, closed-circuit principle
  • For AC currents above 10 A use with 4NC current transformers

Specifications

Brand Siemens
Product line SIRIUS 3UG5
Measurable current 0.05 ... 10 A
Supply 24 ... 240 V AC/DC
Delay 0.5 ... 30 s
Contacts 1 CO
Setting Analog
Source Siemens Catalog IC 10 · 2026, p. 979
3UG5522-1AW30 Type: 3UG5522 current monitoring relay | Connection: Screw
3UG5522-2AW30 Type: 3UG5522 current monitoring relay | Connection: Spring-loaded (push-in)
Monitoring RelaysSiemens
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3UG5522 Current Monitoring Relays (0.05-10 A)

Brand Siemens·Monitoring Relays

Available part numbers (2)

3UG5522-1AW30, 3UG5522-2AW30

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3UG5522-1AW30Type: 3UG5522 current monitoring relay | Connection: Screw
3UG5522-2AW30Type: 3UG5522 current monitoring relay | Connection: Spring-loaded (push-in)
