Siemens SIRIUS 8WD4 Signaling Column Mounting & Connection Elements

Siemens SIRIUS 8WD4 Signaling Column Mounting & Connection Elements

Mounting accessories for SIRIUS 8WD42, 8WD44, 8WD46 signaling columns and 8WD53 signal lamps: feet, tubes, sockets, brackets, adapters, connection elements and labeling panel.

Key features

  • Feet with tube, single feet and adjustable-angle foot (7.5 deg steps)
  • Aluminum-look tubes 100, 150, 250, 400 and 1000 mm
  • Wall, foot and base mounting brackets; NPT and M18 single-hole adapters
  • Connection elements for 8WD42 and 8WD44 (screw or spring-loaded terminals)
  • IP66/IP69K foot and wall bracket versions for 8WD46

Specifications

Brand Siemens
Product line SIRIUS 8WD4
For 8WD42, 8WD44, 8WD46, 8WD53 (with tube adapter)
PU 1 unit
Tube diameter 25 mm
Source Siemens Catalog IC 10 · 2026, p. 1380-1396

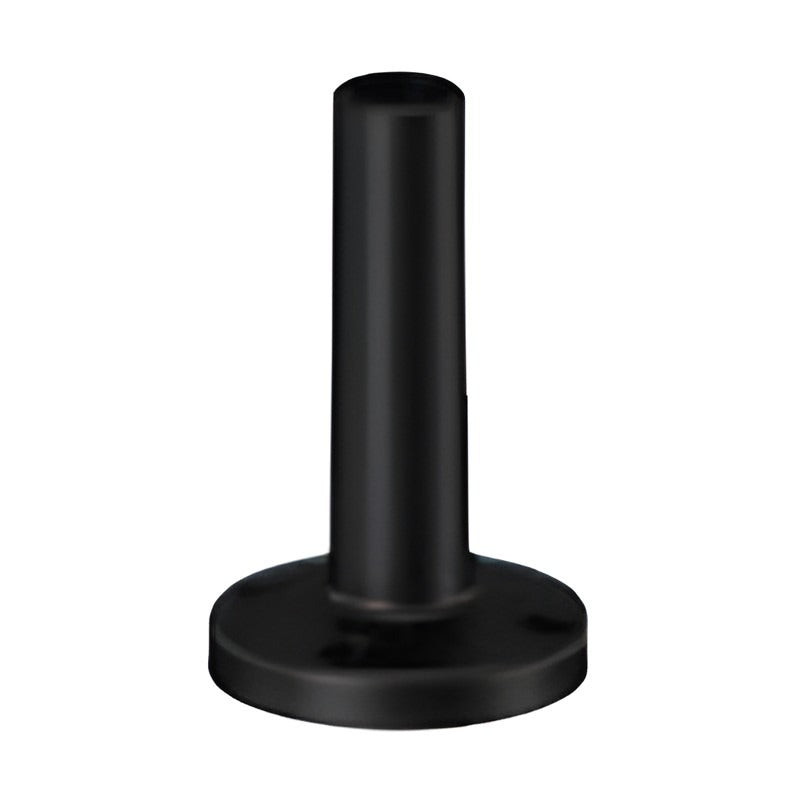

8WD4308-0DA Type: Foot with tube | Version: Tube length 100 mm, standard | Color: Black
8WD4618-0DA Type: Foot with tube | Version: Tube 100 mm, IP66/IP69 (IP69K) | Color: Black
8WD4308-0DB Type: Foot, single | Version: Plastic, tube mounting, tubes <= 400 mm | Color: Black
8WD4308-0DC Type: Foot, single | Version: Metal, tube mounting, tubes > 400 mm | Color: Black
8WD4208-0DE Type: Foot, single | Version: Plastic, base mounting (without tube) | Color: Black
8WD4408-0DF Type: Adjustable-angle foot | Version: 7.5 deg steps, tube mount, rubber seal | Color: Black
8WD4208-0EF Type: Tube | Version: Length 100 mm | Color: Silver
8WD4308-0EE Type: Tube | Version: Length 150 mm | Color: Silver
8WD4308-0EA Type: Tube | Version: Length 250 mm | Color: Silver
8WD4308-0EB Type: Tube | Version: Length 400 mm | Color: Silver
8WD4308-0ED Type: Tube | Version: Length 1000 mm | Color: Silver
8WD4308-0DD Type: Socket for feet | Version: Side cable outlet | Color: Black
8WD4308-0DE Type: Socket for feet | Version: Side cable outlet, magnetic fixing | Color: Black
8WD4408-0CC Type: Bracket for foot mounting | Version: With feet and tube | Color: Black
8WD4308-0CA Type: Bracket for wall mounting | Version: Single-sided, standard | Color: Black
8WD4618-0CA Type: Bracket for wall mounting | Version: Single-sided, IP66/IP69 (IP69K) | Color: Black
8WD4308-0CB Type: Bracket for wall mounting | Version: Double-sided | Color: Black
8WD4208-0CD Type: Bracket for wall mounting | Version: Plastic, for 8WD42 | Color: Black
8WD4408-0CD Type: Bracket for base mounting | Version: Without feet and tube | Color: Black
8WD4208-0EH Type: Adapter for single-hole mounting | Version: M18 thread and fixing nut | Color: Silver
8WD4308-0DF Type: Adapter for NPT tube mounting | Version: Tube 25 mm, NPT 1/2" thread | Color: Black
8WD4208-0AA Type: Connection element with cover (8WD42) | Version: Tube, base and angle mounting | Color: Black
8WD4408-0AA Type: Connection element with cover (8WD44) | Version: Screw terminals, tube mounting | Color: Black
8WD4408-0AB Type: Connection element with cover (8WD44) | Version: Screw terminals, angle/base/floor | Color: Black
8WD4408-0AD Type: Connection element with cover (8WD44) | Version: Spring-loaded, tube mounting | Color: Black
8WD4408-0AE Type: Connection element with cover (8WD44) | Version: Spring-loaded, angle/base/floor | Color: Black
8WD4408-0XA Type: Cover (replacement, 8WD44) | Version: -- | Color: Black
8WD4408-0FA Type: Labeling panel | Version: For 25 mm tube, area 50 x 140 mm | Color: --
AccessoriesSiemens
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 8WD4 Signaling Column Mounting & Connection Elements

Brand Siemens·Accessories

Available part numbers (28)

8WD4308-0DA, 8WD4618-0DA, 8WD4308-0DB, 8WD4308-0DC, 8WD4208-0DE, 8WD4408-0DF, 8WD4208-0EF, 8WD4308-0EE, 8WD4308-0EA, 8WD4308-0EB + 18 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
