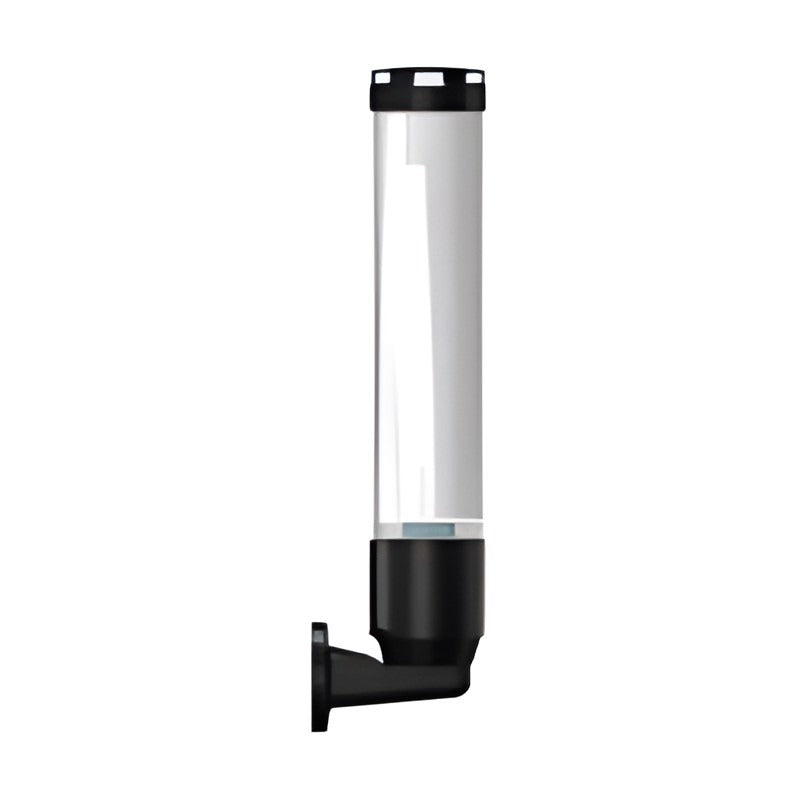

Siemens SIRIUS 8WD46 Configurable Signaling Columns 70 mm & Cables

Electronically configurable SIRIUS 8WD46 RGB-LED signaling columns, 70 mm diameter, conventional (USB-C parameterization) or IO-Link, with matching cables.

Key features

9 or 15 RGB light segments, any of 1,000,000 colors, 3 or 5 default signal blocks
Blink, flash, double/triple flash and rotating light effects; settable intensity
Optional multi-tone acoustics 80-105 dB with 10 tones
Conventional version: M12 8-pole, parameterized via USB-C software; IO-Link version: M12 4-pole
IP66/IP69K, NEMA 4/4X/12/13, -30 to +60 deg C; base, tube or wall mounting

Specifications

Brand	Siemens
Product line	SIRIUS 8WD4
Diameter	70 mm
Operational voltage	24 V DC
Light source	RGB LED, 50 000 h
Degree of protection	IP66/IP69K
Height	271 mm (9 seg.) / 372 mm (15 seg.)
Source	Siemens Catalog IC 10 · 2026, p. 1375-1381

8WD4613-5HH37		Version: Conventional \| Acoustics: Without \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 8-pole, USB-C param.
8WD4613-5HH47		Version: IO-Link \| Acoustics: Without \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 4-pole
8WD4613-5JH37		Version: Conventional \| Acoustics: Multi-tone \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 8-pole, USB-C param.
8WD4613-5JH47		Version: IO-Link \| Acoustics: Multi-tone \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 4-pole
8WD4615-5HH37		Version: Conventional \| Acoustics: Without \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 8-pole, USB-C param.
8WD4615-5HH47		Version: IO-Link \| Acoustics: Without \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 4-pole
8WD4615-5JH37		Version: Conventional \| Acoustics: Multi-tone \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 8-pole, USB-C param.
8WD4615-5JH47		Version: IO-Link \| Acoustics: Multi-tone \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 4-pole

Pushbuttons & Pilot LightsSiemens

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 8WD46 Configurable Signaling Columns 70 mm & Cables

Brand Siemens·Pushbuttons & Pilot Lights

Available part numbers (8)

8WD4613-5HH37, 8WD4613-5HH47, 8WD4613-5JH37, 8WD4613-5JH47, 8WD4615-5HH37, 8WD4615-5HH47, 8WD4615-5JH37, 8WD4615-5JH47

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	8WD4613-5HH37	Version: Conventional \| Acoustics: Without \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 8-pole, USB-C param.
	8WD4613-5HH47	Version: IO-Link \| Acoustics: Without \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 4-pole
	8WD4613-5JH37	Version: Conventional \| Acoustics: Multi-tone \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 8-pole, USB-C param.
	8WD4613-5JH47	Version: IO-Link \| Acoustics: Multi-tone \| Light segments: 9 \| Default signal blocks: 3 \| Connection: M12 plug 4-pole
	8WD4615-5HH37	Version: Conventional \| Acoustics: Without \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 8-pole, USB-C param.
	8WD4615-5HH47	Version: IO-Link \| Acoustics: Without \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 4-pole
	8WD4615-5JH37	Version: Conventional \| Acoustics: Multi-tone \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 8-pole, USB-C param.
	8WD4615-5JH47	Version: IO-Link \| Acoustics: Multi-tone \| Light segments: 15 \| Default signal blocks: 5 \| Connection: M12 plug 4-pole
