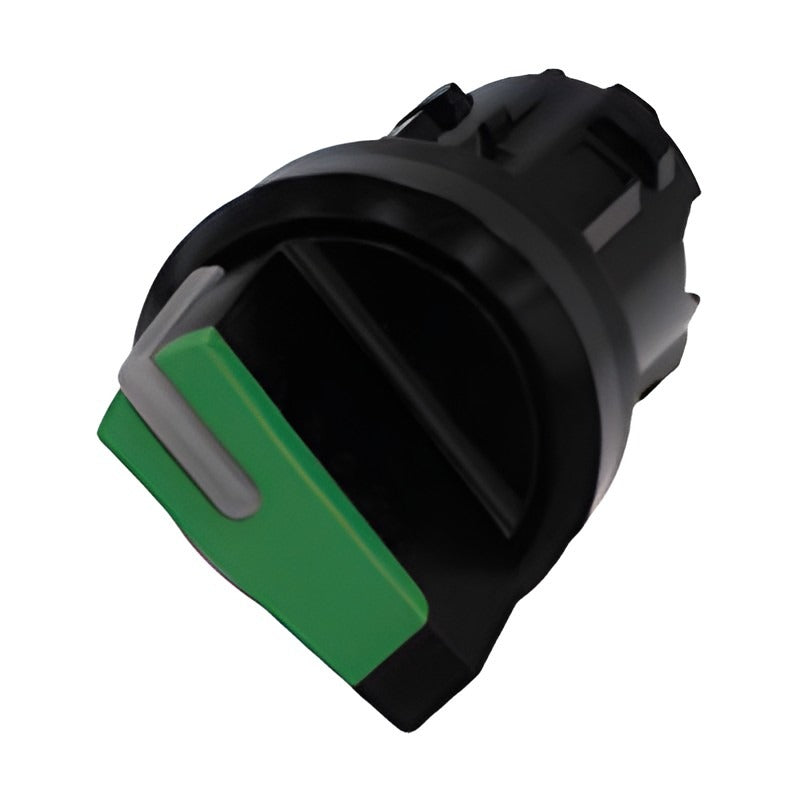

• Siemens SIRIUS ACT 3SU10 Selector Switch Actuators, Plastic 22 mm
1 1

Siemens SIRIUS ACT 3SU10 Selector Switch Actuators, Plastic 22 mm

Siemens SIRIUS ACT 3SU10 Selector Switch Actuators, Plastic 22 mm

SIRIUS ACT selector switch actuating elements with black plastic front ring for 22 mm mounting, with short or long actuator and illuminable versions.

Key features

  • 2, 3 or 4 switch positions
  • Latching or momentary (spring return) versions
  • Short or long black actuator, colored inserts
  • Illuminable versions (3SU1002) for use with LED modules
  • Rotary knob version for 4 switch positions

Specifications

Brand Siemens
Product line SIRIUS ACT 3SU1
Device type Actuating element
Front ring Plastic, black
Mounting diameter 22 mm
Source Siemens Catalog IC 10 · 2026, p. 1249-1250
3SU1002-2BC10-0AA0 Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Black
3SU1002-2BC20-0AA0 Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Red
3SU1002-2BC30-0AA0 Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Yellow
3SU1002-2BC40-0AA0 Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Green
3SU1002-2BC50-0AA0 Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Blue
3SU1002-2BC60-0AA0 Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: White
3SU1002-2BF10-0AA0 Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Black
3SU1002-2BF20-0AA0 Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Red
3SU1002-2BF30-0AA0 Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Yellow
3SU1002-2BF40-0AA0 Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Green
3SU1002-2BF50-0AA0 Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Blue
3SU1002-2BF60-0AA0 Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: White
3SU1002-2CF10-0AA0 Actuator: Long | Positions: 2 | Operation: Latching, 90° | Color: Black
3SU1002-2CF20-0AA0 Actuator: Long | Positions: 2 | Operation: Latching, 90° | Color: Red
3SU1002-2CF60-0AA0 Actuator: Long | Positions: 2 | Operation: Latching, 90° | Color: White
3SU1002-2AF20-0AA0 Actuator: Rotary knob | Positions: 2 | Operation: Latching, 90° | Color: Red
3SU1002-2AF60-0AA0 Actuator: Rotary knob | Positions: 2 | Operation: Latching, 90° | Color: White
3SU1002-2BM10-0AA0 Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Black
3SU1002-2BM20-0AA0 Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Red
3SU1002-2BM30-0AA0 Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Yellow
3SU1002-2BM40-0AA0 Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Green
3SU1002-2BM50-0AA0 Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Blue
3SU1002-2BM60-0AA0 Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: White
3SU1002-2BL10-0AA0 Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Black
3SU1002-2BL20-0AA0 Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Red
3SU1002-2BL30-0AA0 Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Yellow
3SU1002-2BL40-0AA0 Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Green
3SU1002-2BL50-0AA0 Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Blue
3SU1002-2BL60-0AA0 Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: White
3SU1002-2BP10-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Black
3SU1002-2BP20-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Red
3SU1002-2BP30-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Yellow
3SU1002-2BP40-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Green
3SU1002-2BP50-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Blue
3SU1002-2BP60-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: White
3SU1002-2BN10-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Black
3SU1002-2BN20-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Red
3SU1002-2BN30-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Yellow
3SU1002-2BN40-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Green
3SU1002-2BN50-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Blue
3SU1002-2BN60-0AA0 Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: White
3SU1000-2AS60-0AA0 Actuator: Rotary knob | Positions: 4 | Operation: Latching, 4x90° | Color: White
Pushbuttons & Pilot LightsSiemens
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS ACT 3SU10 Selector Switch Actuators, Plastic 22 mm

Brand Siemens·Pushbuttons & Pilot Lights

Available part numbers (42)

3SU1002-2BC10-0AA0, 3SU1002-2BC20-0AA0, 3SU1002-2BC30-0AA0, 3SU1002-2BC40-0AA0, 3SU1002-2BC50-0AA0, 3SU1002-2BC60-0AA0, 3SU1002-2BF10-0AA0, 3SU1002-2BF20-0AA0, 3SU1002-2BF30-0AA0, 3SU1002-2BF40-0AA0 + 32 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3SU1002-2BC10-0AA0Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Black
3SU1002-2BC20-0AA0Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Red
3SU1002-2BC30-0AA0Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Yellow
3SU1002-2BC40-0AA0Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Green
3SU1002-2BC50-0AA0Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: Blue
3SU1002-2BC60-0AA0Actuator: Short | Positions: 2 | Operation: Momentary, 45°, reset to left | Color: White
3SU1002-2BF10-0AA0Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Black
3SU1002-2BF20-0AA0Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Red
3SU1002-2BF30-0AA0Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Yellow
3SU1002-2BF40-0AA0Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Green
3SU1002-2BF50-0AA0Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: Blue
3SU1002-2BF60-0AA0Actuator: Short | Positions: 2 | Operation: Latching, 90° | Color: White
3SU1002-2CF10-0AA0Actuator: Long | Positions: 2 | Operation: Latching, 90° | Color: Black
3SU1002-2CF20-0AA0Actuator: Long | Positions: 2 | Operation: Latching, 90° | Color: Red
3SU1002-2CF60-0AA0Actuator: Long | Positions: 2 | Operation: Latching, 90° | Color: White
3SU1002-2AF20-0AA0Actuator: Rotary knob | Positions: 2 | Operation: Latching, 90° | Color: Red
3SU1002-2AF60-0AA0Actuator: Rotary knob | Positions: 2 | Operation: Latching, 90° | Color: White
3SU1002-2BM10-0AA0Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Black
3SU1002-2BM20-0AA0Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Red
3SU1002-2BM30-0AA0Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Yellow
3SU1002-2BM40-0AA0Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Green
3SU1002-2BM50-0AA0Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: Blue
3SU1002-2BM60-0AA0Actuator: Short | Positions: 3 | Operation: Momentary, 2x45°, reset right + left | Color: White
3SU1002-2BL10-0AA0Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Black
3SU1002-2BL20-0AA0Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Red
3SU1002-2BL30-0AA0Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Yellow
3SU1002-2BL40-0AA0Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Green
3SU1002-2BL50-0AA0Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: Blue
3SU1002-2BL60-0AA0Actuator: Short | Positions: 3 | Operation: Latching, 2x45° | Color: White
3SU1002-2BP10-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Black
3SU1002-2BP20-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Red
3SU1002-2BP30-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Yellow
3SU1002-2BP40-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Green
3SU1002-2BP50-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: Blue
3SU1002-2BP60-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. left / latch. right | Color: White
3SU1002-2BN10-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Black
3SU1002-2BN20-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Red
3SU1002-2BN30-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Yellow
3SU1002-2BN40-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Green
3SU1002-2BN50-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: Blue
3SU1002-2BN60-0AA0Actuator: Short | Positions: 3 | Operation: 2x45°, mom. right / latch. left | Color: White
3SU1000-2AS60-0AA0Actuator: Rotary knob | Positions: 4 | Operation: Latching, 4x90° | Color: White

Need a different model, or a part not listed here? Send us your parts list →
