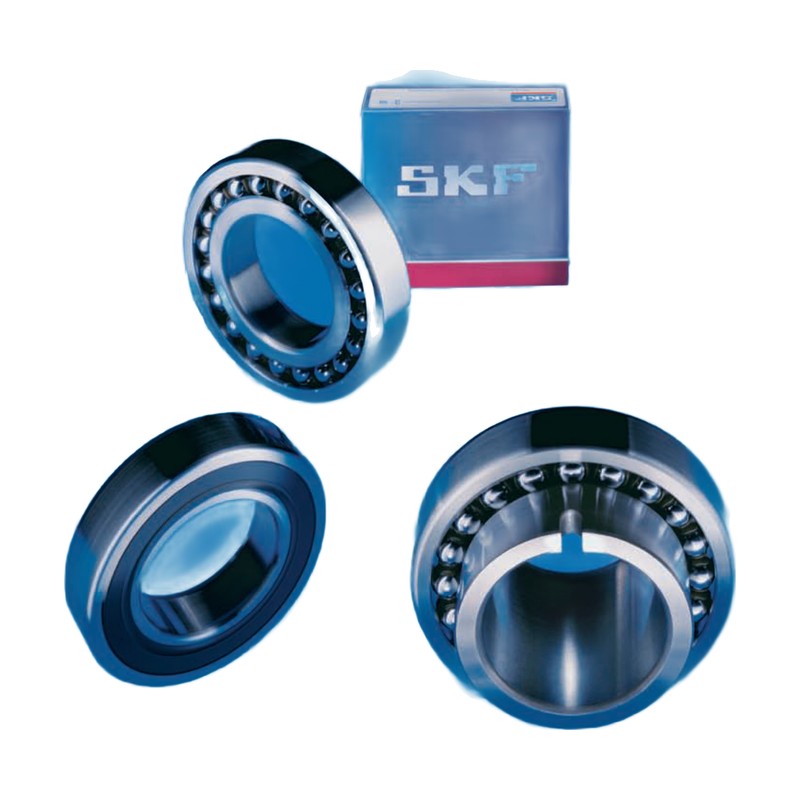

SKF 112 Series Self-Aligning Ball Bearings, Extended Inner Ring

SKF 112 Series Self-Aligning Ball Bearings, Extended Inner Ring

SKF self-aligning ball bearings of the 112 series with an extended inner ring, an economical solution for simple shaft arrangements where shafts with normal tolerances are used.

Key features

  • Extended inner ring with slot for a locating pin to prevent inner ring rotation
  • Mounted directly on drawn shafts without expensive machining
  • Self-aligning: accommodates shaft misalignment
  • Glass fibre reinforced polyamide cage (TN9)

Specifications

Bearing type Self-aligning ball bearing, extended inner ring
Series 112
Cage Polyamide (TN9)
Rows of balls 2
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 494-495
11204 ETN9 d: 20 mm | D: 47 mm | Inner ring width: 14 mm | C: 12.7 kN | C0: 3.4 kN | Speed rating: 9000 r/min
11205 ETN9 d: 25 mm | D: 52 mm | Inner ring width: 15 mm | C: 14.3 kN | C0: 4 kN | Speed rating: 8000 r/min
11206 TN9 d: 30 mm | D: 62 mm | Inner ring width: 16 mm | C: 15.6 kN | C0: 4.65 kN | Speed rating: 6700 r/min
11207 TN9 d: 35 mm | D: 72 mm | Inner ring width: 17 mm | C: 15.9 kN | C0: 5.1 kN | Speed rating: 5600 r/min
11208 TN9 d: 40 mm | D: 80 mm | Inner ring width: 18 mm | C: 19 kN | C0: 6.55 kN | Speed rating: 5000 r/min
11209 TN9 d: 45 mm | D: 85 mm | Inner ring width: 19 mm | C: 21.6 kN | C0: 7.35 kN | Speed rating: 4500 r/min
11210 TN9 d: 50 mm | D: 90 mm | Inner ring width: 20 mm | C: 22.9 kN | C0: 8.15 kN | Speed rating: 4300 r/min
11212 TN9 d: 60 mm | D: 110 mm | Inner ring width: 22 mm | C: 30.2 kN | C0: 11.6 kN | Speed rating: 3400 r/min
Self-Aligning Ball BearingsSKF
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 112 Series Self-Aligning Ball Bearings, Extended Inner Ring

Brand SKF·Self-Aligning Ball Bearings

Available part numbers (8)

11204 ETN9, 11205 ETN9, 11206 TN9, 11207 TN9, 11208 TN9, 11209 TN9, 11210 TN9, 11212 TN9
