• SKF 130 & 139 Series Self-Aligning Ball Bearings
1 1

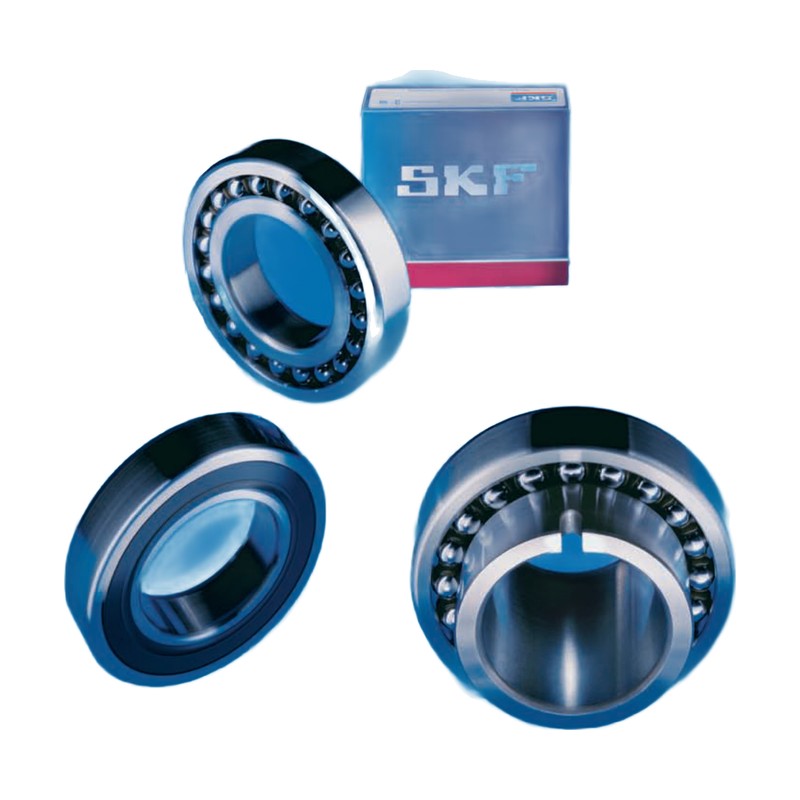

SKF 130 & 139 Series Self-Aligning Ball Bearings

SKF 130 & 139 Series Self-Aligning Ball Bearings

SKF self-aligning ball bearings of the 130 & 139 series, large sizes originally developed for paper machines, with lubrication groove and holes.

Key features

  • Two rows of balls with a common sphered raceway in the outer ring
  • Self-aligning: compensates angular misalignment of the shaft relative to the housing
  • Lowest friction of all rolling bearings, runs cool at high speeds
  • Cylindrical bore or tapered bore 1:12 (suffix K)
  • Glass fibre reinforced polyamide (TN9) or brass (M) cage

Specifications

Bearing type Self-aligning ball bearing
Series 130 & 139
Bore Cylindrical or tapered 1:12 (K)
Rows of balls 2
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 490-491
13030 d: 150 mm | D: 225 mm | B: 56 mm | C: 57.2 kN | C0: 23.6 kN | Limiting speed: 3400 r/min
13036 d: 180 mm | D: 280 mm | B: 74 mm | C: 95.6 kN | C0: 40 kN | Limiting speed: 2800 r/min
13940 d: 200 mm | D: 280 mm | B: 60 mm | C: 60.5 kN | C0: 29 kN | Limiting speed: 2600 r/min
13944 d: 220 mm | D: 300 mm | B: 60 mm | C: 60.5 kN | C0: 30.5 kN | Limiting speed: 2400 r/min
13948 d: 240 mm | D: 320 mm | B: 60 mm | C: 60.5 kN | C0: 32 kN | Limiting speed: 2200 r/min
Self-Aligning Ball BearingsSKF
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 130 & 139 Series Self-Aligning Ball Bearings

Brand SKF·Self-Aligning Ball Bearings

Available part numbers (5)

13030, 13036, 13940, 13944, 13948

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
13030d: 150 mm | D: 225 mm | B: 56 mm | C: 57.2 kN | C0: 23.6 kN | Limiting speed: 3400 r/min
13036d: 180 mm | D: 280 mm | B: 74 mm | C: 95.6 kN | C0: 40 kN | Limiting speed: 2800 r/min
13940d: 200 mm | D: 280 mm | B: 60 mm | C: 60.5 kN | C0: 29 kN | Limiting speed: 2600 r/min
13944d: 220 mm | D: 300 mm | B: 60 mm | C: 60.5 kN | C0: 30.5 kN | Limiting speed: 2400 r/min
13948d: 240 mm | D: 320 mm | B: 60 mm | C: 60.5 kN | C0: 32 kN | Limiting speed: 2200 r/min
