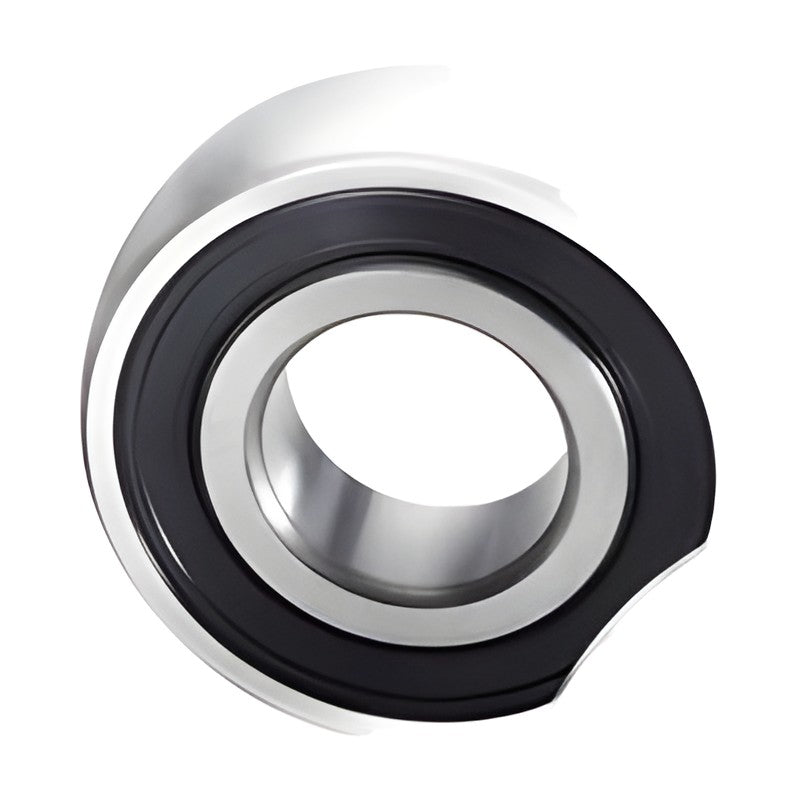

SKF 17262 and 17263 Y-Bearings with Standard Inner Ring

SKF 17262 and 17263 Y-Bearings with Standard Inner Ring

SKF 17262 and 17263 Y-Bearings with Standard Inner Ring for metric shafts: insert (Y-) bearings with a standard (narrow) inner ring, used in SKF Y-bearing units.

Key features

  • Deep groove ball bearing design with sphered outer ring
  • Sealed on both sides and greased for life
  • Accommodates initial misalignment when mounted in a Y-bearing housing
  • Seal variants (2F, 2RF and others) as listed per size
  • Interchangeable with SKF Y-bearing housings

Specifications

Bearing type Y-bearing (insert bearing)
Locking A standard (narrow) inner ring
Shafts metric shafts
Brand SKF
Category Insert Bearings
Source SKF Y-bearings and Y-bearing units, p. 108-108
1726203-2RS1 d: 17 mm | D: 40 mm | B: 12 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.056 kg
1726204-2RS1 d: 20 mm | D: 47 mm | B: 14 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.095 kg
1726205-2RS1 d: 25 mm | D: 52 mm | B: 15 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.11 kg
1726305-2RS1 d: 25 mm | D: 62 mm | B: 17 mm | C: 22.5 kN | C0: 11.6 kN | Mass: 0.20 kg
1726206-2RS1 d: 30 mm | D: 62 mm | B: 16 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.18 kg
1726306-2RS1 d: 30 mm | D: 72 mm | B: 19 mm | C: 28.1 kN | C0: 16 kN | Mass: 0.30 kg
1726207-2RS1 d: 35 mm | D: 72 mm | B: 17 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.25 kg
1726307-2RS1 d: 35 mm | D: 80 mm | B: 21 mm | C: 33.2 kN | C0: 19 kN | Mass: 0.40 kg
1726208-2RS1 d: 40 mm | D: 80 mm | B: 18 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.32 kg
1726308-2RS1 d: 40 mm | D: 90 mm | B: 23 mm | C: 41 kN | C0: 24 kN | Mass: 0.55 kg
1726209-2RS1 d: 45 mm | D: 85 mm | B: 19 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.37 kg
1726309-2RS1 d: 45 mm | D: 100 mm | B: 25 mm | C: 52.7 kN | C0: 31.5 kN | Mass: 0.73 kg
1726210-2RS1 d: 50 mm | D: 90 mm | B: 20 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.41 kg
1726310-2RS1 d: 50 mm | D: 110 mm | B: 27 mm | C: 61.8 kN | C0: 38 kN | Mass: 0.95 kg
1726211-2RS1 d: 55 mm | D: 100 mm | B: 21 mm | C: 43.6 kN | C0: 29 kN | Mass: 0.54 kg
1726212-2RS1 d: 60 mm | D: 110 mm | B: 22 mm | C: 52.7 kN | C0: 36 kN | Mass: 0.70 kg
Insert BearingsSKF
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 17262 and 17263 Y-Bearings with Standard Inner Ring

Brand SKF·Insert Bearings

Available part numbers (16)

1726203-2RS1, 1726204-2RS1, 1726205-2RS1, 1726305-2RS1, 1726206-2RS1, 1726306-2RS1, 1726207-2RS1, 1726307-2RS1, 1726208-2RS1, 1726308-2RS1 + 6 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
1726203-2RS1d: 17 mm | D: 40 mm | B: 12 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.056 kg
1726204-2RS1d: 20 mm | D: 47 mm | B: 14 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.095 kg
1726205-2RS1d: 25 mm | D: 52 mm | B: 15 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.11 kg
1726305-2RS1d: 25 mm | D: 62 mm | B: 17 mm | C: 22.5 kN | C0: 11.6 kN | Mass: 0.20 kg
1726206-2RS1d: 30 mm | D: 62 mm | B: 16 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.18 kg
1726306-2RS1d: 30 mm | D: 72 mm | B: 19 mm | C: 28.1 kN | C0: 16 kN | Mass: 0.30 kg
1726207-2RS1d: 35 mm | D: 72 mm | B: 17 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.25 kg
1726307-2RS1d: 35 mm | D: 80 mm | B: 21 mm | C: 33.2 kN | C0: 19 kN | Mass: 0.40 kg
1726208-2RS1d: 40 mm | D: 80 mm | B: 18 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.32 kg
1726308-2RS1d: 40 mm | D: 90 mm | B: 23 mm | C: 41 kN | C0: 24 kN | Mass: 0.55 kg
1726209-2RS1d: 45 mm | D: 85 mm | B: 19 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.37 kg
1726309-2RS1d: 45 mm | D: 100 mm | B: 25 mm | C: 52.7 kN | C0: 31.5 kN | Mass: 0.73 kg
1726210-2RS1d: 50 mm | D: 90 mm | B: 20 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.41 kg
1726310-2RS1d: 50 mm | D: 110 mm | B: 27 mm | C: 61.8 kN | C0: 38 kN | Mass: 0.95 kg
1726211-2RS1d: 55 mm | D: 100 mm | B: 21 mm | C: 43.6 kN | C0: 29 kN | Mass: 0.54 kg
1726212-2RS1d: 60 mm | D: 110 mm | B: 22 mm | C: 52.7 kN | C0: 36 kN | Mass: 0.70 kg
