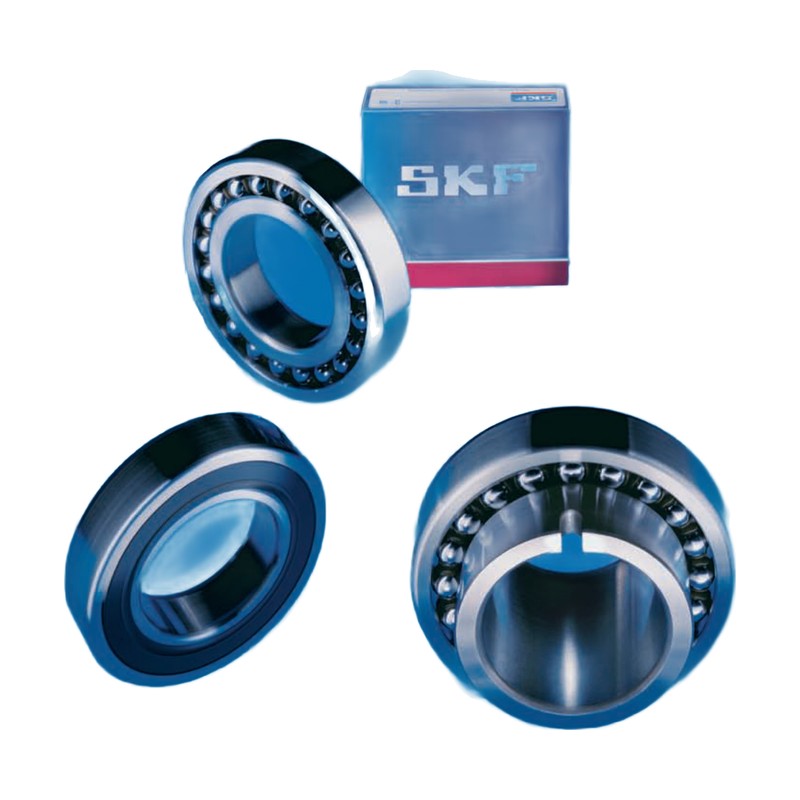

SKF 22 Series Self-Aligning Ball Bearings (incl. 2RS1)

SKF 22 Series Self-Aligning Ball Bearings (incl. 2RS1)

SKF self-aligning ball bearings of the 22 series, with cylindrical or tapered bore and sealed 2RS1 versions.

Key features

  • Two rows of balls with a common sphered raceway in the outer ring
  • Self-aligning: compensates angular misalignment of the shaft relative to the housing
  • Lowest friction of all rolling bearings, runs cool at high speeds
  • Cylindrical bore or tapered bore 1:12 (suffix K)
  • Sealed E-2RS1 versions with NBR contact seals, greased for life

Specifications

Bearing type Self-aligning ball bearing
Series 22
Bore Cylindrical or tapered 1:12 (K)
Rows of balls 2
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 484-493
2200 ETN9 d: 10 mm | D: 30 mm | B: 14 mm | C: 8.06 kN | C0: 1.73 kN | Limiting speed: 34000 r/min
2201 ETN9 d: 12 mm | D: 32 mm | B: 14 mm | C: 8.52 kN | C0: 1.90 kN | Limiting speed: 30000 r/min
2202 ETN9 d: 15 mm | D: 35 mm | B: 14 mm | C: 8.71 kN | C0: 2.04 kN | Limiting speed: 26000 r/min
2203 ETN9 d: 17 mm | D: 40 mm | B: 16 mm | C: 10.6 kN | C0: 2.55 kN | Limiting speed: 24000 r/min
2204 ETN9 d: 20 mm | D: 47 mm | B: 18 mm | C: 16.8 kN | C0: 4.15 kN | Limiting speed: 20000 r/min
2205 ETN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 16.8 kN | C0: 4.4 kN | Limiting speed: 18000 r/min
2205 EKTN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 16.8 kN | C0: 4.4 kN | Limiting speed: 18000 r/min
2206 ETN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 23.8 kN | C0: 6.7 kN | Limiting speed: 15000 r/min
2206 EKTN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 23.8 kN | C0: 6.7 kN | Limiting speed: 15000 r/min
2207 ETN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 30.7 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
2207 EKTN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 30.7 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
2208 ETN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 31.9 kN | C0: 10 kN | Limiting speed: 11000 r/min
2208 EKTN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 31.9 kN | C0: 10 kN | Limiting speed: 11000 r/min
2209 ETN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 32.5 kN | C0: 10.6 kN | Limiting speed: 10000 r/min
2209 EKTN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 32.5 kN | C0: 10.6 kN | Limiting speed: 10000 r/min
2210 ETN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 33.8 kN | C0: 11.2 kN | Limiting speed: 9500 r/min
2210 EKTN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 33.8 kN | C0: 11.2 kN | Limiting speed: 9500 r/min
2211 ETN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 39 kN | C0: 13.4 kN | Limiting speed: 8500 r/min
2211 EKTN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 39 kN | C0: 13.4 kN | Limiting speed: 8500 r/min
2212 ETN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 48.8 kN | C0: 17 kN | Limiting speed: 8000 r/min
2212 EKTN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 48.8 kN | C0: 17 kN | Limiting speed: 8000 r/min
2213 ETN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 57.2 kN | C0: 20 kN | Limiting speed: 7000 r/min
2213 EKTN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 57.2 kN | C0: 20 kN | Limiting speed: 7000 r/min
2214 d: 70 mm | D: 125 mm | B: 31 mm | C: 44.2 kN | C0: 17 kN | Limiting speed: 6700 r/min
2215 ETN9 d: 75 mm | D: 130 mm | B: 31 mm | C: 58.5 kN | C0: 22 kN | Limiting speed: 6300 r/min
2215 EKTN9 d: 75 mm | D: 130 mm | B: 31 mm | C: 58.5 kN | C0: 22 kN | Limiting speed: 6300 r/min
2216 ETN9 d: 80 mm | D: 140 mm | B: 33 mm | C: 65 kN | C0: 25.5 kN | Limiting speed: 6000 r/min
2216 EKTN9 d: 80 mm | D: 140 mm | B: 33 mm | C: 65 kN | C0: 25.5 kN | Limiting speed: 6000 r/min
2217 d: 85 mm | D: 150 mm | B: 36 mm | C: 58.5 kN | C0: 23.6 kN | Limiting speed: 5600 r/min
2217 K d: 85 mm | D: 150 mm | B: 36 mm | C: 58.5 kN | C0: 23.6 kN | Limiting speed: 5600 r/min
2218 d: 90 mm | D: 160 mm | B: 40 mm | C: 70.2 kN | C0: 28.5 kN | Limiting speed: 5300 r/min
2218 K d: 90 mm | D: 160 mm | B: 40 mm | C: 70.2 kN | C0: 28.5 kN | Limiting speed: 5300 r/min
2219 M d: 95 mm | D: 170 mm | B: 43 mm | C: 83.2 kN | C0: 34.5 kN | Limiting speed: 5000 r/min
2219 KM d: 95 mm | D: 170 mm | B: 43 mm | C: 83.2 kN | C0: 34.5 kN | Limiting speed: 5000 r/min
2220 M d: 100 mm | D: 180 mm | B: 46 mm | C: 97.5 kN | C0: 40.5 kN | Limiting speed: 4800 r/min
2220 KM d: 100 mm | D: 180 mm | B: 46 mm | C: 97.5 kN | C0: 40.5 kN | Limiting speed: 4800 r/min
2222 M d: 110 mm | D: 200 mm | B: 53 mm | C: 124 kN | C0: 52 kN | Limiting speed: 4300 r/min
2222 KM d: 110 mm | D: 200 mm | B: 53 mm | C: 124 kN | C0: 52 kN | Limiting speed: 4300 r/min
2200 E-2RS1TN9 d: 10 mm | D: 30 mm | B: 14 mm | C: 5.53 kN | C0: 1.18 kN | Speed rating: 17000 r/min
2201 E-2RS1TN9 d: 12 mm | D: 32 mm | B: 14 mm | C: 6.24 kN | C0: 1.43 kN | Speed rating: 16000 r/min
2202 E-2RS1TN9 d: 15 mm | D: 35 mm | B: 14 mm | C: 7.41 kN | C0: 1.76 kN | Speed rating: 14000 r/min
2203 E-2RS1TN9 d: 17 mm | D: 40 mm | B: 16 mm | C: 8.84 kN | C0: 2.2 kN | Speed rating: 12000 r/min
2204 E-2RS1TN9 d: 20 mm | D: 47 mm | B: 18 mm | C: 12.7 kN | C0: 3.4 kN | Speed rating: 10000 r/min
2205 E-2RS1TN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 14.3 kN | C0: 4 kN | Speed rating: 9000 r/min
2205 E-2RS1KTN9 d: 25 mm | D: 52 mm | B: 18 mm | C: 14.3 kN | C0: 4 kN | Speed rating: 9000 r/min
2206 E-2RS1TN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 15.6 kN | C0: 4.65 kN | Speed rating: 7500 r/min
2206 E-2RS1KTN9 d: 30 mm | D: 62 mm | B: 20 mm | C: 15.6 kN | C0: 4.65 kN | Speed rating: 7500 r/min
2207 E-2RS1TN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 19 kN | C0: 6 kN | Speed rating: 6300 r/min
2207 E-2RS1KTN9 d: 35 mm | D: 72 mm | B: 23 mm | C: 19 kN | C0: 6 kN | Speed rating: 6300 r/min
2208 E-2RS1TN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 19.9 kN | C0: 6.95 kN | Speed rating: 5600 r/min
2208 E-2RS1KTN9 d: 40 mm | D: 80 mm | B: 23 mm | C: 19.9 kN | C0: 6.95 kN | Speed rating: 5600 r/min
2209 E-2RS1TN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 22.9 kN | C0: 7.8 kN | Speed rating: 5300 r/min
2209 E-2RS1KTN9 d: 45 mm | D: 85 mm | B: 23 mm | C: 22.9 kN | C0: 7.8 kN | Speed rating: 5300 r/min
2210 E-2RS1TN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 22.9 kN | C0: 8.15 kN | Speed rating: 4800 r/min
2210 E-2RS1KTN9 d: 50 mm | D: 90 mm | B: 23 mm | C: 22.9 kN | C0: 8.15 kN | Speed rating: 4800 r/min
2211 E-2RS1TN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 27.6 kN | C0: 10.6 kN | Speed rating: 4300 r/min
2211 E-2RS1KTN9 d: 55 mm | D: 100 mm | B: 25 mm | C: 27.6 kN | C0: 10.6 kN | Speed rating: 4300 r/min
2212 E-2RS1TN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 31.2 kN | C0: 12.2 kN | Speed rating: 3800 r/min
2212 E-2RS1KTN9 d: 60 mm | D: 110 mm | B: 28 mm | C: 31.2 kN | C0: 12.2 kN | Speed rating: 3800 r/min
2213 E-2RS1TN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 35.1 kN | C0: 14 kN | Speed rating: 3600 r/min
2213 E-2RS1KTN9 d: 65 mm | D: 120 mm | B: 31 mm | C: 35.1 kN | C0: 14 kN | Speed rating: 3600 r/min
2214 E-2RS1TN9 d: 70 mm | D: 125 mm | B: 31 mm | C: 35.8 kN | C0: 14.6 kN | Speed rating: 3400 r/min
Self-Aligning Ball BearingsSKF
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 22 Series Self-Aligning Ball Bearings (incl. 2RS1)

Brand SKF·Self-Aligning Ball Bearings

Available part numbers (62)

2200 ETN9, 2201 ETN9, 2202 ETN9, 2203 ETN9, 2204 ETN9, 2205 ETN9, 2205 EKTN9, 2206 ETN9, 2206 EKTN9, 2207 ETN9 + 52 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2200 ETN9d: 10 mm | D: 30 mm | B: 14 mm | C: 8.06 kN | C0: 1.73 kN | Limiting speed: 34000 r/min
2201 ETN9d: 12 mm | D: 32 mm | B: 14 mm | C: 8.52 kN | C0: 1.90 kN | Limiting speed: 30000 r/min
2202 ETN9d: 15 mm | D: 35 mm | B: 14 mm | C: 8.71 kN | C0: 2.04 kN | Limiting speed: 26000 r/min
2203 ETN9d: 17 mm | D: 40 mm | B: 16 mm | C: 10.6 kN | C0: 2.55 kN | Limiting speed: 24000 r/min
2204 ETN9d: 20 mm | D: 47 mm | B: 18 mm | C: 16.8 kN | C0: 4.15 kN | Limiting speed: 20000 r/min
2205 ETN9d: 25 mm | D: 52 mm | B: 18 mm | C: 16.8 kN | C0: 4.4 kN | Limiting speed: 18000 r/min
2205 EKTN9d: 25 mm | D: 52 mm | B: 18 mm | C: 16.8 kN | C0: 4.4 kN | Limiting speed: 18000 r/min
2206 ETN9d: 30 mm | D: 62 mm | B: 20 mm | C: 23.8 kN | C0: 6.7 kN | Limiting speed: 15000 r/min
2206 EKTN9d: 30 mm | D: 62 mm | B: 20 mm | C: 23.8 kN | C0: 6.7 kN | Limiting speed: 15000 r/min
2207 ETN9d: 35 mm | D: 72 mm | B: 23 mm | C: 30.7 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
2207 EKTN9d: 35 mm | D: 72 mm | B: 23 mm | C: 30.7 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
2208 ETN9d: 40 mm | D: 80 mm | B: 23 mm | C: 31.9 kN | C0: 10 kN | Limiting speed: 11000 r/min
2208 EKTN9d: 40 mm | D: 80 mm | B: 23 mm | C: 31.9 kN | C0: 10 kN | Limiting speed: 11000 r/min
2209 ETN9d: 45 mm | D: 85 mm | B: 23 mm | C: 32.5 kN | C0: 10.6 kN | Limiting speed: 10000 r/min
2209 EKTN9d: 45 mm | D: 85 mm | B: 23 mm | C: 32.5 kN | C0: 10.6 kN | Limiting speed: 10000 r/min
2210 ETN9d: 50 mm | D: 90 mm | B: 23 mm | C: 33.8 kN | C0: 11.2 kN | Limiting speed: 9500 r/min
2210 EKTN9d: 50 mm | D: 90 mm | B: 23 mm | C: 33.8 kN | C0: 11.2 kN | Limiting speed: 9500 r/min
2211 ETN9d: 55 mm | D: 100 mm | B: 25 mm | C: 39 kN | C0: 13.4 kN | Limiting speed: 8500 r/min
2211 EKTN9d: 55 mm | D: 100 mm | B: 25 mm | C: 39 kN | C0: 13.4 kN | Limiting speed: 8500 r/min
2212 ETN9d: 60 mm | D: 110 mm | B: 28 mm | C: 48.8 kN | C0: 17 kN | Limiting speed: 8000 r/min
2212 EKTN9d: 60 mm | D: 110 mm | B: 28 mm | C: 48.8 kN | C0: 17 kN | Limiting speed: 8000 r/min
2213 ETN9d: 65 mm | D: 120 mm | B: 31 mm | C: 57.2 kN | C0: 20 kN | Limiting speed: 7000 r/min
2213 EKTN9d: 65 mm | D: 120 mm | B: 31 mm | C: 57.2 kN | C0: 20 kN | Limiting speed: 7000 r/min
2214d: 70 mm | D: 125 mm | B: 31 mm | C: 44.2 kN | C0: 17 kN | Limiting speed: 6700 r/min
2215 ETN9d: 75 mm | D: 130 mm | B: 31 mm | C: 58.5 kN | C0: 22 kN | Limiting speed: 6300 r/min
2215 EKTN9d: 75 mm | D: 130 mm | B: 31 mm | C: 58.5 kN | C0: 22 kN | Limiting speed: 6300 r/min
2216 ETN9d: 80 mm | D: 140 mm | B: 33 mm | C: 65 kN | C0: 25.5 kN | Limiting speed: 6000 r/min
2216 EKTN9d: 80 mm | D: 140 mm | B: 33 mm | C: 65 kN | C0: 25.5 kN | Limiting speed: 6000 r/min
2217d: 85 mm | D: 150 mm | B: 36 mm | C: 58.5 kN | C0: 23.6 kN | Limiting speed: 5600 r/min
2217 Kd: 85 mm | D: 150 mm | B: 36 mm | C: 58.5 kN | C0: 23.6 kN | Limiting speed: 5600 r/min
2218d: 90 mm | D: 160 mm | B: 40 mm | C: 70.2 kN | C0: 28.5 kN | Limiting speed: 5300 r/min
2218 Kd: 90 mm | D: 160 mm | B: 40 mm | C: 70.2 kN | C0: 28.5 kN | Limiting speed: 5300 r/min
2219 Md: 95 mm | D: 170 mm | B: 43 mm | C: 83.2 kN | C0: 34.5 kN | Limiting speed: 5000 r/min
2219 KMd: 95 mm | D: 170 mm | B: 43 mm | C: 83.2 kN | C0: 34.5 kN | Limiting speed: 5000 r/min
2220 Md: 100 mm | D: 180 mm | B: 46 mm | C: 97.5 kN | C0: 40.5 kN | Limiting speed: 4800 r/min
2220 KMd: 100 mm | D: 180 mm | B: 46 mm | C: 97.5 kN | C0: 40.5 kN | Limiting speed: 4800 r/min
2222 Md: 110 mm | D: 200 mm | B: 53 mm | C: 124 kN | C0: 52 kN | Limiting speed: 4300 r/min
2222 KMd: 110 mm | D: 200 mm | B: 53 mm | C: 124 kN | C0: 52 kN | Limiting speed: 4300 r/min
2200 E-2RS1TN9d: 10 mm | D: 30 mm | B: 14 mm | C: 5.53 kN | C0: 1.18 kN | Speed rating: 17000 r/min
2201 E-2RS1TN9d: 12 mm | D: 32 mm | B: 14 mm | C: 6.24 kN | C0: 1.43 kN | Speed rating: 16000 r/min
2202 E-2RS1TN9d: 15 mm | D: 35 mm | B: 14 mm | C: 7.41 kN | C0: 1.76 kN | Speed rating: 14000 r/min
2203 E-2RS1TN9d: 17 mm | D: 40 mm | B: 16 mm | C: 8.84 kN | C0: 2.2 kN | Speed rating: 12000 r/min
2204 E-2RS1TN9d: 20 mm | D: 47 mm | B: 18 mm | C: 12.7 kN | C0: 3.4 kN | Speed rating: 10000 r/min
2205 E-2RS1TN9d: 25 mm | D: 52 mm | B: 18 mm | C: 14.3 kN | C0: 4 kN | Speed rating: 9000 r/min
2205 E-2RS1KTN9d: 25 mm | D: 52 mm | B: 18 mm | C: 14.3 kN | C0: 4 kN | Speed rating: 9000 r/min
2206 E-2RS1TN9d: 30 mm | D: 62 mm | B: 20 mm | C: 15.6 kN | C0: 4.65 kN | Speed rating: 7500 r/min
2206 E-2RS1KTN9d: 30 mm | D: 62 mm | B: 20 mm | C: 15.6 kN | C0: 4.65 kN | Speed rating: 7500 r/min
2207 E-2RS1TN9d: 35 mm | D: 72 mm | B: 23 mm | C: 19 kN | C0: 6 kN | Speed rating: 6300 r/min
2207 E-2RS1KTN9d: 35 mm | D: 72 mm | B: 23 mm | C: 19 kN | C0: 6 kN | Speed rating: 6300 r/min
2208 E-2RS1TN9d: 40 mm | D: 80 mm | B: 23 mm | C: 19.9 kN | C0: 6.95 kN | Speed rating: 5600 r/min
2208 E-2RS1KTN9d: 40 mm | D: 80 mm | B: 23 mm | C: 19.9 kN | C0: 6.95 kN | Speed rating: 5600 r/min
2209 E-2RS1TN9d: 45 mm | D: 85 mm | B: 23 mm | C: 22.9 kN | C0: 7.8 kN | Speed rating: 5300 r/min
2209 E-2RS1KTN9d: 45 mm | D: 85 mm | B: 23 mm | C: 22.9 kN | C0: 7.8 kN | Speed rating: 5300 r/min
2210 E-2RS1TN9d: 50 mm | D: 90 mm | B: 23 mm | C: 22.9 kN | C0: 8.15 kN | Speed rating: 4800 r/min
2210 E-2RS1KTN9d: 50 mm | D: 90 mm | B: 23 mm | C: 22.9 kN | C0: 8.15 kN | Speed rating: 4800 r/min
2211 E-2RS1TN9d: 55 mm | D: 100 mm | B: 25 mm | C: 27.6 kN | C0: 10.6 kN | Speed rating: 4300 r/min
2211 E-2RS1KTN9d: 55 mm | D: 100 mm | B: 25 mm | C: 27.6 kN | C0: 10.6 kN | Speed rating: 4300 r/min
2212 E-2RS1TN9d: 60 mm | D: 110 mm | B: 28 mm | C: 31.2 kN | C0: 12.2 kN | Speed rating: 3800 r/min
2212 E-2RS1KTN9d: 60 mm | D: 110 mm | B: 28 mm | C: 31.2 kN | C0: 12.2 kN | Speed rating: 3800 r/min
2213 E-2RS1TN9d: 65 mm | D: 120 mm | B: 31 mm | C: 35.1 kN | C0: 14 kN | Speed rating: 3600 r/min
2213 E-2RS1KTN9d: 65 mm | D: 120 mm | B: 31 mm | C: 35.1 kN | C0: 14 kN | Speed rating: 3600 r/min
2214 E-2RS1TN9d: 70 mm | D: 125 mm | B: 31 mm | C: 35.8 kN | C0: 14.6 kN | Speed rating: 3400 r/min
