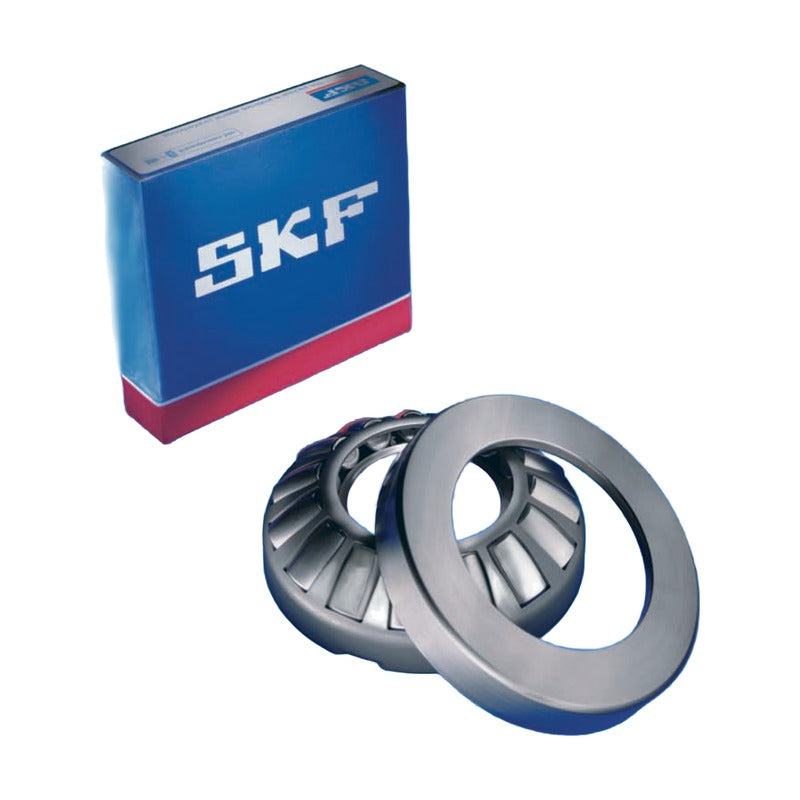

SKF 292 / 293 / 294 Series Spherical Roller Thrust Bearings

SKF 292 / 293 / 294 Series Spherical Roller Thrust Bearings

SKF spherical roller thrust bearings of series 292, 293 and 294 for heavy axial loads combined with radial loads. Bore diameters 60-1600 mm.

Key features

  • Very high axial load capacity with simultaneous radial load
  • Self-aligning: insensitive to misalignment and shaft deflection
  • Separable: shaft washer with roller and cage assembly, housing washer
  • E designs in SKF Explorer performance class; larger sizes with brass cage (M)
  • Minimum load factor A listed for each bearing in the catalogue

Specifications

Bearing type Spherical roller thrust bearing
Series 292, 293, 294
Bore range d 60-1600 mm
Outside dia. range D 130-2280 mm
Width key H = bearing height
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 884-890
29412 E d: 60 mm | D: 130 mm | H: 42 mm | C: 390 kN | C0: 915 kN | Limiting speed: 5000 r/min
29413 E d: 65 mm | D: 140 mm | H: 45 mm | C: 455 kN | C0: 1080 kN | Limiting speed: 4800 r/min
29414 E d: 70 mm | D: 150 mm | H: 48 mm | C: 520 kN | C0: 1250 kN | Limiting speed: 4300 r/min
29415 E d: 75 mm | D: 160 mm | H: 51 mm | C: 600 kN | C0: 1430 kN | Limiting speed: 4000 r/min
29416 E d: 80 mm | D: 170 mm | H: 54 mm | C: 670 kN | C0: 1630 kN | Limiting speed: 3800 r/min
29317 E d: 85 mm | D: 150 mm | H: 39 mm | C: 380 kN | C0: 1060 kN | Limiting speed: 4000 r/min
29417 E d: 85 mm | D: 180 mm | H: 58 mm | C: 735 kN | C0: 1800 kN | Limiting speed: 3600 r/min
29318 E d: 90 mm | D: 155 mm | H: 39 mm | C: 400 kN | C0: 1080 kN | Limiting speed: 4000 r/min
29418 E d: 90 mm | D: 190 mm | H: 60 mm | C: 815 kN | C0: 2000 kN | Limiting speed: 3400 r/min
29320 E d: 100 mm | D: 170 mm | H: 42 mm | C: 465 kN | C0: 1290 kN | Limiting speed: 3600 r/min
29420 E d: 100 mm | D: 210 mm | H: 67 mm | C: 980 kN | C0: 2500 kN | Limiting speed: 3000 r/min
29322 E d: 110 mm | D: 190 mm | H: 48 mm | C: 610 kN | C0: 1730 kN | Limiting speed: 3200 r/min
29422 E d: 110 mm | D: 230 mm | H: 73 mm | C: 1180 kN | C0: 3000 kN | Limiting speed: 2800 r/min
29324 E d: 120 mm | D: 210 mm | H: 54 mm | C: 765 kN | C0: 2120 kN | Limiting speed: 2800 r/min
29424 E d: 120 mm | D: 250 mm | H: 78 mm | C: 1370 kN | C0: 3450 kN | Limiting speed: 2600 r/min
29326 E d: 130 mm | D: 225 mm | H: 58 mm | C: 865 kN | C0: 2500 kN | Limiting speed: 2600 r/min
29426 E d: 130 mm | D: 270 mm | H: 85 mm | C: 1560 kN | C0: 4050 kN | Limiting speed: 2400 r/min
29328 E d: 140 mm | D: 240 mm | H: 60 mm | C: 980 kN | C0: 2850 kN | Limiting speed: 2600 r/min
29428 E d: 140 mm | D: 280 mm | H: 85 mm | C: 1630 kN | C0: 4300 kN | Limiting speed: 2400 r/min
29230 E d: 150 mm | D: 215 mm | H: 39 mm | C: 408 kN | C0: 1600 kN | Limiting speed: 2800 r/min
29330 E d: 150 mm | D: 250 mm | H: 60 mm | C: 1000 kN | C0: 2850 kN | Limiting speed: 2400 r/min
29430 E d: 150 mm | D: 300 mm | H: 90 mm | C: 1860 kN | C0: 5100 kN | Limiting speed: 2200 r/min
29332 E d: 160 mm | D: 270 mm | H: 67 mm | C: 1180 kN | C0: 3450 kN | Limiting speed: 2200 r/min
29432 E d: 160 mm | D: 320 mm | H: 95 mm | C: 2080 kN | C0: 5600 kN | Limiting speed: 2000 r/min
29334 E d: 170 mm | D: 280 mm | H: 67 mm | C: 1200 kN | C0: 3550 kN | Limiting speed: 2200 r/min
29434 E d: 170 mm | D: 340 mm | H: 103 mm | C: 2360 kN | C0: 6550 kN | Limiting speed: 1900 r/min
29236 E d: 180 mm | D: 250 mm | H: 42 mm | C: 495 kN | C0: 2040 kN | Limiting speed: 2600 r/min
29336 E d: 180 mm | D: 300 mm | H: 73 mm | C: 1430 kN | C0: 4300 kN | Limiting speed: 2000 r/min
29436 E d: 180 mm | D: 360 mm | H: 109 mm | C: 2600 kN | C0: 7350 kN | Limiting speed: 1800 r/min
29338 E d: 190 mm | D: 320 mm | H: 78 mm | C: 1630 kN | C0: 4750 kN | Limiting speed: 1900 r/min
29438 E d: 190 mm | D: 380 mm | H: 115 mm | C: 2850 kN | C0: 8000 kN | Limiting speed: 1700 r/min
29240 E d: 200 mm | D: 280 mm | H: 48 mm | C: 656 kN | C0: 2650 kN | Limiting speed: 2200 r/min
29340 E d: 200 mm | D: 340 mm | H: 85 mm | C: 1860 kN | C0: 5500 kN | Limiting speed: 1700 r/min
29440 E d: 200 mm | D: 400 mm | H: 122 mm | C: 3200 kN | C0: 9000 kN | Limiting speed: 1600 r/min
29244 E d: 220 mm | D: 300 mm | H: 48 mm | C: 690 kN | C0: 3000 kN | Limiting speed: 2200 r/min
29344 E d: 220 mm | D: 360 mm | H: 85 mm | C: 2000 kN | C0: 6300 kN | Limiting speed: 1700 r/min
29444 E d: 220 mm | D: 420 mm | H: 122 mm | C: 3350 kN | C0: 9650 kN | Limiting speed: 1500 r/min
29248 d: 240 mm | D: 340 mm | H: 60 mm | C: 799 kN | C0: 3450 kN | Limiting speed: 1800 r/min
29348 E d: 240 mm | D: 380 mm | H: 85 mm | C: 2040 kN | C0: 6550 kN | Limiting speed: 1600 r/min
29448 E d: 240 mm | D: 440 mm | H: 122 mm | C: 3400 kN | C0: 10200 kN | Limiting speed: 1500 r/min
29252 d: 260 mm | D: 360 mm | H: 60 mm | C: 817 kN | C0: 3650 kN | Limiting speed: 1700 r/min
29352 E d: 260 mm | D: 420 mm | H: 95 mm | C: 2550 kN | C0: 8300 kN | Limiting speed: 1400 r/min
29452 E d: 260 mm | D: 480 mm | H: 132 mm | C: 4050 kN | C0: 12900 kN | Limiting speed: 1300 r/min
29256 d: 280 mm | D: 380 mm | H: 60 mm | C: 863 kN | C0: 4000 kN | Limiting speed: 1700 r/min
29356 E d: 280 mm | D: 440 mm | H: 95 mm | C: 2550 kN | C0: 8650 kN | Limiting speed: 1400 r/min
29456 E d: 280 mm | D: 520 mm | H: 145 mm | C: 4900 kN | C0: 15300 kN | Limiting speed: 1200 r/min
29260 d: 300 mm | D: 420 mm | H: 73 mm | C: 1070 kN | C0: 4800 kN | Limiting speed: 1400 r/min
29360 E d: 300 mm | D: 480 mm | H: 109 mm | C: 3100 kN | C0: 10600 kN | Limiting speed: 1200 r/min
29460 E d: 300 mm | D: 540 mm | H: 145 mm | C: 4310 kN | C0: 16600 kN | Limiting speed: 1200 r/min
29264 d: 320 mm | D: 440 mm | H: 73 mm | C: 1110 kN | C0: 5100 kN | Limiting speed: 1400 r/min
29364 E d: 320 mm | D: 500 mm | H: 109 mm | C: 3350 kN | C0: 11200 kN | Limiting speed: 1200 r/min
29464 E d: 320 mm | D: 580 mm | H: 155 mm | C: 4950 kN | C0: 19000 kN | Limiting speed: 1100 r/min
29268 d: 340 mm | D: 460 mm | H: 73 mm | C: 1130 kN | C0: 5400 kN | Limiting speed: 1300 r/min
29368 d: 340 mm | D: 540 mm | H: 122 mm | C: 2710 kN | C0: 11000 kN | Limiting speed: 1100 r/min
29468 E d: 340 mm | D: 620 mm | H: 170 mm | C: 5750 kN | C0: 22400 kN | Limiting speed: 1000 r/min
29272 d: 360 mm | D: 500 mm | H: 85 mm | C: 1460 kN | C0: 6800 kN | Limiting speed: 1200 r/min
29372 d: 360 mm | D: 560 mm | H: 122 mm | C: 2760 kN | C0: 11600 kN | Limiting speed: 1100 r/min
29472 EM d: 360 mm | D: 640 mm | H: 170 mm | C: 5350 kN | C0: 21200 kN | Limiting speed: 950 r/min
29276 d: 380 mm | D: 520 mm | H: 85 mm | C: 1580 kN | C0: 7650 kN | Limiting speed: 1100 r/min
29376 d: 380 mm | D: 600 mm | H: 132 mm | C: 3340 kN | C0: 14000 kN | Limiting speed: 1000 r/min
29476 EM d: 380 mm | D: 670 mm | H: 175 mm | C: 5870 kN | C0: 24000 kN | Limiting speed: 900 r/min
29280 d: 400 mm | D: 540 mm | H: 85 mm | C: 1610 kN | C0: 8000 kN | Limiting speed: 1100 r/min
29380 d: 400 mm | D: 620 mm | H: 132 mm | C: 3450 kN | C0: 14600 kN | Limiting speed: 950 r/min
29480 EM d: 400 mm | D: 710 mm | H: 185 mm | C: 6560 kN | C0: 26500 kN | Limiting speed: 850 r/min
29284 d: 420 mm | D: 580 mm | H: 95 mm | C: 1990 kN | C0: 9800 kN | Limiting speed: 1000 r/min
29384 d: 420 mm | D: 650 mm | H: 140 mm | C: 3740 kN | C0: 16000 kN | Limiting speed: 900 r/min
29484 EM d: 420 mm | D: 730 mm | H: 185 mm | C: 6730 kN | C0: 27500 kN | Limiting speed: 850 r/min
29288 d: 440 mm | D: 600 mm | H: 95 mm | C: 2070 kN | C0: 10400 kN | Limiting speed: 1000 r/min
29388 EM d: 440 mm | D: 680 mm | H: 145 mm | C: 4490 kN | C0: 19300 kN | Limiting speed: 850 r/min
29488 EM d: 440 mm | D: 780 mm | H: 206 mm | C: 7820 kN | C0: 32000 kN | Limiting speed: 750 r/min
29292 d: 460 mm | D: 620 mm | H: 95 mm | C: 2070 kN | C0: 10600 kN | Limiting speed: 950 r/min
29392 d: 460 mm | D: 710 mm | H: 150 mm | C: 4310 kN | C0: 19000 kN | Limiting speed: 800 r/min
29492 EM d: 460 mm | D: 800 mm | H: 206 mm | C: 7990 kN | C0: 33500 kN | Limiting speed: 750 r/min
29296 d: 480 mm | D: 650 mm | H: 103 mm | C: 2350 kN | C0: 11800 kN | Limiting speed: 900 r/min
29396 d: 480 mm | D: 730 mm | H: 150 mm | C: 4370 kN | C0: 19600 kN | Limiting speed: 800 r/min
29496 EM d: 480 mm | D: 850 mm | H: 224 mm | C: 9550 kN | C0: 39000 kN | Limiting speed: 670 r/min
292/500 d: 500 mm | D: 670 mm | H: 103 mm | C: 2390 kN | C0: 12500 kN | Limiting speed: 900 r/min
293/500 d: 500 mm | D: 750 mm | H: 150 mm | C: 4490 kN | C0: 20400 kN | Limiting speed: 800 r/min
294/500 EM d: 500 mm | D: 870 mm | H: 224 mm | C: 9370 kN | C0: 40000 kN | Limiting speed: 670 r/min
292/530 EM d: 530 mm | D: 710 mm | H: 109 mm | C: 3110 kN | C0: 15300 kN | Limiting speed: 850 r/min
293/530 d: 530 mm | D: 800 mm | H: 160 mm | C: 5230 kN | C0: 23600 kN | Limiting speed: 750 r/min
294/530 EM d: 530 mm | D: 920 mm | H: 236 mm | C: 10500 kN | C0: 44000 kN | Limiting speed: 630 r/min
292/560 d: 560 mm | D: 750 mm | H: 115 mm | C: 2990 kN | C0: 16000 kN | Limiting speed: 800 r/min
294/560 EM d: 560 mm | D: 980 mm | H: 250 mm | C: 12000 kN | C0: 51000 kN | Limiting speed: 560 r/min
292/600 EM d: 600 mm | D: 800 mm | H: 122 mm | C: 3740 kN | C0: 18600 kN | Limiting speed: 700 r/min
293/600 d: 600 mm | D: 900 mm | H: 180 mm | C: 7530 kN | C0: 34500 kN | Limiting speed: 630 r/min
294/600 EM d: 600 mm | D: 1030 mm | H: 258 mm | C: 13100 kN | C0: 56000 kN | Limiting speed: 530 r/min
292/630 EM d: 630 mm | D: 850 mm | H: 132 mm | C: 4770 kN | C0: 23600 kN | Limiting speed: 670 r/min
293/630 EM d: 630 mm | D: 950 mm | H: 190 mm | C: 8450 kN | C0: 38000 kN | Limiting speed: 600 r/min
294/630 EM d: 630 mm | D: 1090 mm | H: 280 mm | C: 14400 kN | C0: 62000 kN | Limiting speed: 500 r/min
292/670 d: 670 mm | D: 900 mm | H: 140 mm | C: 4200 kN | C0: 22800 kN | Limiting speed: 630 r/min
294/670 EM d: 670 mm | D: 1150 mm | H: 290 mm | C: 15400 kN | C0: 68000 kN | Limiting speed: 450 r/min
293/710 EM d: 710 mm | D: 1060 mm | H: 212 mm | C: 9950 kN | C0: 45500 kN | Limiting speed: 500 r/min
294/710 EF d: 710 mm | D: 1220 mm | H: 308 mm | C: 17600 kN | C0: 76500 kN | Limiting speed: 430 r/min
292/750 EM d: 750 mm | D: 1000 mm | H: 150 mm | C: 6100 kN | C0: 31000 kN | Limiting speed: 560 r/min
293/750 d: 750 mm | D: 1120 mm | H: 224 mm | C: 9370 kN | C0: 45000 kN | Limiting speed: 480 r/min
294/750 EF d: 750 mm | D: 1280 mm | H: 315 mm | C: 18700 kN | C0: 85000 kN | Limiting speed: 400 r/min
292/800 EM d: 800 mm | D: 1060 mm | H: 155 mm | C: 6560 kN | C0: 34500 kN | Limiting speed: 530 r/min
293/800 d: 800 mm | D: 1180 mm | H: 230 mm | C: 9950 kN | C0: 49000 kN | Limiting speed: 450 r/min
294/800 EF d: 800 mm | D: 1360 mm | H: 335 mm | C: 20200 kN | C0: 93000 kN | Limiting speed: 360 r/min
292/850 EM d: 850 mm | D: 1120 mm | H: 160 mm | C: 6730 kN | C0: 36000 kN | Limiting speed: 500 r/min
294/850 EF d: 850 mm | D: 1440 mm | H: 354 mm | C: 23900 kN | C0: 108000 kN | Limiting speed: 340 r/min
294/900 EF d: 900 mm | D: 1520 mm | H: 372 mm | C: 26700 kN | C0: 122000 kN | Limiting speed: 300 r/min
292/950 EM d: 950 mm | D: 1250 mm | H: 180 mm | C: 8280 kN | C0: 45500 kN | Limiting speed: 430 r/min
294/950 EF d: 950 mm | D: 1600 mm | H: 390 mm | C: 28200 kN | C0: 132000 kN | Limiting speed: 280 r/min
294/1000 EF d: 1000 mm | D: 1670 mm | H: 402 mm | C: 31100 kN | C0: 140000 kN | Limiting speed: 260 r/min
292/1060 EF d: 1060 mm | D: 1400 mm | H: 206 mm | C: 10500 kN | C0: 58500 kN | Limiting speed: 360 r/min
294/1060 EF d: 1060 mm | D: 1770 mm | H: 426 mm | C: 33400 kN | C0: 156000 kN | Limiting speed: 240 r/min
292/1180 EF d: 1180 mm | D: 1520 mm | H: 206 mm | C: 10900 kN | C0: 64000 kN | Limiting speed: 340 r/min
293/1250 EF d: 1250 mm | D: 1800 mm | H: 330 mm | C: 24800 kN | C0: 129000 kN | Limiting speed: 240 r/min
293/1600 EF d: 1600 mm | D: 2280 mm | H: 408 mm | C: 36800 kN | C0: 200000 kN | Limiting speed: 160 r/min
Thrust BearingsSKF
111 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 292 / 293 / 294 Series Spherical Roller Thrust Bearings

Brand SKF·Thrust Bearings

Available part numbers (111)

29412 E, 29413 E, 29414 E, 29415 E, 29416 E, 29317 E, 29417 E, 29318 E, 29418 E, 29320 E + 101 more — see full table ↓
