• SKF 32 Series Double Row Angular Contact Ball Bearings
1 1

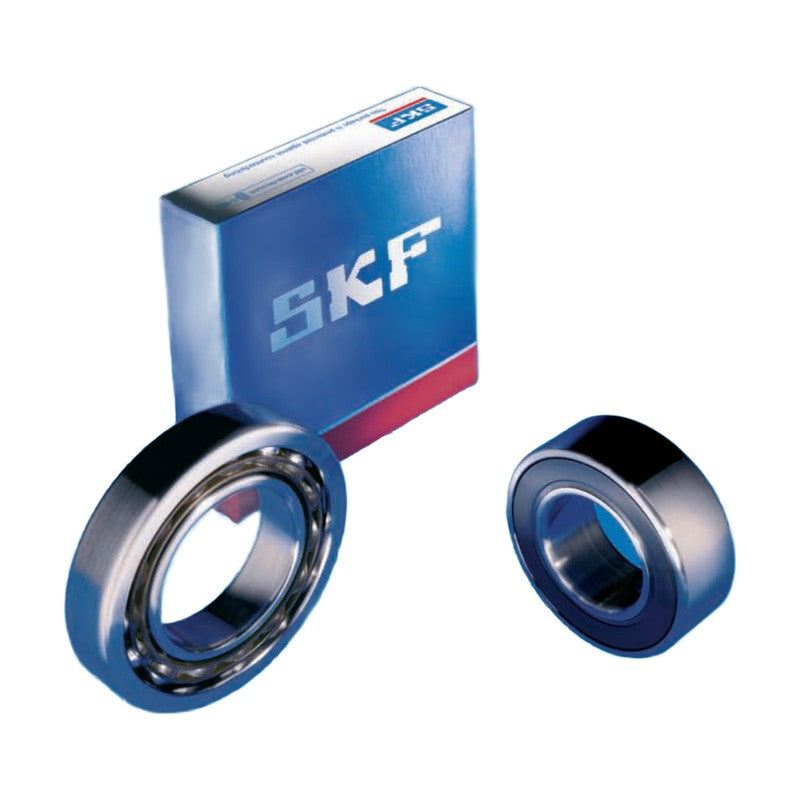

SKF 32 Series Double Row Angular Contact Ball Bearings

SKF 32 Series Double Row Angular Contact Ball Bearings

SKF double row angular contact ball bearings of the 32 series, open, shielded (2Z) and sealed (2RS1).

Key features

  • Corresponds to two single row angular contact bearings back-to-back in one unit
  • Takes radial loads and axial loads in both directions plus tilting moments
  • Open design with polyamide (TN9) or steel/brass cage
  • Shielded 2Z and sealed 2RS1 versions greased for life
  • Requires less axial space than a bearing pair

Specifications

Bearing type Double row angular contact ball bearing
Series 32
Variants Open, 2Z, 2RS1
Load direction Radial and axial (both directions)
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 442-449
3200 ATN9 d: 10 mm | D: 30 mm | B: 14 mm | C: 7.61 kN | C0: 4.3 kN | Limiting speed: 24000 r/min
3201 ATN9 d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.1 kN | C0: 5.6 kN | Limiting speed: 22000 r/min
3202 ATN9 d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.2 kN | C0: 6.8 kN | Limiting speed: 18000 r/min
3203 ATN9 d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.3 kN | C0: 8.8 kN | Limiting speed: 16000 r/min
3204 A d: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 14000 r/min
3204 ATN9 d: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 14000 r/min
3205 A d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 12000 r/min
3205 ATN9 d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 12000 r/min
3206 A d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 10000 r/min
3206 ATN9 d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 10000 r/min
3207 A d: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 9000 r/min
3207 ATN9 d: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 9000 r/min
3208 A d: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 8000 r/min
3208 ATN9 d: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 8000 r/min
3209 A d: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7500 r/min
3209 ATN9 d: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7500 r/min
3210 A d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7000 r/min
3210 ATN9 d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7000 r/min
3211 A d: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 6300 r/min
3211 ATN9 d: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 6300 r/min
3212 A d: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 5600 r/min
3212 ATN9 d: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 5600 r/min
3213 A d: 65 mm | D: 120 mm | B: 38.1 mm | C: 80.6 kN | C0: 73.5 kN | Limiting speed: 4800 r/min
3214 A d: 70 mm | D: 125 mm | B: 39.7 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 4500 r/min
3215 A d: 75 mm | D: 130 mm | B: 41.3 mm | C: 95.6 kN | C0: 88 kN | Limiting speed: 4500 r/min
3216 A d: 80 mm | D: 140 mm | B: 44.4 mm | C: 106 kN | C0: 95 kN | Limiting speed: 4300 r/min
3217 A d: 85 mm | D: 150 mm | B: 49.2 mm | C: 124 kN | C0: 110 kN | Limiting speed: 3800 r/min
3218 A d: 90 mm | D: 160 mm | B: 52.4 mm | C: 130 kN | C0: 120 kN | Limiting speed: 3600 r/min
3219 A d: 95 mm | D: 170 mm | B: 55.6 mm | C: 159 kN | C0: 146 kN | Limiting speed: 3400 r/min
3220 A d: 100 mm | D: 180 mm | B: 60.3 mm | C: 178 kN | C0: 166 kN | Limiting speed: 3200 r/min
3222 A d: 110 mm | D: 200 mm | B: 69.8 mm | C: 212 kN | C0: 212 kN | Limiting speed: 2800 r/min
3200 A-2Z d: 10 mm | D: 30 mm | B: 14 mm | C: 7.61 kN | C0: 4.3 kN | Limiting speed: 24000 r/min
3200 A-2RS1 d: 10 mm | D: 30 mm | B: 14 mm | C: 7.61 kN | C0: 4.3 kN | Limiting speed: 17000 r/min
3201 A-2Z d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.1 kN | C0: 5.6 kN | Limiting speed: 22000 r/min
3201 A-2RS1 d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.1 kN | C0: 5.6 kN | Limiting speed: 15000 r/min
3202 A-2Z d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.2 kN | C0: 6.8 kN | Limiting speed: 18000 r/min
3202 A-2RS1 d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.2 kN | C0: 6.8 kN | Limiting speed: 14000 r/min
3203 A-2Z d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.3 kN | C0: 8.8 kN | Limiting speed: 16000 r/min
3203 A-2RS1 d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.3 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
3204 A-2Z d: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 14000 r/min
3204 A-2RS1 d: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 10000 r/min
3205 A-2Z d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 12000 r/min
3205 A-2RS1 d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 8500 r/min
3206 A-2Z d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 10000 r/min
3206 A-2RS1 d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 7500 r/min
3207 A-2Z d: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 9000 r/min
3207 A-2RS1 d: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 6300 r/min
3208 A-2Z d: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 8000 r/min
3208 A-2RS1 d: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 5600 r/min
3209 A-2Z d: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7500 r/min
3209 A-2RS1 d: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 5300 r/min
3210 A-2Z d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7000 r/min
3210 A-2RS1 d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 4800 r/min
3211 A-2Z d: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 6300 r/min
3211 A-2RS1 d: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 4500 r/min
3212 A-2Z d: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 5600 r/min
3212 A-2RS1 d: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 4000 r/min
3213 A-2Z d: 65 mm | D: 120 mm | B: 38.1 mm | C: 80.6 kN | C0: 73.5 kN | Limiting speed: 4800 r/min
3213 A-2RS1 d: 65 mm | D: 120 mm | B: 38.1 mm | C: 80.6 kN | C0: 73.5 kN | Limiting speed: 3600 r/min
3214 A-2Z d: 70 mm | D: 125 mm | B: 39.7 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 4500 r/min
3215 A-2Z d: 75 mm | D: 130 mm | B: 41.3 mm | C: 95.6 kN | C0: 88 kN | Limiting speed: 4500 r/min
Angular Contact Ball BearingsSKF
61 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 32 Series Double Row Angular Contact Ball Bearings

Brand SKF·Angular Contact Ball Bearings

Available part numbers (61)

3200 ATN9, 3201 ATN9, 3202 ATN9, 3203 ATN9, 3204 A, 3204 ATN9, 3205 A, 3205 ATN9, 3206 A, 3206 ATN9 + 51 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3200 ATN9d: 10 mm | D: 30 mm | B: 14 mm | C: 7.61 kN | C0: 4.3 kN | Limiting speed: 24000 r/min
3201 ATN9d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.1 kN | C0: 5.6 kN | Limiting speed: 22000 r/min
3202 ATN9d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.2 kN | C0: 6.8 kN | Limiting speed: 18000 r/min
3203 ATN9d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.3 kN | C0: 8.8 kN | Limiting speed: 16000 r/min
3204 Ad: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 14000 r/min
3204 ATN9d: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 14000 r/min
3205 Ad: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 12000 r/min
3205 ATN9d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 12000 r/min
3206 Ad: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 10000 r/min
3206 ATN9d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 10000 r/min
3207 Ad: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 9000 r/min
3207 ATN9d: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 9000 r/min
3208 Ad: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 8000 r/min
3208 ATN9d: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 8000 r/min
3209 Ad: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7500 r/min
3209 ATN9d: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7500 r/min
3210 Ad: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7000 r/min
3210 ATN9d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7000 r/min
3211 Ad: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 6300 r/min
3211 ATN9d: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 6300 r/min
3212 Ad: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 5600 r/min
3212 ATN9d: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 5600 r/min
3213 Ad: 65 mm | D: 120 mm | B: 38.1 mm | C: 80.6 kN | C0: 73.5 kN | Limiting speed: 4800 r/min
3214 Ad: 70 mm | D: 125 mm | B: 39.7 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 4500 r/min
3215 Ad: 75 mm | D: 130 mm | B: 41.3 mm | C: 95.6 kN | C0: 88 kN | Limiting speed: 4500 r/min
3216 Ad: 80 mm | D: 140 mm | B: 44.4 mm | C: 106 kN | C0: 95 kN | Limiting speed: 4300 r/min
3217 Ad: 85 mm | D: 150 mm | B: 49.2 mm | C: 124 kN | C0: 110 kN | Limiting speed: 3800 r/min
3218 Ad: 90 mm | D: 160 mm | B: 52.4 mm | C: 130 kN | C0: 120 kN | Limiting speed: 3600 r/min
3219 Ad: 95 mm | D: 170 mm | B: 55.6 mm | C: 159 kN | C0: 146 kN | Limiting speed: 3400 r/min
3220 Ad: 100 mm | D: 180 mm | B: 60.3 mm | C: 178 kN | C0: 166 kN | Limiting speed: 3200 r/min
3222 Ad: 110 mm | D: 200 mm | B: 69.8 mm | C: 212 kN | C0: 212 kN | Limiting speed: 2800 r/min
3200 A-2Zd: 10 mm | D: 30 mm | B: 14 mm | C: 7.61 kN | C0: 4.3 kN | Limiting speed: 24000 r/min
3200 A-2RS1d: 10 mm | D: 30 mm | B: 14 mm | C: 7.61 kN | C0: 4.3 kN | Limiting speed: 17000 r/min
3201 A-2Zd: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.1 kN | C0: 5.6 kN | Limiting speed: 22000 r/min
3201 A-2RS1d: 12 mm | D: 32 mm | B: 15.9 mm | C: 10.1 kN | C0: 5.6 kN | Limiting speed: 15000 r/min
3202 A-2Zd: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.2 kN | C0: 6.8 kN | Limiting speed: 18000 r/min
3202 A-2RS1d: 15 mm | D: 35 mm | B: 15.9 mm | C: 11.2 kN | C0: 6.8 kN | Limiting speed: 14000 r/min
3203 A-2Zd: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.3 kN | C0: 8.8 kN | Limiting speed: 16000 r/min
3203 A-2RS1d: 17 mm | D: 40 mm | B: 17.5 mm | C: 14.3 kN | C0: 8.8 kN | Limiting speed: 12000 r/min
3204 A-2Zd: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 14000 r/min
3204 A-2RS1d: 20 mm | D: 47 mm | B: 20.6 mm | C: 20 kN | C0: 12 kN | Limiting speed: 10000 r/min
3205 A-2Zd: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 12000 r/min
3205 A-2RS1d: 25 mm | D: 52 mm | B: 20.6 mm | C: 21.6 kN | C0: 14.3 kN | Limiting speed: 8500 r/min
3206 A-2Zd: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 10000 r/min
3206 A-2RS1d: 30 mm | D: 62 mm | B: 23.8 mm | C: 30 kN | C0: 20.4 kN | Limiting speed: 7500 r/min
3207 A-2Zd: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 9000 r/min
3207 A-2RS1d: 35 mm | D: 72 mm | B: 27 mm | C: 40 kN | C0: 28 kN | Limiting speed: 6300 r/min
3208 A-2Zd: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 8000 r/min
3208 A-2RS1d: 40 mm | D: 80 mm | B: 30.2 mm | C: 47.5 kN | C0: 34 kN | Limiting speed: 5600 r/min
3209 A-2Zd: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7500 r/min
3209 A-2RS1d: 45 mm | D: 85 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 5300 r/min
3210 A-2Zd: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 7000 r/min
3210 A-2RS1d: 50 mm | D: 90 mm | B: 30.2 mm | C: 51 kN | C0: 39 kN | Limiting speed: 4800 r/min
3211 A-2Zd: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 6300 r/min
3211 A-2RS1d: 55 mm | D: 100 mm | B: 33.3 mm | C: 60 kN | C0: 47.5 kN | Limiting speed: 4500 r/min
3212 A-2Zd: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 5600 r/min
3212 A-2RS1d: 60 mm | D: 110 mm | B: 36.5 mm | C: 73.5 kN | C0: 58.5 kN | Limiting speed: 4000 r/min
3213 A-2Zd: 65 mm | D: 120 mm | B: 38.1 mm | C: 80.6 kN | C0: 73.5 kN | Limiting speed: 4800 r/min
3213 A-2RS1d: 65 mm | D: 120 mm | B: 38.1 mm | C: 80.6 kN | C0: 73.5 kN | Limiting speed: 3600 r/min
3214 A-2Zd: 70 mm | D: 125 mm | B: 39.7 mm | C: 88.4 kN | C0: 80 kN | Limiting speed: 4500 r/min
3215 A-2Zd: 75 mm | D: 130 mm | B: 41.3 mm | C: 95.6 kN | C0: 88 kN | Limiting speed: 4500 r/min

Need a different model, or a part not listed here? Send us your parts list →
