SKF 3612(00) R Series Single Row Cam Rollers

SKF 3612(00) R Series Single Row Cam Rollers

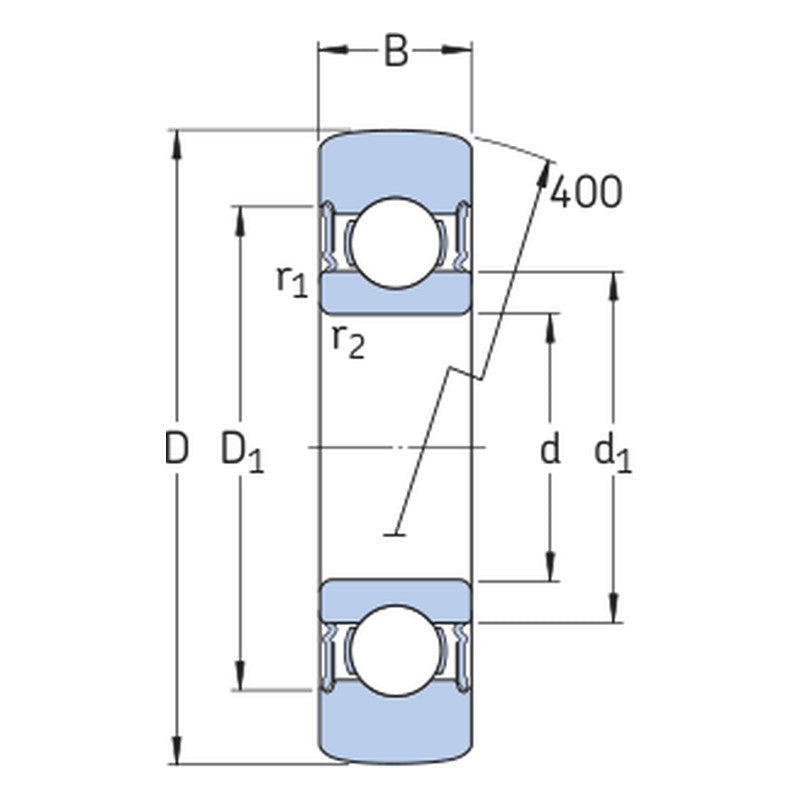

SKF single row cam rollers of the narrow 3612(00) R series, based on 62 series deep groove ball bearings with a thick outer ring and crowned runner surface.

Key features

  • Based on 62 series deep groove ball bearings
  • Crowned runner surface tolerates misalignment and minimizes edge stress
  • Sheet steel reinforced NBR seals on both sides, greased and ready to mount
  • C3 radial internal clearance as standard
  • For cam drives, conveyors and similar track applications

Specifications

Product type Single row cam roller
Series 3612(00) R
Runner surface Crowned
Internal clearance C3
Seals NBR, both sides
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 402-403
361200 R d: 10 mm | D: 32 mm | B: 9 mm | C: 4.62 kN | C0: 2 kN | Limiting speed: 12000 r/min
361201 R d: 12 mm | D: 35 mm | B: 10 mm | C: 6.24 kN | C0: 2.6 kN | Limiting speed: 11000 r/min
361202 R d: 15 mm | D: 40 mm | B: 11 mm | C: 7.02 kN | C0: 3.2 kN | Limiting speed: 9500 r/min
361203 R d: 17 mm | D: 47 mm | B: 12 mm | C: 8.84 kN | C0: 4.15 kN | Limiting speed: 8500 r/min
361204 R d: 20 mm | D: 52 mm | B: 14 mm | C: 11.4 kN | C0: 5.4 kN | Limiting speed: 7500 r/min
361205 R d: 25 mm | D: 62 mm | B: 15 mm | C: 12.7 kN | C0: 6.8 kN | Limiting speed: 6300 r/min
361206 R d: 30 mm | D: 72 mm | B: 16 mm | C: 17.4 kN | C0: 9.3 kN | Limiting speed: 5300 r/min
361207 R d: 35 mm | D: 80 mm | B: 17 mm | C: 22.1 kN | C0: 11.8 kN | Limiting speed: 4500 r/min
Track RollersSKF
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 3612(00) R Series Single Row Cam Rollers

Brand SKF·Track Rollers

Available part numbers (8)

361200 R, 361201 R, 361202 R, 361203 R, 361204 R, 361205 R, 361206 R, 361207 R

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
361200 Rd: 10 mm | D: 32 mm | B: 9 mm | C: 4.62 kN | C0: 2 kN | Limiting speed: 12000 r/min
361201 Rd: 12 mm | D: 35 mm | B: 10 mm | C: 6.24 kN | C0: 2.6 kN | Limiting speed: 11000 r/min
361202 Rd: 15 mm | D: 40 mm | B: 11 mm | C: 7.02 kN | C0: 3.2 kN | Limiting speed: 9500 r/min
361203 Rd: 17 mm | D: 47 mm | B: 12 mm | C: 8.84 kN | C0: 4.15 kN | Limiting speed: 8500 r/min
361204 Rd: 20 mm | D: 52 mm | B: 14 mm | C: 11.4 kN | C0: 5.4 kN | Limiting speed: 7500 r/min
361205 Rd: 25 mm | D: 62 mm | B: 15 mm | C: 12.7 kN | C0: 6.8 kN | Limiting speed: 6300 r/min
361206 Rd: 30 mm | D: 72 mm | B: 16 mm | C: 17.4 kN | C0: 9.3 kN | Limiting speed: 5300 r/min
361207 Rd: 35 mm | D: 80 mm | B: 17 mm | C: 22.1 kN | C0: 11.8 kN | Limiting speed: 4500 r/min
